Venstar T1800 Manuel utilisateur

Venstar Inc. 08/07

Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage

Electric Cooling & 3 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.

Digital

Thermostat

Digital

Thermostat

residential

800

HEAT

COOL HEAT

PUMP

PROGRAMMABLE

7-DAY

PROGRAMMABLE

7-DAY

up to

& 2-cool

up to

& 2-cool

3-heat

THERMOSTAT

Outdoor Sensor Ready

with High/Low Readouts

for the Day

Accepts Optional Humidity Module:

Controls Humidification and

Dehumidification

Accepts EZ Programmer

Accepts Optional IR Remote Control

Accepts Comfort Call

Phone Control Accessory

Control up to 3 Heat &

2 Cool Stages

3 Configurable Outputs

Timers & Deadbands

Backlit Display & Button

Legends

Aux Heat Indicator

Adjustable 2nd & 3rd Stage

OWNER’S

MANUAL

OWNER’S

MANUAL

Page i

NOTE: Due to variations in environmental conditions, it is not

always possible to achieve the desired humidification or

dehumidification setpoint.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Follow the Installation Instructions before proceeding.

Set the thermostat mode to “OFF” prior to changing

settings in setup or restoring Factory Defaults.

NEVER PUT MORE THAN ONE

JUMPER ON THE SAME MISC

JUMPER BLOCK!

THIS MAY DAMAGE YOUR

THERMOSTAT AND VOID

YOUR WARRANTY.

CAUTION

FOR HOME OR OFFICE USE

Tested to Comply

with FCC Standards

Thermostat T1800

4Z95

CAUTION

MISC3 MISC3

Page ii

Page 14.1

Section 14 Contents:

Adjusting the Heat/Cool

Differential..............................14.2

Adjusting the Cycles

Per Hour..................................14.3

Adjusting the Deadband..........14.4

Adjusting the Minutes of

Run-Time Before the

Next Stage...............................14.6

Selecting 2nd Stage Turn

Off Temperature.....................14.7

SECTION 14

Timers and Deadbands

The first page of each section contains a more detailed Contents of each

section, such as the example page shown below.

The Table of Contents divides the thermostat features into sections

making it easier to quickly find information.

In addition, this manual also has an Index to help you find any information

regarding this thermostat quickly.

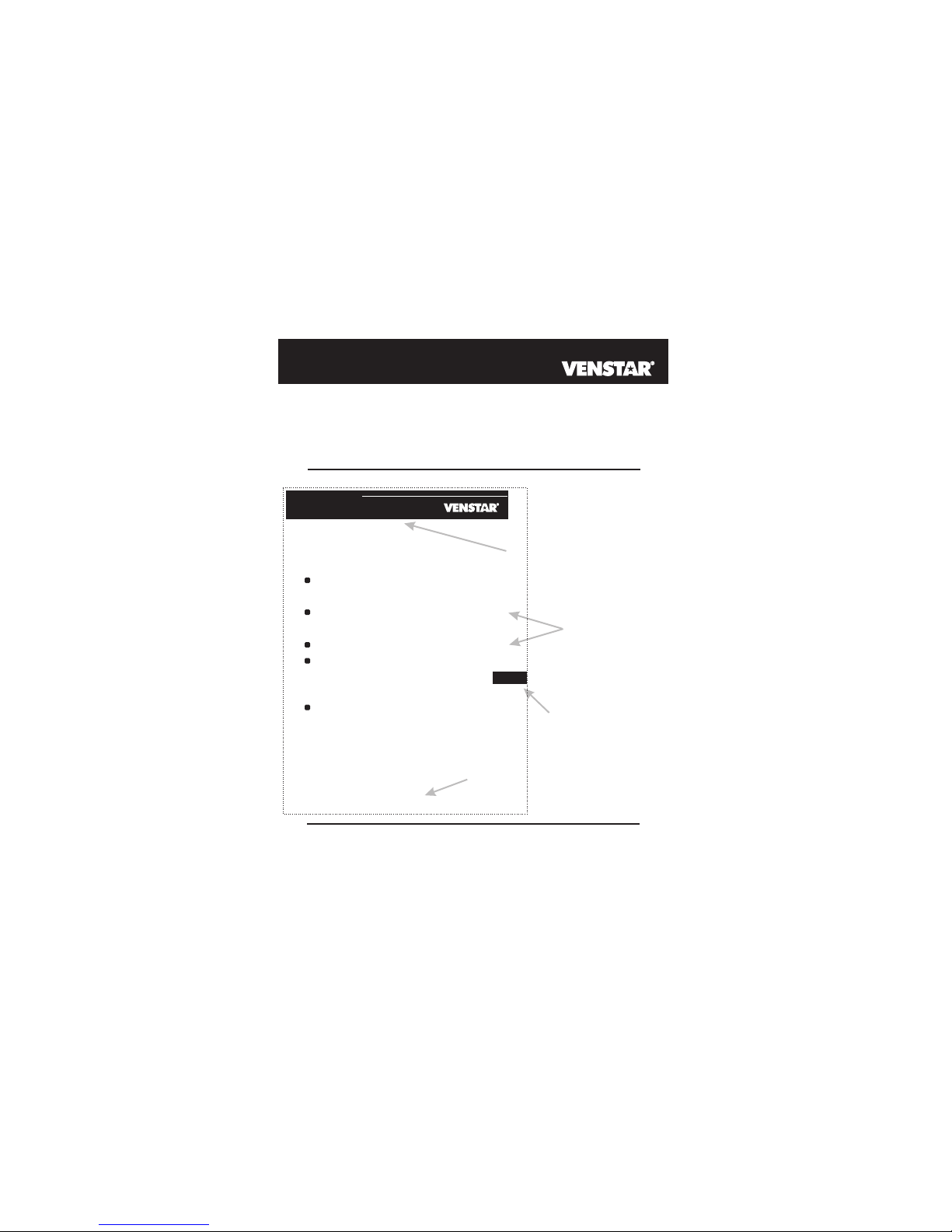

How to Use This Manual

Header shows section #

and title of section

Section contents

Visible section tab

on the side of the

page

Section and page #

Glossary of Terms

Page iii

Auto-Changeover: A mode in which the thermostat will turn on

the heating or cooling based on room temperature demand.

Configurable Output Jumper: Using jumpers on the thermostat

you can configure the MISC1, MISC2, and MISC3 terminals to

operate with regards to humidification, dehumidification, 2nd

stage cooling, 3rd stage heating, and a programmable output.

Cool Setpoint: The warmest temperature that the space should

rise to before cooling is turned on (without regards to

deadband).

Deadband: The number of degrees the thermostat will wait, once

setpoint has been reached, before energizing heating or cooling.

Dehumidify: To reduce the amount of moisture in the air.

Differential: The forced temperature difference between the

heat setpoint and the cool setpoint.

Heat Setpoint: The coolest temperature that the space should

drop to before heating is turned on (without regards to

deadband).

Humidify: To increase the amount of moisture in the air.

Icon: The word or symbol that appears on the thermostat

display.

Mode: The current operating condition of the thermostat (i.e. Off,

Heat, Cool, Auto, Program On).

Non-Programmable Thermostat: A thermostat that does not

have the capability of running the Time Period Programming.

Programmable Thermostat: A thermostat that has the capability

of running the Time Period Programming.

Temperature Swing: Same as Deadband.

Time Period Programming: A program that allows the

thermostat to automatically adjust the heat setpoint and/or the

cool setpoint based on the time of day.

Table of Contents

Page iv

Quick Start

Getting to Know Your

Thermostat

Setting Clock and Day

Basic Operation

Viewing Temperature

and Humidity Sensors

Programming the

Daily Schedule

Programming the

Fan Operation

Thermostat Display

Options

Humidification

Dehumidification

Viewing Equipment

Run-Times

Electric Heat and

Heat Pump Operation

Timers and Deadbands

Programming Remote

Sensor Operation

Energy Save

Operation

Programming the Run-

Time Alerts

Programming the

Vacation Mode

Configuring the MISC

Outputs

Factory Defaults and

Calibration

Accessories

Advanced Setup Table

Section 1 Contents:

Front Panel Buttons.....................1.2

Display Features...........................1.3

Page 1.1

SECTION 1

Getting to Know Your Thermostat

Backlit LCD Display

Mode

Button

Heat or Cool Demand Indicator

Red = Heat, Green = Cool

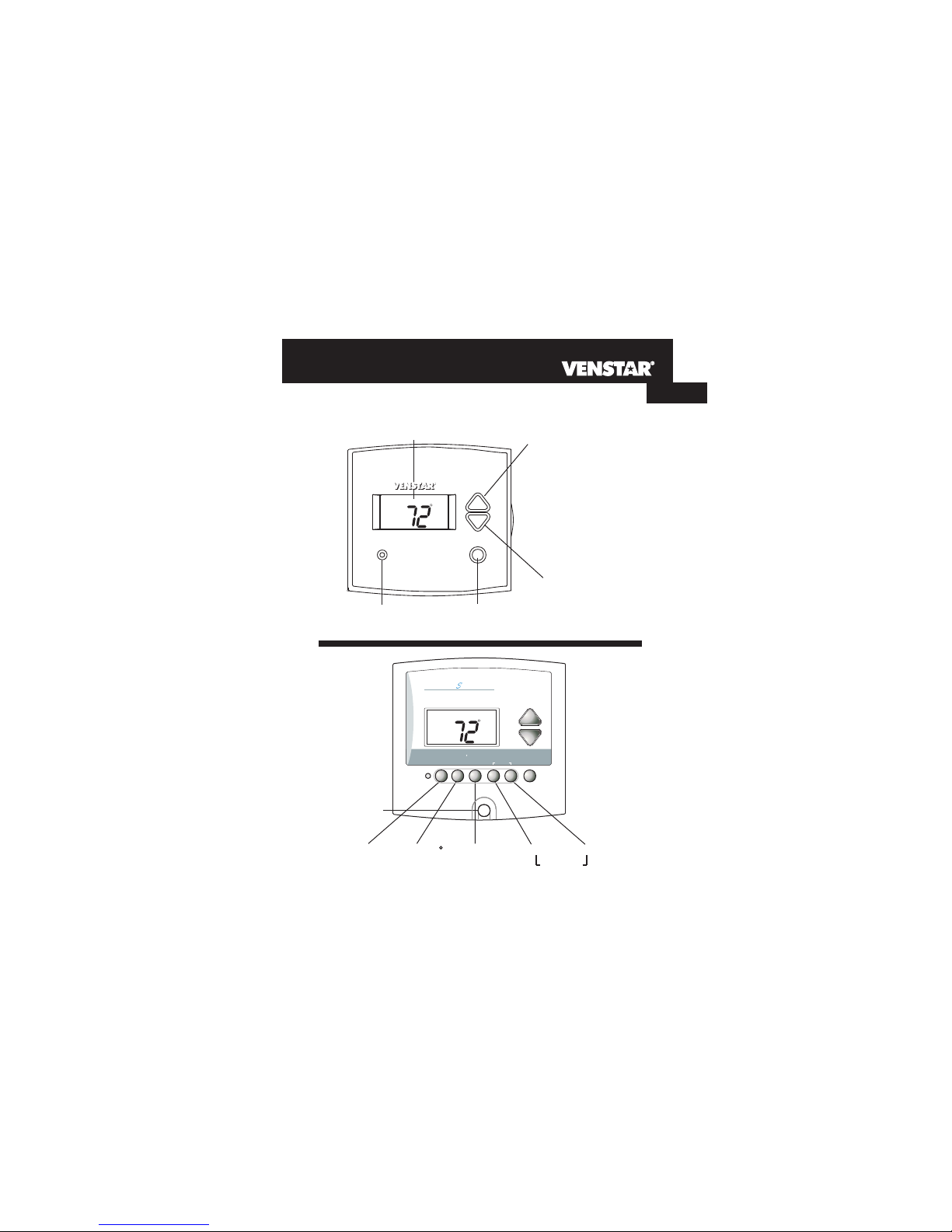

Front Panel

Page 1.2

OUTDOOR

AUTO

I2:00

HEAT

COOL

HUMIDITY

FAN PROGRAM SET CLOCK

VACATION

Warmer Button sometimes referred

(glows red) to as the UP button

Cooler Button sometimes refer-

(glows blue) red to as the

DOWN button

[ ]

QUICK RELEASE FOR

ACCESSORY PORT

(pg. 20.1)

COMMERCIAL PROGRAMMABLE THERMOSTAT

HUMIDITY PROGRAM SET CLOCK

FAN MODE

VACATION

PLATINUM eries

AUTO

I2:00

HEAT

COOL

OUTDOOR

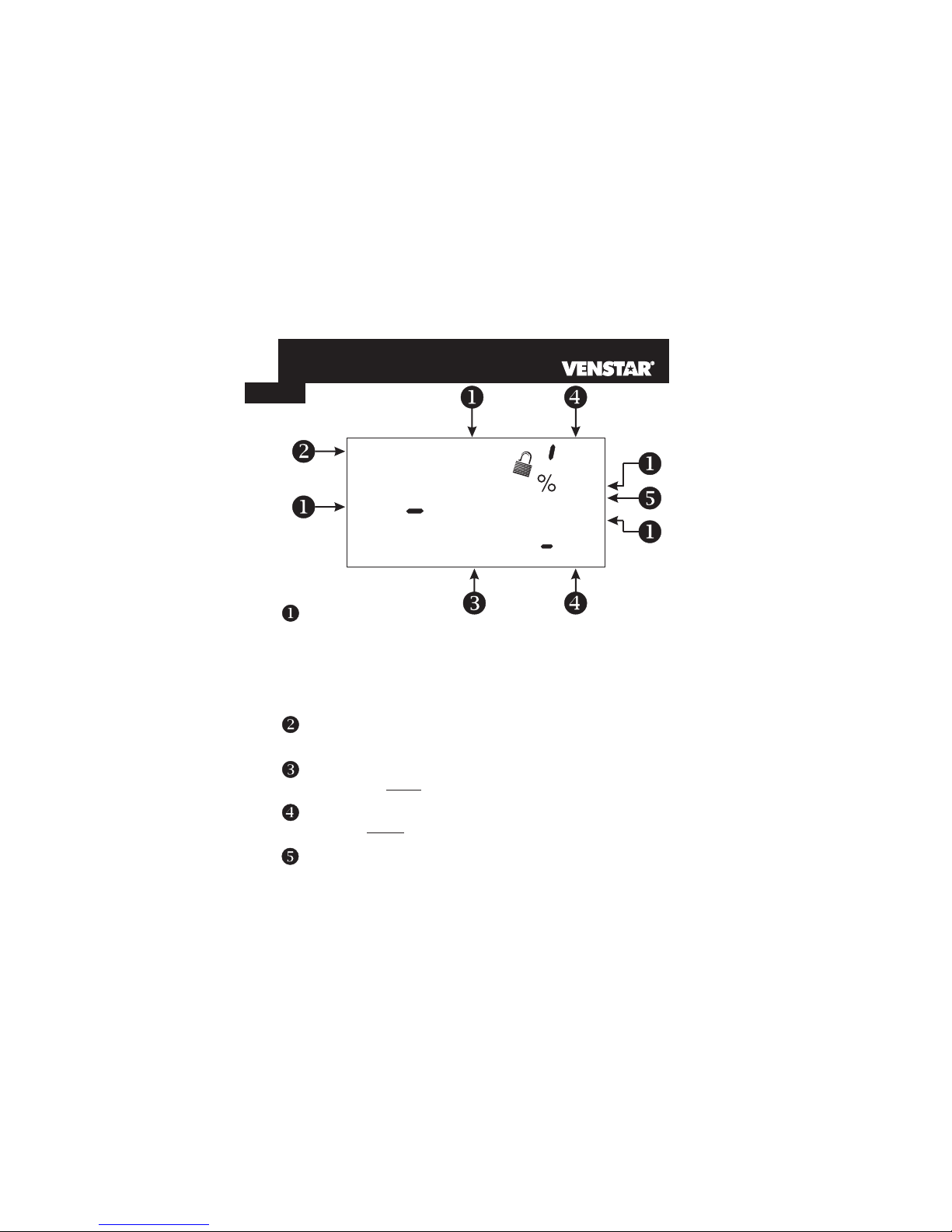

Page 1.3

Mode Indicators -

Selects the operational mode of the equipment.

HEAT - Indicates the heating mode.

COOL - Indicates the air conditioning mode.

AUTO - Indicates the system will automatically changeover

between heat and cool modes as the temperature varies.

OFF - Indicates heating and cooling is turned off.

PROGRAM ON - Indicates the time period program is enabled to

run.

Section 4

Display Features

Clock with Day of the Week - Section 3

Indicates the current time and day. This clock is also used to program

the time period schedule.

Room Temperature Display - Section 5

Indicates the current room temperature and displays the outdoor

temperature when selected.

Outside icon - Section 5

Indicates the temperature displayed is from the optional outdoor

sensor.

Evening

FanOn

AUXHEAT

COOL

AUTO

OFFON

Morning

DayNight

I8:88

SuMoTuWeThFrSa

Service Filter

Program On

StartStop

DeHumidify

I88

Setup

Outside

Vacation

UV Light

Desired Set Temperature - Section 4/5

Indicates desired room temperature(s). Also displays the highest

and lowest temperatures for the day.

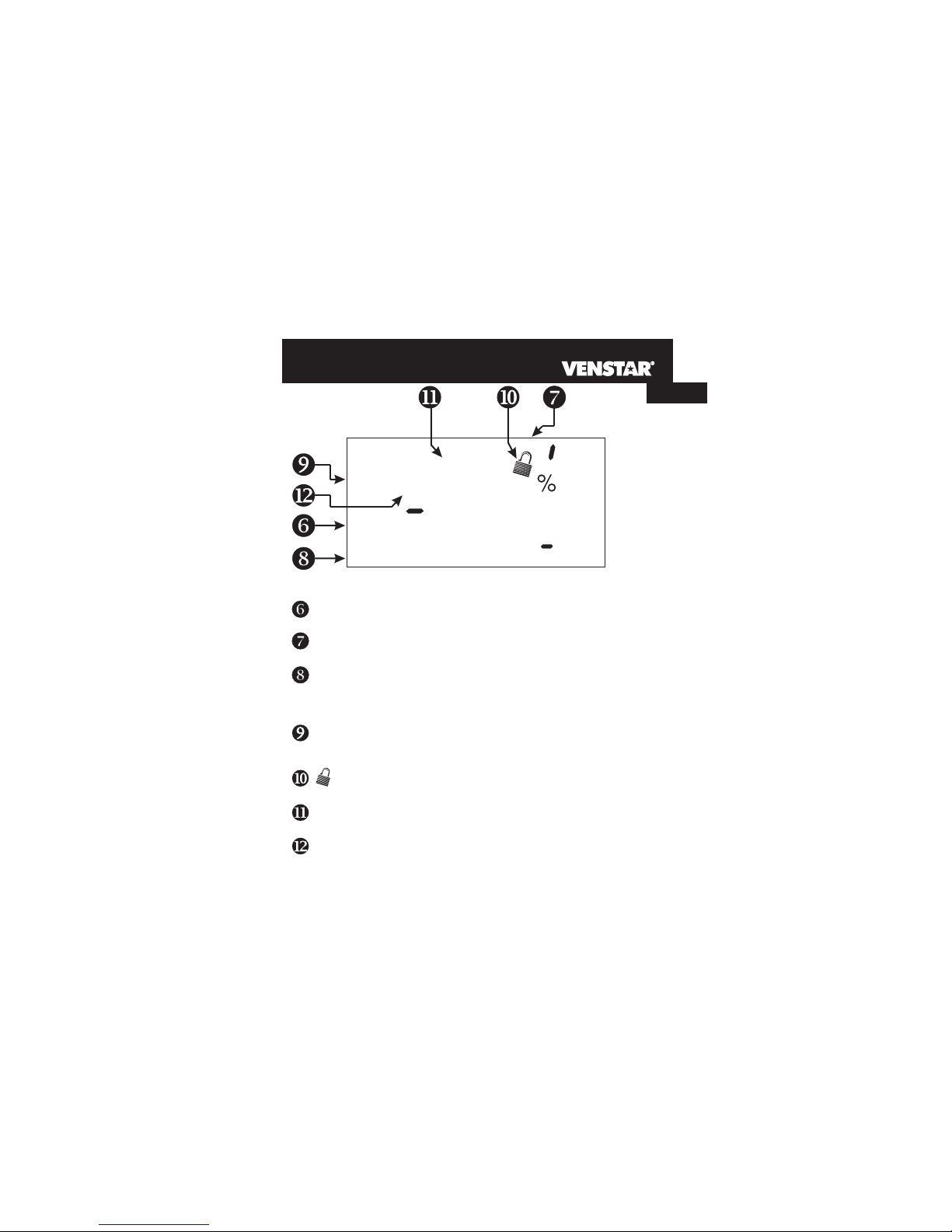

Page 1.4

Setup icon -

Indicates the thermostat is in the setup mode.

Fan On icon - Section 7

Indicates constant, continuous fan operation.

When Fan On is not lit - indicates the fan will only operate when

necessary to heat or to cool.

Service Filter icon - Section 16

Appears when the filter should be serviced under normal conditions.

Adjustable from 0 - 1950 hours of blower operation.

icon - Section 8

Indicates the keypad has been locked.

StartStop icon - Section 6

Appears when programming timer functions.

UV Light icon - Section 19

Appears when the UV bulb should be serviced under normal

conditions. Adjustable from 0 - 1990 days of operation.

Sections 6-17

AUXHEAT

COOL

AUTO

OFFON

Morning

DayNight

Evening

FanOn

I8:88

SuMoTuWeThFrSa

Service Filter

Program On

StartStop

DeHumidify

I88

Setup

Outside

Vacation

Display Features

Morning, Day, Evening & Night icons - Section 6

Indicates the day part of the time period program.

UV Light
