Vemer ADR-D 400 D90 Manuel utilisateur

ANALIZZATORE

DI RETE TRIFASE 90A

ADR-D 400 D90

Manuale d’Uso

User Manual

THREE-PHASE NETWORK ANALYSER 90A

PDF

- 15 -

User Manual - ADR-D 400 D90

English

Index

Safety instructions pag. 16

Technical specications pag. 17

Description pag. 19

Dimensions pag. 19

Installation pag. 20

Selecting programming parameters pag. 21

Reading of quantities pag. 24

Serial output RS 485 pag. 26

Error messages pag. 27

Reference standards pag. 28

- 16 -

User Manual - ADR-D 400 D90

English

User Manual

THREE-PHASE NETWORK ANALYSER 90A

Read all the instructions carefully

The ADR-D 400 D90 network analyzer is a direct connection digital multimeter for

three-phase systems up to 90 A for true effective value measurements (TRMS). The

isolated RS-485 serial output allows, through the MODBUS protocol functions and

the use of the relative registers, to connect the analyzer to a Master device (PC/

PLC...) for data visualization and archiving.

SAFETY INSTRUCTIONS

During the installation and operation of the device, observe the following

instructions:

1) The device must be installed by a qualied person

2) The device must be installed in an electrical panel which, after installation,

leaves terminals inaccessible

3) The electrical system in the building where the device is installed must

feature a switch or circuit breaker: this must be near the device and in a

position that can be easily reached by operators

4) A protection device against over-currents must be installed in the electrical

system, upstream of the instrument

5) Connect the device as shown in the diagrams of this manual

6) Before making contact with terminals, ensure that conductors to be

connected to the device are not live

7) Do not power or connect the device if any part of it is damaged.

NOTE: Network analyzer ADR-D 400 D90 is aimed for use in places with over-

voltage category III and pollution degree, 2 as per EN 61010-1

Code Model Description

VE045100

ADR-D 400 D90 Direct-connection three-phase network analyzer 90A

- 17 -

User Manual - ADR-D 400 D90

English

TECHNICAL SPECIFICATIONS

• Power supply: 400 Vac (-15%/+10%), 50/60 Hz (terminals 2 and 3)

• Electrical quantities measured:

−

Phase voltage, voltage between lines (chain), and system voltage

−

Phase and system current

−

Active, reactive, and apparent phase and system power

−

Active and reactive phase and total system Energy (zeroable)

−

Phase and system power factor (cos

)

−

Frequency

• Connection type:

−

3-wire connection with neutral

−

3-wire connection without neutral: only for symmetrical and balanced systems

• Voltmetric inputs: Vmax = 440 V rms (phase – phase)

Vmax = 3x253 V rms (phase – neutral)

• Amperometric inputs: Ib= 10 A; Imax = 90 A

• Maximum overload in continuos use mantaining class 1: 100 A

• Insulated serial output RS-485, for communication protocol MODBUS RTU

• Termination:

−

voltmetric inputs: 4-pole terminal strip; maximum section of wires: 2,5 mm2

−

RS485 serial line: 2-pole terminal strip; maximum section of wires: 2,5 mm2

−

amperometric inputs: direct connection, with the current wires inserted into the

suitable holes; maximum section of current leads: 25 mm2; maximum diameter of

through hole: 12,5 mm

• Maximum consumption (device only):

−

voltage circuits < 2.5 VA

−

current circuits < 2.5 VA

−

power supply < 4 VA

• Display: LCD display

• Dimensions: 7 DIN sizes

• Operating temperature: -10 °C ÷ 45 °C

• Storage temperature: -10 °C ÷ 60 °C

• Relative humidity: 10% ÷ 90% non condensing

• Protection rating: IP20/IP51 on the front

- 18 -

User Manual - ADR-D 400 D90

English

RESOLUTION AND ACCURACY

• Voltage

−

Maximum reading: 266 V (phase - neutral)

−

Accuracy: ±0,5% full scale ± 1 digit (full scale: 253 V)

−

Resolution: 1 V

• Current

−

Minimum reading: 0,10 A

−

Maximum reading: 95,0 A

−

Accuracy: ±0,5% full scale ± 1 digit (full scale: 90 A)

−

Resolution: 0,01 A (range 0,10÷9,99 A) or 0,1 A (range 10,0÷90,0 A)

• Active power

−

Accuracy: ± 1% full scale ± 1 digit at 50 Hz

(full scale: 100 W, 1 kW, 10 kW, 100 kW)

−

Resolution: 0,1 W (range 0÷99,9 W) - 1 W (range 100 W÷999 W)

0,01 kW (range 0,01 kW÷9,99 kW)

0,1 kW (range 10 kW÷100 kW)

• Reactive power

−

Accuracy: ±1% full scale ± 1 digit

(full scale: 100 Var, 1 kVar, 10 kVar, 100 kVar)

−

Resolution: 0,1 Var (range 0÷99,9 Var)

1Var (range 100 Var÷999 Var)

0,01 kVar (range 0,01 kVar÷9,99 kVar)

0,1 kVar (range 10 kVar÷100 kVar)

• Active energy

−

Accuracy: class 1 to standard EN 62053-21 (Ib=10 A; Imax=90 A)

−

Resolution: 0,1 kWh

• Reactive energy

−

Accuracy: class 3 to standard EN 62053-23 (Ib=10 A; Imax=90 A)

−

Resolution: 0,1 kVarh

• Power factor (cos

)

−

Accuracy: ±1% ± 1 digit

−

Resolution: 0,01

• Frequency

−

Accuracy: ±0,1 Hz ± 1 digit (from 47 Hz a 63 Hz)

−

Resolution: 0,1 Hz

- 19 -

User Manual - ADR-D 400 D90

English

DESCRIPTION

FRONT VIEW

TERMINALS AND KEYS

Terminal 1: Neutral (required for non-symmetrical non-balanced systems)

Terminals 2, 3, 4: voltage inputs (L1, L2, L3)

Terminals 5 (-) and 6 (+): Serial communication line RS-485

Through holes for direct current connection to L1, L2, L3

Key to be used to conrm and view system quantities

Previous page Key

Next page key

Programming key

PRG

ADR-D 400 D90

10(90)A

3x230/400 V ~ 50/60Hz

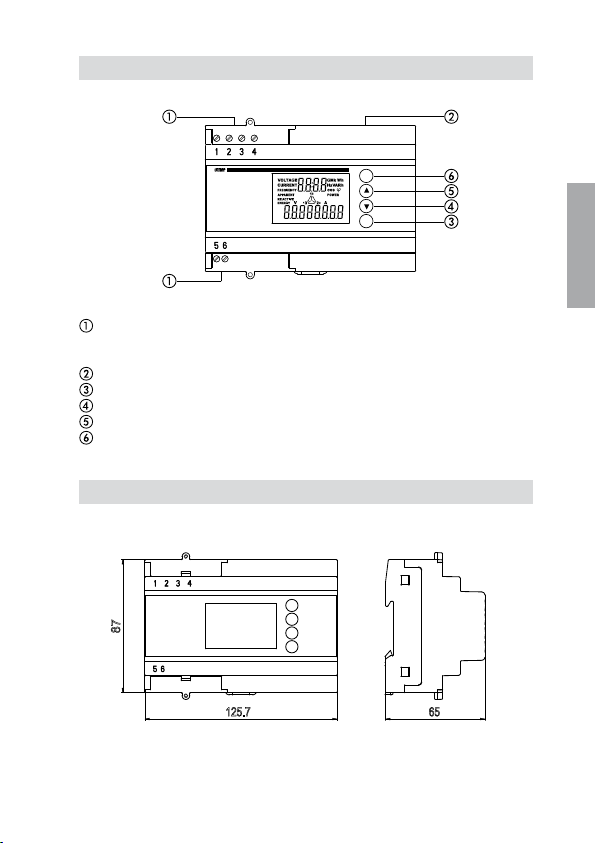

DIMENSIONS (mm)

FRONT VIEW SIDE VIEW

125.7

- 20 -

User Manual - ADR-D 400 D90

English

INSTALLATION

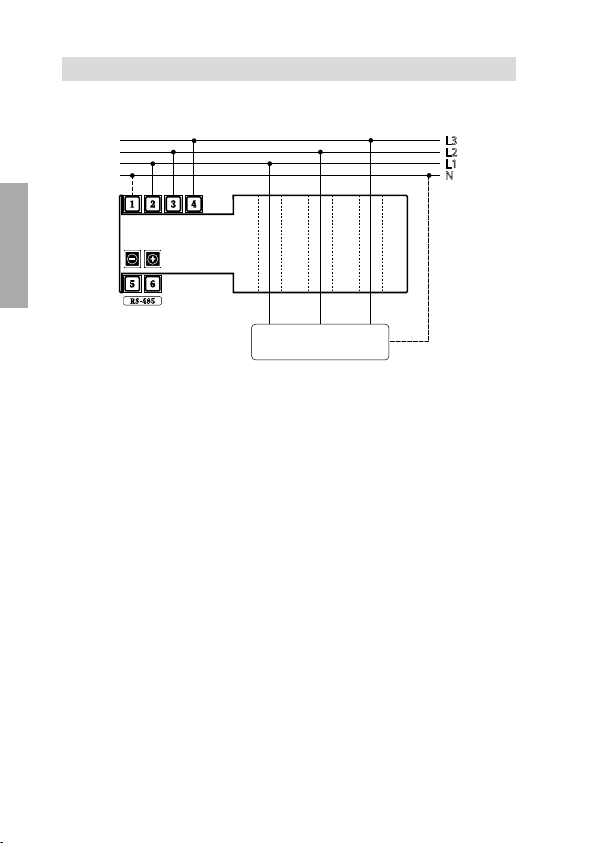

WIRING DIAGRAM

LOAD

NOTE:

Connection of the neutral conductor may ONLY be omitted for balanced

symmetrical three-phase systems

INSTALLATION

Network analyzer ADR D 400 D90 may only be used in three-phase systems 230 Vac

Phase-neutral, with 400 Vac Phase-Phase voltage between lines.

For installation, follow the connection diagram shown above:

− for 4-wire three-phase systems (3 phases + neutral) also with non-symmetrical and/

or non-balanced systems, connect the neutral lead to terminal 1

− for 3-wire three-phase symmetrical and balanced systems, it is possible not to

connect the neutral lead

For correct measurement, the 3 phase leads coming from the distribution panel must

be inserted in the through holes vertically from above; failure to do so will cause a

connection-error warning to appear on the display. In case of a connection error, the

display will indicate which phase or phases are misconnected (cfr. “ERROR MESSAGES

– MISCONNECTION” ).

- 21 -

User Manual - ADR-D 400 D90

English

SELECTING PROGRAMMING PARAMETERS

The following functions are accessed by holding down the PRG key for at least 2

seconds:

− viewing built-in software version and date

− backlighting control

− zeroing total active and reactive energy values

− conguring serial output RS-485

To scroll the various parameters and conrm the values entered, press the OK key. To

change the values or alter the option, press

or .

As soon as the last page is conrmed the programming mode is exited; this also occurs

if no key is pressed for at least 25 seconds: in this case, the parameter that was not

conrmed using the OK key, is not stored.

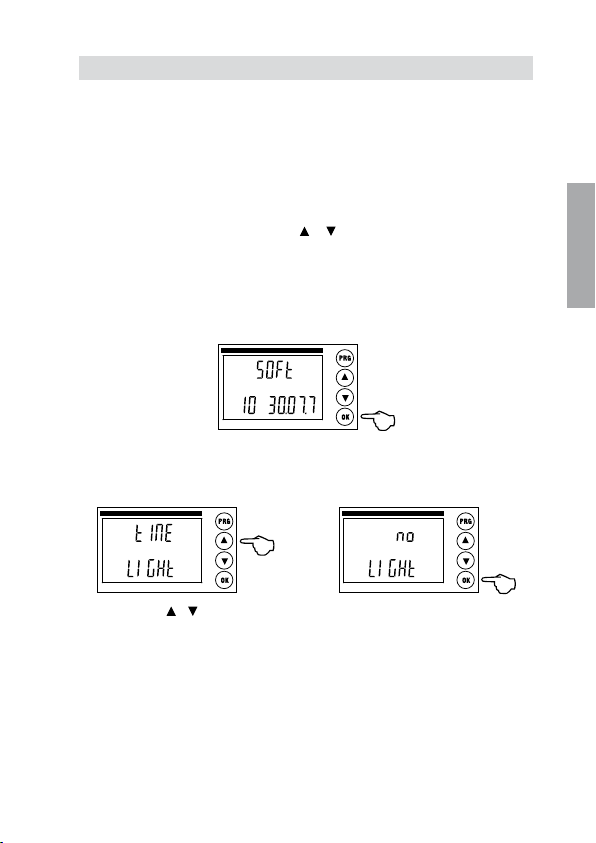

1) DATE AND VERSION OF BUILT-IN SOFTWARE

• These values cannot be altered

• To move on to the next page (backlighting control), press OK

2) BACKLIGHTING CONTROL

• Press the key

o to respectively select “NO” (backlighting off) or “TIME”

(backlighting ON for 60s after any key is pressed)

• Press the OK key to conrm the selection and move on to the next page (Zeroing

Active Energy meter)

- 22 -

User Manual - ADR-D 400 D90

English

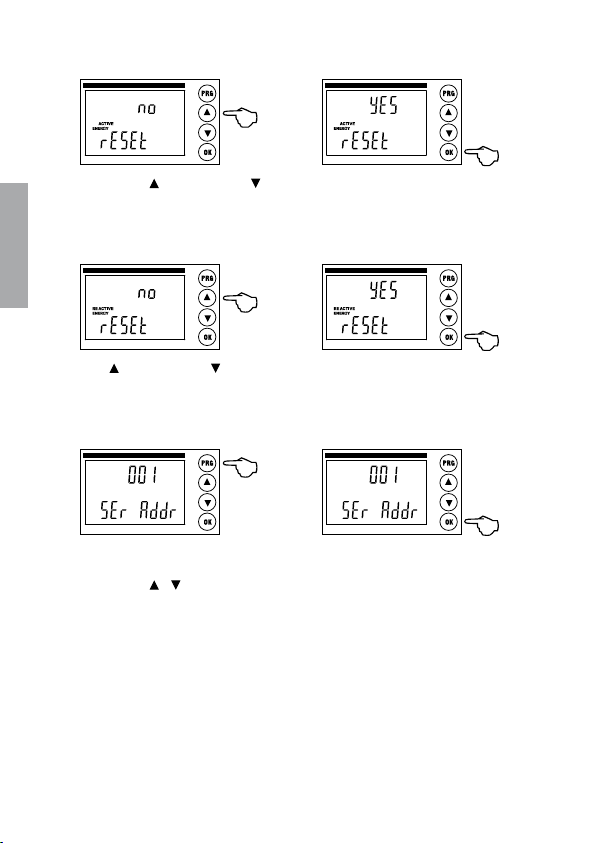

3) ZEROING THE ACTIVE-ENERGY METER

• Press the key

to select “NO” or for “YES”

• Press the OK key to conrm the selection and move on to the next page (Zeroing the

Reactive Energy meter)

4) ZEROING THE REACTIVE-ENERGY METER

• Press

to select “NO” or to select “YES”

• Press the OK key to conrm the selection and move on to the next page (RS-485

address)

5) RS-485 ADDRESS

• The address range is between 1 and 247

• Press the PRG key to select the digit to be altered (units, tens, hundreds)

• Press the key

o to select the value

• Press the OK key to conrm the address and move on to the next page (RS-485

communication speed)
