2019-2021 Genesis G70 3.3T/2.0T
BIG MOUTH Ram Air Intake
Installation Guide
Please review this document before attempting installation.
You will need basic hand tools and 1-1.5 hours of installation time.
This product reuses the OEM hardware.

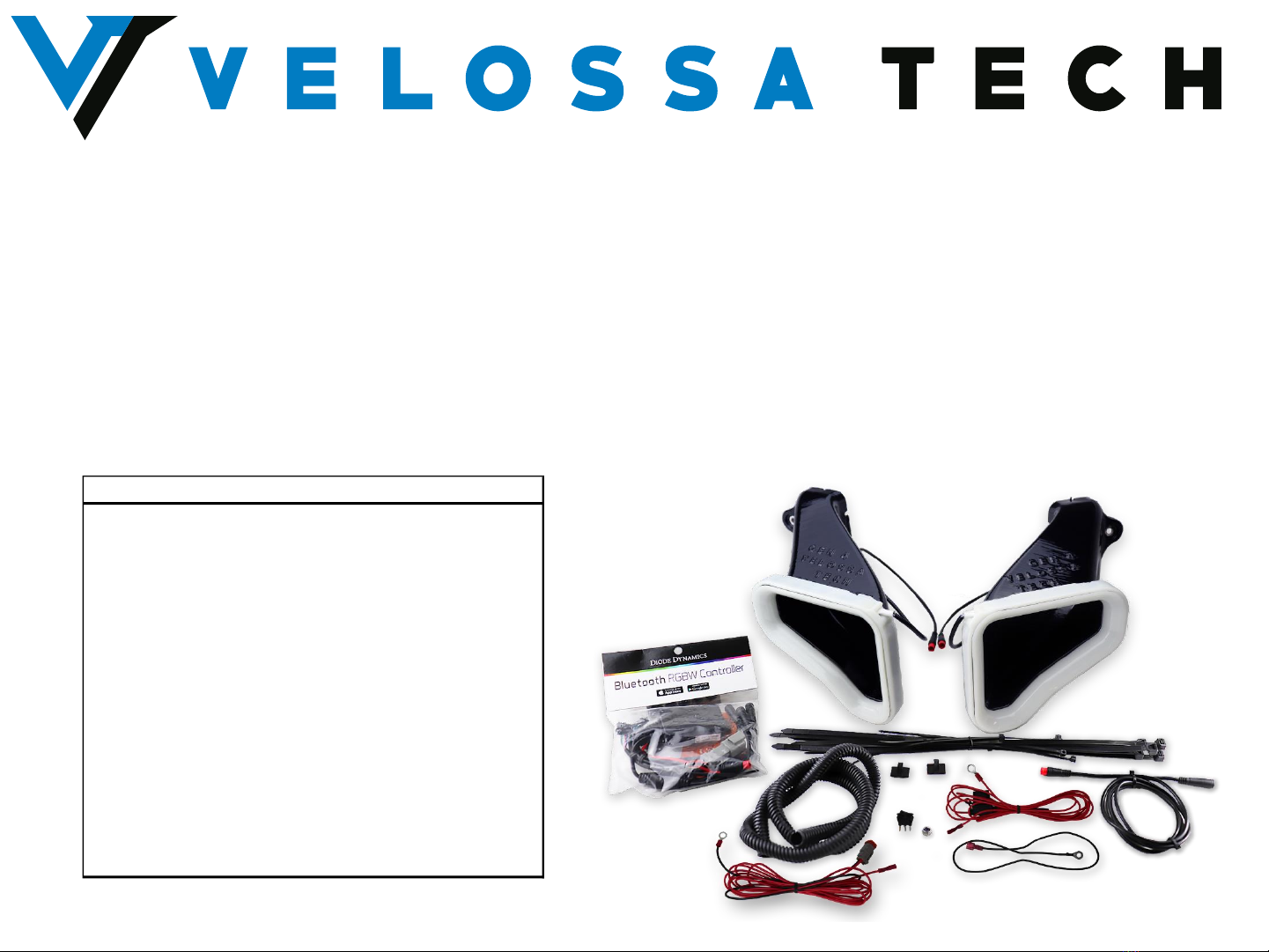

Kit Contents (Full Kit)
KIT CONTENTS Qty
AGS Simulator Bracket Assembly 1
#6, 1/2" screws 4
Diode Dynamics RGBW Controller 1
Diode Dynamics 1m LED Extension 1
Positive Cable w/ In-Line Fuse 1
Power Cable w/ Pigtail Connector 1
Switch 1
Switch Ground Cable w/ Crimped Connector 1
8" Zip ties 3
16" Zip ties 3
3/8" Conduit (3 feet) 1
Cable Clips 2
M6 Lock Nut 1
Assembled LIT KIT BIG MOUTH's 2
If you already own the GEN 4 Genesis G70 BIG MOUTH’s, skip ahead to slide 29
for wiring instructions
Kit Contents (LIT Flares Only)
KIT CONTENTS Qty
Diode Dynamics RGBW Controller 1
Diode Dynamics 1m LED Extension 1
Positive Cable w/ In-Line Fuse 1
Power Cable w/ Pigtail Connector 1
Switch 1
Switch Ground Cable w/ Crimped Connector 1
8" Zip ties 3
16" Zip ties 1
3/8" Conduit (3 feet) 1
Cable Clips 4
M6 Lock Nut 1
Assembled LIT Flares 2

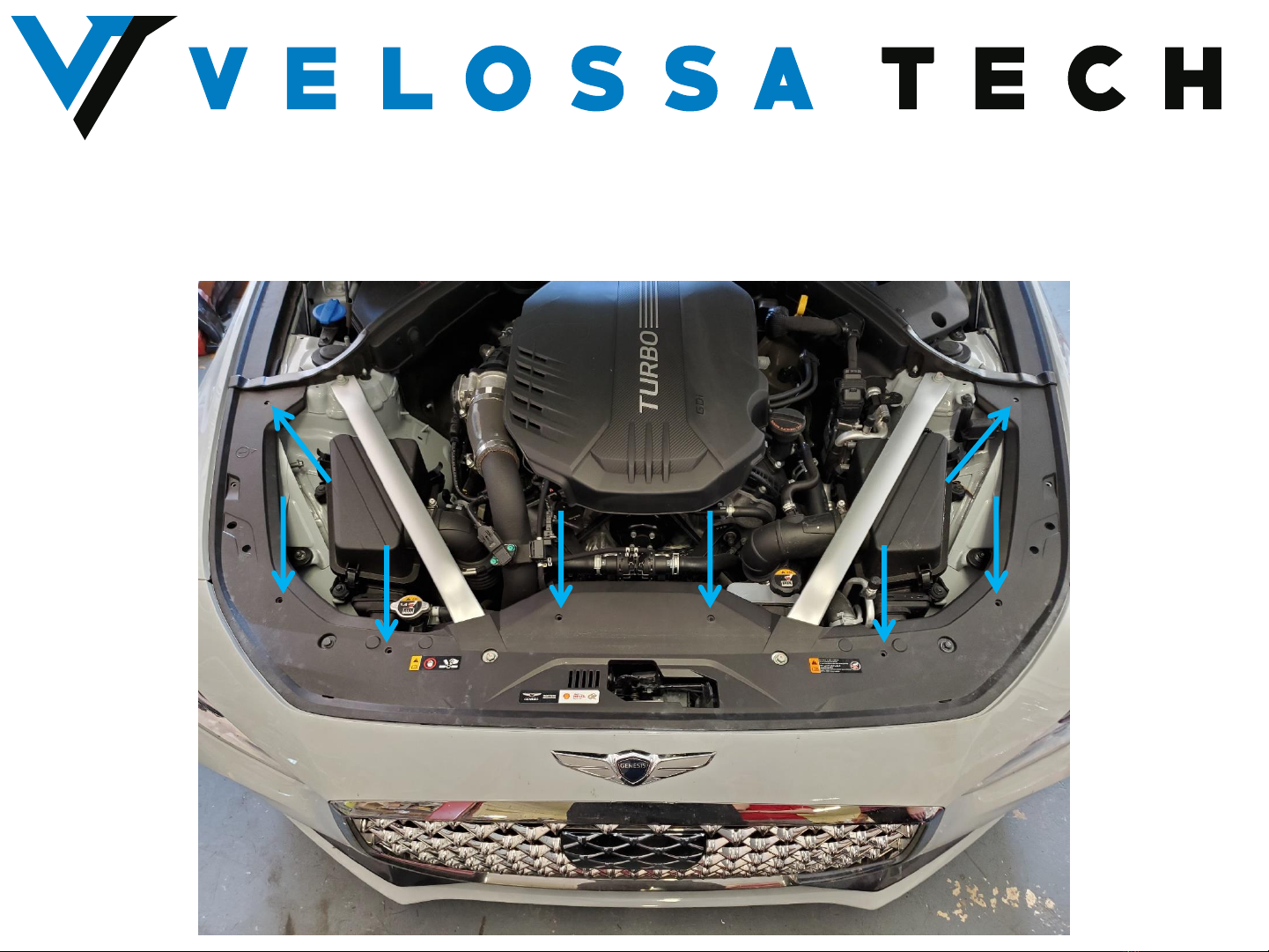

Remove the shroud by pushing down on the center pin of the
pop-up clips and extracting them with a pry tool.
Shroud Removal
After removing the shroud, remove the top 4 screws (10mm) that
attach the bumper to the chassis
Bumper Removal
Remove the hidden screw (8mm) lying within the cavity identified below.
Bumper Removal

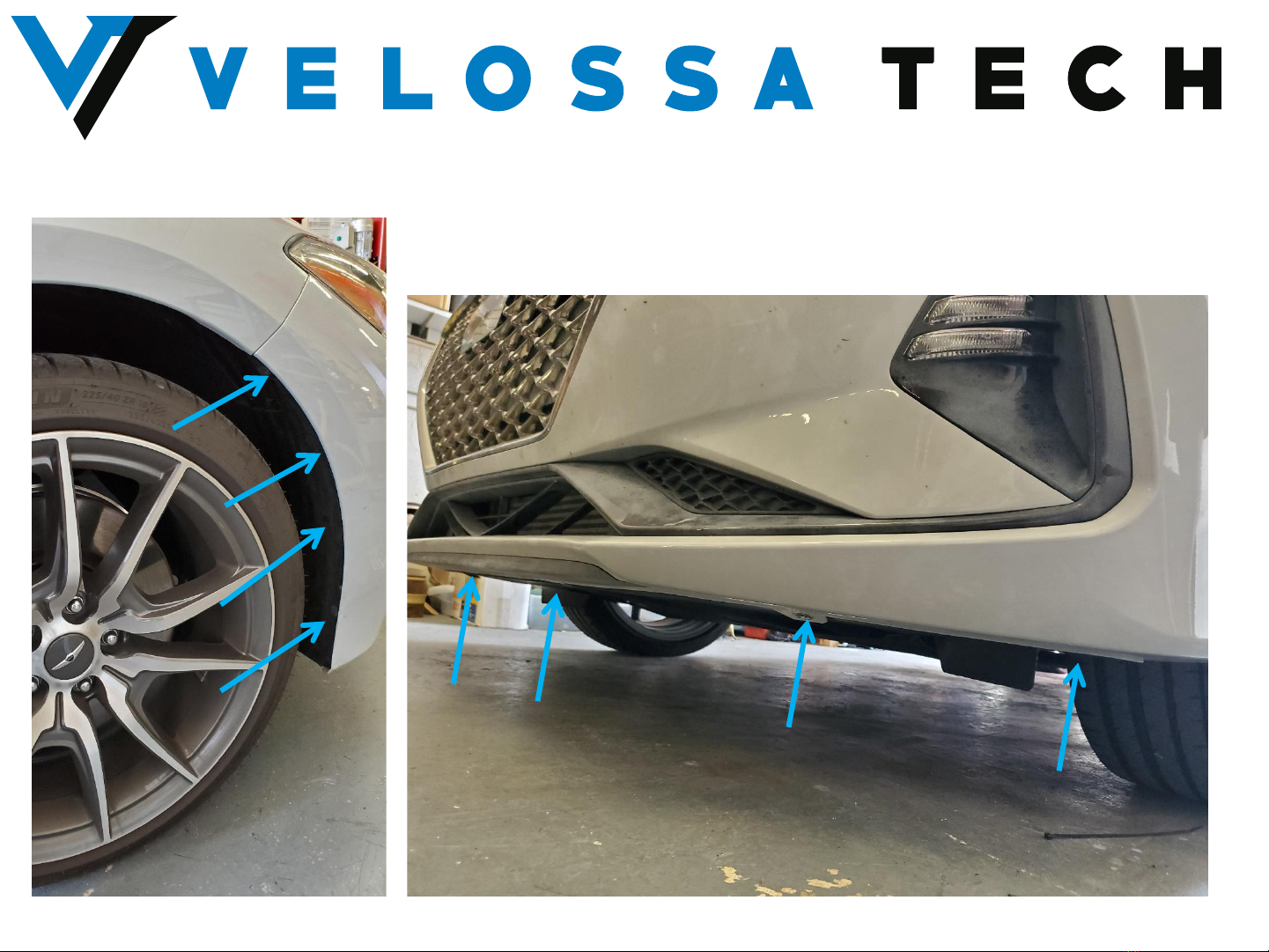

Remove all the indicated pop-up clips and screw from the
wheel well and bottom edge of the bumper
Bumper Removal
As the bumper gets pulled off, take notice of the indicated wiring harness connector.
To remove, pull back on the lever shown below. Once it swivels about entirely, pull to
disconnect.
Bumper Removal
The bolts holding both headlights must be removed for this install but do not
fully remove the headlight from its socket.
Remove using a 12mm socket
Headlight Removal

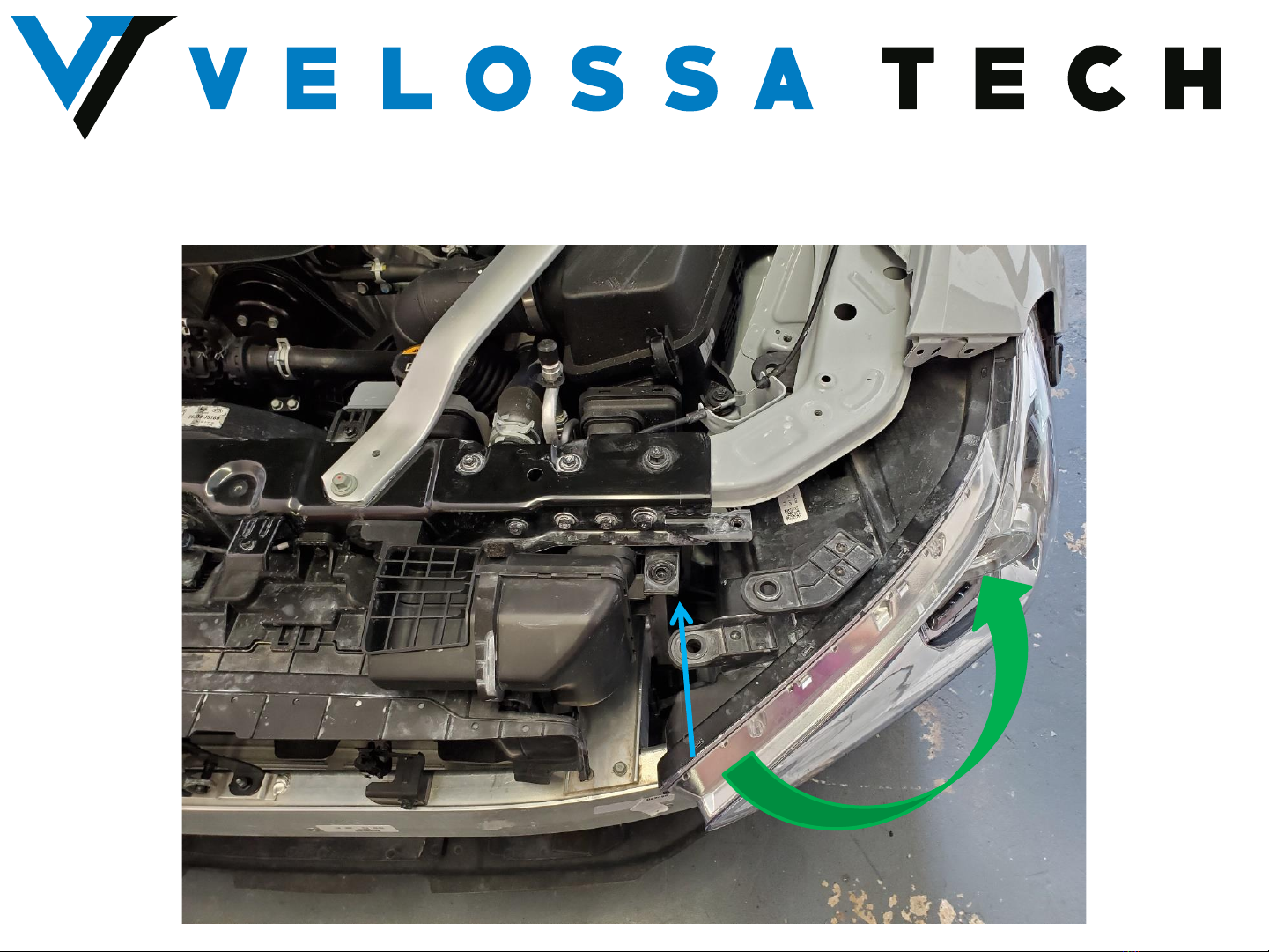

Swivel the headlights just enough to access the bolt hidden behind it
Moving Headlight
