Vello LA-MFT-CFD Manuel utilisateur

LENS

ADAPTER

MANUAL

LA-MFT-CFD

LA-CEF-CFD

2

Thank you for choosing a Vello Lens Adapter. Vello lens adapters allow you to use lenses from

manufacturers other than the maker of your camera body. Vello Lens Adapters ﬁt securely to

the lens, but not so tightly that they are dicult to remove. Please follow these instructions to

mount and remove your Vello Lens Adapter.

Although the lens will t physically, automatic diaphragm (AE metering), and other functions dependent

on communication between the camera body and lens, will be disrupted by a lens adapter. You will need

to set exposures manually or meter in aperture priority (stop-down) mode. The lens adapter adds a 1.25

magnication to the lens. Focusing to innity is retained.

INTRODUCTION

All images are for illustrative purposes only.

3

1. Line up the alignment dots on the lens

adapter and the camera. Rotate the lens

adapter clockwise until it locks into place.

TO MOUNT THE LENS ADAPTER

Some Canon FD lenses have a breech-lock mount instead of a bayonet mount with a release

button. If your Canon FD lens has a breech-lock mount, follow these instructions. If your Canon

FD lens has a bayonet mount, follow the next set of instructions.

BREECH-LOCK MOUNT

4

3. Line up the alignment dots on the lens and

the lens adapter.

2. Make sure the locking collar on the lens is

rotated completely counterclockwise

(A)

.

Note: On some lenses, this is not necessary.

Rotate the collar on the lens adapter in the

direction of the arrow to the OPEN position

(B).

5

4. Rotate the locking collar on the lens

clockwise until it is secure.

5. Rotate the collar on the lens adapter in

the direction of the arrow to the LOCK

position.

6

1. Rotate the locking collar on the lens

counterclockwise to release the lens.

2. Press and hold the lens release button

on the camera. Rotate the lens adapter

counterclockwise to release.

TO REMOVE THE LENS ADAPTER

7

2. Rotate the collar on the lens adapter in

the direction of the arrow to the OPEN

position.

1. Line up the alignment dots on the lens

adapter and the camera. Rotate the lens

adapter clockwise until it locks into place.

TO MOUNT THE LENS ADAPTER

BAYONET MOUNT

8

3. Line up the alignment dots on the lens and

the lens adapter. Rotate the lens clockwise

until it locks into place.

4. Rotate the collar on the lens adapter in

the direction of the arrow to the LOCK

position.

9

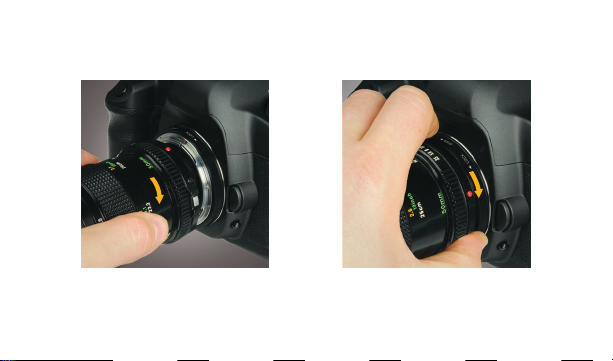

1. Press and hold the release button on the

lens.

2. Rotate the lens counterclockwise to

release.

TO REMOVE THE LENS ADAPTER

10

3. Press and hold the lens release button

on the camera. Rotate the lens adapter

counterclockwise to release.

For Micro Four-Thirds (MFT) cameras, enable

the “Shoot without Lens” function in the menu

of the camera.

Tip: When shooting at a low f/stop, rotate the

collar on the lens adapter to OPEN position to

let in more light for easier focusing. Once you

have focused the image, rotate the collar on the

lens adapter to the LOCK position before taking

the picture.
