Velleman CAMTVI2 Manuel utilisateur

CAMTVI2

HD TVI BULLET CAMERA WITH 12 IR LEDS

HD DOME TVI CAMERA MET 12 IR LEDS

CAMÉRA DÔME TVI HD À 12 LED IR

CÁMARA TVI DOMO HD CON 12 LEDS IR

DOME-TVI-HD-KAMERA MIT 12 IR-LEDS

USER MANUAL 2

GEBRUIKERSHANDLEIDING 10

MODE D'EMPLOI 18

MANUAL DEL USUARIO 26

BEDIENUNGSANLEITUNG 34

CAMTVI2

V. 01 –12/02/2015 2 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of

the device after its lifecycle could harm the environment. Do not

dispose of the unit (or batteries) as unsorted municipal waste; it

should be taken to a specialized company for recycling. This device

should be returned to your distributor or to a local recycling

service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Children shall be supervised to ensure that they do not play with

the appliance.

Risk of electroshock when opening the cover. Touching live wires

can cause life-threatening electroshocks. Do not disassemble or open

the housing yourself. Have the device repaired by qualified

personnel.

Do not disassemble or open the cover. There are no user-serviceable

parts inside the device. Refer to an authorized dealer for service

and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages

of this manual.

Keep this device away from dust and extreme temperatures.

CAMTVI2

V. 01 –12/02/2015 3 ©Velleman nv

Protect this device from shocks and abuse. Avoid brute force

when operating the device.

Familiarise yourself with the functions of the device before actually

using it.

All modifications of the device are forbidden for safety reasons. Damage

caused by user modifications to the device is not covered by the

warranty.

Only use the device for its intended purpose. Using the device in an

unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not

covered by the warranty and the dealer will not accept responsibility for

any ensuing defects or problems.

Due to constant product improvements, the actual product appearance

might differ from the shown images.

Product images are for illustrative purposes only.

Do not use this product to violate privacy laws or perform other illegal

activities.

Do not switch the device on immediately after it has been exposed to

changes in temperature. Protect the device against damage by leaving

it switched off until it has reached room temperature.

Keep this manual for future reference.

4. Features

This HDCCTV or TVI (High-Definition Transport Video Interface) camera is

equipped with a Sony CMOS image sensor. The video image quality is

1080P. The IR-cut filter will filter the IR light, so it cannot distort the

colour image. When it gets dark, the camera automatically switches to night

mode. In night mode, the camera enables the IR LEDs and disables the IR-

cut filter.

weatherproof

B/W night vision (IR LEDs)

1080P video signal

vandal resistant bracket

special functions via on-screen display (OSD) set-up menu:

oprivacy zone

owhite balance

omirror and flip function

oday/night mode

CAMTVI2

V. 01 –12/02/2015 4 ©Velleman nv

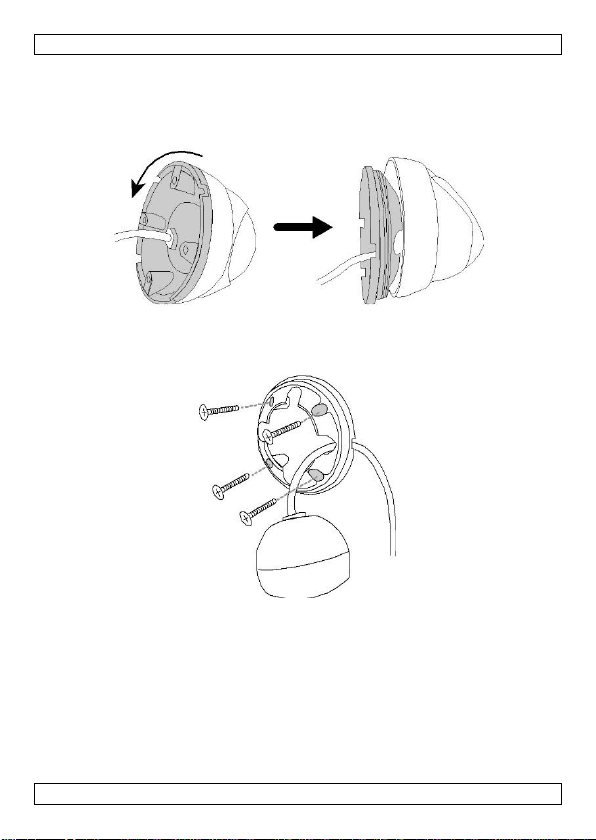

5. Installation

1. Remove the camera base. Loosen the hex screw on the outer ring.

Hold the outer ring and turn the base in an anti-clockwise direction to

unscrew it.

2. Choose your mounting spot. Take the base as a template and drill the

necessary mounting holes. If necessary, drill a hole for routing the

cables. Insert a nylon plug in each hole.

3. Pass the camera cable through the base and fix the bracket using the

included screws. If applicable, pass the cable through the routing hole.

4. Slightly adjust the camera lens and aim it toward the surveillance

area.

5. Replace the inner ring over the camera and hold in place.

CAMTVI2

V. 01 –12/02/2015 5 ©Velleman nv

6. Replace the outer ring over the inner ring and turn in a clockwise

direction to fix.

7. Connect and power your camera (see below). Check the viewing angle

on your PC.

8. Adjust the position and viewing angle if necessary.

6. Connection

1. Connect the power terminal of the camera to a 12 VDC regulated

power supply.

2. Connect the video output of the camera to the video input of your DVR

using a 75 Ωcoaxial cable.

Remarks:

Only use a regulated 12 VDC power adapter. Using any other type will

damage this camera.

Protect the connectors against moisture by applying some insulating

tape over the connectors.

7. Camera Configuration

This camera has its own configuration menu. Either of the two methods

below allows access the menu.

CAMTVI2

V. 01 –12/02/2015 6 ©Velleman nv

7.1 Method 1

1. On the DVR live view, click the camera’s channel to display it in full

screen.

2. Open the control panel by clicking the camera and the panel icons.

3. The control panel appears.

7.2 Method 2

1. On the DVR live view, right-click in the screen to display the DVR

menu.

2. Select ADVANCED CONFIG and then DCCS.

ADVANCED CONFIG

CAMERA

CH1

CH2

CH3

CH4

DETECTION

SETUP

ALERT

NETWORK

DISPLAY

RECORD

DEVICES

DCCS

DEVICE

XXXXX

NOTIFY

CONNECTION

EXIT

CAMTVI2

V. 01 –12/02/2015 7 ©Velleman nv

3. Select the camera’s channel and click SETUP to enter the camera’s

menu.

DAY/NIGHT

MODE

EXT / COLOR

/ B&W /

AUTO

day or night mode

D TO N

1 ~ 63

sensitivity level for

day-to-night transition

N TO D

1 ~ 63

sensitivity level for

night-to-day transition

DELAY TIME

1 ~ 63

delay time for

day/night transition

AWB

MODE

AUTO / USER

/ PUSH /

8000K /

6000K /

4200K /

3200K

white balance

R G GAIN

1 ~ 255

red/green ratio

B G GAIN

1 ~ 255

blue/green ratio

MODE

ESC / HOLD

exposure mode

BRIGHT

0 ~ 255

brightness level

SHUTTER

AUTO /

shutter speed

FLICKER

OFF / 50HZ /

60HZ

flicker mode

BLC

0 ~ 16

backlight compensation

AGC

1 ~ 5

auto gain control

LSC

ON / OFF

lens shading correction

SPECIAL

PRIVACY

ZONE

AREA SEL /

MASK PAT /

SX / EX / SY

/ EY

mask area

MOTION

MATION /

SENSITI /

ALARM /

HOLD TIME

motion detection area

HLC

HLC / MASK

VALUE /

TRESHOLD

strong backlight

suppression

EFFECT

COLOR GAIN

0 ~ 255

gain level

COLOR HUE

0 ~ 71

hue level

SHARPNESS

0 ~ 255

sharpness level

CONTRAST

0 ~ 255

contrast level

BRIGHT OFF

-128 ~ 127

brightness level

CAMTVI2

V. 01 –12/02/2015 8 ©Velleman nv

MIRROR

OFF / ON

rotate image

FLIP

OFF / ON

flip image

SYSTEM

CAMERA ID

0 ~ 255

camera ID

ID DISP

OFF / ON

camera ID display

NAME DISP

OFF / ON

camera name display

LANGUAGE

ENG / CHI

English / Chinese

FACTORY

INIT

OFF / ON

restore factory settings

Remark:

This camera will only work with TVI-compatible DVRs (Velleman

DVRxTx series). Velleman nv does not guarantee this camera will work

with other types of DVRs and can therefore not be held responsible in

this event.

8. Cleaning and Maintenance

The camera does not need any particular maintenance. However, it is

advisable to clean it occasionally to keep it looking like new.

9. Technical Specifications

IP rating

IP66

pick-up element

1/2.7" CMOS image sensor

number of pixels

1930 (H) x 1088 (V)

resolution

1080P

digital signal processor

Techpoint chip

min. illumination

0.1 lux / F1.8

IR LEDs

IR-cut filter

yes

max. IR projection distance

15 m

S/N ratio

> 48 dB (AGC off)

lens

f3.6mm / F1.8

lens angle

horizontal

96°

vertical

50°

diagonal

116°

BLC

yes

AGC

yes

white balance

automatic / user / push / 8000K / 6000K /

4200K / 3200K

video output

BNC connection - TVI signal

audio

power supply

12 VDC

CAMTVI2

V. 01 –12/02/2015 9 ©Velleman nv

current consumption

max. 200 mA

operating temperature

-20° C to 40° C - RH max. 95 %

dimensions

198 x 65 x 68 mm

weight

315 g

Use this device with original accessories only. Velleman nv cannot

be held responsible in the event of damage or injury resulting from

(incorrect) use of this device. For more info concerning this product

and the latest version of this manual, please visit our website

www.velleman.eu. The information in this manual is subject to

change without prior notice.

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied,

reproduced, translated or reduced to any electronic medium or otherwise

without the prior written consent of the copyright holder.

CAMTVI2

V. 01 –12/02/2015 10 ©Velleman nv

GEBRUIKERSHANDLEIDING

1. Inleiding

Aan alle burgers van de Europese Unie

Belangrijke milieu-informatie betreffende dit product

Dit symbool op het toestel of de verpakking geeft aan dat, als het

na zijn levenscyclus wordt weggeworpen, dit toestel schade kan

toebrengen aan het milieu. Gooi dit toestel (en eventuele

batterijen) niet bij het gewone huishoudelijke afval; het moet bij

een gespecialiseerd bedrijf terechtkomen voor recyclage. U moet

dit toestel naar uw dealer of naar een lokaal recyclagepunt

brengen. Respecteer de plaatselijke milieuwetgeving.

Hebt u vragen, contacteer dan de plaatselijke autoriteiten

betreffende de verwijdering.

Dank u voor uw aankoop! Lees deze handleiding grondig voor u het toestel

in gebruik neemt. Werd het toestel beschadigd tijdens het transport,

installeer het dan niet en raadpleeg uw dealer.

2. Veiligheidsinstructies

Houd dit toestel buiten het bereik van kinderen en onbevoegden.

Dit toestel is niet geschikt voor gebruik door personen (kinderen

inbegrepen) met verminderde fysieke, zintuiglijke of geestelijke

capaciteiten of gebrek aan ervaring en kennis, tenzij zij onder

toezicht staan of instructie hebben gekregen over het gebruik van

het toestel van een persoon die verantwoordelijk is voor hun

veiligheid.

Houd toezicht op kinderen om te voorkomen dat ze met het

toestel spelen.

Elektrocutiegevaar bij het openen van het toestel. Raak geen

kabels aan die onder stroom staan om dodelijke elektrische

schokken te vermijden. Open de behuizing niet zelf. Laat het

onderhoud van het toestel over aan een geschoolde vakman.

Demonteer of open dit toestel NOOIT. Er zijn geen onderdelen in het

toestel die door de gebruiker gerepareerd kunnen worden. Voor

onderhoud of reserveonderdelen, contacteer uw dealer.

Table des matières

Langues :

Autres manuels Velleman Caméra de sécurité

Velleman

Velleman CAMCOLBUL7 Manuel utilisateur

Velleman

Velleman CM3A001 Manuel utilisateur

Velleman

Velleman EAGLE EYES CAMIP12N Manuel utilisateur

Velleman

Velleman CAMZWIRP Manuel utilisateur

Velleman

Velleman CAMCOLBUL28 Manuel utilisateur

Velleman

Velleman CAMMCOLD11N Manuel utilisateur

Velleman

Velleman CAMCOLBUL3 Manuel utilisateur

Velleman

Velleman CAMTVI11N Manuel utilisateur

Velleman

Velleman CAMCOLD8N Manuel utilisateur

Velleman

Velleman CAMSETW6 Manuel utilisateur

Velleman

Velleman CAMCOLMHA8 Manuel utilisateur

Velleman

Velleman CAMIP14 Manuel utilisateur

Velleman

Velleman CAMZWEXT2N Manuel utilisateur

Velleman

Velleman CAMCOLH3 Manuel utilisateur

Velleman

Velleman CAMSETW7 Manuel utilisateur

Velleman

Velleman CAMCOLD18 Manuel utilisateur

Velleman

Velleman Camcolbul16N Manuel utilisateur

Velleman

Velleman CAMIP15 Manuel utilisateur

Velleman

Velleman CAMTVI10 Manuel utilisateur

Velleman

Velleman CAMTVI3 Manuel utilisateur

Velleman

Velleman CAMSCB5 Manuel utilisateur

Velleman

Velleman CAMCOLBUL26 Manuel utilisateur

Velleman

Velleman CAMCOLD16H Manuel utilisateur

Velleman

Velleman CCTVPROM11 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
