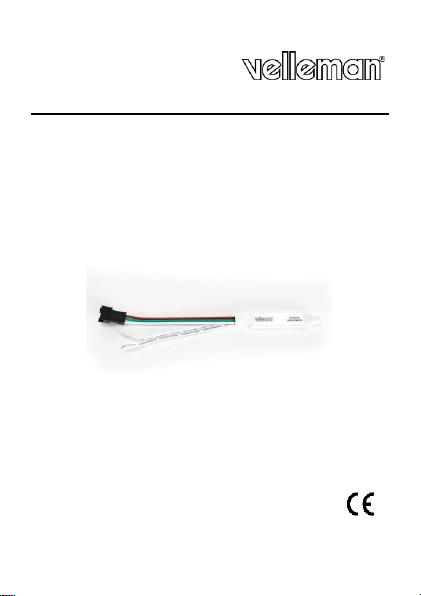

Digital white LED strip

External switch

CHLSC8

V. 01 –15/09/2023 3 ©Velleman Group nv

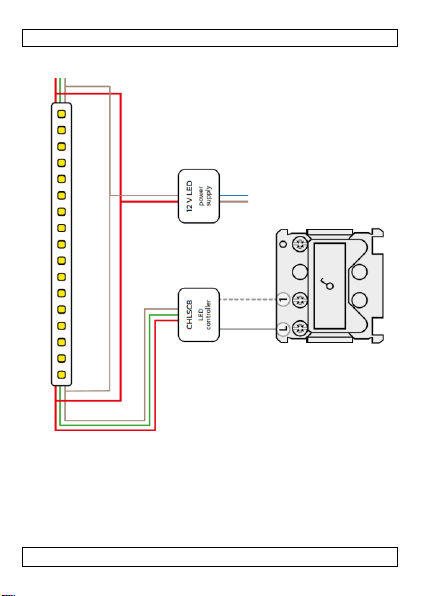

Connection with 1 switch and 1 controller

CHLSC8

V. 01 –15/09/2023 4 ©Velleman Group nv

Connection with 2 switches and 1 controller

CHLSC8

V. 01 –15/09/2023 5 ©Velleman Group nv

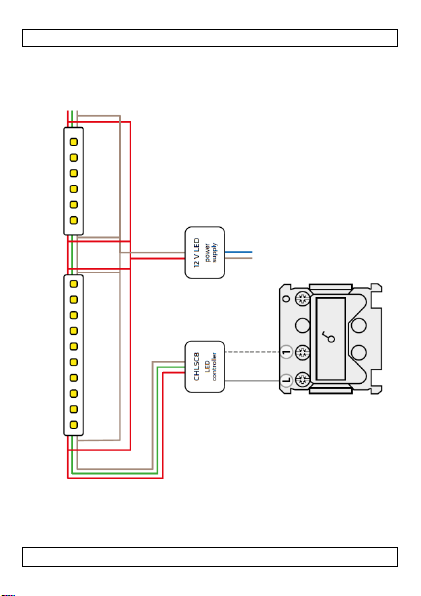

Connection with multiple digital white LED strips on 1

controller

Digital white LED strip 2

Digital white LED strip 1

CHLSC8

V. 01 –15/09/2023 6 ©Velleman Group nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that

disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as

unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect

the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly

before bringing this device into service. If the device was damaged in

transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and

unauthorized users.

Keep this device away from rain, moisture,

splashing and dripping liquids.

Protect this device from shocks and abuse. Avoid

brute force when operating the device.

Protect the device against extreme heat and dust.

CHLSC8

V. 01 –15/09/2023 7 ©Velleman Group nv

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty

on the last pages of this manual.

•Familiarise yourself with the functions of the device before

actually using it.

•All modifications of the device are forbidden.

•Only use the device for its intended purpose. Using the device

in an unauthorised way will void the warranty.

4. Features and specifications

•suitable for: only for digital LED strips

•operating mode: turn on/off via 1 external switch or 2 switches

via connection for two-way switch

•note: only works with switches, not via push buttons

•configuration modes: brightness, change modes (20 different

modes), mode speed

5. Overview

Refer to the illustrations on page 2 of this manual.

1. LED strip connection cable

2. 2 white dotted cables. Connection to external switch or

switches

3. “+/speed”push button

4. mode push button

5. “-/slow”push button

6. White cable connected to LED strip. Connect to 0VDC

7. Red cable connected to LED strip. Connect to 12VDC

6. Operation

Only connect the controller to digital white LED strips which work

with the SPI digital signal on 12V and 24V. The controller is

developed to work with the WS2811 LED driver ICs.

Only use 1 power supply for the whole installation and connect

ground (GND) connections.

CHLSC8

V. 01 –15/09/2023 8 ©Velleman Group nv

6.1 Physical connection

1. Connect the LED strip with the controller via the external

dedicated connector.

•Red cable: 12V (or 24V)

•Green cable: Data signal

•White cable: 0V or GND

2. Connect an external constant voltage LED power supply to the

external red and white cables from the LED strip.

3. Connect an external switch or switches via the 2 white dotted

cables.

Refer to the illustrations on page 3 & 4 of this manual.

Warning: never connect the power supply to these wires!

This will damage the controller.

4. It is possible to extend the standard 5m digital white LED strip

with more digital white LED strips.

Refer to the illustrations on page 5 of this manual.

Warning: Each 5 meter LED strip need power supply

connections on both sides!

6.2 configuration

The installation and configuration need to be done before installing

the controller behind the switch. The configuration can be done via

the integrated push buttons on the backside of the controller.

Adjust operation mode:

This controller can control different types of digital LED strips. This

setting can be changed via the following steps:

1. Turn off the switch or switches.

2. Press 2 seconds on “+/speed”push button.

A running light now starts with a certain pattern. With each

press of the “+/speed”button, the pattern will change.

the patterns are:

•1234 => selection for white color digital LED strips

•1324

•2134

•3124

CHLSC8

V. 01 –15/09/2023 9 ©Velleman Group nv

•2314

•mode per 2 LEDs

•mode per 3 LEDs

3. Turn on the switch or switches to check the effect.

Adjust the number of pixel:

The number of pixels must be configured to get a nice and complete

animation. This can be done via following steps:

1. Turn off the switch or switches.

2. Press 2 seconds on the mode button. The number of LEDs

will be on. Now you can extend or shorten the number of

LED’s/pixels

•Extend: press “+/speed”push button

•Shorten: press “-/slow”push button

Confirm the selection by pressing short on the mode button.

Adjust intensity:

The light intensity can be adjusted during configuration via following

steps:

1. Turn off the switch or switches.

2. Press 2 seconds on “-/slow”push button.

You can configure the intensity based on the number of LEDs

(1 to 10, where 1 = 10% and 10 = 100%) by pressing short

on the “-/slow”push button.

3. Turn on the switch or switches to check the intensity.

Adjust animations (modes):

The controller has 20 different animations. An animation can be

selected once during configuration.

1. Turn on the switch or switches.

2. The first animation will be shown. Pressing the mode push

button will change the animation.

There are 20 different animations. The 21st time you get

back the first animation.

CHLSC8

V. 01 –15/09/2023 10 ©Velleman Group nv

Adjust speed:

The animation speed can be configured once during installation.

Increase speed:

1. Turn on the switch or switches.

2. Press “+/speed”push button to increase the speed.

Decrease speed:

1. Turn on the switch or switches.

2. Press “-/slow”push button to decrease the speed.

7. Technical Specifications

Physical properties

LED dimmer depth

4.8 mm

Led dimmer height

53 mm

Number of dimming levels

LED dimmer width

12.8 mm

General data

For use with

Single colour (white) with WS2811

Controllable pixels

>1024

Memory function

yes

Dimming range

0-100 %

Input voltage rating VDC

12-24 V
