Velleman Instruments HPS40 Mode d’emploi

PersonalScope

PersonalScopePersonalScope

PersonalScope

HPS40

Technical Doc

14/02/2003

Velleman

HPS40 Technical Doc

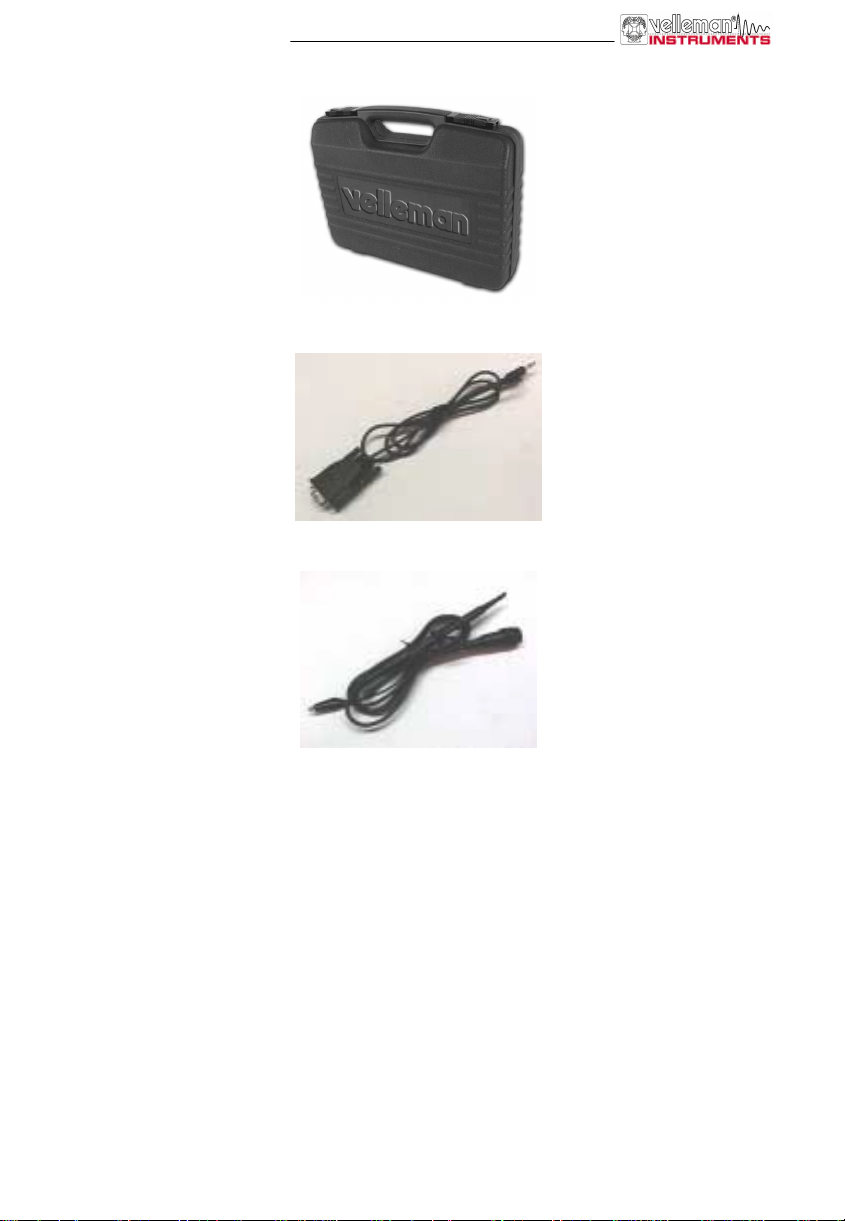

Packaging

HARD CASE

RS232 LEAD

PROBE60SB

IN THE PACKAGE:

PROBE60SB

RS232 lead

HPS40 unit

User Manual

BAGHPS, carry bag

CASHPS, hard case

OPTIONAL (check with order):

PS905, 9Vdc/500mA adaptor

A division of Velleman Components

SAMPLE FOR APPROVAL

Prepared by: Approved by: Customer acceptance by:

Please return signed copy

DATE : DATE : DATE :

None

Includes:

HPS40 unit

Manual and documents

Safety measuring probe (PROBE60S)

RS232 connector cable

Power supply adaptor SP905 (optional)

Carry bag (BagHPS)

Hard case (CaseHPS)

Model type :

Description :

Sample number:

Customer :

Remarks / modifications to previous sample:

HPS40

Hand Held Personal Scope

Velleman

HPS40 Technical Doc

Declaration of Conformity

We, Manufacturer

Velleman Components

Legen Heirweg 33

9890 Gavere

Belgium

declare that the product

HPS40 Personal Scope

if used according the instructions included with the unit meet the directives

in accordance with 89/336/EEC-EMC Directive

and

For the manufacturer

Date: 28/10/2002

Signature: _____________________________

Name: Stephan Santens

R&D manager

EN 55022 Limits and methods of measurement of radio interference characteristics of informa-

tion technology equipment (CISPR22 limits)

EN 50082-1 Electromagnetic Compatibility - Generic immunity standard

IEC 1010-1 Safety requirements for equipment for measurement, control and laboratory use (*)

(*) if equipment used with safety measurement probe

FCC Part 15 Part B Unintentional radiators

Velleman

HPS40 Technical Doc

VELLEMAN Instruments

HPS40 1 CH Personal Scope

EN55022 Field strenght

Start frequency: 30MHZ

End frequency: 1GHz

30dB Probe correction attenuation

Velleman

HPS40 Technical Doc

DATE REVISION OVERVIEW

07-01-2003 Value R92 changed from 33K to 22K for improved RS232 com.

27-01-2003 IL211AT replaced by IL213AT improved RS232 communication

27-01-2003 R26 changed from 270 to 470, improved oscillator stability for

oversampling

Velleman

HPS40 Technical Doc

Name Descr Designator

HPS40 PERSONAL SCOPE BOM 19-06-2002

_ASSEMBLY_HPS40 Assembly components for HPS40

_BATCLIP+ Battery clip + pole

_BATCLIP+- Battery clip + - pole

_BATCLIP- Battery clip - pole

_BATCLIP-+ Battery clip - + pole

_CASEHPS40 Enclosure for HPS40 + window + foil + screws

_KBHPS40 Grey keyboard for HPS40

_PANHEADSCREW Screw for PCB fixation

_SCREENHPS40BK Screen foil HPS40 back side

_SCREENHPS40KB screenfoil for HPS40 keyboard side

_SERIALNR production serial nr (YY-MM- 00000)

_STICK HPS40 Back side info sticker HPS40

CKSHPS40C Metal screen on component side HPS40

CKSHPS40S Metal screen on solder side HPS40

_CAP_HPS40 Capacitors for HPS40

_10µ/50V smd electrolytic capacitor 50V C44

_100µ/16V smd electrolytic capacitor 16V C47...C57

_100N smd capacitor C15...C33, C72

_100P smd capacitor C58, C71

_10N smd capacitor C13, C14

_15P smd capacitor C6

_1N smd capacitor C73...C77

_20P/TRIM smd ceramic capacitor trimmer CV1, CV3

_22µ/35V smd electrolytic capacitor 35V C45

_2N2 smd capacitor C12

_2N2/200V smd capacitor 200V C2, C3

_33µ/25V smd electrolytic capacitor 25V C46

_33P smd capacitor C8, C9

_39P smd capacitor C11

_4µ7 smd tantalum capacitor C38...C42

_4µ7/25V smd electrolytic capacitor 25V C43

_470N smd capacitor C34...C37

_470P smd capacitor C59...C70

_47N/200V smd capacitor 200V C1

_47P smd capacitor C10

_50P/TRIM smd ceramic capacitor trimmer CV2

_CHOKE_HPS40 Chokes for HPS40

_0.68µH smd RF choke L2...L7

_150µH smd RF choke L1

_CON_HPS40 Connectors for HPS40

_HDR1X20 pin header 20-pole LCD1

_ST-222 3.5mm stereo jack female pcb with switch SK3

BATCON battery connector SK4

CBNC05 BNC FEMALE BULKHEAD SK1

DJ-005 DC JACK 2.1mm / 5.5mm SOLDER CONNECTIONS SK2

Velleman

HPS40 Technical Doc

_DIODE_HPS40 Diodes for HPS40

_BAS45AL smd low-leakage diode D9, D10

_BAS85 smd Schottky barrier diode D7, D8

_BAT54S smd Schottky barrier double diode D3...D6

_BAV70 smd high speed double diode D1, D2

_PRLL4001 smd rectifier diode D11...D13

LED3GL LED 3mm GREEN 4.0mcd TD UNIVERSAL LD1

_DISPLAY_HPS40 Display assembly for HPS40

_BOLTM2,5X3MM M2,5mm x 3mm pan head bolt

_HDR20FEM Female header 20 pole connector

_SPACER5MM_M2,5 5MM M2,5 spacer

LCD192112 Graphic LCD 192x112 no negative supply on board LCD1

_FUSE_HPS40 Fuse for HPS40

PFU2 PICO FUSE FAST 2A QUICK ACTING F1

_IC_HPS40 IC's for HPS40

_74AHC1G66 smd CMOS bilateral switch IC6...IC10

_74HC4051 smd 8-channel analog multiplexer/demultiplexer IC4

_IL211AT smd optocoupler IC14

_LMV7239M5 smd 45ns, 2.7V to 5V comparator with push-pull output IC3

_LMV922M smd low power dual operational amplifier with Rail-To-Rail i/o IC2

_UA741CD smd general purpose operational amplifier IC13

44PLCC LEADLESS CHIP CARRIER 44P NON STAGGERED IC11, IC12

OPA2353UA smd dual high-speed, single supply, Rail-to-Rail operational amplifier IC1

TLC5510AINSR smd 8-bit high-speed A/D Converter IC5

VKHPS40-IC11 Programmed cpld for HPS40 - ic11 IC11

VKHPS40-IC12 Programmed µcontroller for HPS40 - ic12 IC12

_PACKING HPS40 Packing and accesories

_HHPS40'1 User manual for HPS40 and HPS10

_MULTIPACKHPS40 Multi pack box for HPS40

_PROBE60SB Probe 60S in bulk for hand held scopes (only probe + clamp)

_RS232LEAD Custom lead RS232 to 3,5mm jack (moulded)

_SLEEVE HPS40 Sleeve for blowcase HPS40

BAGHPS CARRYING BAG FOR HPS-SERIES

CASEHPS Blow case for Personal scopes

_PCB_HPS40 Printed circuit board for HPS40

_PHPS40'4 Gold plated two layer PCB for handheld scope HPS40

_QUARTZ_HPS40 Crystal, oscillator for HPS40

_32.768KHZ smd watch crystal X1

_XO-40MHZ smd crystal clock oscillator XO1

_REG_HPS40 Voltage regulators for HPS40

_LM2940S-5.0 smd 5V/1A low dropout voltage regulator VR1

_TPS76433DBV smd low-power 3.3V/150mA low-dropout positive voltage regulator VR2

Velleman

HPS40 Technical Doc

_RELAY_HPS40 Relays for HPS40

VR05R051AS Reed relais 5VDC / 0.5A / 50mW SIL 1 FORM A RY1...RY4

_RES_HPS40 Resistors for HPS40

_100 (0603) smd resistor R91

_100/1% (1206) smd resistor 1% R5

_100/TRIM smd resistor trimmer RV1

_100K (1206) smd resistor R74

_10K (1206) smd resistor R37...R56

_15 (1206) smd resistor R16, R17

_150 (1206) smd resistor R18, R19

_150K (1206) smd resistor R75

_1K (1206) smd resistor R22, R23

_1M (1206) smd resistor R77

_1R5 (1206) smd resistor R14

_22K (1206) smd resistor R72

_270 (1206) smd resistor R26

_2K2 (1206) smd resistor R28

_2K4/1% (1206) smd resistor 1% R7, R8

_2K5/TRIM smd resistor trimmer RV2

_330 (1206) smd resistor R20, R21

_330K (1206) smd resistor R76

_22K (0603) smd resistor R92

_39K/1% (1206) smd resistor 1% R1

_3K/1% (1206) smd resistor 1% R13

_3K3 (1206) smd resistor R27

_3R3 (1206) smd resistor R25

_430/1% (1206) smd resistor 1% R9

_47 (0603) smd resistor R79...R90

_47 (1206) smd resistor R29...R36, R78

_47/1% (1206) smd resistor 1% R6

_47K (1206) smd resistor R57...R71

_47K/1% (1206) smd resistor 1% R4

_4K7 (1206) smd resistor R24

_4R7 (1206) smd resistor R15

_510/1% (1206) smd resistor 1% R3

_68K (1206) smd resistor R12

_750/1% (1206) smd resistor 1% R10, R11

_82K (1206) smd resistor R73

_910K/1% (1206) smd resistor 1% R2

_TRANS_HPS40 Transistors for HPS40

_BDP31 smd npn medium power transistor T9

_BDP32 smd pnp medium power transistor T10

_PMBT2222A smd npn switching transistor T1...T5

_PMBT2907A smd pnp switching transistor T6, T7, T11

_PMBTA14 smd npn darlington transistor T8

_ZENER_HPS40 Zener diodes for HPS40

_PLVA2656A smd double zener diode 5V6/180mW ZD2...ZD6

_PMBZ5248B smd zener diode 18V/250mW ZD1

Velleman

HPS40 Technical Doc

Title

Number RevisionSize

Date: 3-Oct-2002 Sheet of

File: C:\Files\Ontwerp\hps40\diagram & pcb\HPS40ed4.ddbDrawn By:

47n/200V

2n2/200V

R19

150

RY1

VR05R051AS

RY2

VR05R051AS

39K/1%

910K/1%

510/1%

47K/1%

100/1%

2K4/1%

R14

1E5

CV2

50p

CV1

20p

R74

100KC3

2n2/200V

VCC 5

GND

IC6 74AHC1G66

VCC 5

GND

IC7

74AHC1G66

AGND

5VA

AC/DC

÷20

÷400

÷1

D9BAS45AL

D10

BAS45AL

5VA

AGND

1 2

VCC

GND 3

IC8 74AHC1G66

AGND

5VA

REF GND

430/1%

47/1%

R12

68K

2K4/1%

1 2

VCC

GND 3

IC9 74AHC1G66

5VA AGND

x1.415/x7.07

R10

750/1%

R11

750/1%

1 2

VCC

GND 3

IC10

74AHC1G66

AGND

5VA

x3.325/x6.65

5VA

AGND

R13

RV2

2K5

CAL1 OE 1

DB0 3

DB1 4

DB2 5

DB3 6

DB4 7

DB5 8

DB6 9

DB7 10

VDDD 11

CLKIN 12

VDDD 13

VDDA 14

VDDA 15

REFTS

REFT

VDDA 18

ANIN

AGND

REFB

REFBS

DGND

24 DGND

IC5

TLC5510INS

AGND DGND

AGND

DGNDAGNDAGND

5VA 5VD

R15

4.7

C42 4µ7

DB0

DB1

DB2

DB3

DB4

DB5

DB6

DB7

ADCLK

ADOE

VREFT

VREFB

R38

10K

R77

R41

notmounted

5VD

IC3

LMV7239M5

5VD

TRIGGER

1IC2A

LMV922M

R78

C38 4µ7

5VA

AGND

AGNDAGND

R29

R30

R31

R32

R33

R34

R35

R36

VREFB VREFT

VCC 16

VEE

GND

S0 11

S1 10

S2 9

IC4

74HC4051

DGND

DGNDAGND

5VD

TRIG2

TRIG1

TRIG0

C41 4µ7

AGNDAGND

IC2B

LMV922M

R58

47K R59

47K

R57

47K

RV1

100

CAL2

C34

470n

AGND

PWMYPOS

C35

470n

AGND

R39

10K

AGND

R37

10K

5VA

BAV70

R48

10K

R47

10K

R46

10K

R45

10K

R49

10K R50

10K R51

10K

5VD 5VD 5VD

R25

3E3

AGND

R44 10K

RY4

VR05R051AS

5VA

BAV70

INPUTCAP2

RY3

VR05R051AS

5VA

INPUTCAP1

CV3

20p

SK1

BNC

5VA

ATT_COM

ATT20

ATT400

INPUT_COMMON

GAIN1

AMP1OUT

GAIN2

R24

4K7

AGND

C58

100p

15p

C10

47p

C11

39p

C122n2

C15

100n

C27

100n C28

100n C29

100n

C30

100n

C31

100n

C32

100n

C33

100n

IC1A

OPA2353UA 5

IC1B

OPA2353UA

HPS40 Input section

HPS40 4.0

Eddy De Cocker

C72

100n

AGND

DGND

C71

100p

R91

100

15p/200V

C4 not mounted

Table des matières

Autres manuels Velleman Instruments Instrument de mesure

Velleman Instruments

Velleman Instruments HPS140MK2 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
