VDH PROBA 5 Compact Manuel utilisateur
Description: PROBA 5 Compact Pages: 68 Doc.nr: 190356
Type: Installation manual By: HN Version: 1.0
File: PROBA5CompactInstallENv10.indd Signature: Date: 16-04-2020
VDH Products BV
Installation manual
PROBA 5 Compact
PROBA 5 Doc.nr: 190356 Version: 1.0
Page 2
Information
VDH Products BV
Produktieweg 1
9301 ZS Roden
The Netherlands
tel. : +31 - (0)50 302 89 00
fax. : +31 - (0)50 302 89 80
URL : www.vdhproducts.com
Titel: VASP
PROBA 5 Compact
VASP version: 1.4.107
©2019
Copyright
©2019 VDH Products BV. All rights reserved.
No part of this documentation may be reproduced or transmitted in any form or by any means, electronic or
mechanical, for any purpose, without the express written permission of VDH Products BV.
Trademarks:
Microsoft, Windows, are registered trademarks. All other brands and product names referred to in this manual are
the trademarks or registered trademarks of their respective holders.
Disclaimer
VDH Products BV provides this manual “as is”, makes no representations or warranties with respect to its
contents or use, and specifically disclaims any expressed or implied warranties of merchantability or fitness for
any particular purpose. VDH Products BV reserves the right to make changes to the content of this manual, at any
time, without obligation to notify any person or entity of such changes. The software described in this document
is furnished under a license agreement. No part of this manual may be reproduced or transmitted in any form or
by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval
systems, for any purpose other than the purchasers personal use, without the express written permission of VDH
Products BV.
Page 3
PROBA 5 Doc.nr: 190356 Version: 1.0
About this mAnuAl
This user manual is meant to support you during installation of the installation. See for details the specific data
sheets and drawings. Always consult your supplier in case of maintenance or repairs!
Used notations
Manual change notes
Release Date Remarks
1.0 May 24 2019 Creation
Referents
Reference to other documents like drawings
and descriptions of components.
Extra info
Background information.
Important
Important information which is
assumed as being known with
this user manual.
PROBA 5 Doc.nr: 190356 Version: 1.0
Page 4
sAfety
Read this first!
Before the installation is going to be used, the instructions mentioned
below have to be considered. The guarantee of the installation expires if any
damage, failure or shortcoming is a result of negligence or non-observance
of the points mentioned below.
⇒These rules of prevention of accidents must be kept near the
machine.
⇒To prevent a lack of clarity in pictures it is prohibited to make copies
of this document. Only original colour-prints guarantee a clear result.
⇒Use the installation only as described in this manual. Other use
van lead to dangerous situations and/or damage to installation or
products.
⇒Always observe the local safety and installation regulations.
Do not ignore local regulations or access protocols.
⇒Activities in or on the PROBA 5 Compact must be carried out by
qualified and authorized personnel only.
⇒Be sure to remove all tools from the machine after any maintenance.
⇒Take precautions to prevent electrostatic discharge.
⇒At normal use there are hazardous voltages present in the PROBA 5
Compact.
⇒Turn off all power supply before opening the PROBA 5 Compact.
Please ensure that during activities in the cabinet all voltages are
switched off and they can not be enabled.
⇒The PROBA 5 Compact must be connected to an earthed (grounded)
power supply to comply with international safety standards.
⇒Connect the signal I/O ports of the PROBA 5 Compact only to devices
which have a galvanic separated power supply to it’s low voltage
output section.
Page 5
PROBA 5 Doc.nr: 190356 Version: 1.0
Contents
1 Getting started 7
1.1 Introduction 7
2 Hardware specifications 8
3 Dimensions 10
3.1 PROBA 5 Compact external view 10
3.2 PROBA 5 Compact internal view 11
4 Connections 12
4.1 General remarks 12
4.2 Processor board 13
4.3 Analogue in/out board 14
4.4 Relays board 15
4.5 Ethernet switch 16
4.6 Defining the IP address of a control panel 17
4.7 PROBA 5 Compact sensors 18
4.7.1 Pt 1000 18
4.7.2 Connectionbox 19
4.7.3 Humidity sensor 20
5 Hardware configuration 21
5.1 Controller config 21
5.1.1 PROBA 5 Compact config 21
5.1.2 PROBA 5 Compact zone config 23
5.1.3 PROBA 5 Compact temperature config 24
5.1.4 Config overview 25
5.1.5 Activate configuration 26
5.1.6 Hardware config 27
5.2 Test 28
5.2.1 Panel test 28
5.2.1.1 Temperature 29
5.2.1.2 Relays 30
5.2.1.3 Digital in 31
5.2.1.4 Analogue in 32
5.2.1.5 Analogue out 33
5.3 Other 34
5.3.1 Backup configuration 34
5.3.2 Restore configuration 35
5.3.3 Install package 36
5.3.4 Restart application 37
5.4 Modbus 38
5.4.1 Modbus profiles 38
5.4.2 Modbus accessrules 39
5.4.3 Reload Modbus Config 40
PROBA 5 Doc.nr: 190356 Version: 1.0
Page 6
5.5 Service 41
5.5.1 Proba 5 compact parameters 41
5.5.2 Change password 42
5.5.3 Change time settings 43
5.5.4 Change network settings 44
5.5.5 Reboot controller 45
5.5.6 Set configuration 46
6 Parameters 47
6.1 General 47
6.1.1 Front settings 47
6.1.2 Common settings 47
6.1.3 Fan settings 48
6.1.4 Cooling settings 48
6.1.5 Heating settings 49
6.1.6 Gassing settings 49
6.1.7 Ventilation settings 50
6.1.8 Humidity control settings 50
6.2 Alarms 51
6.2.1 Temperature alarms settings 51
6.2.2 Alarm relays settings 52
6.3 Parameters input 53
6.3.1 Temperature sensors settings 53
6.3.2 Other sensors settings 54
6.4 Parameters output 54
6.4.1 Adjusting analogue output 54
6.5 Temperature programs 55
6.6 Explanation of parameters 56
6.6.1 Front settings 56
6.6.2 Common settings 56
6.6.3 Fans settings 57
6.6.4 Cooling settings 58
6.6.5 Heating settings 58
6.6.6 Gassing settings 59
6.6.7 Ventilation settings 59
6.6.8 Humidity control settings 60
6.6.9 Temperature alarms settings 60
6.6.10 Alarm relays settings 61
6.6.11 Temperature sensors settings 62
6.6.12 Other sensors settings 62
6.6.13 Analogue outputs settings 63
6.6.14 Temperature programs 63
A Operations of controls 64
Cooling and Heating 64
Humidifying 64
Gassing 64
Proportional outputs for Cooling and Heating 64
Proportional intergrating output for the Cooling and Heating 64
B List of figures 66
Page 7
PROBA 5 Doc.nr: 190356 Version: 1.0
1 GettinG stArted
1.1 Introduction
The VDH Alfanet Server Program (VASP) is used to simply read the data from different types of control systems
and to operate those systems.
The number of users that may operate the system at the same time depends on your licence. Ask your supplier for
more information.
Multiple ripening chambers can be controlled at every location.

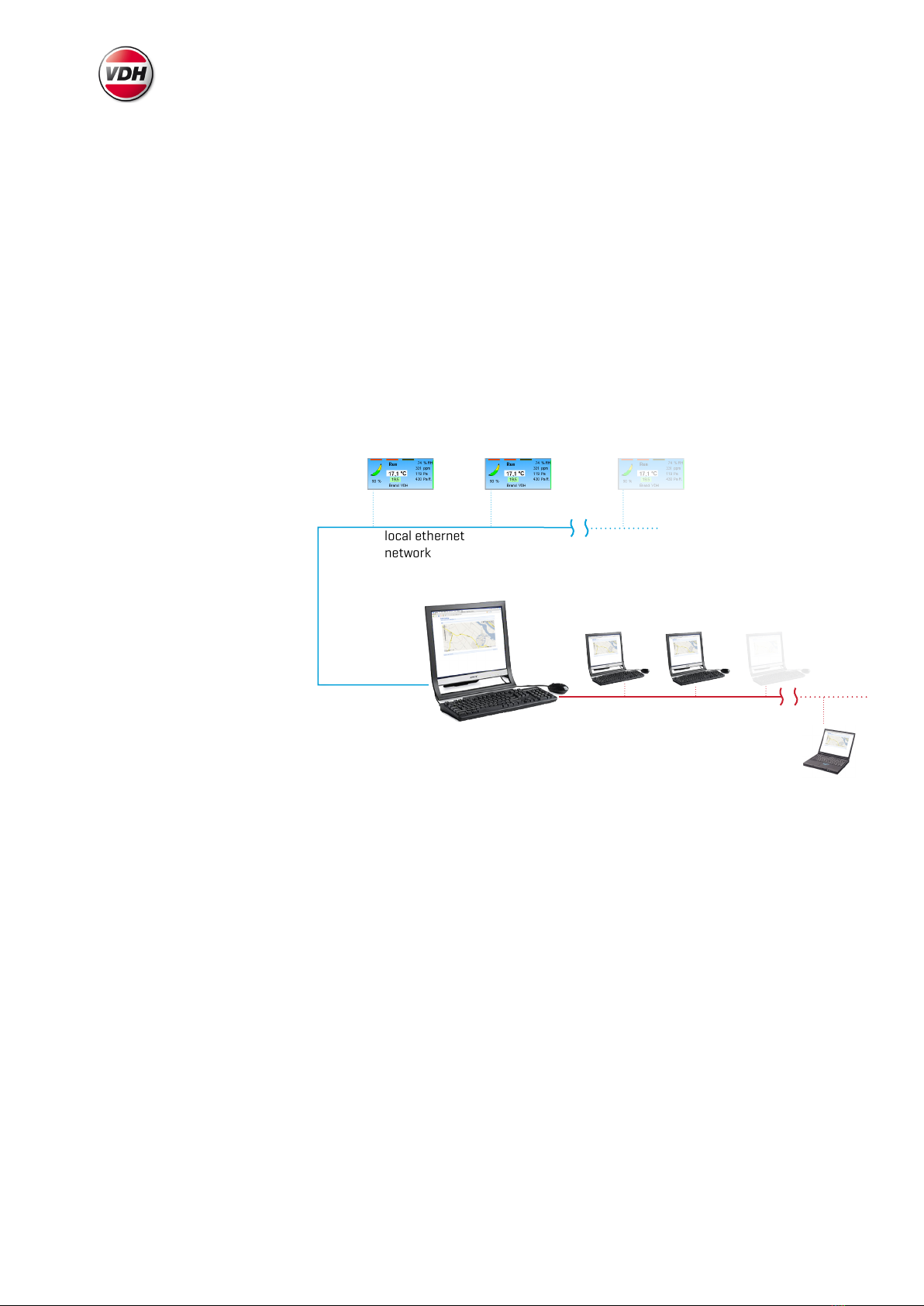

Fig. 1 VASP system
The PROBA Ripening System consists of the following components:
• A PROBA 5 Compact Controller with an Ethernet connection.
• An Ethernet network.
• A central server with VASP (VDH Alfa Server Program) software.
• A touch control panel.
Every ripening chamber can be fully controlled using its own PROBA 5 Compact controller. Every controller
regulates an individual ripening programme and can be fully operated using the PC or a touchscreen.
External
internet
external ethernet
network
local ethernet
network
Each cell contains a controller
VASP
Web server
PROBA 5 Doc.nr: 190356 Version: 1.0
Page 8
2 hArdwAre speCifiCAtions
Type :PROBA 5 Compact
VDH part number :907.000401
Power supply :12Vdc
Power consumption :less than 20 Watts
Safety precautions :Mount an external switch and fuse as close as possible to the PROBA 5 Compact in order to interrupt the voltage.
Housing dimensions :Approx 208x191X186mm (WxHxD)
Housing material :Aluminium
Housing finish :Anodised aluminum
Front panel :Anodised aluminum with imprint
Mounting method :DIN rail
Weight :
Operation
temperature
:0 / +40˚C
Storage temperature :-20 / +60˚C
Operation RH :10 / 90 %RH non condensing
Operation :•Ethernet LAN connection using a PC
(full access with VASP software)
•RS 485 connection using a remote control (limited access).
Input/Output signals :•4x Pt1000 Temperature sensors
(2 wire shielded with shield connected to earth-strip)
A.. Signal line
B.. Common 0V line
:•3x Analog inputs for 2 or 3-wire shielded sensors
(with shield to earth-strip)
Individual configurable
++12Vdc sensor supply output, Imax. per output 100mAdc
(Imax. total 400mA)
SInput signal selectable by webpage:
0 .. 1 Vdc Ri > 50 KOhm (Umax. = 5Vdc)
0 .. 10 Vdc Ri > 10 KOhm (Umax. = 24Vdc)
4 .. 20 mA Ri = 50 Ohm (Imax. = 40mA)
-0V common (for 2 and 3-wire sensors)
•8x Analog outputs
(2-wire shielded with shield to earth-strip)
Individual configurable
+Output signal selectable by webpage:
0 .. 1 Vdc (Imax. 10 mA)
0 .. 10 Vdc
4 .. 20 mA (Rload max. 450 Ohm)
-0V common
•8x Digital contact
(use shielded cable with shield to earth-strip)
Contact current (closed) 5 mAdc
Contact voltage (open) 5 Vdc
Page 9
PROBA 5 Doc.nr: 190356 Version: 1.0
•7x Relay contact outputs (Imax. per relay terminal connection 7,5A)
(Approvals and ratings OMRON G2R1 relay (www.omron.com))
Following contacts configurable
1x Relay SPDT NO/NC/C
6x Relay SPST NO/COM with shared commons
RS485 Network :2x RS485 Network connection with +12Vdc supply output,
Imax total 100 mA.
(Use maximal one +12Vdc supply output).
Use 2x twisted-pair shielded cable min. 0,5mm2, max. length 1km
Ethernet :Ethernet connector to connect PROBA 5 Compact to the Ethernet LAN or to a PC.
•Use CAT 5e patch cable to connect the PROBA 5 Compact to ethernet LAN
•Use CAT 5e crossover cable to connect the PROBA 5 Compact direct to PC.
•Use network cable of type STP.
The PROBA 5 Compact ethernet jack is located on the processor board.
USB connection :The USB connection is not for standard use.
Terminals :Push-in terminals
(Approvals and ratings Phoenix Contact
(www.phoenixcontact.com))
•Processor board: PCB-part : MCV1.5/*-GF-3.5
Cable-part : FMC1.5/*-STF-3.5
PCB-part : PSTM0.5/4-HH-2.5
Cable-part : MSTBV2.5/3-GF
•Analogue in+out board: PCB-part : MCV1.5/*-GF-3.5
Cable-part : FMC1.5/*-STF-3.5
•Digital in+out board PCB-part : PSTM0.5/*-HH-2.5
Cable-part : MSTBV2.5/*-GF
•PCB-part: MCV1.5/*-GF-3.5
Cable-part: FMC1.5/*-STF-3.5
* = amount of contacts (2..8 per part)
PROBA 5 Doc.nr: 190356 Version: 1.0
Page 10
3 dimensions
3.1 PROBA 5 Compact external view
Fig. 2 Dimensions PROBA 5 Compact
Autres manuels pour PROBA 5 Compact
2
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels VDH Thermostat
VDH
VDH PROBA 5 Compact Manuel utilisateur
VDH
VDH ALFA 30 Manuel utilisateur
VDH
VDH ALFA 23 Manuel utilisateur
VDH
VDH ALFANET 95 Manuel utilisateur
VDH
VDH ALFA 31 Manuel utilisateur
VDH
VDH ALFA 25 DP Manuel utilisateur
VDH
VDH ALFA 71 PI Manuel utilisateur
VDH
VDH ALFA 51 PI Manuel utilisateur
VDH
VDH ALFA 29 Manuel utilisateur
VDH
VDH ALFA 72-VS Manuel utilisateur
VDH
VDH ALFANET 33 Manuel utilisateur
VDH
VDH ALFA(NET) 52 Manuel utilisateur
VDH
VDH ALFANET51 RTDN Manuel utilisateur
VDH
VDH ALFA 75 RTDF Manuel utilisateur
VDH
VDH ALFANET 31 Manuel utilisateur
VDH
VDH ALFA 71 MOD Manuel utilisateur
VDH
VDH ALFANET 55 RTDF Manuel utilisateur
VDH
VDH ALFA 71 S PI Manuel utilisateur
VDH
VDH ALFA 33DP Manuel utilisateur
VDH
VDH ALFA 11 Manuel utilisateur
Manuels Thermostat populaires d'autres marques
EWELLY
EWELLY EW-181 Manuel utilisateur
Prolon
Prolon T1100 Instructions d'installation
Computherm
Computherm Q20 Manuel utilisateur
Heatmiser
Heatmiser neoStat Manuel utilisateur
Aube Technologies
Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur
Mars
Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur
