VAULT ECW-K50 Manuel utilisateur
Rev 1.4
Stability Kiosk
Assembly Instructions ECW-K50/K44-IP9/IP12
1

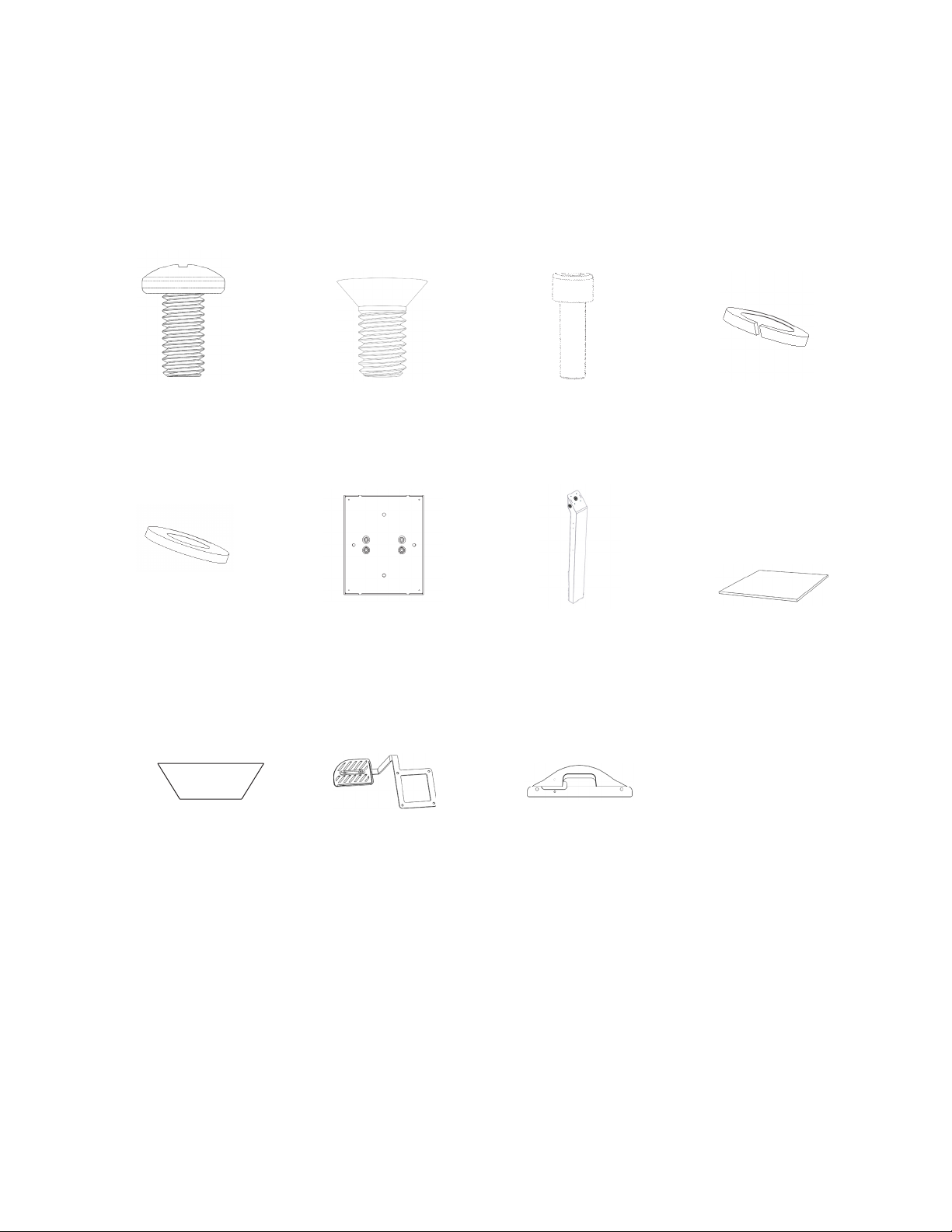

Parts Included
(4)
Duraco
Adhesive
h
(1)
Base
f
(1)
g
Tower
(4)
Washer
e
(4)
10-32x3/8
Pan Head
a
(4)
Lock Washer
d
(4)
10-32x3/8
Flat Head
b
(4)
Tower Bolt
c
(4)
Rubber
Feet (Pre-installed)
i
(1)
Docuvue
j
(1)
IMGPII Bracket
k
*iMag Pro II Card Reader and iPad Tablet
not included in bundle
2

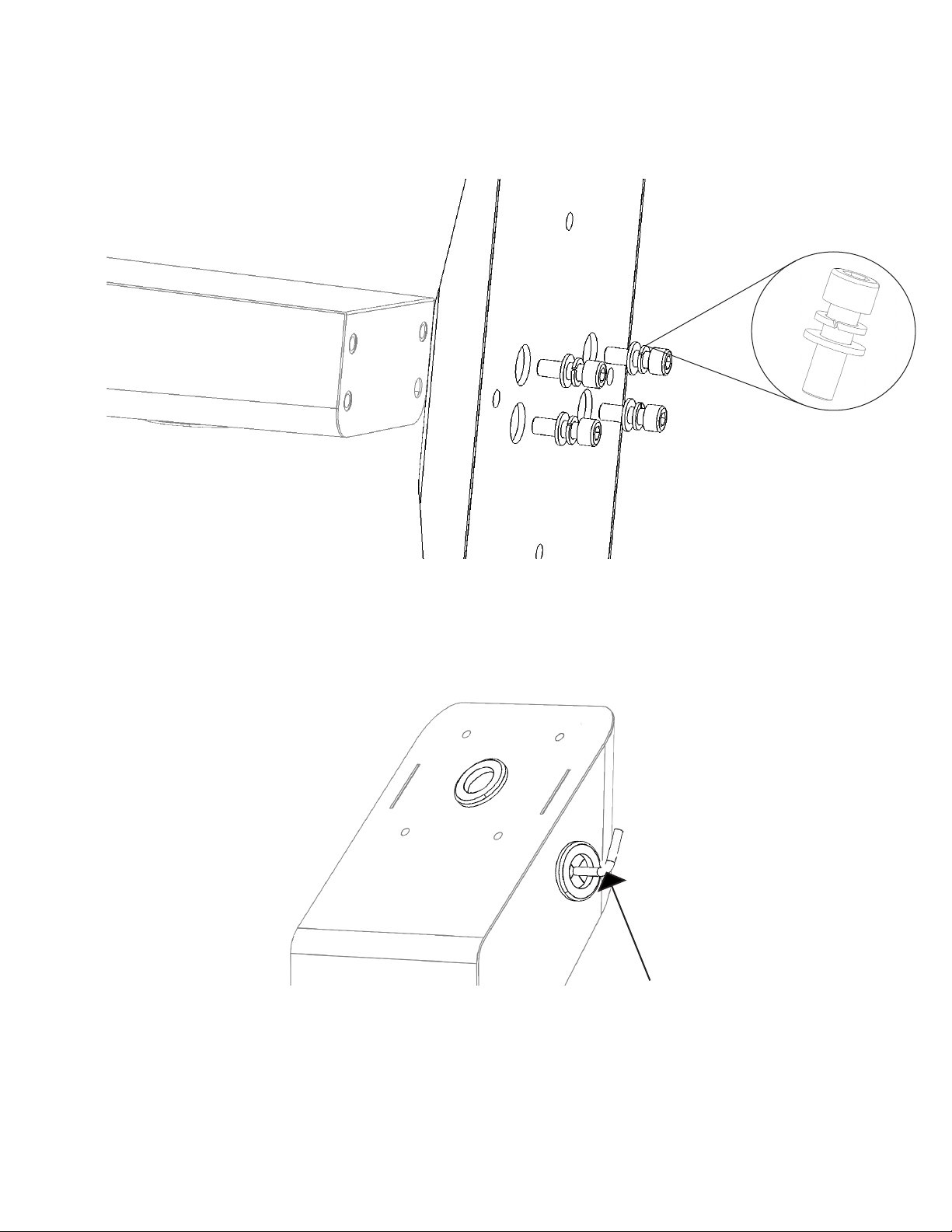

Attach tower to base
➀
*Slide the lock washer then
normal washer onto the bolt
before installing into tower
Route cables
➁
*Route your cable out the side of your kiosk
to connect into the ID TECH iMag Pro II Card
Reader or the iPad Pro tablet
3

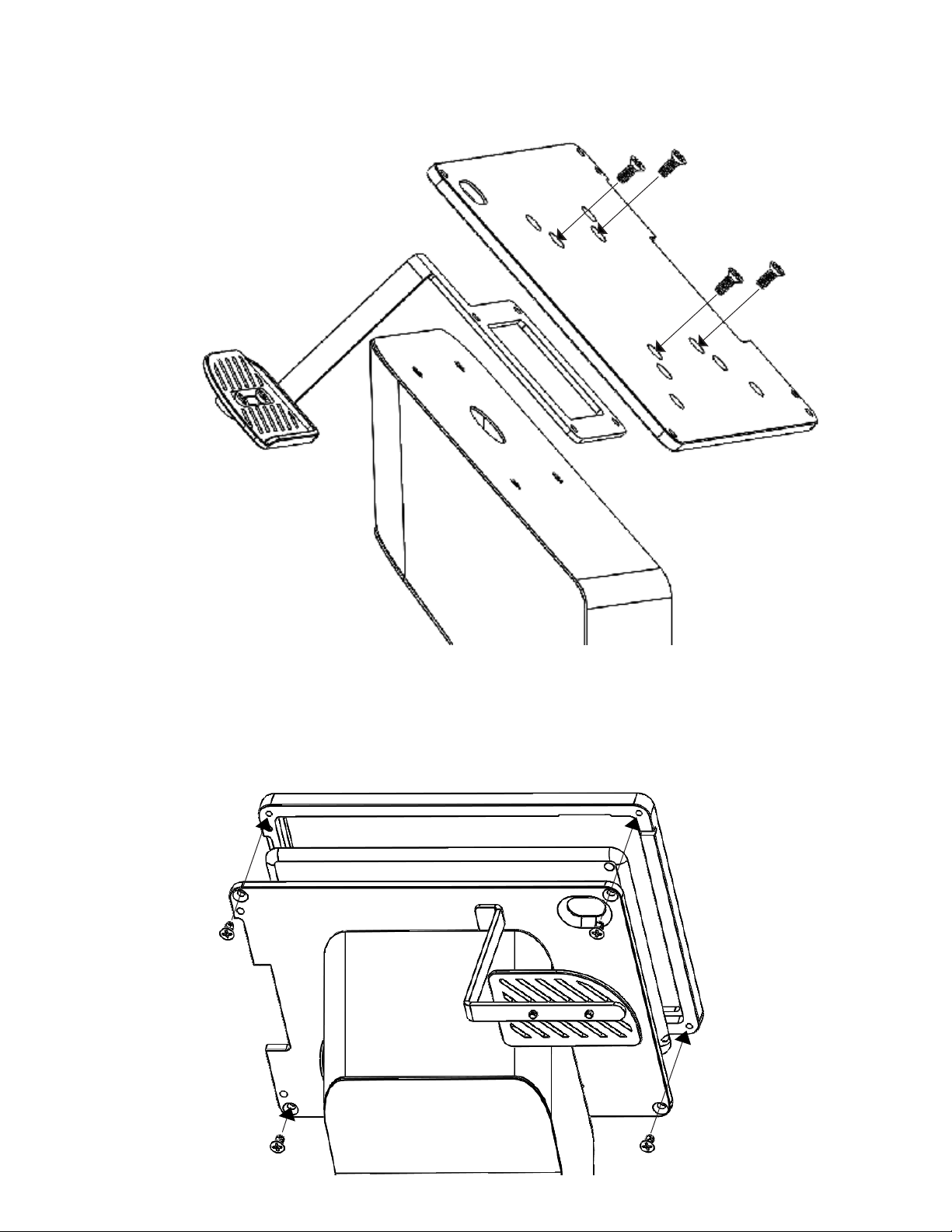

Install Backplate and Docuvue
➂
Install tablet and faceplate
➃
4

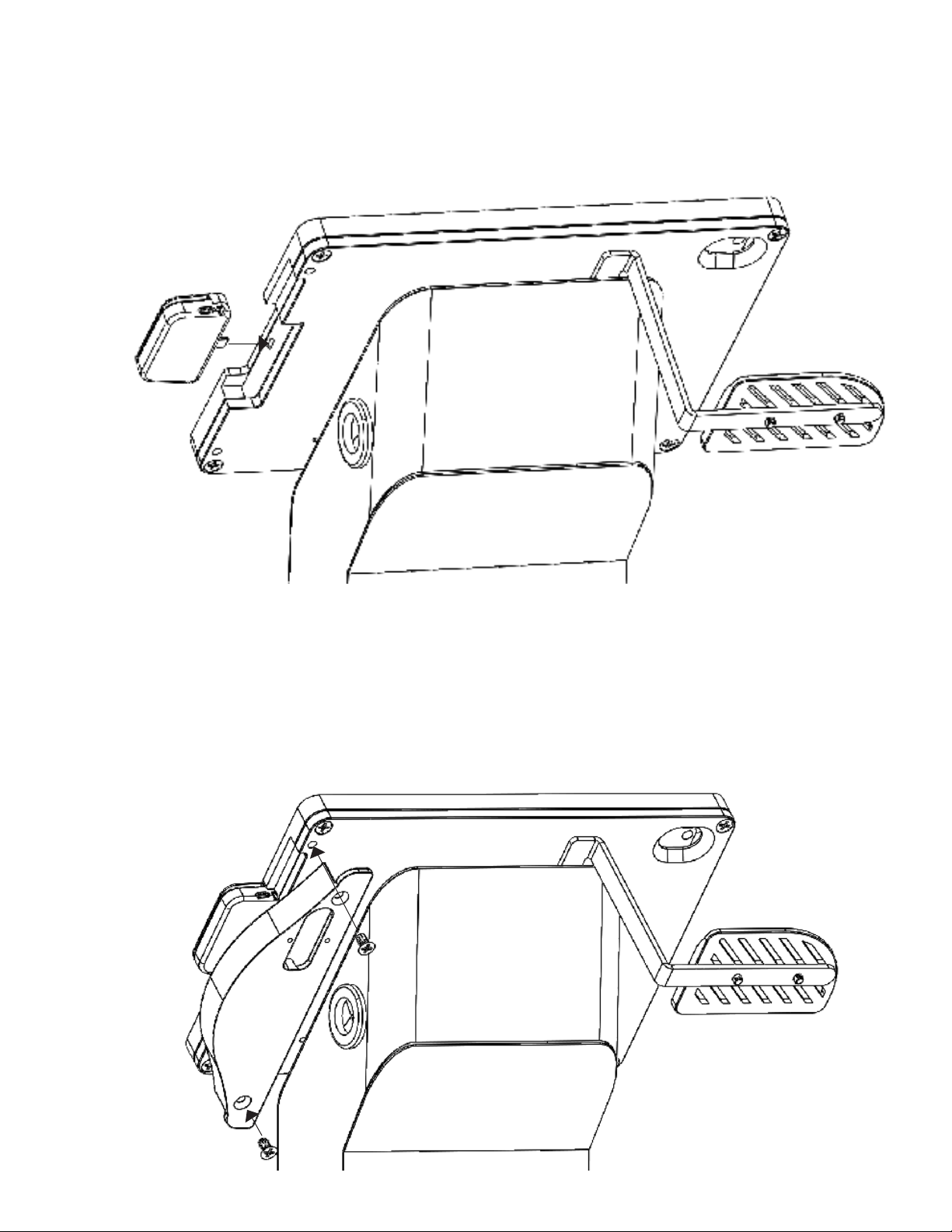

Plug ID TECH iMag Pro II card
reader into tablet
➄
Install the ID TECH iMaG Pro
II bracket over top of the card
reader
➅
5

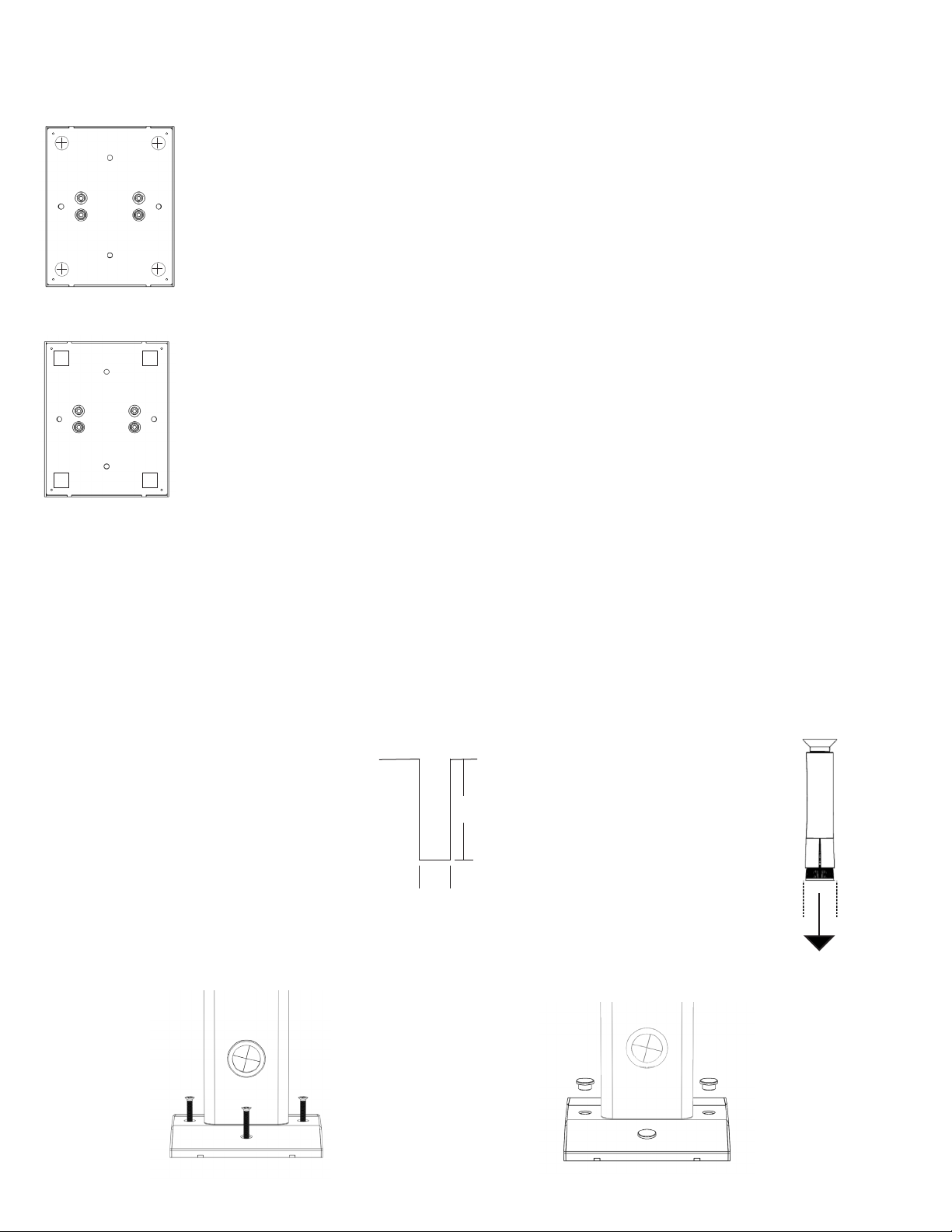

Surface Mounting Options
Semi-Permanent
For a semi-permanent mounting solution, use the (4) duraco strips (j) included with
your base. Use a phillips head screwdriver to remove the 4 rubber feet on the bot-
tom of the base. Peel o one side of the lm and stick it to the four positions pic-
tured above. Let the adhesive cure onto the base for 3 hours before peeling o
the other side and sticking it to your desired surface. Once you have stuck the base
down to a surface, let it sit for another 12 hours with NO interaction before use. To
remove duraco, take a piece of lament such as shing line or dental oss and run
underneath the base in a sawing motion to cut the adhesive
For a non-permanent mounting solution, use the (4)
included black rubber feet (i). These feet come pre
installed on your kiosk base. Set your kiosk up wher-
ever you like for a non-permanent mounting solution
Standard
Permanent
The most secure way to mount your kiosk to the oor is using the included lag bolts to anchor the
base in the oor. This process will make permanent holes in your oor and requires power tools and
more advanced knowledge.
➁Drill 3 holes
14mm(.55 inches)
wide and 72mm(2.83
inches) deep*
72mm(2.83 inches)
14mm(.55 inches)
➂Hammer the Lag
assembly into the
hole with a hammer
➃Unscrew the phillips
head bolt and place
your base over the top
of the 3 holes in the
oor. Hand tighten the
bolts back down until
the base is tight. ➄Insert plugs
➀Use the included
hole diagram to mark
where the 3 lag bolts
will be drilled into the
oor
* VAULT does not take any liability for damage to your building by installing the anchors.
Warranty
This product comes with VAULT’s Lifetime Warranty. All items are covered under this warranty with the
following exceptions.
• Damage caused from misuse, abuse, neglect, acts of God.
• Lost parts or surface scratches from use or other actions.
• Stripped or broken screws, warped parts from misuse or
improper installation.
All warranty claims should be submitted through the company that you originally purchased the product
from. A receipt or other documentation showing date and location purchased will be required. Shipping
to VAULT and return shipping to the end user are the responsibility of the end user. VAULT reserves the
right to substitute a newer product or one of equal or higher value. If you should have any questions
concerning this policy or other items, please contact VAULT at the address contained in this document.
