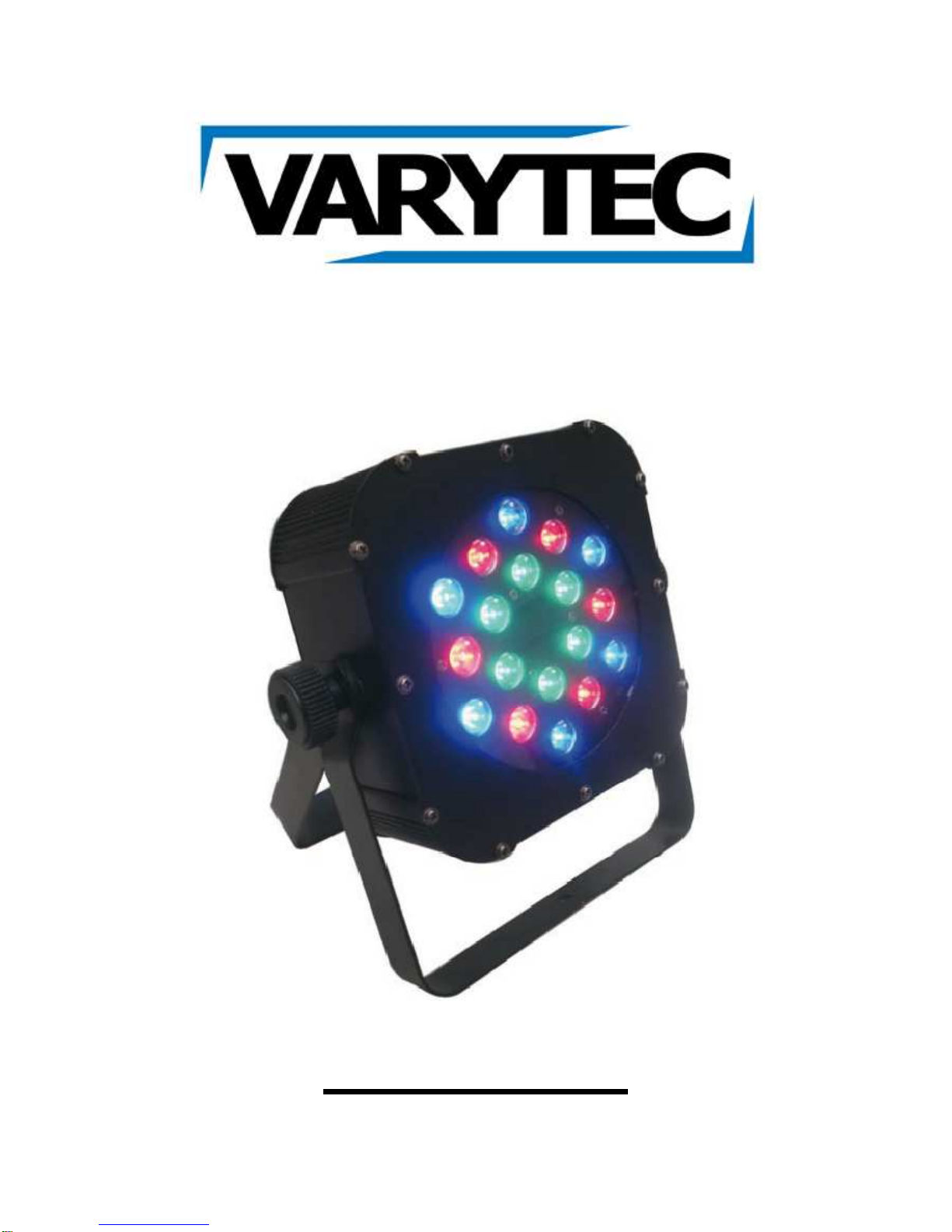

Varytec LED PAD 18 Manuel utilisateur

User manual

LED PAD 18

2 / 8

Table of contents

Safety instructions............................................................................................................................ 3

1.1.

FOR SAFE AND EFFICIENT OPERATION............................................................................ 3

Technical Data ................................................................................................................................. 4

Operation.......................................................................................................................................... 4

3.1.

System menü........................................................................................................................... 4

3.2.

DMX Control............................................................................................................................ 5

3.3.

Automatic mode....................................................................................................................... 6

3.4.

Sound to Light mode ............................................................................................................... 6

3.5.

Master Slave mode.................................................................................................................. 7

3.6.

Version number ....................................................................................................................... 7

3 / 8

1. Safety instructions

•This device is suitable for indoor use only.

•All modifications to the device will void the warranty.

•Repairs are to carry out by skilled personnel only.

•Use only fuses of the same type and original parts as spare parts.

•Protect the unit from rain and humidity to avoid fire and electric shocks.

•Make sure to unplug the power supply before opening the housing.

1.1.FOR SAFE AND EFFICIENT OPERATION

Be careful with heat and extreme temperature

Avoid exposing it to direct rays of the sun or near a heating appliance.

Not put it in a temperature bellow 32°F / 0°C, or e xceeding 104°F / 40°C.

Keep away from humidity, water and dust

Do not place the set in a location with high humidity or lots of dust.

Containers with water should not be placed on the set.

Keep away from sources of hum and noise

Such as transformer motor, tuner, TV set and amplifier.

To avoid placing on un-stable location

Select a level and stable location to avoid vibration.

Do not use chemicals or volatile liquids for cleaning

Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.

If out of work, contact sales agency immediately

Any troubles arose, remove the power plug soon, and contact with an engineer for repairing,

do not open the cabinet by yourself, it might result a danger of electric shock.

Take care with the power cable

Never pull the power cable to remove the plug from the receptacle, be sure

to hold the plug. When not using the device for an extended period of time, be sure to

disconnect the plug from the receptacle

4 / 8

Important: Damages caused by the disregard of this user manual are not subject to

warranty. The dealer will not accept liability for any resulting defects or

problems. Make sure the electrical connection is carried out by qualified

personnel. All electrical and mechanical connections have to be carried out

according to the European safety standards.

2. Technical Data

Power supply

100

240V

/60

Power consumption

Current

ound

to Light

Via

built in mic

DMX512

connection

3 Pin XLR

Weight

2,4

Measurements

274 x 265 x 109m

Maximum ambient temperatur

+40°

Maximum housing temperature

+20

+60°

Fuse

F1A, 250V

Channel

Number of LEDs

x 3W

single colours

LEDs

(6R, 6G, 6B)

4500Lux @1m

3. Operation

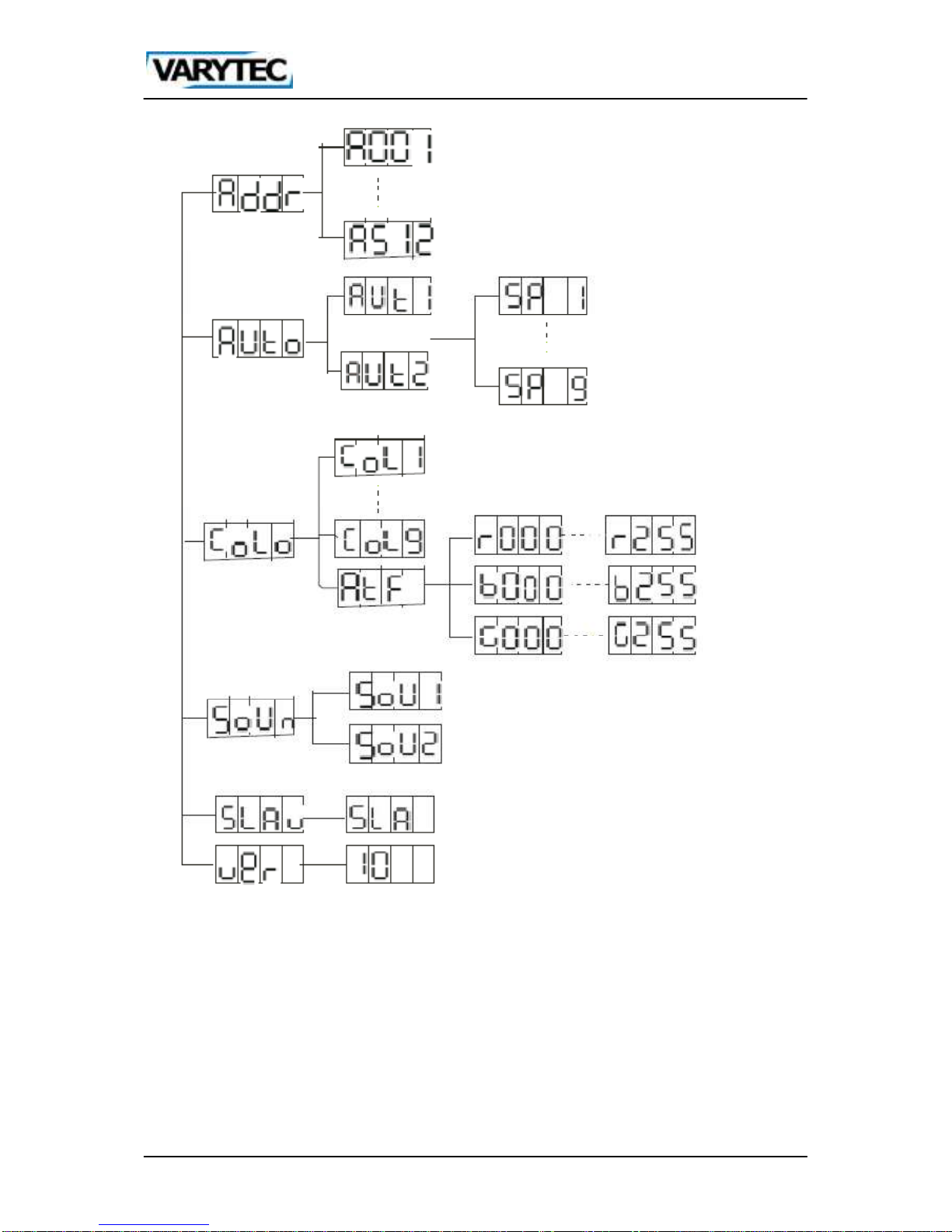

3.1.System menü

the system menu is built like described below this information. Generally you can leave menus

with ESC, until you reach the highest control line). With ENTER you can recall a function to set up

the according values, then you can change these values by using the UP/DOWN buttons. Always

confirm your set up by using ENTER. With ESC you can go back and leave this menu.

5 / 8

3.2.DMX Control

To set up your desired DMX address, first of all push ESC, then use the UP/DOWN buttons until

you see “Addr” in the display. Now press ENTER, to enter the menu. Now the display shows

“Axxx”. In this case x stands for the set dmx address. Now set up your own desired dmx address

by using the UP/DOWN buttons. Leave the menu with the ESC button.

The fixture can be controlled by dmx.

6 / 8

DMX

Channel

Value

Func

tion

255

Dimmer 0

100%

–

255

Dimmer for Red 0

–

100 %

–

255

Dimmer for Green 0

–

100%

–

255

Dimmer for Blue 0

–

100 %

–

255

peed slow to fast

–

16 – 31

32 – 47

48 – 63

64 – 79

80 – 95

96 – 111

112 – 127

128 – 143

144 – 159

160 – 175

176 – 191

192 – 207

208 – 223

224 – 239

240 – 255

No Function

cene mit R – G – B – RG – G

cene mit G – GB – B – RB – R

cene mit R – B – G – RG – G

cene mit R – G – GB – RGB – G

cene mit B – BG – RGB – RG – G

Color synchronized strobe

Color fade

Color change

Color change with strobe

Color Ramp down

Colour Ramp in

Colour triangular

Colour Glide

ound 1

ound 2

3.3.Automatic mode.

To enter the automatic mode push the ESC button. After that use the UP/DOWN buttons until

“auto” is shown in the display. Push ENTER to enter the menu Now the display shows „Aut x”. In

this case x stands for 1 or 2, means the automatic programs 1 and 2 which you can choose by

using the UP/DOWN Button. Push Enter to see the speed adjust menu. The display shows “SP x”

and x stands for a letter from 1 to 9, which is for adjusting the speed.

3.4.Sound to Light mode

to choose the sound to light mode, go on as you read here:

Push the ESC button first. Then use UP/DOWN buttons until you see “Soun” in the display. Push

ENTER You can read “Soux” in the display and with the UP/DOWN buttons you can choose

between the 2 sound programs. Push Enter to see the speed adjust menu. The display shows “SP

x” and x stands for a letter from 1 to 9, which is for adjusting the speed.

7 / 8

3.5.Set up your fixed colour

Push the ESC button first. Then use UP/DOWN buttons until you see “CoLo” in the display. Push

ENTER. Now you can see “Colx” or “AtF” in the display. If there is “Colx” the x stands for a number

between 1 and 9, which stands for 9 different colors to be choosen by using the up/down buttons. If

you want to mix your own color then please push up/down buttons until you see “AtF” in display, then

push ENTER

When you have confirmed AtF you can choose between the following colors to set up from 1 to 255:

Rxxx stands for red

Gxxx stands for green

Bxxx stands for Blue

After setting up your colors confirm your choice with ENTER.

3.6.Master Slave mode

Push the E C button first. Then use UP/DOWN buttons until you see “ Lav” in the display. Push

ENTER. Now the fixtures works in slave mode and copies exact the values from the master

fixture.

For the connection of master fixture and slave fixture, please use a standard dmx 3 pole XLR 110

Ohms cable. Connect the male connector to the master and the female connector to the slave

fixture. Go on like this until all the fixtures you want to be connected, are connected. et up your

desired settings at the master and all the slaves will copy the functions of this fixture.

3.7.Version number

Push the ESC button first. Then use UP/DOWN buttons until you see “VER” in the display. Push

ENTER: Now you can see the actual software version. Leave the menu with ESC.

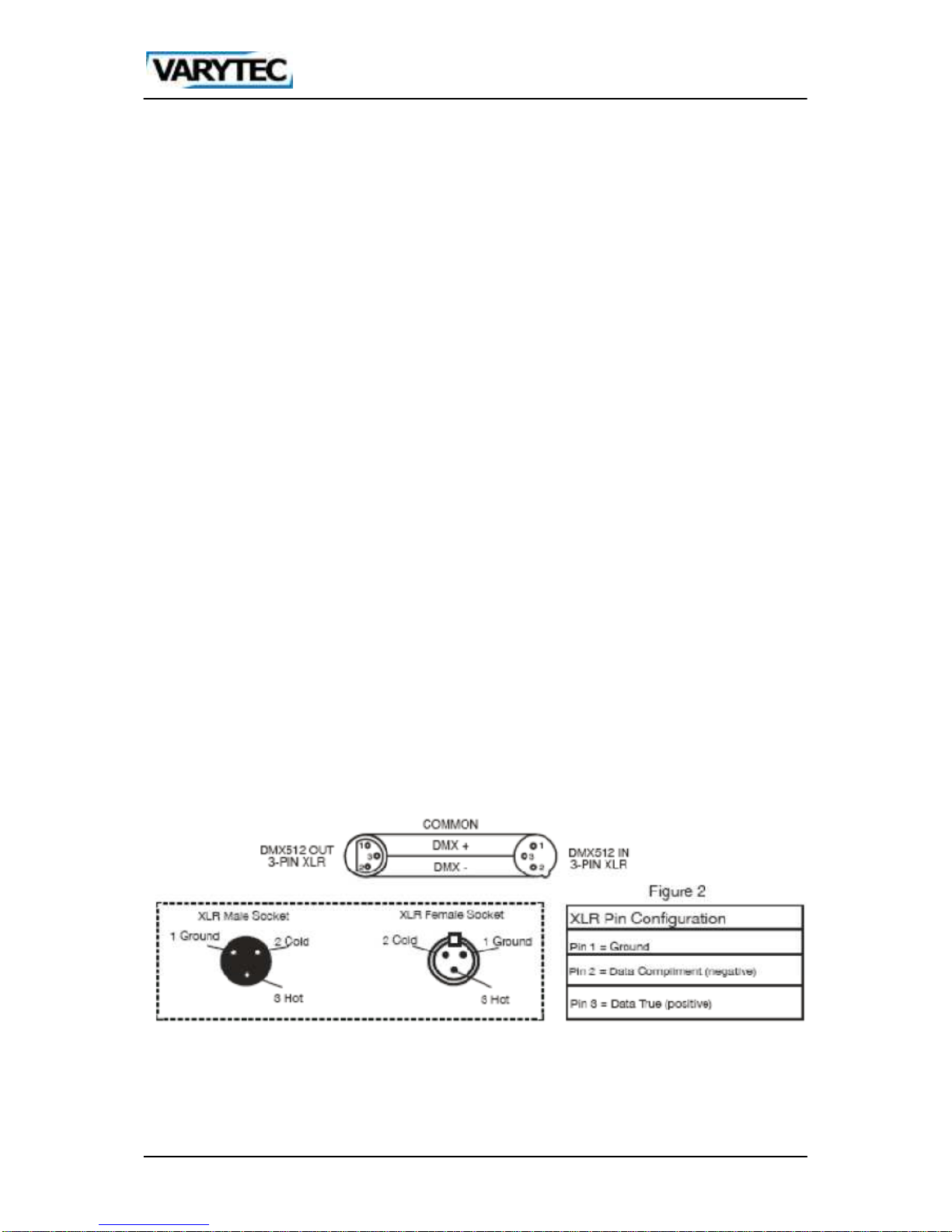

4. DMX Cable info

8 / 8

Importer:

B & K Braun GmbH

Industriestraße 1

D-76307 Karlsbad

www.bkbraun.com
