Vantech J2020S Manuel utilisateur
Warehouse Use Only
Part #: J2020S
Dimensions: 6” X 6” X 73” (Telescopic)
Weight: ???
Part # QUANTITY
D069 1
D115 1
D119 1
G004 4
M13B 4
A286-72S 2
BG572 2
A03 4
A11 1
A15 1
A69 1
S
REQUIRED TOOLSPRODUCT INFO
Part #: J2020S
System: J2000
Material: Aluminum
Fitment: Universal (Drilling Required)
Color: Silver
1/2” Wrench
Power Tool With 5/16” Drill Bit
Marker
MARKER
3/16” Allen Key Wrench
PART # DESCRIPTION QTY ITEM
ITEM NOT DRAWN TO SCALE
S052 DOUBLE SLIDER 2” BOLT TO BOLT 4
S062 DOUBLE SLIDER 1 3/8” BOLT TO BOLT 1
W008 5/16” X 3/4” WASHER 28
B016 5/16” X 1 1/4” CARRIAGE BOLT 8
B118 5/16” X 1 1/4” BUTTON HEAD ALLEN BOLT 8
B065 5/16” X 1” HEX BOLT 2
N005 5/16” NYLON NUT 20
M13 MOUNTING BASE 4
M07 INTERIOR PLATE 4
A286 -72 3” X 1.5” X 72” CROSS BAR 2
G004 POLYFOAM GASKET 1.5” X 4” 4
BG572 RUBBER BAR GUARD 72” 2
A03 SIDE SUPPORT 4
A11 LADDER BASE 1
A15 STOPPER 1
A69 EZ-VELCRO STRAP 1

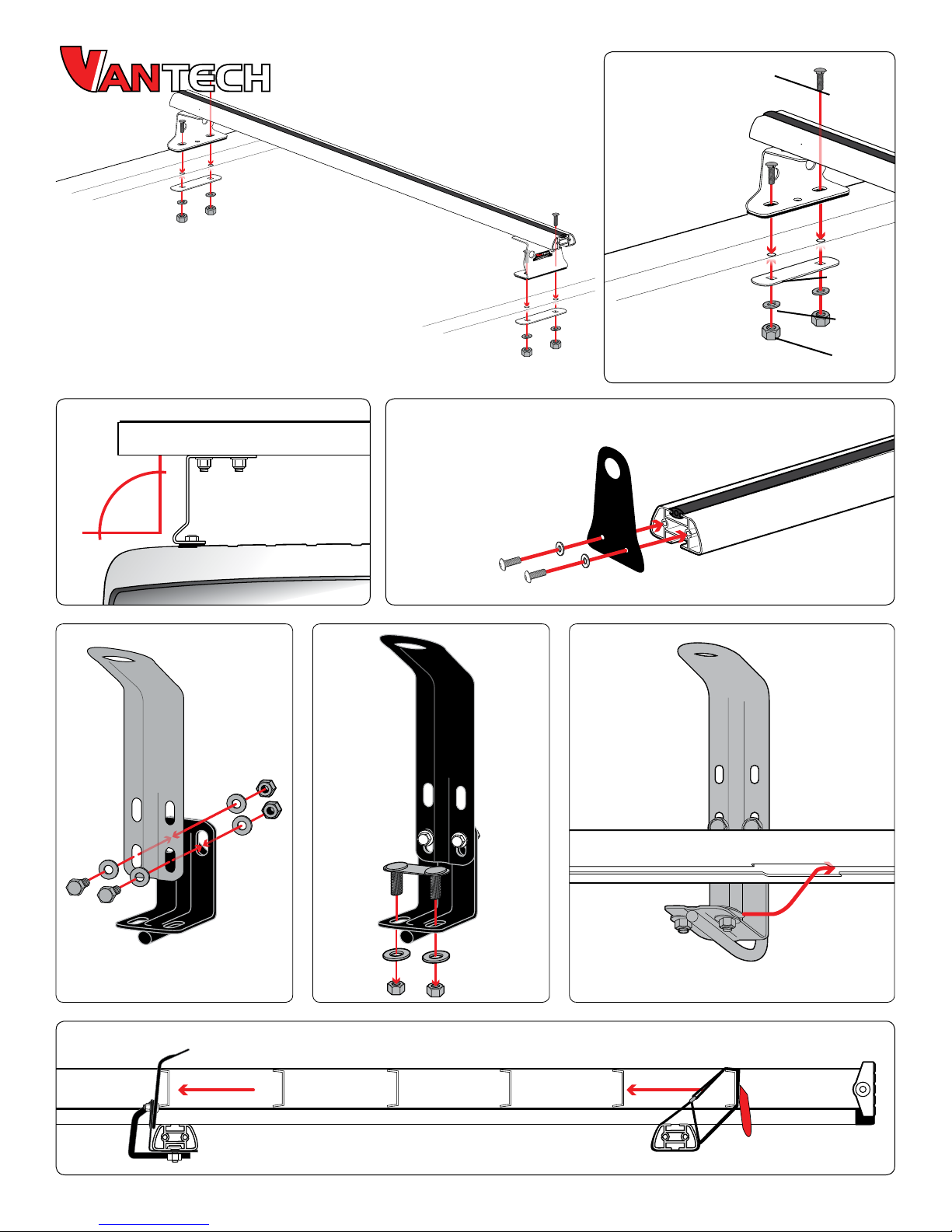

SYSTEM PLACEMENT
MUST BE PLACED IN THIS ORDER
A286
FRONT
REAR
Do not tighten hardware
M13
M13
EZ-Velcro Strap Directions
RubbeR baR GuaRds
- Press the rubber bar guard into the channels of cross bars
RubbeR baR GuaRds
- Press the rubber bar guard into the channels of cross bars
- Leave 1” on each end
W008
N005
M13
S052
MARKER
4”
*Remove van rack and
use a 5/16” drill bit.
*Mark with marker.
Align with interior
plate to ensure bolt
alignment.
M07
90°
90°
90°
90°
90°
90°
90°
90°
Tighten all hardware
B118
W008
A03
Repeat for all cross Bars
B016
W008
N005
M07
Front Rear
Front
Ladder Stopper
Rear
Velcro Strap
Ladder Stopper Velcro Strap
Ladder Guide
Installed onto front cross bar
B065
W008
W008
W008
A15
N005
N005
S062
A11
Discover other commercial van equipment on our website.
