Valor Fires Clarissa Manuel utilisateur

5134318/02

This guide should be read in conjunction with the installer and owner guide

supplied with the fire / heater.

This guide is intended to help you install your surround. Please read carefully before

installing. However, if further information is required, our

Valor Fires Technical Helpline will be pleased to help.

Telephone 0844 8711 565 (National call rates apply in the United Kingdom)

In the Republic of Ireland call 0044 844 8711 565.

INSTALLATION GUIDE

Important: Please keep your guide in a safe place for future reference.

Clarissa

Surround

The surround is supplied

fitted with infill strips (gas

rails), with these fitted the

surround is designed for a

back panel that has a

maximum depth of 25mm.

With the infill strips

removed the rebate at the

back of the surround is

75mm.

(including photocopying), stored in any medium by electronic means (including in any

retrieval system or database) or transmitted, in any form or by any means, whether

electronic, mechanical, recording or otherwise, without the prior written permission of

the copyright owner.

Applications for the copyright owner's permission to reproduce any part of this

publication should be made, giving details of the proposed use, to the following

address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business

Park, Stanier Way, Derby, DE21 6BF.

Warning: Any person who does any unauthorised act in relation to a copyright work

may be liable to criminal prosecution and civil claims for damages.

Valor Fires, Erdington, Birmingham B24 9QP

www.firesandstoves.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from

those given in this publication

Page 2

INSTALLATION GUIDE

SAFETY

When drilling into brick work always wear safety goggles, a dust mask, and

always work in a well ventilated area.

Keep children clear of work area.

Always read the installer and owner guide supplied with the fire / heater. This

guide should be read in conjunction with those supplied with the fire / heater.

Always tidy loose electrical leads in the work area.

Always switch off electric power when not needed.

The surround must always be fixed into position.

HANDLING AND UNPACKING

Before continuing any further with the installation of this surround please read the

following:

Important instructions.

The approximate lifting weights of the surround components are as below:

Side leg (Each) 5.88 kg

Fascia 4.3 kg

Surround top 6.9 kg

This surround is heavy. We therefore recommend that two people should be

sufficient to lift it. If fitting or moving the surround alone we recommend the use

of suitable lifting apparatus.

When lifting always keep your back straight. Bend your legs and not your back.

Avoid twisting at the waist. It is better to reposition your feet.

Avoid upper body / top heavy bending. Always bend from the knees rather than

the waist. Do not lean forward or sideways whilst handling.

Always grip with the palm of the hand. Do not use the tips of fingers for support.

Always keep the surround as close to the body as possible. This will minimise

the cantilever action.

Use gloves to provide additional grip.

Always use assistance if required.

Page 3

INSTALLATION GUIDE

CONTENTS

Page 4

INSTALLATION GUIDE

Figure 1. Contents - (Items are not to scale. Any components extra to those above

can be discarded).

FITTING THE SURROUND

The installation of this surround requires a reasonable level of DIY skills.

Please read this guide thoroughly before commencing installation and if in

doubt, seek help from a competent person.

Do I need any tools?

You will need the following tools:

 A Pozidrive / Phillips / cross head screwdriver. This should have a number 2 size

tip.

 If drilling into brick work you will need a power drill (preferably with hammer

action) and appropriate size drill bit for the wall plugs supplied.

How to assemble the Surround.

Step 1. Assembling the surround top.

 Lay the surround top face down on a clean, flat, non-marking surface as in figure

 Locate and screw the five cambolts (B) into the surround top (A) (See figure 2).

Page 5

INSTALLATION GUIDE

Figure 2.

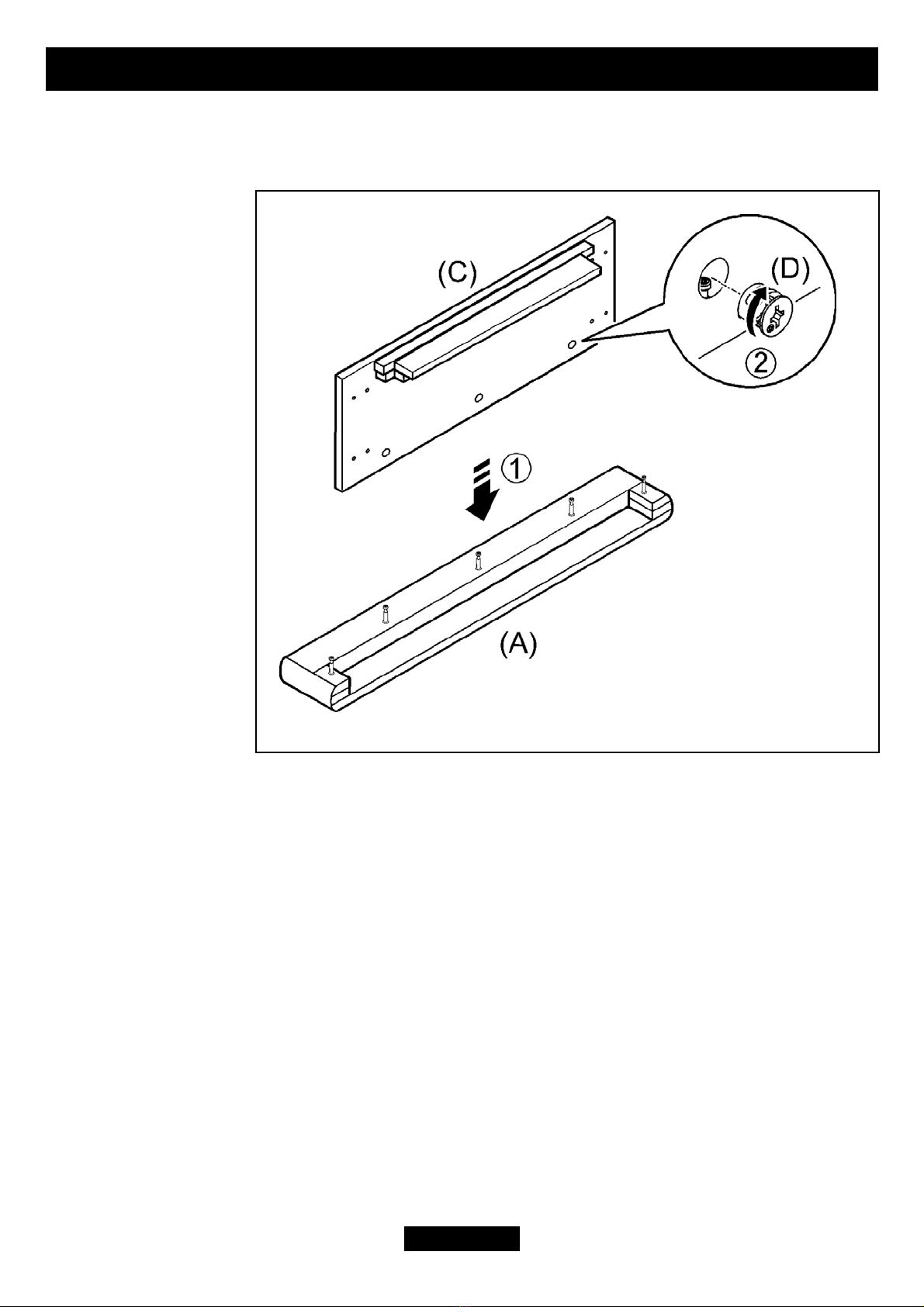

Step 2. Assembling the fascia to the surround top.

 Locate the fascia (C) onto the cam bolts in surround top (A) as in figure 3.

 Secure in place using three cam locks (D) as in figure 3.

Page 6

INSTALLATION GUIDE

Figure 3.

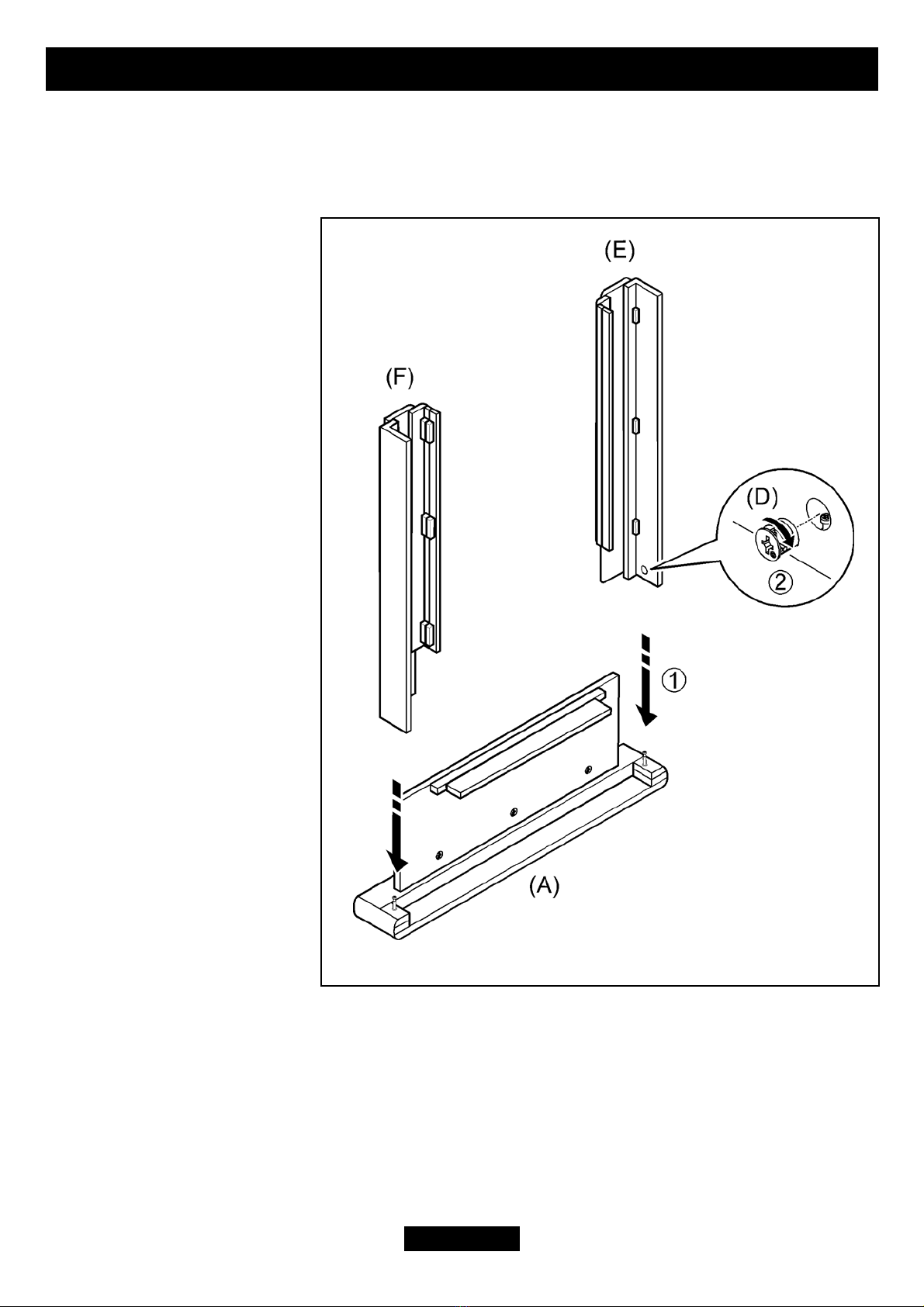

Step 3. Assembling the surround legs to the surround top.

 Locate the left leg (E) and right leg (F) onto the cam bolts in surround top (A) as in

figure 4.

 Secure in place using two cam locks (D) as in figure 4.

Page 7

INSTALLATION GUIDE

Figure 4.

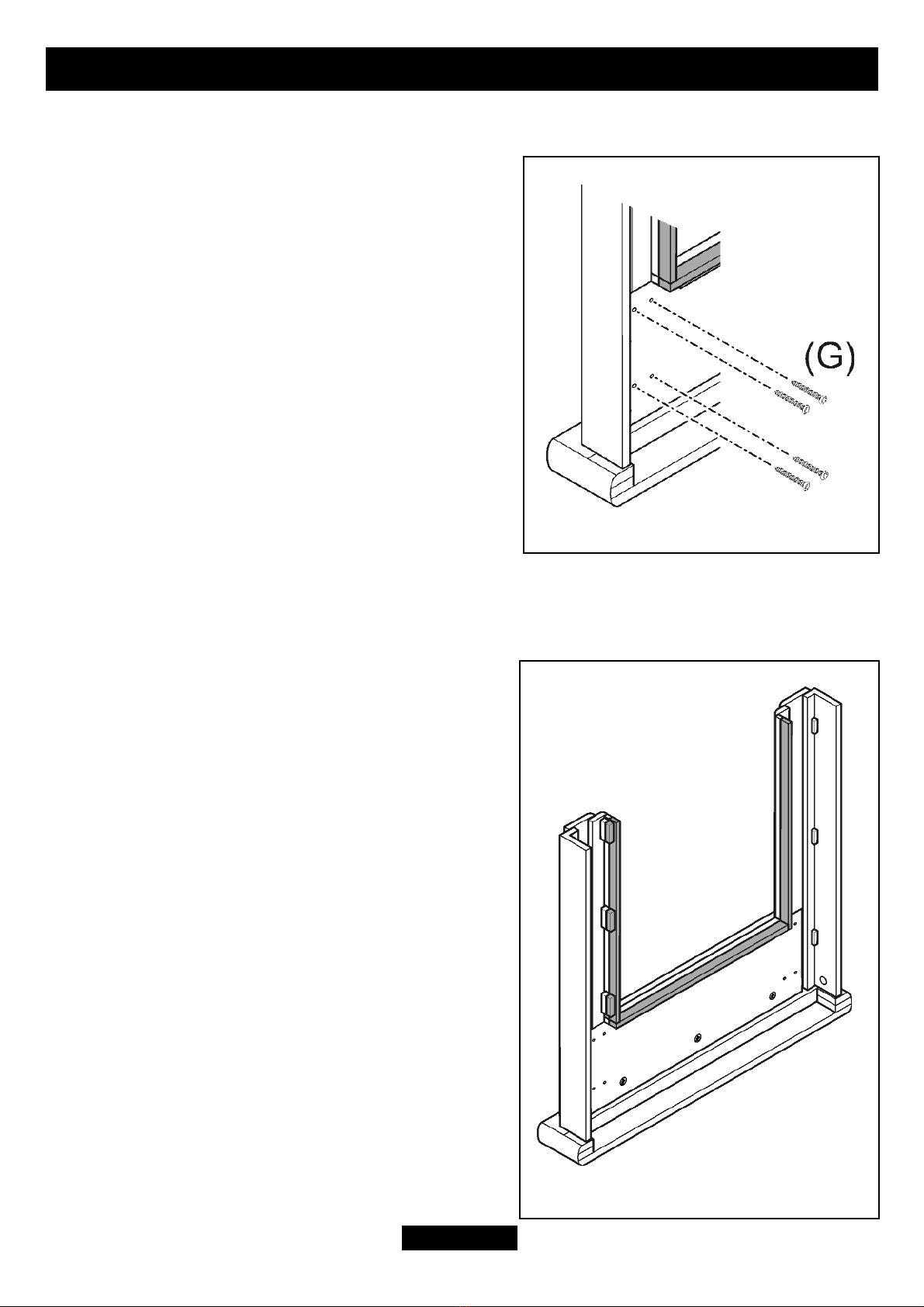

Step 4. Securing the fascia to the surround legs.

 Secure the fascia to the surround legs using eight screws (G).

Step 5. Removing and preparing the infill strips (Gas rails) for

installations with electric heaters.

For installations with gas fires proceed to step 8.

 The surround is supplied for use with gas fire

installations. For electric heater installations the

infill strips (Gas rails) will need to be removed.

To do this simply unscrew and remove the

screws from the gas rails and support blocks.

The gas rails are highlighted in figure 6.

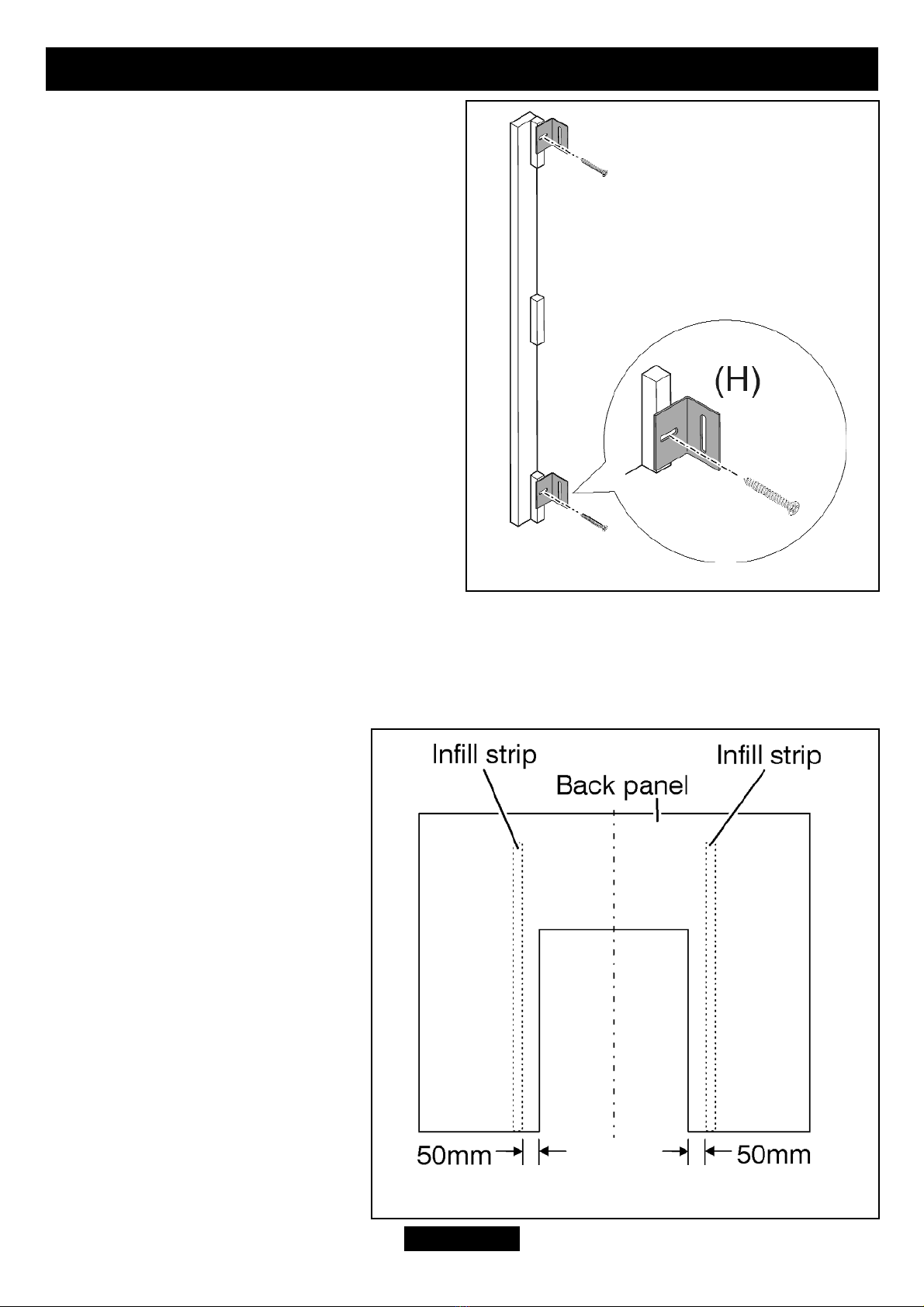

 The surround is supplied with four brackets

(H) that are for securing the two longer infill

strips to the wall behind the back panel. This

should aid with the installation of electric

heaters. Secure the brackets to the strips as in

figure 7 using the screws used previously to

secure the strips to the surround. The slots in

the brackets must be as in figure 7 to allow

adjustments to be made.

INSTALLATION GUIDE

Figure 5.

Figure 6 .

Page 8

Step 6. Fitting the infill strips to the wall.

 Measure and mark the back panel opening position onto the wall then place the

back panel aside. We recommend that the strips are fitted to the wall approximately

50mm clear of the back panel opening (See figure 8). Mark the central positions of

the fixing points on the wall. Drill

suitable sized holes at the fixing

points for the wall plugs supplied.

Insert four wall plugs (J). Locate

and secure the strips to the wall

using four (M) screws.

 Measure the thickness of the

back panel. 75mm minus this

figure gives the required distance

from the top face of the strips to

the wall. To adjust the depth of

the strips to the wall, simply

loosen the screws securing the

strips to the brackets, adjust to

the required depth and tighten

the screws.

Page 9

INSTALLATION GUIDE

Figure 8.

Figure 7.

Step 7. Checking for gaps.

 Before continuing with the

installation of the surround and back

panel it is important to ensure that

there are no gaps between the

surround and back panel or surround

and wall.To do this, place the back

panel and surround in place. If any

gaps exist then adjust the distance

between the wall strips and the wall.

To adjust the distance of the strips to

the wall, simply loosen the screws

securing the strips to the brackets,

adjust to the required depth and

tighten the screws.

Step 8. Securing the wall brackets.

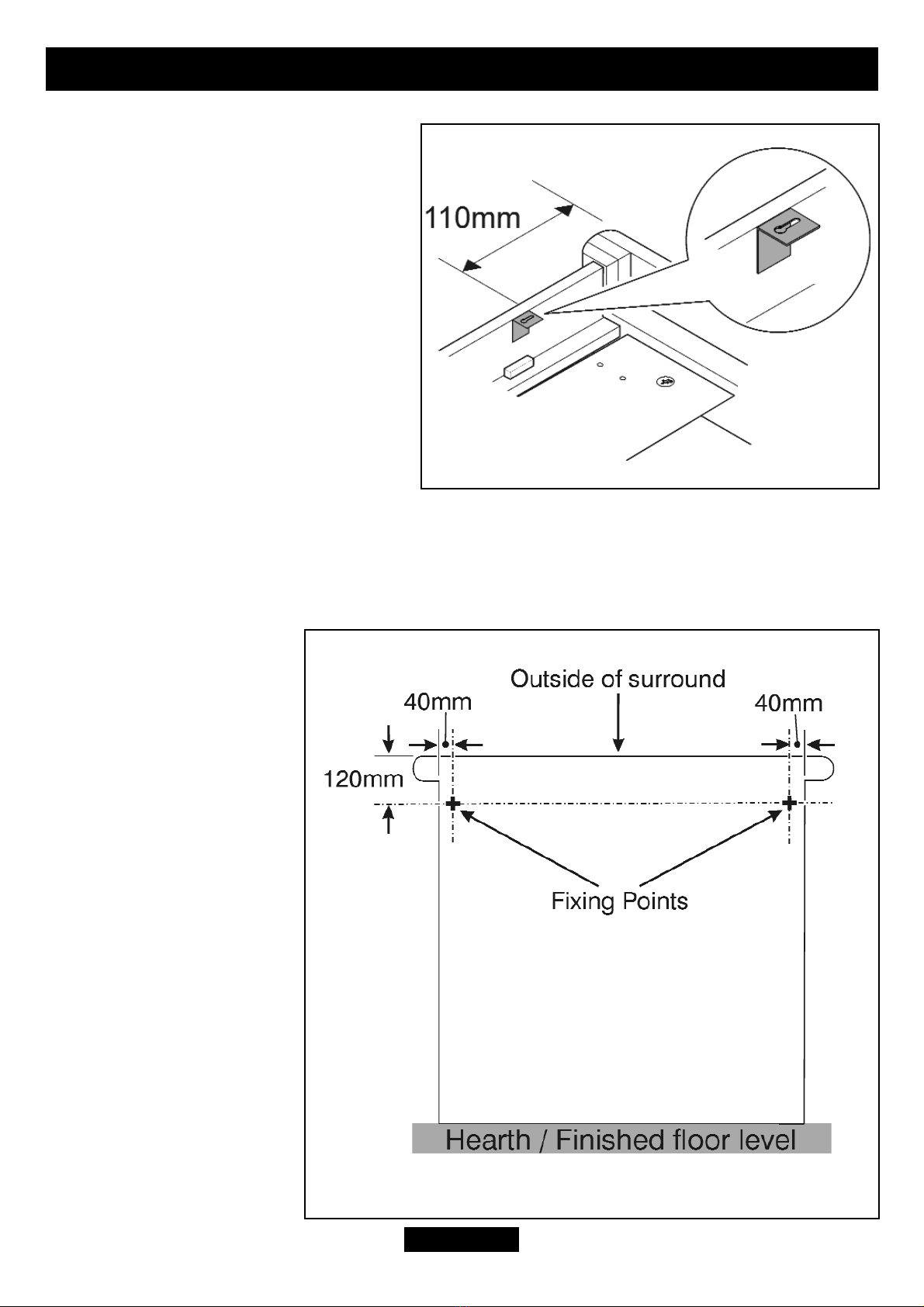

 Place the wall fixing brackets (K) 110mm from the top of the surround as shown

in figure 7. Secure in place using six (L) screws.

Step 9. Securing the

surround assembly.

 There are two wall

fixing points shown in

figure 8. Mark the

positions of the fixing

points on the wall. Drill

suitable sized holes at the

fixing points for the wall

plugs supplied. Insert two

wall plugs (J). Insert two

screws (M) leaving

approximately 3mm

between the wall surface

and the rear of the screw

head. Lift the surround

and locate the keyhole

slots over both screw

heads. The screws can be

adjusted to obtain the best

fit. This will require

removal of the surround.

INSTALLATION GUIDE

Page 10

Figure 8. Fixing point locations.

Figure 7 .

(K)
