Valcom V-1073 Manuel utilisateur

Issue 10

1947070

V-1073

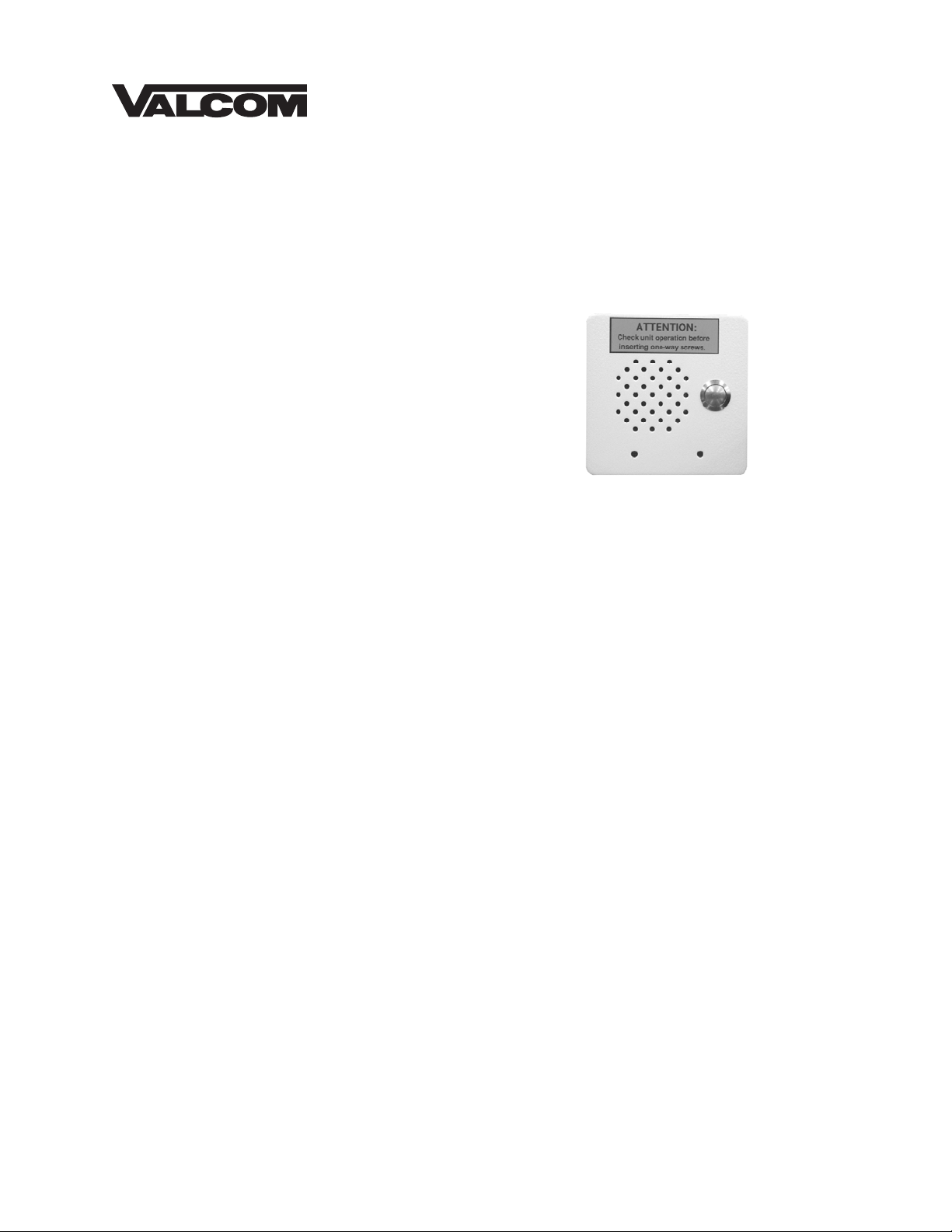

DOOR PLATE SPEAKER ASSEMBLY

INTRODUCTION

These instructions contain the specifications and

information necessary to install, operate and

maintain the V-1073 Vandal Proof Door Plate

Speaker Assembly.

SPECIFICATIONS

Purpose

•Used to provide handsfree talkback from an

outside door or entryway location.

•Equipped with a pushbutton switch for

connection to customer provided signaling

equipment.

Applications

•Any talkback control unit with a 45 Ohm

output

•All Valcom handsfree talkback control units

Nominal Specifications

•Faceplate constructed from 11AWG steel

•Heavy duty steel pushbutton

•Internal louvered speaker guard

•45 Ohm input impedance

•Silver-plated pushbutton switch contacts

•Mounts in a 2-gang 4" x 4" electrical box

•Four (4) one-way stainless steel screws

included

Dimensions/Weight

•4.5”H x 4.5”W x 1.75”D

(11.43cm H x 11.43cm W x 4.45cm D)

•1.5 lbs. (0.68 kg)

INSTALLATION

Cabling

•For proper operation, distribution cable

should be unshielded twisted pair.

•Limit cable runs to talkback speakers to less

than 800 feet if using 24AWG cable.

Connections

•Connect tip and ring from page control unit

speaker output to speaker connections on

the unit.

CAUTION: When installing the V-1073 Vandal

Proof Speaker, double check connections

and test assembly before mounting. Once

mounted, the screws cannot be easily

removed.

TECHNICAL ASSISTANCE

When trouble is reported, make certain there are

no broken connections leading to the unit.

Assistance in troubleshooting is available from

the factory. When calling, have a VOM available

and call from the job site. Call (540) 563-2000

and press 1 for Technical Support or visit our

website at http://www.valcom.com.

Valcom equipment is not field repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating your

company name, address, phone number, contact

person, and the nature of the problem. Send the

unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

2947070

VALCOM PAGE

CONTROL UNIT

V-1073

SPK OUT

CONNECTIONS TO THE V-1073

TROUBLESHOOTING CHART

PROBLEMS PROBABLE CAUSES AND CORRECTIONS

No Sound in Page Mode

Low Sound in Page Mode

Poor Listening in Talkback

Mode

1. Check tip and ring for audio at speaker.

2. Check tip and ring at control unit.

1. Check volume controls at page control.

1. Check talkback volume controls at page control. Set control at

minimum suitable listening level.

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse, or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge

plus parts and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units 'out of warranty' are subject to a service charge. The service charge will cover minor repairs (major repairs will be

subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be

liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection

with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters:

Valcom, Inc.

5614 Hollins Rd

Roanoke, VA 24019-5056

Phone: (540) 563-2000

FAX: (540) 362-9800

In Canada:

CMX Corporation

35 Van Kirk Drive #11 and 12

Brampton, Ontario L7A 1A5

Phone: (905) 456-1072

FAX: (905) 456-2269
