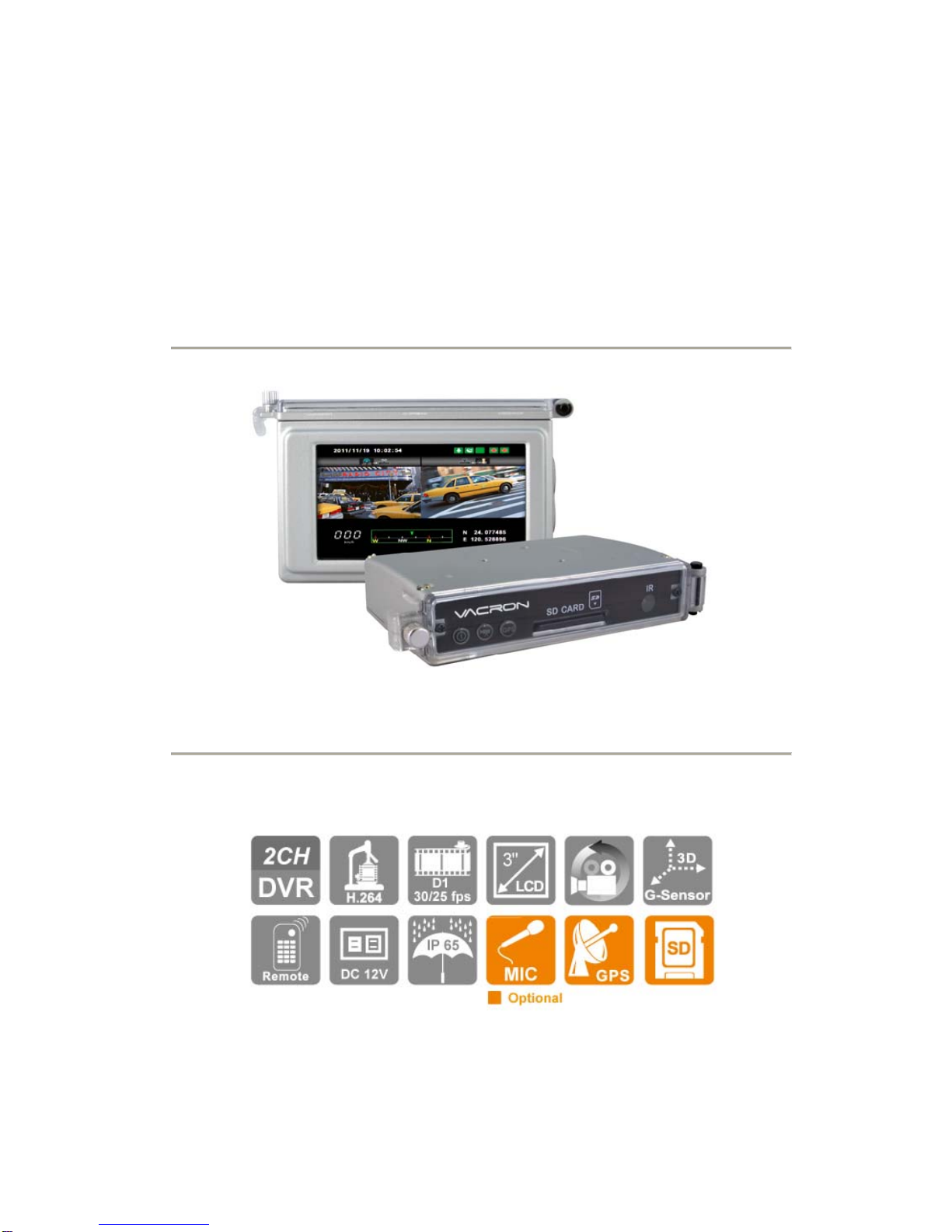

Vacron Mobile Video Recorder Manuel utilisateur

2-Channel

Mobile Video Recorder

User Manual

2013 MAR. V1.1

2-ChannelMobileVideoRecorder UserManual

Disclaimer

This document is deemed accurate at time of writing. Due to continuous

hardware and software improvement, images and software screenshots

depicted here may be different from the actual products.

Improper installation or use may cause hazard such as electrical

shock and fire. The user and installer are advised to read this

manual carefully.

The manufacturer provides no warranty against any damage, loss, or claim

arising from negligence, improper installation or use, or transportation

accidents.

The performance of GPS may be affected by external factors out of control

of the device. Such factors may include weather, satellite signal strength,

installation location of the GPS antenna, and other unforeseeable factors.

The manufacturer provides no warranty for LCD pixel defect.

Caution

This manual provides general guidance to installing the device on vehicles.

However, as the actual electrical wiring may vary from vehicle to vehicle,

the user and installer are advised to follow safety advices from the vehicle

manufacturers.

Please seek help from professional technician in installing the product.

2-ChannelMobileVideoRecorder UserManual

Table of Contents

A.Key Features..................................................................................3

B.Specifications .................................................................................4

C.Product Description........................................................................5

D.Memory Disk...................................................................................6

E.Cables ............................................................................................7

F.Vehicle Installation..........................................................................8

G.Remote Controller ..........................................................................9

H.Recording.....................................................................................10

I.GPS..............................................................................................11

J.Live Display..................................................................................12

K.Player Software on PC.................................................................14

L.File Backup...................................................................................16

M.Configuring the Memory Disk.......................................................18

N.Video Playback.............................................................................21

O.Image Snapshot ...........................................................................23

P.Formatting the Memory Disk ........................................................23

Q.Player Language Setting..............................................................25

2-ChannelMobileVideoRecorder UserManual

A. Key Features

Suitable for motorcycle and small vehicle.

Durable, water resistant all-aluminum casting.

Up to 2 channel video cameras input. Simultaneous recording of video

and audio (with external microphone)

Built-in 3 inch TFT LCD screen for convenient camera viewing angle

adjustment and video footage playback.

Advanced MPEG4/AVC (H.264) compression for ultra small file size.

Adjustable G-sensor sensitivity according to road condition and vehicle

type. On detection of strong shock, the device automatically starts

emergency recording.

In emergency recording, the device saves data including 1~3 minutes

before and after the event for complete record. The footage is not

subject to rewrite from continuous recording.

Low power consumption and excellent heat radiation. Lithium battery is

not used to eliminate risks of overheating and "explosion".

Automatically starts recording at ignition.

If GPS receiver is installed, the recorded route will display on video

playback on computer with support of GOOGLE map.

2-ChannelMobileVideoRecorder UserManual

B. Specifications

Items Description

Video input 2 Channel

Frame Size NTSC: 30 fps (D1); PAL: 25 fps (D1)

Power Supply DC12V, 250mA

Operating

Temperature -15°C~ 50°C

Storage SD card, 4G or above, class 10 or better.

(SanDisk and Transcend recommended)

Recording

utomatically starts continuous recording when

powered on

Recording

Content Date, time, video, audio, G-sensor data and GPS

data (only when GPS receiver is installed).

Playback Software player (on computer) and remote controller

(directly from unit)

udio input External microphone (optional)

Time setup

utomatic calibration by GPS signals. If GPS signal

is unavailable, internal clock will be used.

G-Senso

Internal 3-axis acceleromete

Accessories

(1) Standard: (a) 2.5 M Power Cable (b) SD Card Reader

(e) Quick Guide (f) Velcro Tape

(2) Optional: (a) SD card, 4GB or above, class 10 or above

(b) External GPS Receiver

appropriate position)

(d) Bracket (two type)

bracket (FE30E0900000) bracket (FE30E0900001)

2-ChannelMobileVideoRecorder UserManual

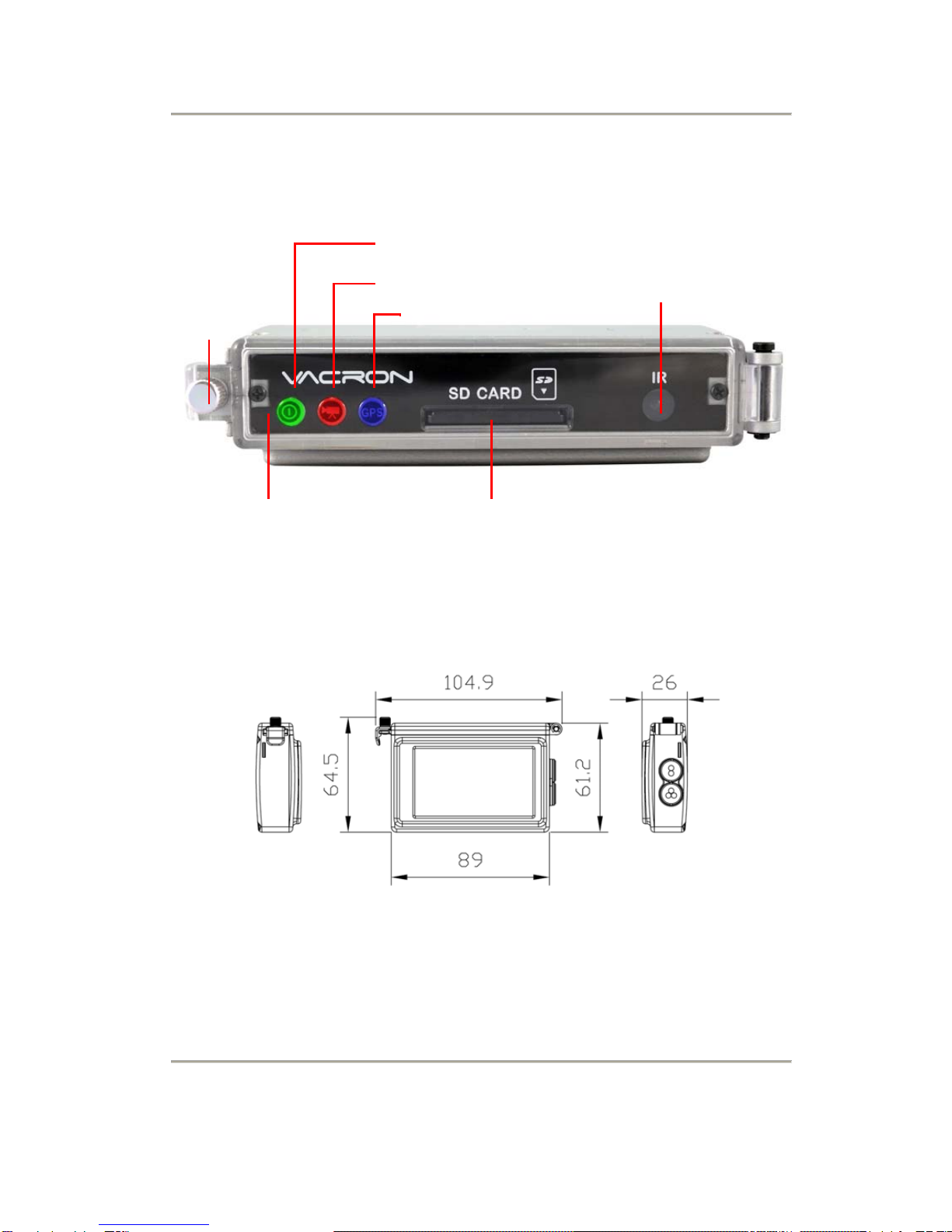

C. Product Description

Panel

Dimension (mm)

IR Receiver

SD card slot

GPS

Recording

Power

Protective cover

Screw

2-ChannelMobileVideoRecorder UserManual

D. Memory Disk

Plug the memory disk to recorder:

(1) Loose the screw in counterclockwise rotation, and open the protective

cover to insert/remove SD card.

(2) Tightly close the cover afterward.

NOTE: The memory disk need to be purchased separately

Accessing the memory disk from computer

(1) Insert the memory disk to the USB reader.

(2) Plug the reader to the USB port of your computer.

(3) Launch the player software from the included CD

See also:

Player Software on PC (p14)

File Backup (p16)

Configuring the Memory (p18)

Playback on Computer (p22)

Note

(1) SD card from SanDisk or Transcend is recommended. (class 10, 4GB

above)

(2) Before using the memory disk, please format the disk first using the

software player in the CD-ROM. If not, device will automatically erase all

data in the memory disk before recording.

(3) To ensure recording quality, please do not use adapter card with Micro SD

card. Doing so may lead to bad connection due to shock and vibration.

(4) All memory disks have limited lifespan. Please regularly watch videos on

PC and check the memory disk to ensure proper functioning.

SD Card

2-ChannelMobileVideoRecorder UserManual

E. Cables

Cables

(1) Power connecter, male

(2) Channel 1 Video Input*

(3) Channel 2 Video Input*

(4) External microphone input

(5) External GPS antenna input

NOTE: Use this device with

compatible vehicle cameras

Power Cable

(1). Power Adapter - Female connector.

(2). Live Wire: Wire to ACC power or the positive pole of Engine Starter. (+)

(3). Earth Wire: Wire to Negative Pole. (-)

(4). Null Line: Wire to earth wire. Covered with heat-shrinkable tube to

avoid short with motorcycle body.

2-ChannelMobileVideoRecorder UserManual

F. Vehicle Installation

Warning

(1) Please install this device with the help of professional technician to avoid

damaging your vehicle.

(2) For installation by none-technician, please use tapes instead of boring

tools to avoid damaging the electrical and gasoline system.

(3) For safety, switch off ignition before installation, and please keep away

from gasoline pipeline and tank.

(4) Before inserting wires through holes, temporarily wrap the terminal with

tape to prevent bad connection from accumulated dirt or debris.

(5) Tightly seal all electrical connection with tape to prevent loose connection

or leak leaking to the connection.

(6) Connect the power behind the key ignition and fuse (not directly to the

vehicle battery) to avoid depleting the battery.

(7) The device should be fixed to the vehicle. Tumbling inside the storage

trunk will damage the device.

Example Installation

2-ChannelMobileVideoRecorder UserManual

G. Remote Controller

Icon Function Description

Split Screen

Switch Full screen / split screen switch

Playback Mode Open the playback list and switch to playback

mode

Manual

Recording Saves video from 1~3 minutes before and after

press of the button as emergency recording.

Function + Lighten the screen

Function - Darken the screen

Microphone

On/Off Turn on or off audio recording

Enter

Split Screen Switch

Up, Down, Left, Right

Function -

Function + Audio Recording

On/Off

Manual Recording

Speaker On/Off

Fast Forward

Stop playback /

Stop playback mode

Rewind

Video Playback

Pause

Playback
