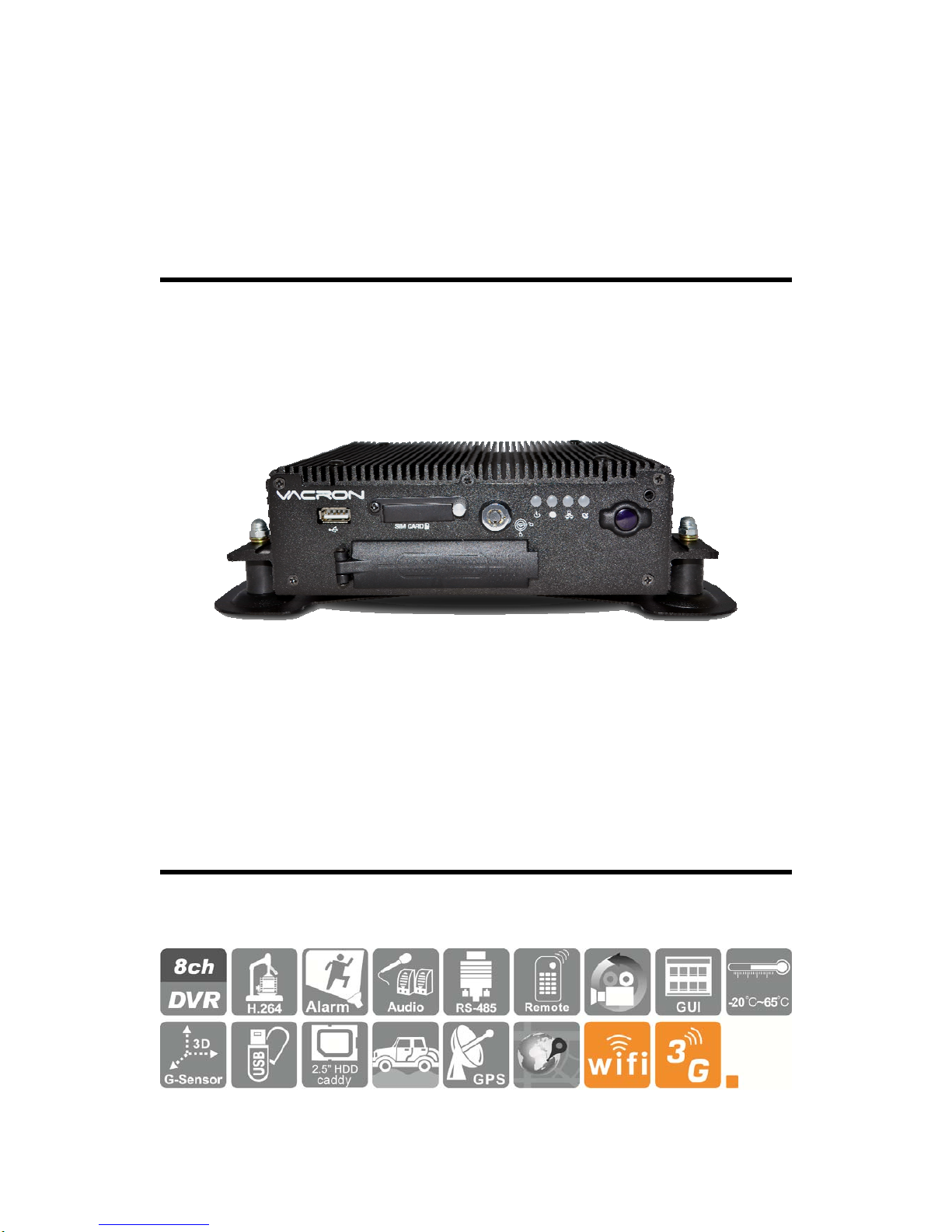

Vacron EN-VVH-MD40D Manuel d'installation et d'exploitation
4/8 CH Vehicle Mobile DVR
2013 OCT V1.0
optional
i
Safety Precautions
Take and review some testing video initially to make sure the
images were recorded correctly. Please note that manufacturer,
its subsidiaries and affiliates, and its distributors are not liable for
consequential damages arising from any malfunction of main
device accessory, including memory device that results in the
failure of an image to be recorded or to be recorded in a way that
is machine readable.
Before using the product, please ensure that you read the safety precautions
described below. Always ensure that the product is used correctly.
• Please keep device away from children.
• Use only recommended power sources.
• Do not attempt to disassemble, alter or apply heat to the product.
• Avoid dropping or subjecting the product to severe impacts.
• To avoid the risk of injury, do not touch the interior of the product if it has
been dropped or otherwise damaged.
• Stop using the product immediately if it emits smoke, a strange smell, or
otherwise behaves abnormally.
• Do not use organic solvents such as alcohol, benzene, or thinner to clean
the product.
• Do not let the product come into contact with water (e.g. sea water) or other
liquids.
• Do not allow liquids or foreign objects to enter the VVR.
• Do not place the VVR near or in direct flame.
• Do not handle the power cord with wet hands.
• Do not use the equipment in a manner that exceeds the rated capacity of
the electrical outlet or wiring accessories. Do not use if the power cord or
plug are damaged, or not fully plugged into the outlet.
• Do not allow direct or metal objects (such as pins or keys) to contact the
terminals or plug.
Avoid using, placing or storing the product in the humid or dusty areas.
ii
Index
A. Features ................................................................................................................. 1
B. Specification ........................................................................................................ 2
D. Record / Stop-Record ...................................................................................... 7
E. System operating instruction ....................................................................... 8
Through IR Remote controller instruction .............................................. 8
Main menu page switch .................................................................................. 9
System Setup instruction ............................................................................. 10
LIVE Display........................................................................................................ 17
Playback mode ................................................................................................. 18
F. Carbox Player on PC site ............................................................................... 19
1. Through Carbox Player on PC site ................................................................. 19
(1). Snapshot ................................................................................................... 21
(2). Configuration .......................................................................................... 21
(3). Backup ........................................................................................................ 24
(4). Playback..................................................................................................... 26
(5). Format ........................................................................................................ 27
(6). Playback date selection ....................................................................... 28
G. 3G client software for viewing directly(select models with 3G
modules) ........................................................................................................................... 30
H. HDD Format ....................................................................................................... 36
(1) Format in your computer ............................................................................. 36
I. Restore Storage Device ................................................................................. 39
J. 3G INTERNET SETTING .................................................................................. 42
K. Capacity Evaluation of Continuous Recording Storage Device .... 4 6
s
1
A. Features
‧ Provide Video output for playing-back mode in mainframe.
‧ Recording format: D1 and CIF
‧ User friendly player software, easy to operation.
‧ Overall quick search event log.
‧ The full recording time and date can be showing in the
monitor directly.
‧ Auto recording after power supplied.
‧ Removable HDD Track compatible with 2.5" HDD or SSD.
‧ Firmware can be upgraded via USB port.
‧ Support recording audio, video, G-sensor and GPS data at
the same time.
‧ Optional 3G module, for real time monitoring the driving
statue, or talk to driver.
2
B. Specification
Type 8CH Vehicle DVR
Video Format NTSC/PAL
Operating System Embedded Linux
Video Input 8CH Input
Max. Cam Power
supplier 12V/250mA/Each
Video Output 1CH Output
Audio Input 1CH Input
Audio Output 1CH Output
Alarm Input 4 Alarm Input
Control Mode GUI
Multi-Language English / Chinese / Others
Display
Resolution
NTSC 240 fields/s (8x30 fields/s)
PAL 200 fields/s (8x25 fields/s)
Recording
Resolution
NTSC Max. 30fps@CIF (real time
recording)
PAL Max. 25fps@CIF (real time
recording)
Recording
Resolution
NTSC Max. 30fps@CIF (real time
playback)
PAL Max. 25fps@CIF (real time
playback)
Display Mode Full Screen, 4 / 9 Split
Triplex Record / Playback / Network
3
Resolution
Display NTSC 720 x 480
PAL 720 x 576
Recording
NTSC 360x240@CIF/
720x480@D1/
PAL 360x288@CIF
720x576@D1/
Compression
Algorithm H.264(1~ 5)
HDD 2.5”SATA HDD Caddy Max. 1Tb
Backup Device USB Storage or through Carbox Player
Playback Mode Search Function: Time / Event
Full Screen
LED Indicator 4 LED (LAN、REC、GPS、Power)
Signal Loss
Detector Yes
Buzzer Alarm
Output Yes
RS485 Yes
MOUSE Yes
GPS Yes
G-SENSOR Yes
Network Yes
3G optional
WIFI optional
IR Remote
Control Yes
4
Watchdog Yes
Extended Record
Mode Yes
Power Supply DC 8V~36V
Dimension 250mm x 174.8mm x 69.5mm
Operation
Temperature -20℃ ~ +65℃
Weight 1.85kg(with bracket and HDD)
*Version updating is not going to inform, please check the on-going updating information
5
C. Product Appearance

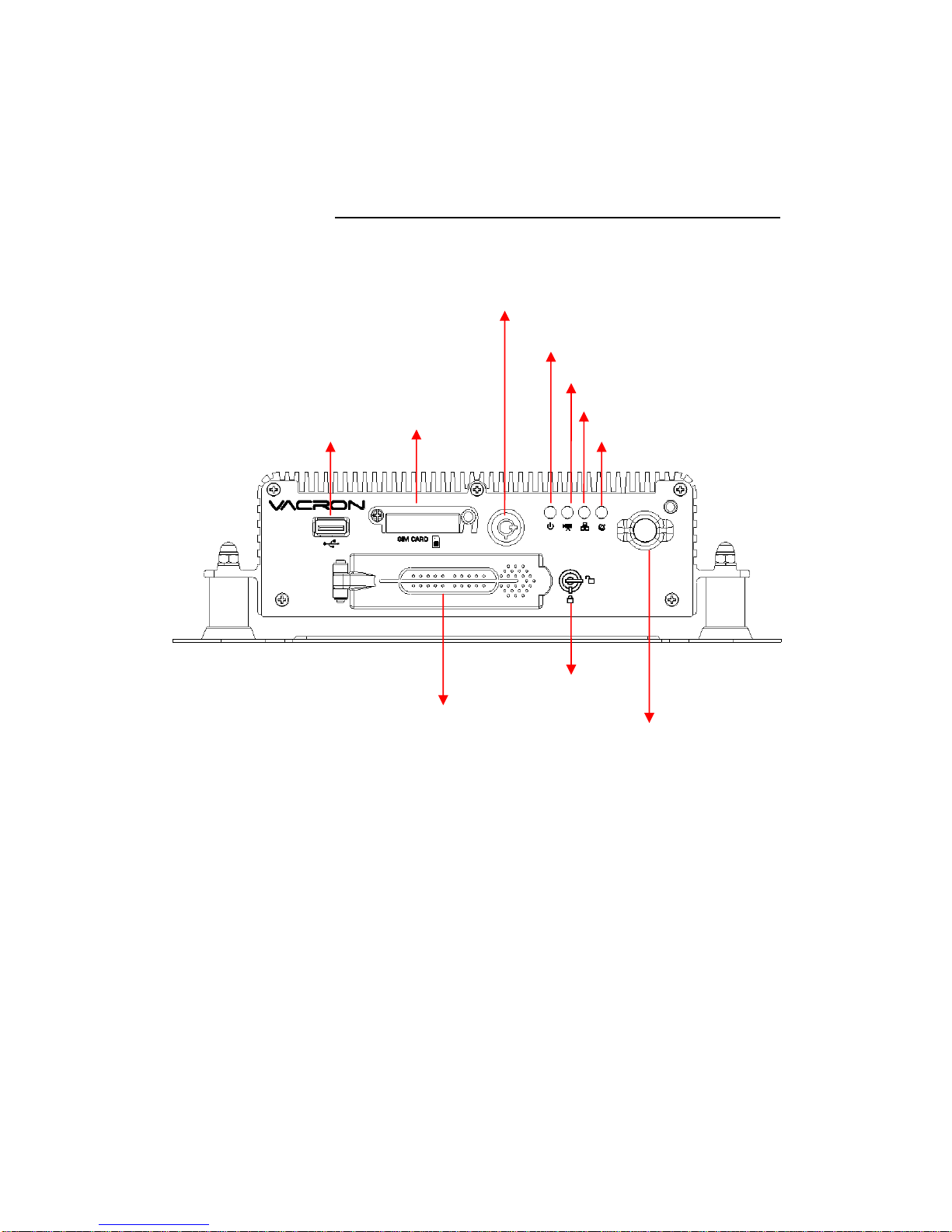

FRONT PANEL
Sim card slot
USB connection
SIM lock
Infrared receiver
Power light
Record light
Network light
GPS light
HD slot
HD slot lock
6

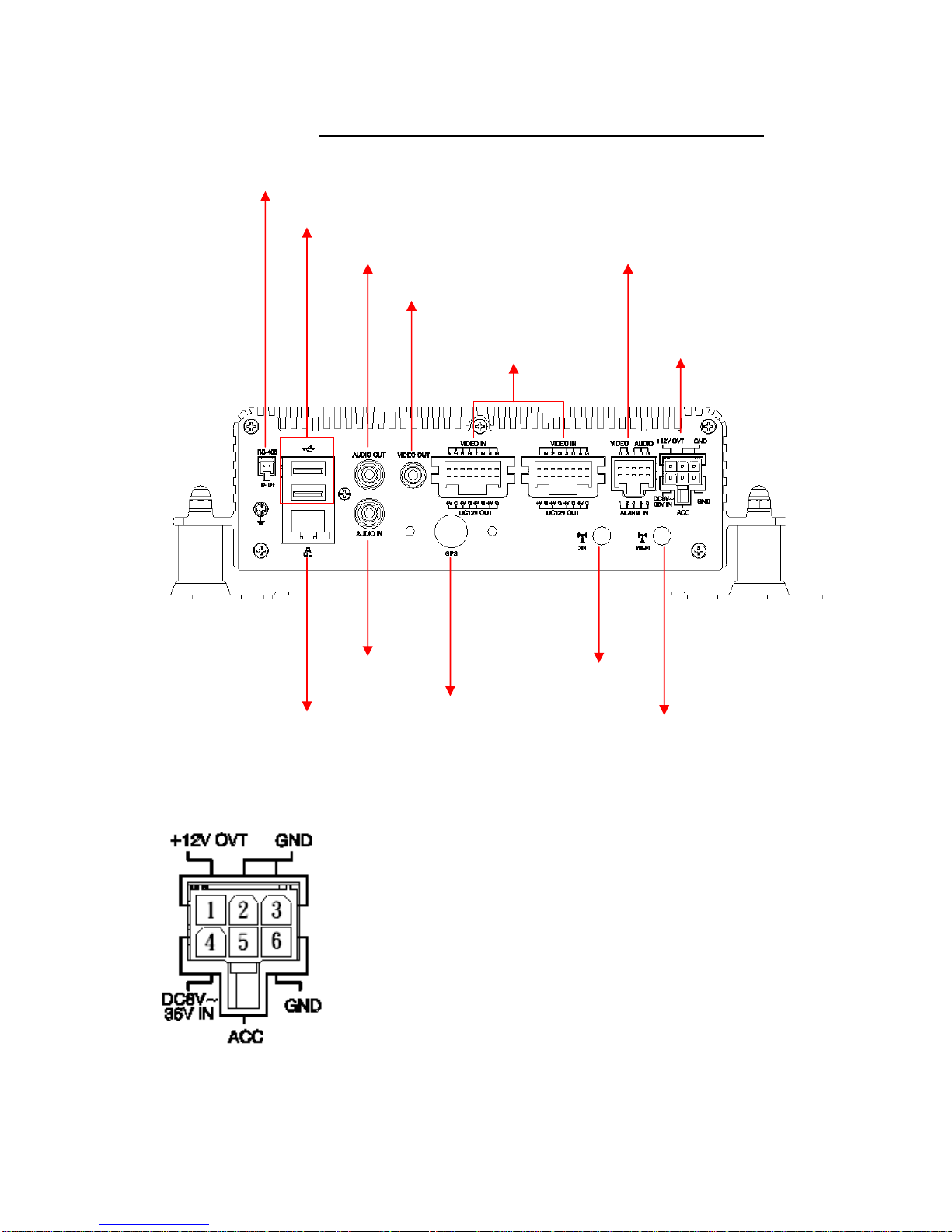

REAR PANEL
Power connection
1. Signal & DC grounding
2. Signal & DC grounding
3. DC8~36V vehicle power (+)
4. ACC control
5. GNDP vehicle power (-)
RS-485 Connection
USB Connection
Network Connection
Audio input
G-Mouse
connection
3G antenna
connection
WIFI antenna
connection
Audio output
Video output
Hollow connection
Video recorder
connectino 1-8 CH
Hollow connection
1 set of video/ audio
output
4 set of alarm input
Power Connection
7

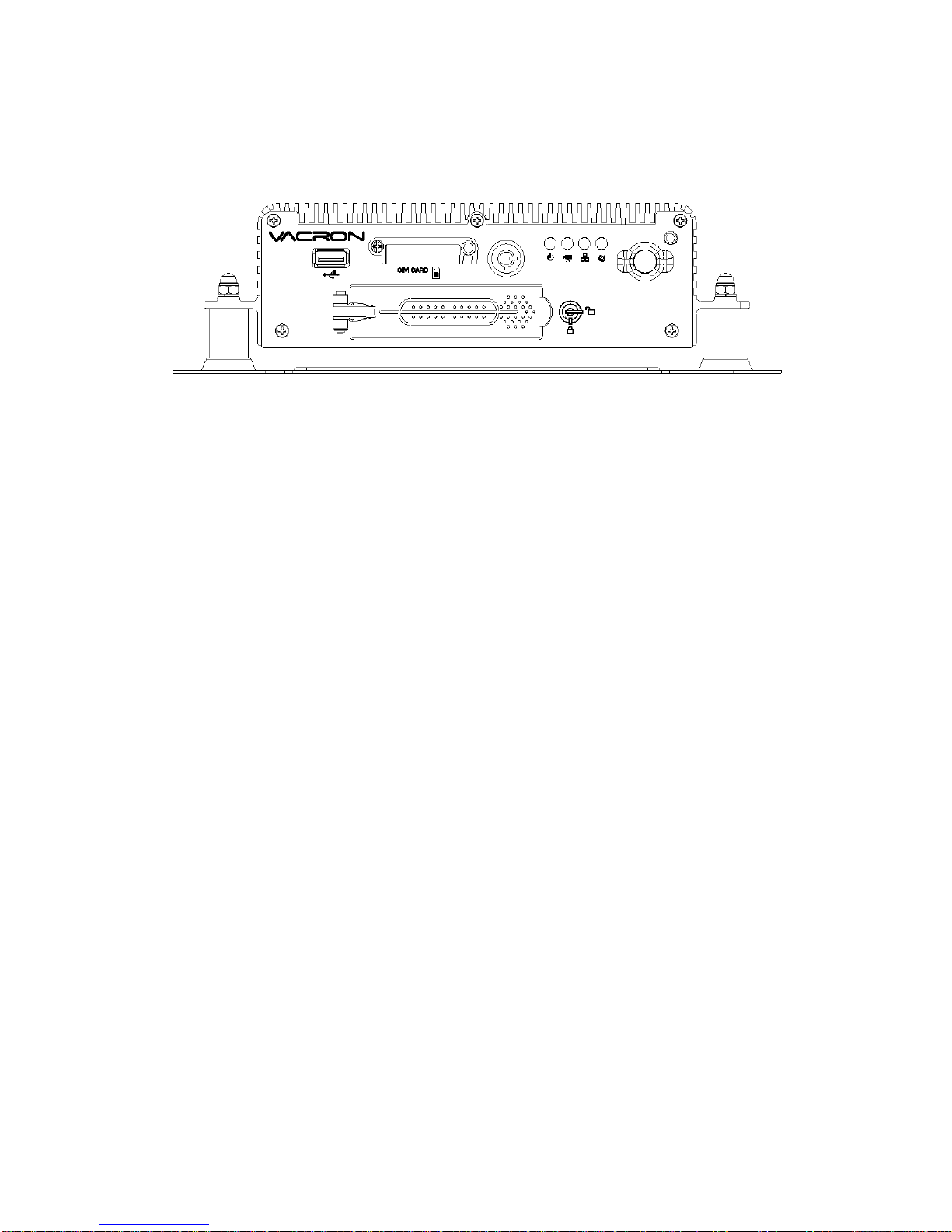

D. Record / Stop-Record
1. Power on / Record
Turn on the power, and it will take approximately 40 seconds
to boot up. During the recorder booting up, the HDD
indicator LED will start flashing as the recording is in
progress.
Light indicator:
● Red light: light on, means power on; light off, means no
power/power off.
● Green light: light flashing, means HDD take recording;
light off means non-recording.
● Yellow light: On when internet connection; off when
internet disconnection.
● Blue light: On when GPS positioning is ready; off when
GPS is not ready.
★ Remark: While using playback function in DVR, it cannot
take live recording at that time.
2.Power off/Stop recording:
Power off also stop recording, at then you can take out
HDD to read the recorded files.
