UWE VFM Manuel utilisateur

CONTENTS

1. INSTALLATION

2. SPECIFICATIONS

3. KEYBOARD LAYOUT AND DESCRIPTION

4. INITIAL SETUP

5. INSTRUCTION FOR USE

6. PRINTER AND RS232C INTERFACE

7. TROUBLE SHOOTING

8. DAILY CARE AND MAINTENANCE

APPENDIX: APPEARANCE

1. INSTALLATION

Because of metrological legislation, installation/some

metrological parameter settings are limited to be done

by authorized personnel only. Do not attempt to change

any of the built-in parameters. Contact your dealer for

installation and technical assistance.

CAUTION:

This unit is legal for trade only when it is sealed (and/or

stamped) and bearing a serial number. Do not attempt

to break the seal (or stamp) affixed to this indicator

or remove the serial number. Contact your dealer for

more information and after sales service.

For most accurate weighing result, do not use the

indicator in where or when the environment condition

falls beyond as those listed on SPECIFICATIONS.

Do not attempt to open this unit or conduct any trouble

shootings other than those listed on TROUBLE SHOOTING.

2. SPECIFICATIONS

Model No.

VBM/VFM/VFS/VTM/VPS

(6-WIRE TYPE)

ABM/AFM/AFS/ATM/APS

(4-WIRE TYPE)

INDICATOR

Max.

USER DEFINED

nmax

10000 (NOTE 1)

Tare Range

1/3 Max. –e (NOTE 2)

Power-on Zero Range

SELECTABLE (NOTE 3)

Zero Range

±2% Max.

Min. Load

20e (NOTE 4)

Max. measuring range

±20mV

Min. signal voltage per

verification scale interval

0.45 V

Power voltage requirements

9.0 VDC (BY EXTERNAL POWER

ADAPTOR OR RECHARGEABLE

BATTERY)

Minimum battery voltage

5.5 VDC

Load cell Excitation voltage

5 VDC

Minimal load cell impedance

85

Maximal load cell impedance

1000

Load cell connection

4 or 6 wires

Operation

Environment

-10o~40oC

Non-condensed. R.H.≦85%

Specifications subject to change without notice.

NOTE 1:

The recommend division when application is legal for

trade (OIML mode) is 10,000 and 120,000 when application

is not legal for trade (normal mode).

NOTE 2:

When under OIML mode, for Multi range or interval, change

e to e1. When under non-OIML mode, the default setting

is full tare range.

NOTE 3:

The power-on zero (initial zero) range can be selected

with ±2%, ±5%, ±10%, ±15%, ±20%, ±30%, ±40% at F3

function followed CAP1.? setting.

When under OIML mode, the default setting is ±10%.

NOTE 4:

For Multi range or interval, change e to e1.

3. KEYBOARD LAYOUT AND DESCRIPTION

(MODEL SHOWN: VTM)

1. OFF KEY

Press this key to turn indicator off.

2. MODE KEY

Press this key to shift among different weight units

and/or turn backlight on/off.

3. M+ KEY

Press this key to accumulate current weight to memory.

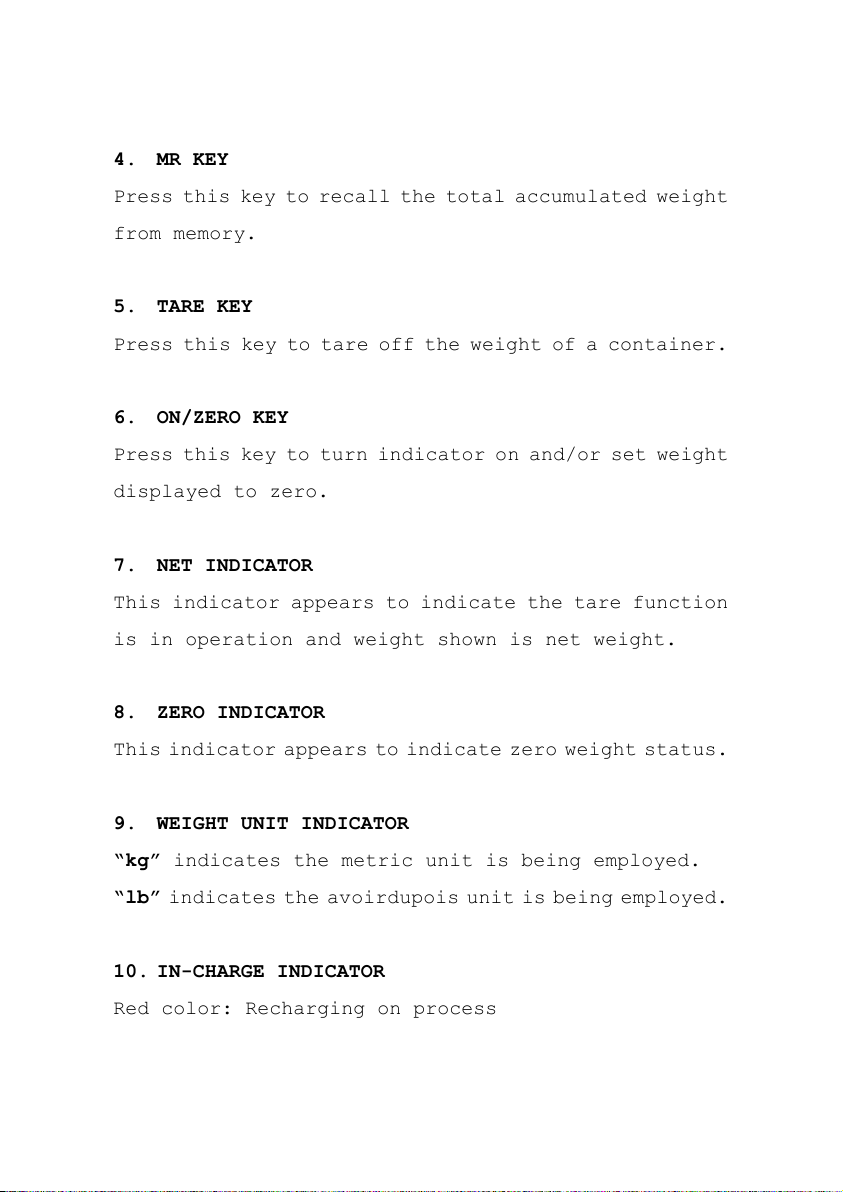

4. MR KEY

Press this key to recall the total accumulated weight

from memory.

5. TARE KEY

Press this key to tare off the weight of a container.

6. ON/ZERO KEY

Press this key to turn indicator on and/or set weight

displayed to zero.

7. NET INDICATOR

This indicator appears to indicate the tare function

is in operation and weight shown is net weight.

8. ZERO INDICATOR

This indicator appears to indicate zero weight status.

9. WEIGHT UNIT INDICATOR

“kg”indicates the metric unit is being employed.

“lb”indicates the avoirdupois unit is being employed.

10. IN-CHARGE INDICATOR

Red color: Recharging on process

Green color: Charging completed

11. AVERAGE INDICATOR

This indicator flashes to indicate the digital motion

filtering function is being employed when choosing

Filt.7 at F6 internal function.

12. M+ INDICATOR

This indicator appears to indicate memory contains of

stored data.

13. MR INDICATOR

This indicator appears to indicate the value shown is

the total accumulated weight stored.

14. W2 INDICATOR

When scale is set in dual range mode, this indicator

will appear when scale is operating in the higher weighing

range Max 2 with repeatability of e2.

15. W1 INDICATOR

When scale is set in dual range mode, this indicator

will appear when scale is operating in the lower weighing

range Max 1 with repeatability of e1.

16. LO-BAT INDICATOR

This indicator appears when input voltage is below the

lowest input limit. Check the power supplied to the

indicator.

4. INITIAL SETUP

4.1 PLACING THE SCALE

In order to obtain an accurate weighing result, the

complete weighing instrument (hereinafter referred as

the scale) must be placed on a strong and level surface.

4.2 INTERNAL SETTING

4.2.1 Display Segment Check

User can enter this function to check and see if the

display and backlight (if purchased) are functioning

properly.

a. Scale is off

b. Press and hold TARE, then press ON/ZERO

c. Scale displays F1

d. Press TARE once to F2

e. Press MODE and all segments will light up to allow

user to check the condition of display

f. Press any key to exit (scale displays P=00 that can

be ignored.) and press TARE for next function setup

or ON/ZERO to restart the scale

4.2.2 Select Auto Power Off Setting

The scale is equipped with Auto Power Off Function. The

scale will power off automatically if it is not used
