UWE CSB-3T Manuel utilisateur

CONTENT

1CAUTION 2

2INSTALLATION INSTRUCTIONS 4

3SPECIFICATIONS 6

4KEYBOARD LAYOUT 8

5KEYS AND INDICATORS 9

6INTERNAL FUNCTIONS 12

7OPERATING INSTRUCTIONS 14

8TROUBLESHOOTING 19

9WARRANTY 23

10 DAILY CARE AND MAINTENANCE 24

1. Never attempt to open this scale, no user

serviceable parts inside.

2. Remove all loads from hook when not in use.

3. Do not remove the wire rope stopper. For

safety reasons, always apply it.

4. Before weighing, check and make sure that

all hanging /load- receiving elements/

devices are in good condition. And please

replace the necessary component regularly.

5. Crane scale is only suitable for hanging

from a mechanical hook, e.g. a crane hook.

Check whether the used crane hook or the

lifting device is suitable for the suspended

load.

6. Make sure that there are no persons or

objects under the load; secure Working Area

to prevent any possible injury or damage.

7. The scale is not suitable for weighing a

person.

8. Load the scale only in vertical traction

direction.

9. Always avoid vibration and horizontal

force.

10.Prevent jolts, torsion and oscillation (e.g.

by sloping appending) of all kinds. Be sure

to prevent overloading the scales (Stated

Maximum Load Object Weight + Tare Weight).

Overload could damage the scale (risk of

breakage). Do not use the crane scale to

transport loads (e.g. traveling crane).

11.Never operate the scale in hazardous

locations. The series design is not

explosion-proof.

12.Any structural alterations should not be

made to the scale. This will lead to

incorrect weighing result, to violation of

safety regulations and to destruction of

the scale.

13.Avoid sudden and jerky acceleration or

deceleration of the load (risk of breakage).

Please always follow the instruction.

INSTALLATION INSTRUCTIONS

2.1 UNPACK this scale very carefully. Check

and make sure that the following items are

included:

a. This operation manual

b. CSB series scale x 1 (one Power Pack

installed)

c. AC adaptor x 1

d. Wireless remote control x 1 (optional)

e. Additional Power pack x 1 (optional)

Contact your dealer if any item is missing.

2.2 SECURING THE SCALE

2.2.1 This unit must be hanged via a strong

media, e.g. a wire rope or a metal hook, to

a firm support that can withstands at least

5 times of scale capacity.

2.2.2 Make sure that the crane scale is hanged

vertically.

2.3 POWERING THE SCALE

a. This scale is powered by the built-in

rechargeable Power Pack and/or by an AC

adapter. An additional Power Pack is

available as option.

b. Check and make sure that the voltage of the

AC adaptor supplied matches with the voltage

of the main output.

c. Insert the output plug of AC adaptor firmly

into the DC input jack of scale. The DC input

jack is located underneath the back of the

scale.

d. Before the first time use, charge the

rechargeable Power Pack for at least 8 hours

consecutively or until the charging

indicator turns green.

e. For safety reasons, do not share the same

mains outlet with other apparatus.

2.4 OPTIMAL INSTALLATION REQUIREMENTS

For optimal results, it is recommended that

this product should be installed in a location

free from corrosive gas, dust, and electronic

interference.

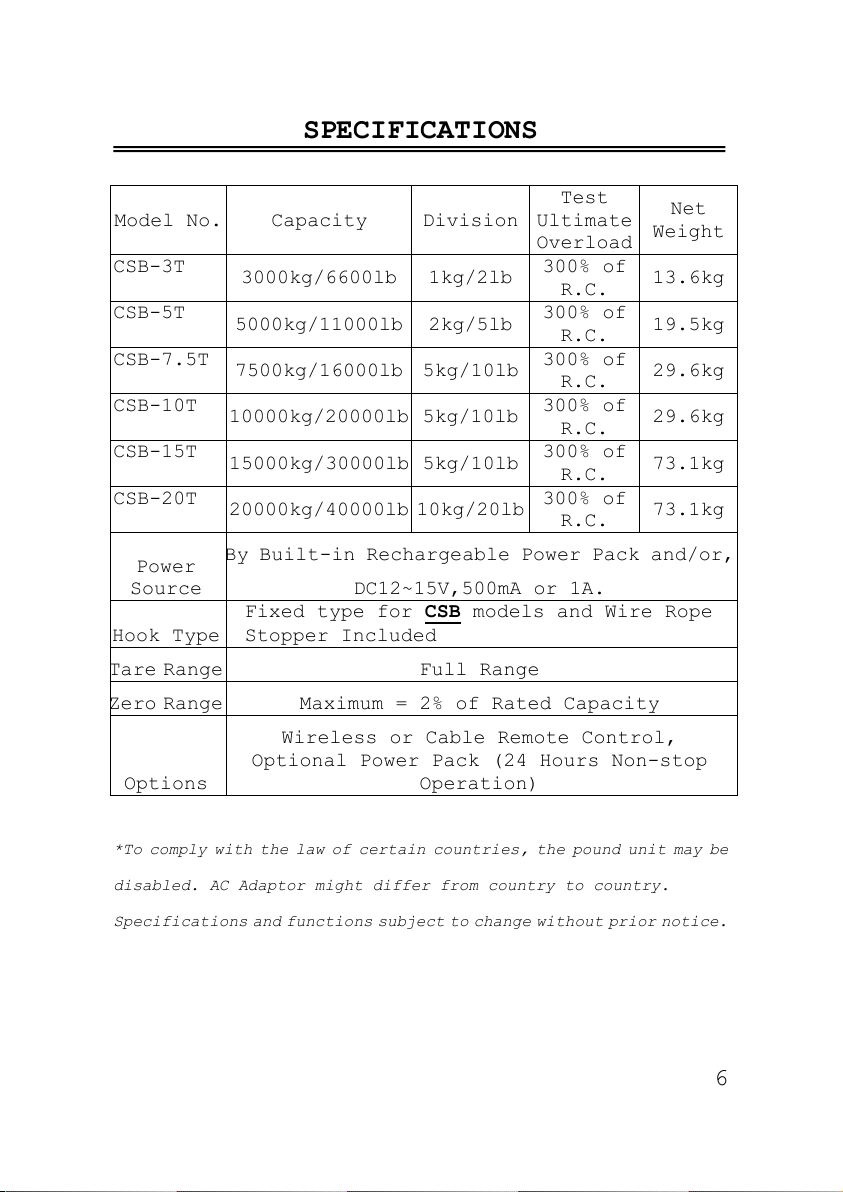

SPECIFICATIONS

Model No.

Capacity

Division

Test

Ultimate

Overload

Net

Weight

CSB-3T

3000kg/6600lb

1kg/2lb

300% of

R.C.

13.6kg

CSB-5T

5000kg/11000lb

2kg/5lb

300% of

R.C.

19.5kg

CSB-7.5T

7500kg/16000lb

5kg/10lb

300% of

R.C.

29.6kg

CSB-10T

10000kg/20000lb

5kg/10lb

300% of

R.C.

29.6kg

CSB-15T

15000kg/30000lb

5kg/10lb

300% of

R.C.

73.1kg

CSB-20T

20000kg/40000lb

10kg/20lb

300% of

R.C.

73.1kg

Power

Source

By Built-in Rechargeable Power Pack and/or,

DC12~15V,500mA or 1A.

Hook Type

Fixed type for CSB models and Wire Rope

Stopper Included

Tare Range

Full Range

Zero Range

Maximum = 2% of Rated Capacity

Options

Wireless or Cable Remote Control,

Optional Power Pack (24 Hours Non-stop

Operation)

*To comply with the law of certain countries, the pound unit may be

disabled. AC Adaptor might differ from country to country.

Specifications and functions subject to change without prior notice.

DIMENSIONS FOR CSB (mm)

DIMENSIONS (mm)：

Model

Cap.

HOOK

CSB-3T

211

118

181

183

264

6.5T

CSB-5T

211

164

181

188

274

9.5T

CSB-7.5T

211

254

181

255

298

13.5T

CSB-10T

211

254

181

255

298

13.5T

CSB-15T

211

361

181

462

150

304

35T

CSB-20T

211

361

181

462

150

304

35T

BCD

KEYBOARD LAYOUT

CSB

KEYS AND INDICATORS

1. POWER ON/OFF KEY

Press this key to turn scale on/off.

2. HOLD KEY

Press this key to hold/release the current

weight being displayed/held.

3. MODE KEY

Press this key to switch between measurement

units, or to convert a weight reading into the

other unit of measurement. (In Metric System

Countries, this key will be without any

function.)

4. TARE KEY

Press this key to tare off the weight of a

container or decrease value during function

setting.

5. ZERO KEY

Press this key to set weight to zero, or increase

value during function setting.
