UTEPO UTP7304E-POE Manuel utilisateur

UTEPO - 4 Ports PoE Long Distance Ethernet Switch

UTP7304E-POE

Product: 4 Ports PoE Long Distance Ethernet Switch

Model: UTP7304E-POE

Description: This is an unmanaged long distance Ethernet switch with PoE. It uses advanced network cable

driver technology which can extend 100M Ethernet signal to 200m. This product provides 1 uplink Ethernet port

and 1 optical port, both are 100Mbps; 4 100Mbps PoE Ethernet ports; support IEEE802.3 af/at standard. It is

designed for HD IP camera access and enable these devices to have power supply without connecting to the

power socket. It makes the connection of those devices far away from the power more flexible and simplifies

wiring. Through integrating with optical port, it perfectly combines media converter and Ethernet switch which

solve the problem of long distance transmission. It can be used in surveillance, network engineering and so on.

【Certification】

【Features】

1. Provide 4*10/100Mbps long distance PoE Ethernet ports, power supply for the device which

support IEEE802.3 af/at standard, don't worry about damage the device which isn't PoE;

2. 4*100Mbps long distance Ethernet ports. It adopts advanced network cable driver technology, the

max transmission distance up to 200m;

3. PoE Ethernet Port support IEEE802.3 af/at standard, and provide 30W consumption which power

supply for the high consumption infrared camera;

4. Provide 2 uplink ports, 100Mbps optical and Ethernet port; uplink optical port reserve SFP port,

conveniently for user to select different SFP optical transceiver to solve long distance transmission;

5. Uplink Ethernet port transmission distance up to 150m, convenient to connect the upper switch;

6. Support IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3 af/at standard;

7. Support IEEE802.3X full duplex flow control; support Auto MDI/MDIX function;

8. The switch and every PoE ethernet ports have reset button for users to solve IP camera crash and

others problem, no need to pullout and plug network cables, which is convenient for system

maintenance; The reset button is on the bevel, convenient for users to operate from multi-angle;

9. Redundant power design, support power heat backup or increase power consumption;

10. Fold metal outershell heat dissipation without fan designed;

11. Fast installation, easy operation, convenient for wall, din rail and desktop installation.

【Specification】

Item

Description

Power

Power Supply

Power Adapter

Voltage

DC48V-57V

Consumption

60W

Network

Connector

Network Port

1-4 Downlink Port:10/100Mbps, PoE Ethernet Port;

UPLINK Ethernet Port:10/100Mbps Ethernet Port;

SFP: Optical SFP Port, 100Mbps, SFP Module

need to purchase in addition

Transmission Distance

1-4 Downlink Port: 200m;

Uplink Ethernet Port: 150m;

SFP: Depend on Optical Transceiver

Transmission Medium

Cat5e/6 Standard Network Cable

PoE Protocol

IEEE802.3af/at Protocol

PoE Power Supply

End-span

PoE Power

Consumption

Single Port<30W, whole machine<55W

Network

Switch

Network Standard

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-

TX/FX

Switch Way

Storage and Forward

Package Data Cache

512K

MAC Address List

LED Status

Indicator

Power Indicator

1 (Red)

Optical Port LED

Fiber Link Green Light Indicate Optical Fiber

Working Status

Uplink Port LED

RJ45 Socket Green Light Indicate Ethernet Working

Status, Yellow Light Inidcate10/100mbps

PoE Ethernet Port

LED

1-4 Port Green Light Indicate Link, Yellow Light

Indicate PoE

Green light flicker when data transmission,

the larger of the data, the flicker frequency faster

Button

PoE Reset Button

4 corresponding with 1-4 port,

PoE Will Restart After Press The Button

Reset Button

1, Switch Restart After Press This Button

Protection

Communication Port

Surge Protection

Level 3, Per: IEC61000-4-5

ESD

1a Contact Discharge Level 3

1b Air Discharge Level 3

Per: IEC61000-4-2

Environmental

Working Temperature

-40℃-75℃

Storage Temperature

-40℃-85℃

Humidity (non-

condensing)

0-95%

Mechanical

Dimension (L×W×H)

110mm×162mm×46mm

Material

Aluminum

Color

Black

Weight

540g

Stability

MTBF

>30000h

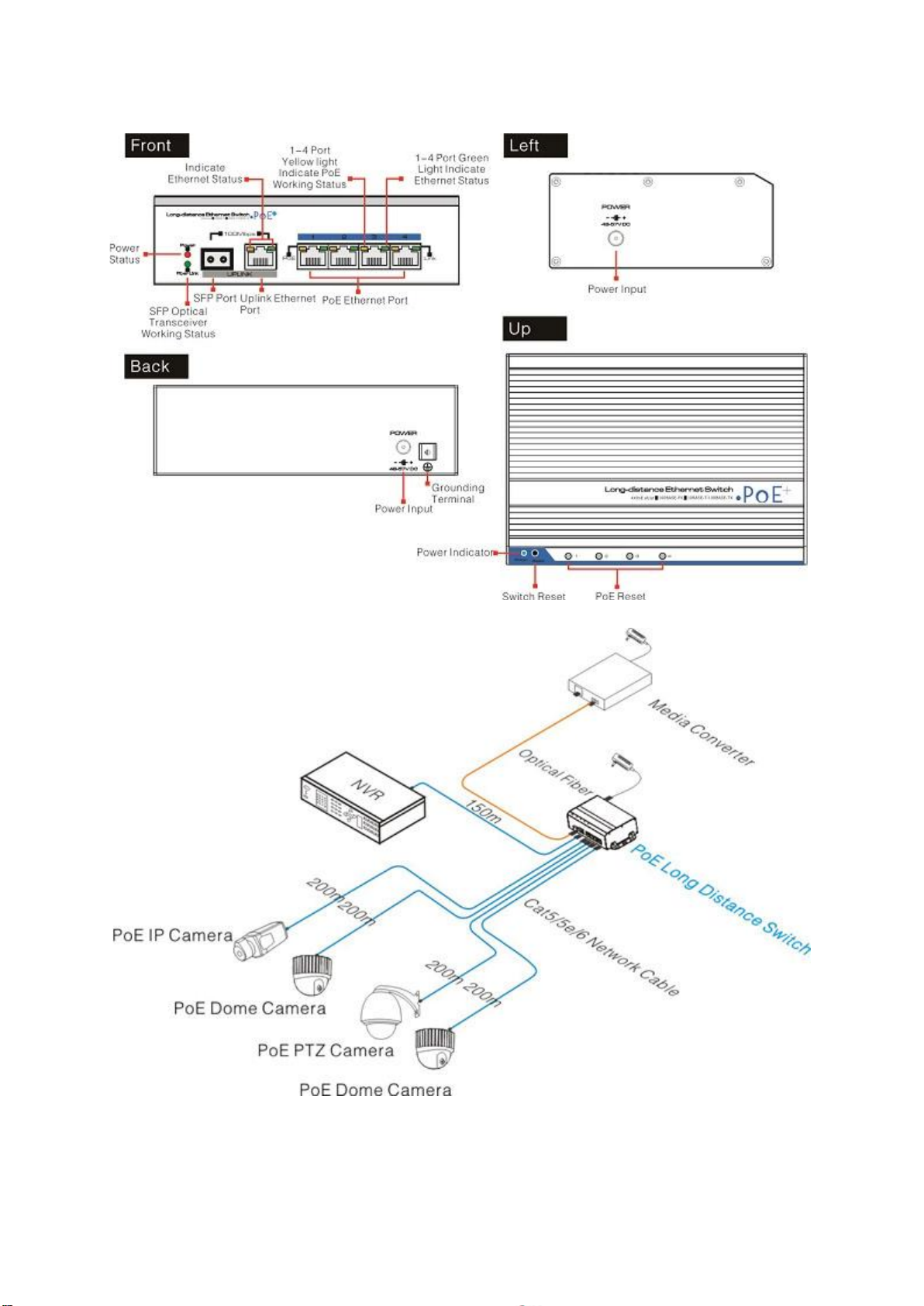

【Interface】

【Application】

【Installation】

1) Please turn off the signal source and the device's power, installation with power on may

damage the device;

2) Use 4 network cables to connect 4 IP cameras with PoE switch's 1-4 PoE port;

3) Use another network cable or(optical fiber) to connect PoE switch's UPLINK port with

NVR or computer;

4) Connect PoE switch with power;

5) Check if the installation is correct and device is good, make sure all the connection is

reliable and power for the system;

6) Make sure every network device has power supply and work normally.

【SFP Optical Module Selection Form】

Model

Single Fiber/

Dual Fiber

Single-

mode/

Multi-mode

Bandwidth

Distance

Port

Wavelength (nm)

UOF2102BS-

20KM

Dual Fiber

Single-mode

155Mbps

20km

LC\PC

1310

UOF2202BS-

20KM

Dual Fiber

Single-mode

1.25Gbps

20km

LC\PC

1310

UOF2101BS-

T20KM

Single Fiber

Single-mode

155Mbps

20km

LC\PC

1310/1550

UOF2101BS-

R20KM

Single Fiber

Single-mode

155Mbps

20km

LC\PC

1550/1310

UOF2201BS-

T20KM

Single Fiber

Single-mode

1.25Gbps

20km

LC\PC

1310/1550

UOF2201BS-

R20KM

Single Fiber

Single-mode

1.25Gbps

20km

LC\PC

1550/1310

Naming Rule: UOF2a0bXY-Zc

a: Bandwidth, 1: 155M; 2: 1.25G; 3: 2.1G; 4: 4.25G; 5: 8G; 6: 10G

b: No. of Fiber, 1: Single Fiber, 2: Dual Fiber

X: Optical Wave Length, A: 850nm; B: 1310nm; C: 1550nm

Y: Single-mode OR Multi-mode, S: Single-mode; M: Multi-mode

Z: Wavelength of Single Fiber, T: 1310\1550; R: 1550\1310

C: Distance, For example: 20km, 40km, 60km

【Scenario】

1. Security surveillance system

2. Wireless AP network system

3. IP phone system

4. VoIP network telephone system

...

【Accessories】

1. 4 Ports Long Distance PoE Ethernet Switch 1pc

2. Power Adapter 1pc

3. Hanger 2pcs

4. Din Rail Hanger 1pc

5. User Manual 1pc
