USP Duramax Yardmate Manuel
• All Weather Durable PVC
• Won’t Dent, Rust, Rot or Mildew
• Tall Walk In Shed
• Never Needs Painting
• 53 Inch Wide Double Doors
• Easy Assembly
• Snow Load Tested 20lbs/sq. foot
• Pad Lock Ready (Lock not included)
Call us for any missing or damaged parts.
Do not return to the store.
Customer
Service Hotline
(800) 483-4674
www.duramaxbp.com
Your Total Solution To Maintenance Free Storage Sheds.
Available Kits
• Modular 2.5 Ft Extension Kits Available
Ver: 0.0
Vinyl Garden Shed
Vinyl Garden Shed
A Product of
TM
ALL PURPOSE VINYL GARDEN SHEDS
OWNER’S MANUAL /
Instructions for Assembly ‘5 Ft YardMate’-V2
Size 5 Ft x 3 Ft / 1.7 m x 1.0 m (Approx.)
Patent #416.091
Building Dimensions :
Approximate
Size
Storage Exterior Dimension Interior Dimension
5 Ft x 3 Ft 12 3/4 Sq. Ft. 76 1/2 Cu.Ft.
Roof Edge to Edge
Base Dimension Door Opening
1.7 m. x 1.0 m. 1.2 Sq.m. 2.2 Cu.m.
Width
Depth
Height
inch cm.
68 1/8 173
inch cm.
37 5/8 95.5
63 1/4 160.8
33 83.8
78 1/8 198.5
inch cm.
61 1/4 155.7
inch cm.
30 1/8 76.7
52 3/4 134.1
70 177.8
71 1/2 181.8
Wall to Wall
Area Volume
1
“We recommend to clear snow from the Roof top after each Snowfall.”
Duramax Garden Shed
Limited Fifteen Year Warranty
U.S. Polymer Inc. will send a replacement part free of charge, in the event of material defects and or
workmanship for a period of fifteen years from the date of purchase.
This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of
original purchase will be required before warranty service is rendered. In no event shall we pay the
cost of flooring, labor, installation or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship which occurs during normal
use and does not extend to color change arising due to normal weathering or to damage resulting from
misuse or neglect, commercial use, failure to follow assembly instructions and the owner’s manual
(including proper anchoring of the shed), painting, forces of nature and other causes which is beyond
our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mail
in a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
1057 S. Vail Ave,
Montebello, CA 90640.
We reserve the right to discontinue or change components. If a component has been discontinued
or is not available,
U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental
or consequential damages resulting from the use of this product, or arising out of any breach of this
warranty. All express warranties are limited to the warranty period set forth above . Some states do
not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitations may
not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state or country to country.
Behind left Door P anel for Basic Shed.
Location of Product Labels
On Side Panel for Extensions.
2
SAFETY & PRECAUTIONS
Before You Begin...
1. Check your local building codes regarding footings, location, etc.
2. Select a site that allows enough working space around the shed.
3. Determine building foundation and anchor system.
4. Read and understand the Owner’s manual enclosed in the package.
5. Follow all directions and dimensions thoroughly.
6. Follow the steps given in the manual carefully for correct assembly.
7. Make sure all parts are present before you start assembling.
8. BE SAFE : Follow safety instructions and avoid injury.
(See inside page).
9. GROUND MUST BE EVEN : Make sure the foundation frame lies flat on
the ground. If the earth bed is uneven, remove sod and other debris and
level it with a flat shoval.
10. Separate contents of the carton by the part number and review the list.
Be sure you have all the necessary parts for your shed.
Refer Owner’s manual for part list.
CAUTION
Sharp
Edges
3

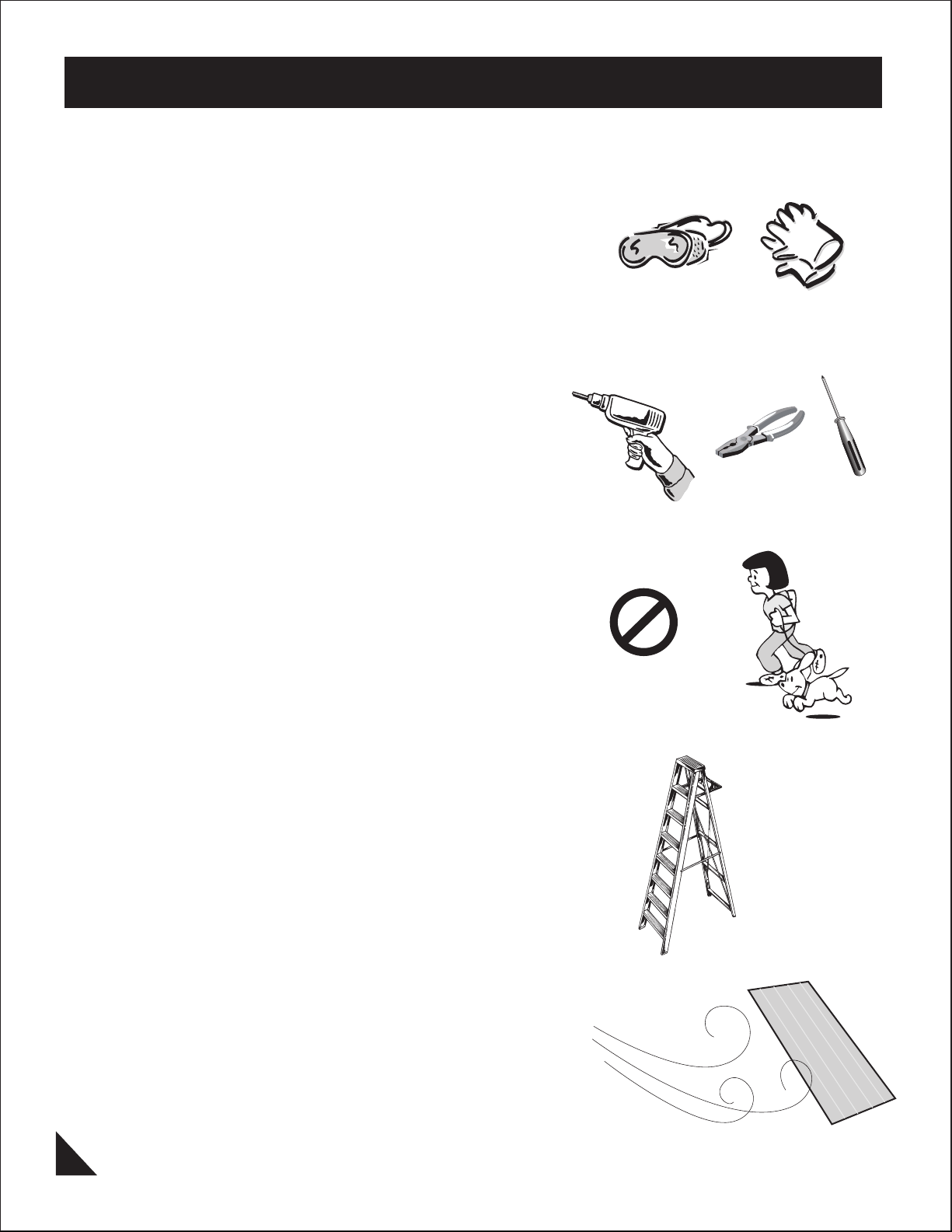

SAFETY & PRECAUTIONS
For your own safety, please read and follow these instructions during the shed assembly.
1.Always wear work gloves, long sleeves and eye protection
during assembly of the shed. Some pieces of the shed
contain sharp edges and can cause injury.
2. Be cautious with the tools used for the assembly of the
shed. Familiarize yourself with the operation of all the
power tools.
3. Children and pets should be kept away from the assembly
site to avoid any distractions and accidents.
4. When using a step ladder, make sure it is on even
ground and fully open with the safety latch in place. Never
concentrate your full weight on the roof or any part of the
shed.
5. Do not attempt to assemble the shed on a windy day.
Shed panels can be whipped across by the wind making
the worksite difficult and dangerous.
4
IMPORTANT
Wear eye protection when using any form of power tools. Do not use voltage power tools in a wet or damp
enviornment to avoid electric shock.
Do not use any part of the shed as a means of personal support while attaching components during assembly.
The shed must be constructed on a solid base foundation. A concrete pad or a large size concrete patio
stone squares is recommended for suitable floor base. Make sure it is firm and level and will allow drainage
away from the site. The base foundation should be at least 4 inches (100mm) larger than the shed dimensions.
Please refer to the front page of your owner’s manual for the exterior dimensions of the shed. Manufacturer is
not responsible for the choice and construction of the foundation.
For a concrete pad base, prepare a level bed for a firm footing layer of crushed stone. The concrete pad
should then be poured to a thickness of 4 inches (100mm) to 5 inches (125mm). Allow to dry thoroughly
for at least 48 hours
Your shed must be firmly anchored to the concrete pad or large concrete patio stone squares, to help protect
against damage in high winds.
Care & Maintenance
Although this unit does not require any maintenance, care should be taken to prolong the life
of your shed.
ROOF : Keep roof clean of leaves and snow with long handled, soft bristled broom. Heavy amounts
of snow on the roof can damage the shed making it unsafe. Do not step on the roof.
WALLS : Do not rest any object against the wall panels of the shed.
DOORS : Keep doors closed to prevent wind damage.
FASTENERS : Regularly check your shed for loose screws, bolts, nuts, etc. And retighten them as
necessary.
MOISTURE : With changing temperatures, condensation will accumulate inside the shed. Good
ventilation will help in regulating and avoid moisture.
TIP : A noncorrosive caulking is helpful to seal the shed.
DO NOT store swimming pool chemicals in your building.
Combustibles and corrosive must be stored in
air tight containers
Parts List
Cordless Drill - Philips Head
Hammer or Rubber mallet
Carpenters Square
8’ Step Ladder
Adjustable pliers
Level - 3ft.
Tape Measure
Caulk Gun
Waterproof Clear Silicon
Hand Gloves
Tools You Will Need
RS5E
RS1E, RS3E
CB2B, CB2E
RJ
S5,S6
PIN PPG
RS2E
FCB FMC
FDCL
FDCR
FCC
DSHE
RS14E
BPF
2. Maximum no. of Extension can be build
upto 5’x8’ (ie. Two Extension).
Note 1. Before starting installation, please refer
Safety & Precautions.
5
VCP
FCLE
FCRE
CCE CME
VC
S1,S2
CODE QTY
FDCL 1
FDCR 1
FCC 4
FMC 1
FCB 4
RJ 4
PPG 34
PIN 34
VC 2
VCP 4
S1 45
S2 8
S5 14
S6 14
CODE QTY
FCLE 1
FCRE 1
CME 1
CCE 2
CB2E 2
CB2B 1
RS1E 2
RS2E 4
RS3E 2
RS5E 2
RS14E 2
DSHE 1
CODE QTY
BPF 1
SPE 4
FPE 2
RP 2
RRE 1
DL 1
DR 1
PARTS ACCESSORIES

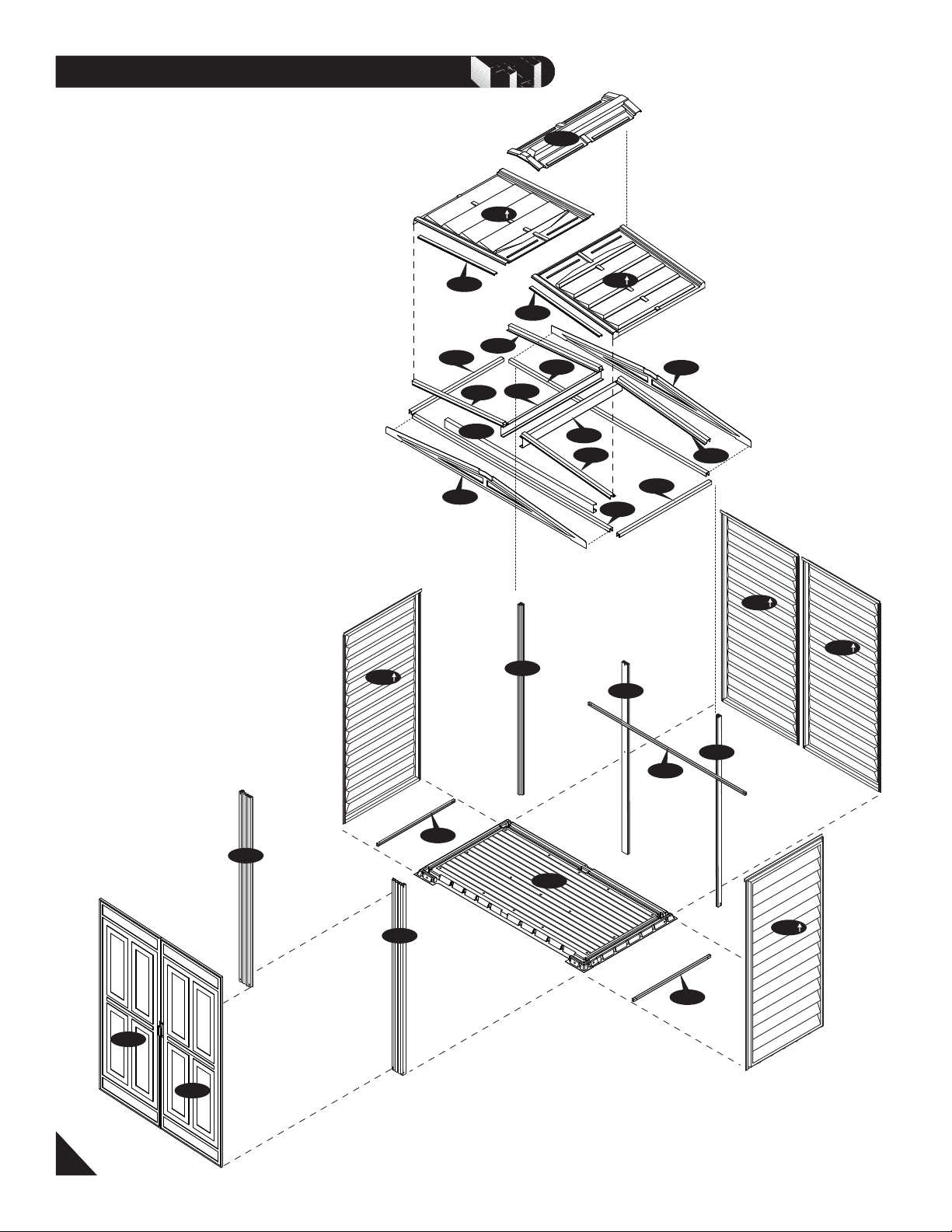

Exploded View
6
FCLE
FCRE
SPE
SPE
SPE
SPE
CB2E
CB2E
CCE
CB2B
FPE
RP
DL
DR
BPF
CME
CCE
FPE
RP
RS5E
RS5E
RS3E
RS3E
RS2E
RS2E
RS2E
RS2E
RS1E
RS1E
DSHE
RRE
RS14E
RS14E
7
Note 1. It is important that these instructions
are followed step by step.
2. All parts are clearly marked and care should
be taken to use the correct one.
3. Don’t install under windy conditions.
4. If you are building the shed against a wall,
build it 2.5 ft. away then slide it in.

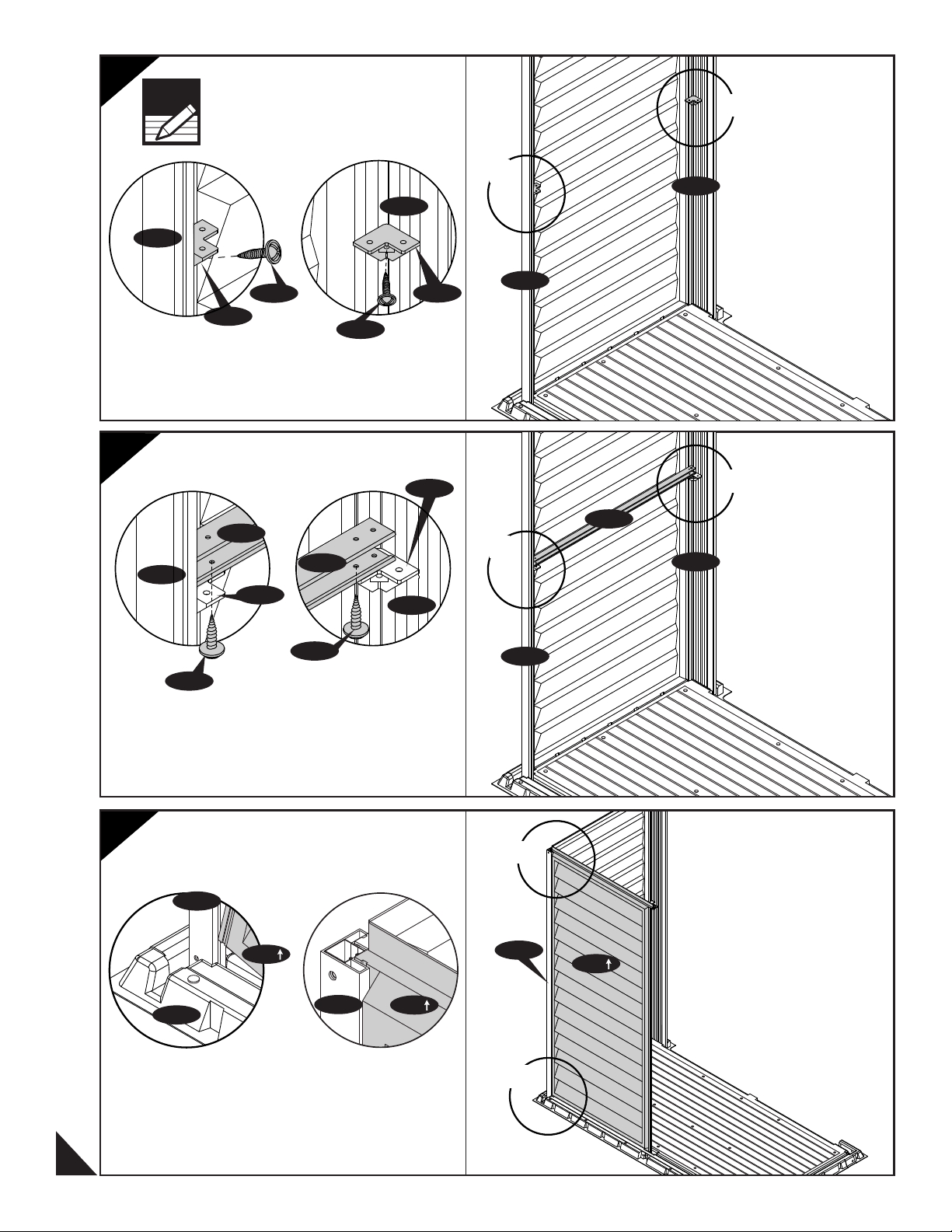

A. Wall & Columns
1
Parts Needed
Code Qty
BPF 1
FCLE 1
FCRE 1
CME 1
CCE 2
CB2E 2
CB2B 1
FCB 4
SPE 4
S1 9
S2 4
S5 14
S6 14
Back
Front
Level Floor Surface Required
BPF
8
Fig.3
2
4
3
Fig.1
SPE
Check the stamped label on top
of all panels inside.
Note
Fig.1
Back
Fig.1
Front
Back
FCRE
BPF
2&3
1
SPM
Front
1
SPE
FCRE
BPF
FCRE
SPE
FCRE
S5 S6
BPF
FCRE
CCE
SPE
CCE
SPE
Fig.2
FCRE
BPF
Fig.2
BPF
CCE
BPF
S6
S5 Fig.3
CCE
1
2&3
9
5
7
6
Do not tighten the screw.
Leave it loose
Note
Fig.2
Fig.1
Fig.1
Back
CCE
Front
2
FCRE
1
CCE
Front
FCRE
CCE
2
1
CB2E
SPE
1
2
Fig.2
CCE SPE
FCB
CCE
S2
S2
FCRE
FCB
S1
CCE
CB2E
FCB
CCE
Fig.1
SPE
Fig.2
FCB
S1
CB2E
FCRE
BPF
