Urmet domus 1060 Manuel

DS 1060-128 LBT 20504

Mod.

1060

KIT VILLA IPERCOM

IPERCOM VILLA KIT

Sch./Ref. 1060/611

LIBRETTO INSTALLAZIONE E CONFIGURAZIONE

INSTALLATION AND CONFIGURATION MANUAL

Manuals in French,Spanish, German and Dutch can be downloaded from www.urmet.com with the QR Code shown at the end of the manual.

Les manuels en français, espagnol, allemand et hollandais peuvent être téléchargés à partir du site www.urmet.com à l’aide du code QR indiqué au fond

de la notice.

Los manuales en francés, español, alemán y holandés se pueden descargar del sitio www.urmet.com mediante el código QR presente al ﬁnal del manual.

Die Handbücher in französischer, spanischer, deutscher und spanischer Sprache können mit dem am Ende des Handbuchs angegebenen QR Code von

der Website www.urmet.com

De gebruiksaanwijzingen in het Frans, Spaans, Duits en Nederlands kunnen worden gedownload op de site www.urmet.com met de QR Code aan het

einde van het boekje.

POE

MAX

POE Active

POE Fault

PWR

POE Ports

134

100M 10M On = Link, Blink = Act

26 DS1060-128

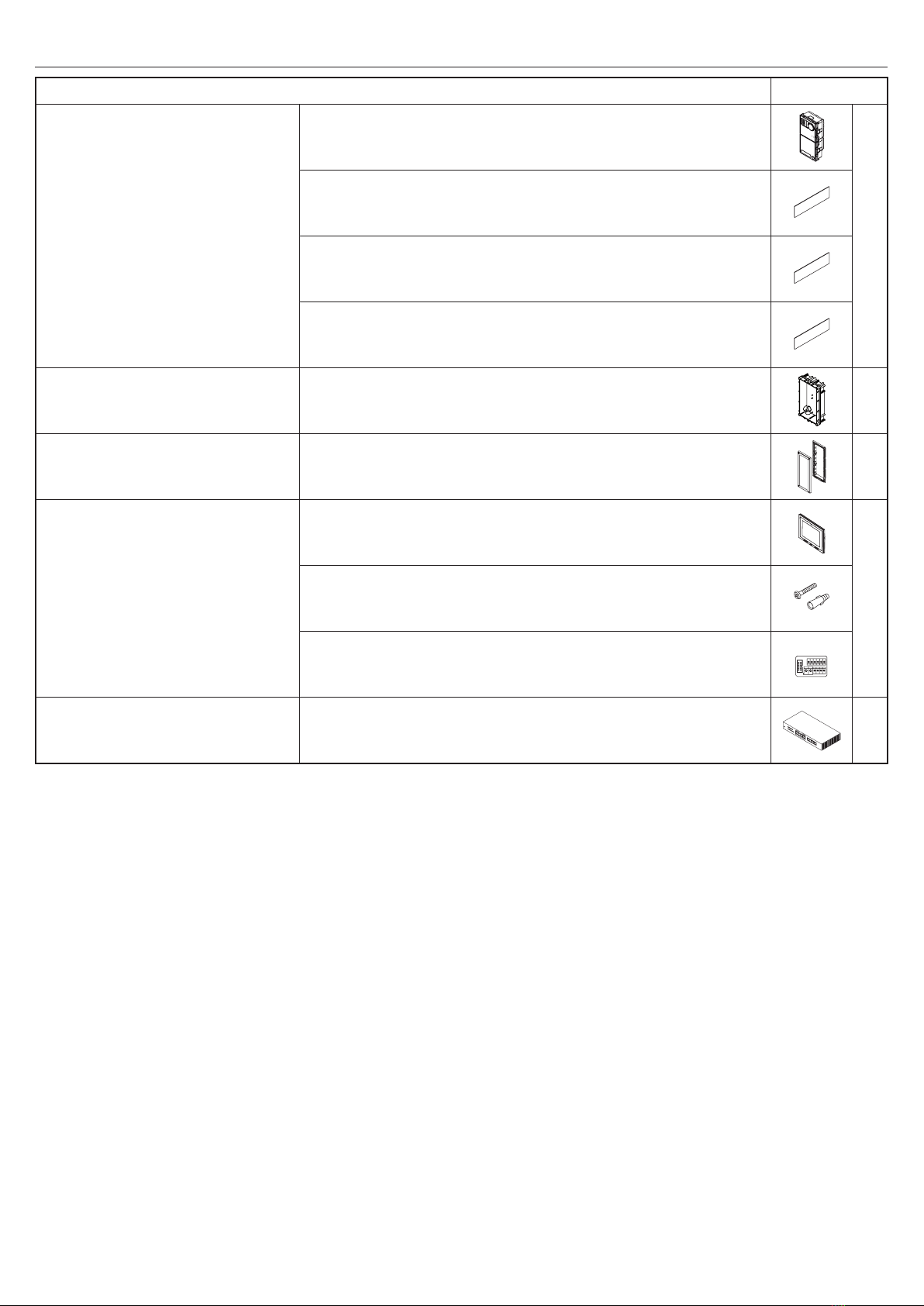

2 KIT COMPOSITION

DESCRIPTION ID

Call station Ref.1060/71

Video door unit with 1 button

1 transparent printed tag

1 grey printed tag

1 red printed tag

Flush-mounting box Ref. 1145/52 1 ﬂush mounting box 2 modules A1

Frame and module holde Ref. 1158/62 1 frame and holder for 2 modules A2

Max Monitor Ref. 1717/31

Max apartment station video door phone with fastening bracket

Package containing 6 screws, 4 anchor bolts for fastening bracket and sticker for

hearing impaired

Terminal board with connectors

PANI C

S+

S-

-B+V-V

8-port switch Ref. 1039/44 1 switch with 8 ports, of which 4 PoE. C

DS1060-128

3 ACCESSORY DEVICES

DESCRIPTION ID

Supplementary call station Ref. 1060/71 -

Electric lock 12 Vac 15 VA - OP1

Flush-mounting box Ref. 1145/52 -

Frame and module holder Ref. 1158/62 -

Setup for activating garage gate door opener - OP2

Button for activating pedestrian gate electric lock - OP3

Hood for two-module door unit Ref. 1158/612 OP09

Supplementary Max Monitor Ref. 1717/31 OP4

Supplementary ringer Ref. 1072/59 OP5

Floor call button - OP6

Ipercom actuator relay Ref. 1060/84 OP7

Generic ADSL router - OP8

Supplementary PoE Switch Ref. 1039/44 -

720P H264 IR PIE Minicamera and Audio (Urmet Cloud series)

Compact camera IP H.265 4M AF 2.8 – 12mm

DOME indoor IP H.265 4M AF 2.8 – 12mm

VANDAL DOME IP lens IP H.265 4M AF 2.8 – 12mm

Ref. 1093/184M18

Ref. 1093/144M4ZI

Ref. 1093/181M4ZI

Ref. 1093/182M4ZI

OP9

(#)

(#) For the updated list of the Urmet cameras available, contact the Client Service Technical Area.

28 DS1060-128

4 CONNECTION BLOCK CHARTS

4.1 SINGLE-FAMILY SYSTEM

Apartment 01

POE

MAX

POE Active

POE Fault

PWR

POE Ports

134

100M 10M On = Link, Blink = Act

LAN

OUT 1

REL. FW:

PB1

PB2 V-

V+

DECODIFICA SPECIALE PER CAT 5

SPECIAL DECODER FOR CAT5

NO NO

OUT 2

Light 02Light 01

PoE

OP4

OP6

OP5

110-230 Vac

OP6

OP5 OP8

OP3

OP2

OP1

OP7

110-230 Vac

OP9

Internet

4.2 DISTANCES

For connections between various IP devices, the maximum distance allowed is 100m, the distance established by standard IEEE802.3 for Fast Ethernet

networks (100Mbps).

To guarantee correct functioning of the monitor at maximum distances, the cable must be category 5e and the gauge of the pairs must be

AWG24. The maximum resistance of the individual wire must not exceed 10ohm/100m.

The wire must comply with the following standards:

- EIA/TIA 568-B.2

- EN50288 3-1

- IEC 61156-5

The connection between the monitor and the PoE switch must be made with a single wire without using additional patch cords.

For the other connections (that do not involve the IP devices), refer to the table below:

Segment

Type of wire

Wire 1mm2single

A – OP1 60 m

A – OP2 60 m

A – OP3 100 m

B – OP5 30 m

B – OP6 30 m

B – local power 25 m

DS1060-128

5 WARNINGS FOR INSTALLERS

Read the notes in this manual carefully. This manual contains important information on safe installation, use and maintenance.

This devices in the kit must only be put to the use for which they were intended. All other use is improper. The manufacturer cannot be held responsible

for damage deriving from improper, incorrect or unreasonable use.

Each part was designed to be compliant with the standards in force.

The system must be built in compliance with the regulations in force. All devices in the system must be exclusively used for the purpose for which they

were designed.

Remove the components from the packaging and check that they are intact.

Keep the packaging (plastic bags, polystyrene, etc.) away from children. Packaging is potentially dangerous.

Provide a suitable cut-off and protection master switch upstream from the devices, with contacts open by at least 3 mm.

Make sure that the plate data corresponds to the power speciﬁcations before connecting the devices to the mains.

Keep the ventilation or cooling openings and slots free.

Disconnect the devices from the mains before cleaning or maintenance.

Do not use spray products to clean the device.

Disconnect power from the circuit breaker in the event of failure and/or malfunctioning of the products contained in the kit. Do not tamper with the

devices.

Exclusively contact a service centre authorised by the manufacturer for repairs.

Provide suitable ventilation.

Do not use power extension wires.

Have the device checked and repaired by qualiﬁed personnel in the case of inﬁltration of ﬂuid or objects inside the device.

Exclusively use the spare parts supplied by the manufacturer for repairs.

Installers must make sure that user’s information is applied to the connected devices.

Disrespect of these precautions can effect safety of the devices.

Keep this manual with the device at all times.

The lightening symbol in a equilateral triangle indicates the presence of dangerous voltage.

Never open the devices unless expressly instructed to do so in this instruction manual.

The exclamation mark symbol in an equilateral triangle indicates critical safety components. Always only use components supplied by the

manufacturer.

6 CONFIGURATION OF SYSTEM START-UP

6.1 PRELIMINARY OPERATIONS

The system is conﬁgured by following a procedure consisting of a few system steps, after which the system can perform the main video door phone

operations.

When the system is turned on, the Max Monitor displays this screen:

Figure 1: MAX monitor home page

•

30 DS1060-128

6.2 SELECTING LANGUAGES

The ﬁrst operation to be carried out in the home page is to select the system language by pressing the LANGUAGE button.

Select the desired language in the window that opens.

Figure 2: Selecting the system language

If Italian is selected, the home page will be translated immediately as expected.

Figure 3: Home page translated into Italian

6.3 ACCESSING THE CONFIGURATION MODE AND SETTING THE DATE AND TIME

To access the conﬁguration mode, touch the CONFIGURATION button on the home page: a screen will appear where the Urmet password must be

entered

Figure 4: Entering the Urmet password

The Urmet default password is “1937”.

DS1060-128

Entering the password and pressing the CONFIRM button allows access to the conﬁguration mode.

The ﬁrst page that appears is the one for selecting the current date and time, a fundamental step for correctly conﬁguring the system.

Figure 5: Setting the date and time

By entering data into the year, month, day, hour, and minute columns and then pressing the CONFIRM button, the system acquires the correct date and

time.

At this point, the conﬁguration menu will appear, where it is possible to create the ﬁrst system conﬁguration.

Figure 6: Conﬁguration Menu

6.4 CREATING THE CONFIGURATION

To create the ﬁrst system conﬁguration, select the item “System Conﬁguration” from the menu and then “Create conﬁguration”, as show in the ﬁgure

below.

Figure 7: Step-by-step creation

32 DS1060-128

The following page will appear

Figure 8: Creating a new conﬁguration

6.4.1 SETTING THE BASE PARAMETERS

On the create conﬁguration page, select the type of Villa Kit project (single family) and then assign a meaningful name to the project and an installer’s

password.

Figure 9: New conﬁguration setting

To allow future modiﬁcations of the conﬁguration created, it is recommended that the installer password be noted and saved in a safe place.

Once the OK button is pressed, an empty conﬁguration will be created and a page will appear where it is possible to add the individual devices to the

conﬁguration and conﬁgure them.

Figure 10: Basic conﬁguration

The section highlighted to the left is the NAVIGATION MODULE and makes it possible to add devices by positioning the cursor on the apartment or in the

ﬂoor desired.

DS1060-128

6.4.2 SETTING THE MAX MONITORS

Ensure that the apartment is selected in the navigation module, or that the App 01 button is pressed as shown in the ﬁgure.

Figure 11: Selecting the apartment from the navigation module

To add the MAX monitor to the apartment, ﬁrst press the Add new device button: the following page will appear

Figure 12: Selecting the device to be added to the apartment

Then select the item Max 1717/31-32-33-34-41 to open the MAX monitor settings page

Figure 13: Setting the MAX monitor

34 DS1060-128

Assign a name to the device using the Name ﬁeld, then press the button in correspondence or the MAC Address: a new window will appear, as

illustrated in the ﬁgure below

Figure 14: Selecting the MAC address

By pressing the This Device button, the MAC Address ﬁeld will be ﬁlled in automatically and the device setting will be completed

Figure 15: Completing the MAX Monitor Settings

Press OK to conﬁrm the parameters entered: the device will be added to the apartment, as illustrated in the ﬁgure below

Figure 16: MAX Monitor added to the apartment
