UPLIFT ACC096 Manuel utilisateur

Clamp-On Microphone Arm

ACC096

For assembly assistance,

visit upliftdesk.com/contact,

or call 800-349-3839,

or email [email protected]

Bolt-Through Mount

Microphone Arm Clamp Base Assembly Bushing Wing Nut Base Plate

Bolt-Through Clamp

Screw

⅝” Thread Adapter Ball Joint Adapter Knurled Lock Nut 2.5mm Allen Wrench

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Package Contents

Safety and Warnings

CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in

damage or personal injury. Retain manual for future reference.

CAUTION: The linkage and spring are internal. Disassembly can lead to damage and can cause serious

injuries.

CAUTION: For a secure and stable setup, the desk surface and underside should be at and the corners

should be square. Attaching the clamp to a beveled, curved, or uneven surface can result in unstable and

unsafe installation and cause damage to the desktop.

CAUTION: Use with products heavier than the rated weight of 2.4lbs may result in instability causing

possible injury.

CAUTION: Make sure that the supporting surface will safely support the combined weight of the equipment

and all attached hardware and components.

CAUTION: Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.

CAUTION: This product is intended for indoor use only. Using this product outdoors could lead to product

failure and personal injury.

Under no circumstances does the manufacturer accept warranty or liability claims for damages caused from improper use

of this Microphone Arm. Please provide these instructions to any new user or owner of the Microphone Arm.

Clamp Method

Compatible with 0.4” to 3.7” thick desktops

To attach the microphone arm along the edge

of your desktop, follow the Clamp Method

instructions (Step 2.A). Clamping the arm on the

edge of a desk or table is the simplest method,

but the Clamp can also t into grommet holes

3.15” diameter or larger.

Step 1 - Determine Your Mounting Method

There are two ways to attach the Clamp-On Microphone Arm to your desktop or table:

Step 2.A - Clamp Method

Base Attachment

A. Fit the Clamp Base Assembly onto the edge of the desk.

Round Base

Clamp Base Assembly

Clamp Plate

Wing Nut

Bolt-Through Assembly

Round Base

Clamp Plate

Bolt-Through

Clamp Screw

Wing Nut

B. Using the wing nut, tighten the Clamp Screw until the

Bottom Plate clamps rmly against the bottom of the

desktop.

C. Skip the Bolt-Through Method steps and proceed with

Step 3.

1.75”

.4”

Bolt-Through Method

Compatible with 0.4” to 1.9” thick desktops

To attach the microphone arm through

your desktop, skip Step 2.A and follow the

Bolt-Through Method instructions (Step

2.B). The bolt-through mount can t into a

hole between 0.4” - 1.75” in diameter located

anywhere on the desktop.

Step 2B - Bolt-Through Method

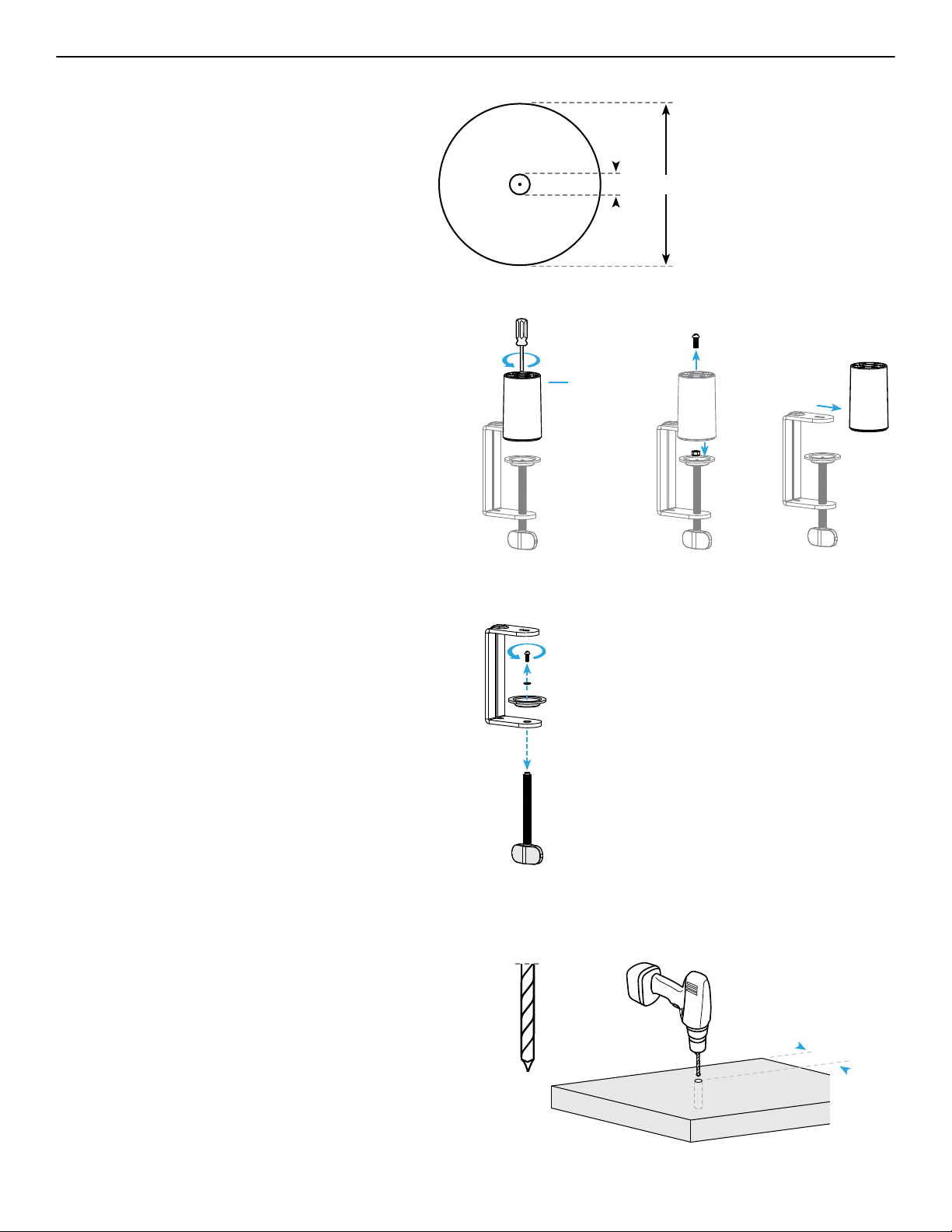

Bolt-Through Hole Fit

A. The desktop must be between 0.4” and 1.9”

thick and have a hole between 0.4” and

1.75” in diameter to use this option. Using

a grommet hole already in your desktop

is acceptable, or drill a hole anywhere on

the desktop, taking care to avoid frame

hardware underneath.

Clamp Assembly Removal

B. Remove the Clamp Assembly from

the Round Base. Using a Phillips head

screwdriver, remove the screw and

nut from inside the Round Base to

separate it from the Clamp Assembly

as shown.

Removing the Clamp Screw from the

Clamp Assembly

C. Using a Phillips head screwdriver, remove the

screw and washer to separate the Clamp Plate

from Clamp Screw assembly.

Creating a Hole (if needed)

D. If you need to create a hole in your desktop:

3/8” drill bit 2.5”

Round

Base

Clamp Base

Assembly

1. Determine the location you would like to mount

the Microphone Arm, and ensure it is located at

least 2 ½” from the edge of the desktop.

2. Make sure there is not any interference with

the desk frame or other accessories below the

desktop where you intend to drill your hole.

3. Use a drill and drill bit to create the hole in the

desktop. We recommend using a ⅜” drill bit,

but any hole between 0.38” and 1.75” in diameter

will work.

1.75”.4”

Sleeve

Bolt-Through

Clamp Screw

Base Plate

Clamp Plate

Wing Nut

Bushing

Round Base

Step 3 - Arm Attachment

A. Place the Bushing onto the Round Base as shown,

aligning the three posts of the Bushing with three of

the six holes on top of the Round Base.

B. Make sure the black plastic sleeve is in place over

the post at the end of the Microphone Arm.

C. Insert the Microphone Arm post and plastic sleeve

into the large hole in the top of the Round Base.

Assembling the Base

E. Insert the Base Plate into the slot at the bottom of the

Round Base.

F. Insert the Bolt-Through Clamp Screw through the top of

the Round Base and through the hole in the Base Plate.

G. Insert the Bolt-Through Clamp Screw through the hole in

the desktop.

H. From beneath the desktop, slide the Clamp Plate onto the

Bolt-Through Clamp Screw in the orientation shown and

then thread the included Wing Nut onto the end of the

Clamp Screw.

I. Clamp the base to the desktop by tightening the Wing

Nut and Clamp Plate securely.

Step 4 - Microphone Attachment with

Optional Ball Joint Adapter

The included Ball Joint Adapter allows for additional

adjustment for the microphone when attached. If

you prefer to attach the optional Ball Joint Adapter,

follow these instructions to attach your microphone.

Otherwise, skip to Step 6.

A. If not already installed, thread the Knurled Lock Nut

all the way onto the ⅜” threaded stem at the end of

the Microphone Arm until it stops.

Knurled Lock Nut

⅜” threaded stem

Step 5 - Ball Joint Adapter Adjustment

A. Once your microphone is installed on the Ball Joint

Adapter, hold it in your preferred position with one

hand and tighten the wing nut on the Ball Joint

Adapter to keep the microphone in place.

B. Use the Allen Wrench to tighten the set screw to

further lock the microphone position in place. If

you plan to regularly adjust the position of the

microphone on the Ball Joint Adapter, do not tighten

the set screw.

1. If your microphone requires a ⅜” threaded stem

for mounting, thread the microphone onto the ⅜”

threaded stem at the end of the Ball Joint Adapter.

B. Thread the Ball Joint Adapter onto the ⅜” threaded

stem at the end of the Microphone Arm until there

is a gap of approximately 1/16” between the Knurled

Lock Nut and the Ball Joint Adapter.

Microphone

Set screw

Ball Joint Adapter

⅝” Thread Adapter

Wing nut

C. Adjust the Knurled Lock Nut so it is tight against

the Ball Joint Adapter to keep it from moving.

D. Determine if your microphone requires a ⅜” or ⅝”

threaded stem for attachment.

E. Ensure the microphone is tight on the ⅜” threaded

stem.

2. If your microphone requires a ⅝” threaded stem,

rst thread the ⅝” Thread Adapter securely into

your microphone. We recommend using a coin

such as a nickel or quarter to tighten the adapter

by inserting it into the slot on the large end of the

adapter and twisting clockwise. Next, thread the

microphone with ⅝” Thread Adapter onto the ⅜”

threaded stem on the Ball Joint Adapter.

Step 6 - Microphone Attachment

without Ball Joint Adapter

A. If not already installed, thread the Knurled Lock Nut

all the way onto the ⅜” threaded stem at the end of

the Microphone Arm until it stops.

Microphone

Knurled Lock Nut

⅝” Thread Adapter

⅜” threaded stem

B. Determine if your microphone requires a ⅜” or ⅝”

threaded stem for attachment.

C. If a ⅝” threaded stem is required, install the ⅝”

Threaded Adapter into the microphone and tighten.

D. We recommend using a coin such as a nickel or

quarter to tighten the adapter by inserting it into

the slot on the large end of the adapter and twisting

clockwise.

E. Thread the microphone onto the ⅜” threaded stem

at the end of the Microphone Arm until there is a gap

of about 1/16” between the Knurled Lock Nut and the

microphone or the ⅝” Threaded Adapter.

F. Ensure the microphone controls are facing the way

you prefer them for access and turn the Knurled

Lock Nut so it is tight against the microphone,

locking it in place.

512-614-3152 | 800-349-3839

[email protected] | upliftdesk.com

Study this manual carefully. If this product is sold,

please provide this manual to the buyer, installers, or

support personnel operating the product.

SAVE THE INSTRUCTIONS

Work Better. Live Healthier

AI-ACC096-1.0

Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the scope of delivery, even if the item is resold.

This guide is also available on the UPLIFT Desk website: upliftdesk.com. These specications are subject to United States copyright law.

Step 7 - Wire Management

Tuck your microphone cable into the integrated, soft

rubber channel guides along the back side of the

Microphone Arm. Keep slack in the cable to allow for

any repositioning of the arm.

Step 8 - Arm Adjustments

A. To balance your microphone and arm, adjust

the spring tension screw found below

the base as shown with a Phillips head

screwdriver.

B. To adjust the angles of the arm segments,

turn the knobs located at each joint

counter-clockwise to loosen the joint. Move

the arm segment to the desired position

and then turn the knob clockwise to tighten

and lock it in place.

1. If the arm rises on its own with the

microphone attached, turn the screw

counter-clockwise until the arm stays in

place after it is positioned.

2. If the arm drops on its own with the

microphone attached, turn the screw

clockwise until the arm stays in place

after it is positioned.
