Package Contents

Eneld Dual Monitor Arm

SKU: MON042

Package Contents

Allen Wrenches

(set of two: 4mm, 6mm)

Lower Arm

(qty 2)

Wire Cover

Upper Arm

(qty 2)

Lower Clamp

VESA Plate

(qty 2)

Upper Clamp

M5x12 Screw (M-B) (qty 8)

M5 Washer (M-C) (qty 8)

M4x12 Screw (M-A) (qty 8)

M6x12 Flathead Screw (qty 3)

Flat Wrench

Base

Lower arm

Upper arm

Vesa mount (x1)

Lower base plate

Upper base plate

Bar Handle

Adhesive Pad

Wire Cover

Upper Clamp

Lower Clamp

Base screw (x4)

3mm Allen wrench

4mm Allen wrench

6mm Allen wrench

D5 Washers (x4)

M5x12 bolt (x4)

M4x12 bolt (x4)

O Bolt (x4)

N Bolt (x4)

Base

Lower arm

Upper arm

Vesa mount (x1)

Lower base plate

Upper base plate

Bar Handle

Adhesive Pad

Wire Cover

Upper Clamp

Lower Clamp

Base screw (x4)

3mm Allen wrench

4mm Allen wrench

6mm Allen wrench

D5 Washers (x4)

M5x12 bolt (x4)

M4x12 bolt (x4)

O Bolt (x4)

N Bolt (x4)

Base

Lower arm

Upper arm

Vesa mount (x1)

Lower base plate

Upper base plate

Bar Handle

Adhesive Pad

Wire Cover

Upper Clamp

Lower Clamp

Base screw (x4)

3mm Allen wrench

4mm Allen wrench

6mm Allen wrench

D5 Washers (x4)

M5x12 bolt (x4)

M4x12 bolt (x4)

O Bolt (x4)

N Bolt (x4)

Base

Lower arm

Upper arm

Vesa mount (x1)

Lower base plate

Upper base plate

Bar Handle

Adhesive Pad

Wire Cover

Upper Clamp

Lower Clamp

Base screw (x4)

3mm Allen wrench

4mm Allen wrench

6mm Allen wrench

D5 Washers (x4)

M5x12 bolt (x4)

M4x12 bolt (x4)

O Bolt (x4)

N Bolt (x4)

Base

Clamp Method Bolt-Through Method

• Acceptable monitor weight range: 4.4 lb to 19.8 lb (per monitor)

• Recommended monitor size: up to 32” (measured diagonally)

• Desktop thickness compatibility:

• Clamp Method: 0.4”-3.3” thick.

• Bolt-through Method: 0.4”-3.1” thick

There are two ways to attach the Eneld Dual Monitor Arm to your desktop. If you would like to attach it along the back

edge of your desktop, follow the Clamp Method instructions starting on this page. If you prefer to attach it through your

desktop, follow the Bolt-Through Method instructions starting on page 2.

Step 1

Determine your mounting method. There are two

ways to attach the Eneld Dual Monitor Arm to your

desktop:

Clamp Method: If you would like to attach the monitor

arm along the back edge of your desktop, follow the

Clamp Method instructions (Steps 2 - 4).

Bolt-Through Method: If you prefer to attach the

monitor arm through your desktop, skip Steps 2 - 4

and follow the Bolt-Through Method instructions

(Steps 5 - 7).

Step 2 (Clamp Method)

Align the Upper Clamp with the Base in the orienta-

tion shown and attach it using the three M6x12 Flat-

head Screws and the 4mm Allen Wrench.

Clamp Method

Parts for

Bolt-through assembly

Upper Base Plate

Lower Base Plate

Long Bolt

M8 Washer

M8 Nut

g. 2g. 1

Step 5 (Bolt-Through Method)

Ensure the desktop has a hole between 0.4’’ and 3.1’’

in diameter to use this option.

Using a grommet hole that is already in your desktop

is acceptable, or you can drill a 0.5” diameter hole

anywhere on your desktop.

Bolt-Through Method

Step 3 (Clamp Method)

A. There are two sets of holes in the Upper Clamp to

use for different desktop thicknesses.

• There are two screws pre-installed in the top

two holes of the Upper Clamp. Leave the screws

in those holes if your desktop is between 0.4’’

and 2.1’’ thick (g. 1)

• If your desktop is between 2’’ and 3.3’’ thick, use

the 4mm Allen Wrench to remove the screws

from the top two holes and insert them into the

bottom two holes (g. 2)

B. Use the 4mm Allen Wrench to adjust the two

screws in the Upper Clamp so that there is about

0.25” of thread between the plate and screw

heads.

C. Position the Lower Clamp assembly in the orienta-

tion shown and press it against the Upper Clamp

so the two screws go through the two key slot

holes in the Lower Clamp.

D. Slide the Lower Clamp assembly down so that

the screws are at the top of the key slot holes and

tighten the screws with 4mm Allen Wrench.

Step 4 (Clamp Method)

A. Using the knob screw, adjust the bolt on the bot-

tom of the Lower Clamp so that the opening is

wide enough to accommodate the thickness of

the desktop.

B. Slide the assembly onto the back of the desktop,

then tighten the knob screw to secure the Base to

the desktop.

Step 6 (Bolt-Through Method)

A. From the top of the Upper Base Plate (the side

opposite from the countersunk holes), insert the

Long Bolt through the square hole until the square

shank of the Bolt ts into the Plate’s square hole.

Align the Upper Base Plate with the bottom of the base

in the orientation shown and attach it using the three

M6x12 Flathead Screws and the 4mm Allen Wrench.

0.25”

0.4”

3.1”

Arm Assembly & Monitor Mounting

Step 7 (Bolt-Through Method)

A. Lower the Base assembly to the desktop guiding

the Long Bolt through the hole in the desktop.

B. Slide the Lower Base Plate onto the Long Bolt and

secure it against the desktop with the M8 Washer

and Nut.

C. Tighten the Nut with the Flat Wrench while ensur-

ing the Lower Base Plate straddles the hole.

D. Proceed with the Arm Assembly & Monitor Mount-

ing, Step 8.

Step 8

A. The Base comes with a pre-installed limiting screw

in each of the posts which limit the rotation of each

arm to 180 degrees.

If you want to limit the rota-

tion of the arms to 180 degrees, leave these screws

installed and use the 4mm Allen Wrench to ensure

they are tight (be careful not to overtighten).

B. If you want the arms to rotate a full 360 degrees,

remove the screws with the 4mm Allen Wrench.

•

We recommend saving these screws in case you

decide to limit the rotation of the arms in the future.

Step 9

Slide each of the Lower Arms onto the posts of the

Base until they are fully seated and tighten the set

screws at the back of each Lower Arm with the at-

head end of the 4mm Allen Wrench (or a small at

head screwdriver). This will secure the Lower Arms to

the Base and keep them from becoming separated

during adjustment.

Step 11

Reminder: The acceptable monitor weight range for

each of the Eneld Dual Monitor Arms is 4.4 lb to 19.8

lb per arm.

A. Lay your monitor face down on a clean surface or

a towel to prevent damage to your screen.

B. Test the M4x12 and M5x12 Screws in your moni-

tor’s screw holes to determine which is the right

size for your monitor.

C. Line up the holes of the VESA Plate with the holes

on your monitor, orienting the VESA Plate as

shown, with the VESA Plate’s knob pointing to-

ward the top of the monitor.

D. Attach the VESA Plate to the monitor using the

selected screws with the M5 Washers.

E. Repeat with the second monitor.

top

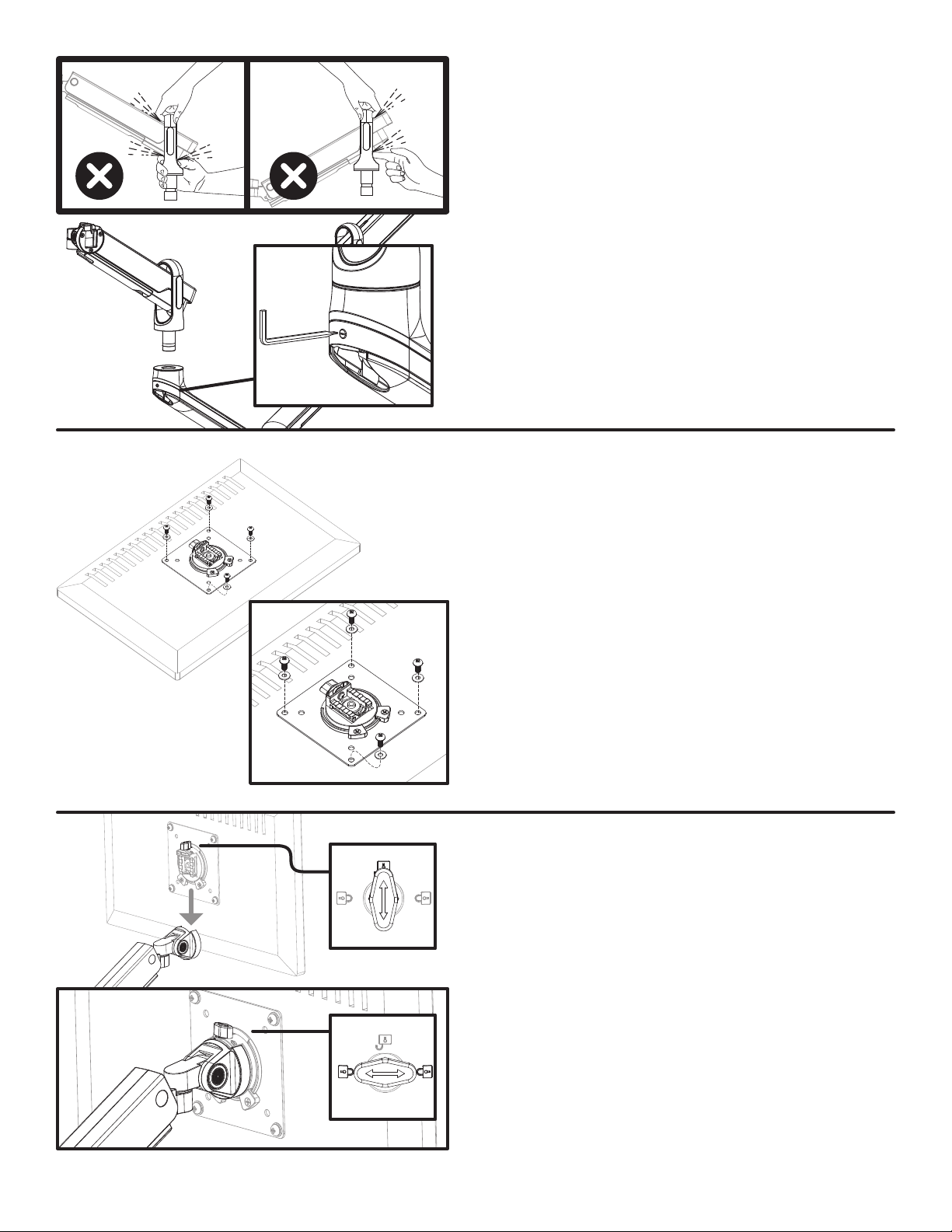

Step 10

Warning, Pinch Point: Pay attention! When handling

the Upper Arms, keep hands and ngers clear of the

Upper Arm’s pivot location when moving, installing,

and making adjustments to the Eneld Monitor Arm.

A. Slide the post of each of the Upper Arms into the

hole at the top end of each of the Lower Arms un-

til they are fully seated.

B. Tighten the set screws on the front of each of the

Lower Arms with the at-head end of the provid-

ed 4mm Allen Wrench (or a small at head screw-

driver). This will prevent the Upper Arms from

becoming separated from the Lower Arms during

adjustment.

Step 12

A. Make sure the knob on the VESA Plate is in the

“Unlock” position, perpendicular to the monitor.

B. Slide the VESA Plate into the slot shown in the Up-

per Arm.

C. Once the VESA Plate is inserted all the way into

the Upper Arm, turn the knob on the VESA Plate

to the “Lock” position, parallel to the monitor.

D. Pull up slightly on your monitor to make sure it is

locked securely in place.

E. Repeat with the second monitor.

Step 13

A. Move a monitor to any position and release it. If

the monitor does not drift up or down, the arm is

properly counterbalanced.

B. If the monitor does not remain where you po-

sitioned it, you will need to adjust the tension of

the spring to properly support the weight of your

monitor using the 6mm Allen Wrench on the ten-

sion adjustment screw (located at the back end

of the Upper Arm). View how much the spring is

tensioned via the tension indicator on top of the

Upper Arm.

Caution: To prevent damage to the tension indicator,

never adjust the counterbalance screw so that the red

indicator line moves past the “+” or “-” symbols.

•

If the monitor drifted down, hold the Upper Arm

in a horizontal position and use the 6mm Allen

Wrench to turn the adjustment screw so that the

tension indicator moves toward the “+” symbol

until the monitor remains in place when you let go.

• If the monitor drifted upward, turn the adjust-

ment screw so that the tension indicator moves

towards the “-” symbol until the monitor remains

in place when you let go.

C. Repeat with the second monitor arm.

Step 14

A. You can rotate the monitors to be in either portrait

or landscape orientation.

B. If the monitor does not hold in place when rotat-

ed, tighten the screws shown with a Phillips Head

screwdriver to keep the monitor in position.

C. Repeat with the second monitor.

If the arm drops,

If the arm rises,

If the arm drops,

If the arm rises,

If the arm drops,

If the arm rises,

If the arm drops,

If the arm rises,

Step 15

A. To adjust the front and back tilt of your monitor,

loosen the socket head screw on the side of the

Upper Arm where shown with the 4mm Allen

Wrench.

B. Once the monitor is at your preferred viewing an-

gle, re-tighten the screw with the Allen Wrench to

hold the monitor in place.

C. Repeat with the second monitor.

Step 16

A. To use the arm’s wire management, rst remove

the built-in wire covers.

B. There are two wire covers on each arm, one lo-

cated under the Upper Arm and the other under

the Lower Arm. They are removed by gripping the

sides of the cover and sliding it forward (toward

the monitor) to unlock and remove. Be careful not

to pull down on the cover, doing so may damage

the covers.

C. Run your cables up and under each section of the

monitor arm and replace the covers the opposite

way that they were removed.

Step 17

A. If you have selected the Clamp Method, you can

now snap the Wire Cover onto the back of the Up-

per Clamp on the Base as shown and insert your

monitor cables through the integrated clips.

B. In addition to holding the cables in place, there are

convenient holes to store the Allen Wrenches for

future adjustment needs.

C. The Wire Cover adds 0.75” to the back of the mon-

itor arm. If your desk is close to a wall or cubicle,

or has a privacy panel attached to the back of the

desktop, there may not be enough space available

to attach the Wire Cover.

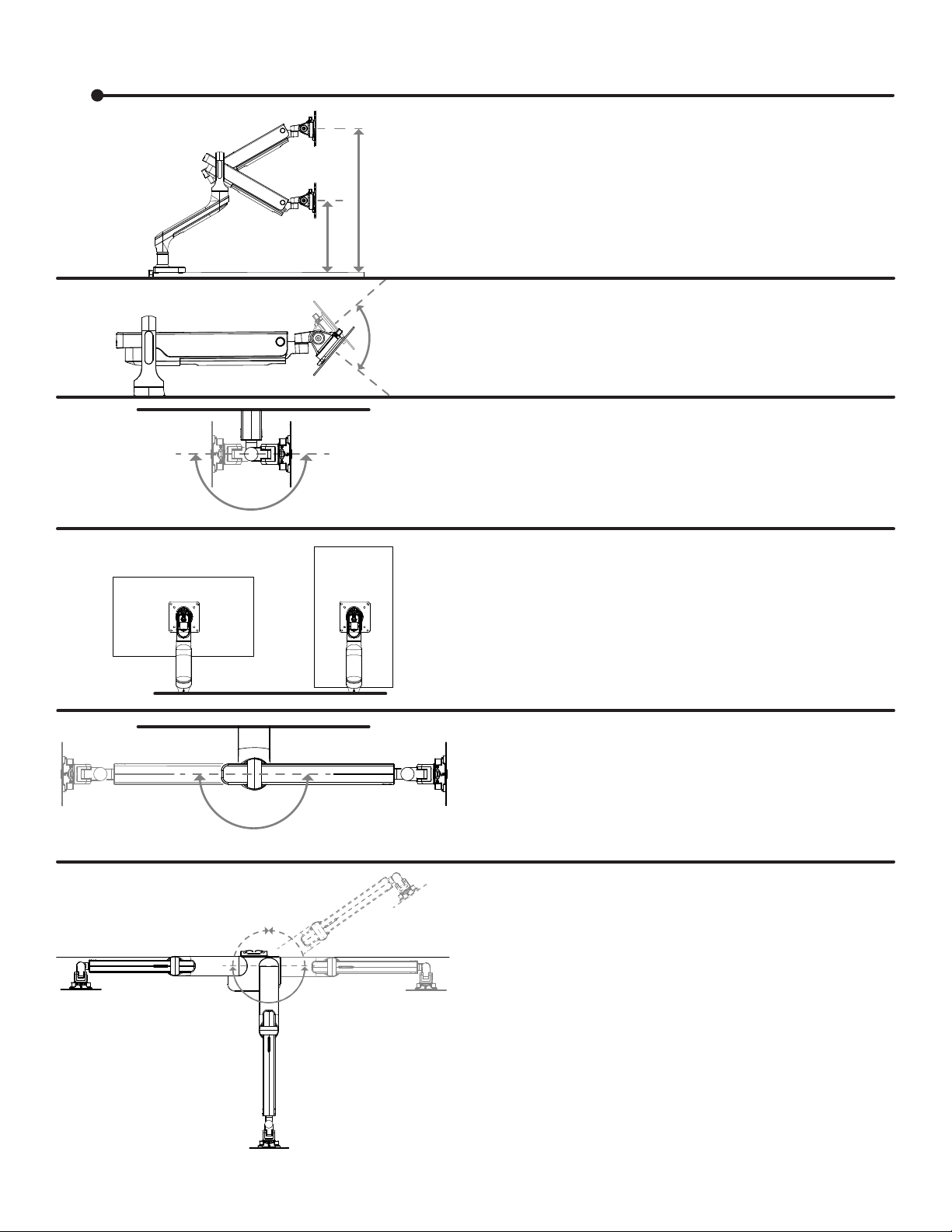

Monitor Tilt

Each Monitor can tilt at the VESA mount forward or

backward within a range of 80° (+/-40°).

Height Adjustment

The center of the VESA mount can go as high as 18.5”

and as low as 8.7’’ from the desktop.

8.7”

18.5”

Monitor Swivel

Each Monitor can swivel 180° (+/-90°) at the hinge at

the top of the Upper Arm.

Monitor Rotation

Each Monitor can rotate at the VESA mount 360°

allowing landscape or portrait viewing.

Upper Arm Swivel

Each Upper Arm can swivel 180° (+/-90°).

Lower Arm Swivel

Each Lower Arm can swivel a full 360°, depending on

monitor size, monitor orientation, and the location of

the other arm.

Each Lower Arm can also be set to allow only a range

of 180° (See Step 8 in the “Arm Assembly & Monitor

Mounting” section for adjustment details.)

We do not recommend swiveling the Monitors past

the back of the desk as this may cause instability.

Adjustment Information

Copyright Notice: These instructions are a component of this accessory. These instructions are part of the scope of delivery, even if the item is resold. These instructions are also available on the UPLIFT Desk website: uplift-

desk.com. Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.

CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may

result in damage or personal injury. Retain manual for future reference.

CAUTION: Max monitor weight is 19.8 lbs per arm. Using a monitor over 19.8 lbs could result in

instability causing possible injury.

CAUTION: Do not overtighten screws. Overtightening may cause damage to your equipment.

CAUTION: Leave enough slack in the cables to allow the monitor arms to move freely.

WARNING: Ensure the desktop is strong enough to support the combined weight of the moni-

tor arms and attached equipment.

WARNING: Pinch point: Keep ngers clear of Upper Arm’s hinge when installing and making

adjustments.

WARNING:

The arms will be in tension and will spring up quickly when attached equipment is re-

moved. Do not remove equipment unless the arms have rst been raised to their highest position.

CAUTION: Do not use on hollow core tables or desktops.

CAUTIONS & WARNINGS

AI-MON042-1.1

Table des matières

Autres manuels Uplift Desk Support et étagère

Uplift Desk

Uplift Desk MON020 Manuel utilisateur

Uplift Desk

Uplift Desk Zilker Dual Monitor Arm Manuel utilisateur

Uplift Desk

Uplift Desk STR017-SHT Manuel utilisateur

Uplift Desk

Uplift Desk MON034 Manuel utilisateur

Uplift Desk

Uplift Desk Crestview MON031 Manuel utilisateur

Uplift Desk

Uplift Desk ACC303 Manuel utilisateur

Uplift Desk

Uplift Desk STR045 Manuel utilisateur

Uplift Desk

Uplift Desk Zilker MON002 Manuel utilisateur

Uplift Desk

Uplift Desk ACC305 Manuel utilisateur

Uplift Desk

Uplift Desk ACC055 Manuel utilisateur

Uplift Desk

Uplift Desk ACC304 Manuel utilisateur

Uplift Desk

Uplift Desk MON056 Manuel utilisateur

Uplift Desk

Uplift Desk UPL021 Manuel utilisateur

Uplift Desk

Uplift Desk Crestview MON032 Manuel utilisateur

Uplift Desk

Uplift Desk MON041 Manuel utilisateur

Uplift Desk

Uplift Desk STR036 Manuel utilisateur

Uplift Desk

Uplift Desk ACC095 Manuel utilisateur

Uplift Desk

Uplift Desk MON052 Manuel utilisateur

Uplift Desk

Uplift Desk MON053 Manuel utilisateur

Uplift Desk

Uplift Desk Crestview MON033 Manuel utilisateur

Uplift Desk

Uplift Desk MON021 Manuel utilisateur

Uplift Desk

Uplift Desk MON054 Manuel utilisateur

Uplift Desk

Uplift Desk MON020 Manuel utilisateur

Uplift Desk

Uplift Desk ACC092 Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
