EP- 45F Paper Folder Operation Manual

Contents

1.Safety Instructions ··················································································································2

2. Accessories ·······························································································································3

3. Part Name···································································································································4

4. Designation and Functions of Operation Panel ···································································5

5. Preparation

5-1.Install the roller ·················································································································6

5-2. Install Table A and B, Preparation before start the machine ······································7

6. Indication of the Counter

6-1. Addition Counter·················································································································9

6-2. Subtraction Counter ··········································································································9

6-3. Input non-standard-size paper length···············································································9

7. How to use

7-1. Standard Folding of Standard-size Paper ·····································································10

7-2. Standard Folding of Non-Standard-size Paper ······························································11

8. Cross Folding···························································································································13

9. Adjustment ······························································································································14

10. Storage ································································································································18

11. Cancellation of storage ········································································································19

12.Check lamp······························································································································20

13.Control Speed··························································································································20

14. Change roller Rubber pad ···································································································21

EP- 45F Paper Folder Operation Manual

1.Safety Instructions

Danger：Stands for immediate danger threatening the life and health of persons and loss of

property. Disregarding these instructions may cause severe damage to health and even serious

injuries.

Caution：Stands for an endangering situation that may occur. Disregarding these instructions may

lead to slight injures or damage to property.

Danger

Make sure that the machine is electrically grounded. This prevents an electric shock when

there is a leak of electricity.

Use the machine at 110 –120VAC, 220 –240VAC with a frequency of 50Hz to 60Hz.

Do not place any object on this machine. A fire may start or electricity may leak if water or a

foreign object enters inside the machine.

Handle the power cord with care. A fire may start or an electric shock may be caused if

the cord is damaged, broken, or processed, if a heavy object is placed on the cord, or if the

cord is bent forcibly.

Do not remove the cover of this machine. Otherwise, an electric shock or injury may be

caused.

Do not remodel this machine. Otherwise, a fire may break out or an electric shock may be

caused.

If the machine is used when it is in an abnormal condition, such as generating heat,

emitting smoke, and giving out a strange smell, a fire may break out or an electric shock

may be caused. Turn off the power switch immediately and then pull the Power plug out of

the electric outlet. Afterward, consult with your dealer.

If thunder approaches, pull the power cord out of the electric outlet to prevent a fire or

breakdown caused by the falling of a thunderbolt.

Caution

Do not let hairs, a necktie, or necklace hang above the drive of the machine. Doing so may

cause an injury.

Do not put the machine on an unstable place such as a shaky stand and a slant floor.

Doing so may cause the machine to drop or fall down, causing an injury.

Do not put the machine in a moist or dusty place. Doing so may start a fire or cause an

electric shock.

Be sure to pull the power plug out of the electric outlet first when moving this machine.

Otherwise, the cord may be damaged, causing a fire or an electric shock.

Be sure to pull the power plug out of the electric outlet for safety purposes when this

machine is not used for consecutive holidays or for other reasons.

EP- 45F Paper Folder Operation Manual

345

2. Accessories

Make sure that the following accessories are included in the package after opening it.

Contact your dealer immediately if there are missing accessories.

Number Accessories Quantity

①Table A 1

②Table B 1

③Roller 2

④Operation Manual 1

⑤Power cord 1

EP- 45F Paper Folder Operation Manual

3. Part Name

Part Name Part Name

1 Roller cover 10 Control panel

2 Left side cover 11 Right side cover

3 Paper feed roller 12 Table B

4 Paper guide 13 Paper feed table lever

5 Feed table 14 Table A socket

6 Auxiliary feed table 15 Table B socket

7 Paper ejection roller 16 Power switch

8 Paper stacking table 17 Inlet

9 Table A

EP- 45F Paper Folder Operation Manual

SPEED

CLEAR/RESET

SELECT

STORE

TYPE

1001000

RUN

START/STOP

JAM

TEST

NONE

8 9

12 13

10 14

4. Designation and Functions of Control Panel

No. Designation/Indication Function

1 Speed adjustment key Used for adjusting the speed.

2 Store key Select Memory 1/2 stored folding position and the folding position

after adjustment is stored.

3 Memory 1/2 lamp Two special folding types are stored.

4 Select key Used for selecting paper length, the feed position of table A and B,

indicating of the counter when the lights are off.

5 Paper length input mode lamp It is on when paper length is input; If non-standard-size paper,

press CLEAR/RESET, input correct paper length.

6 Table A stopper move mode lamp It lights when the position of stopper of Table A can be adjusted.

7 Table B stopper move mode lamp It lights when the position of stopper of Table B can be adjusted.

8 +/–key Used for adjusting the position of the stopper of Table A and B,

9 Fold type key Six folding types & six types of paper can be selected and stored.

10 Numerical key1 Used for inputting the reduced number for subtraction counting and

the length of non- standard-size paper

11 Counter Shows the number of sheets, the position of the stopper pin of

Table A and B, and paper size.

12 Clear/Reset key Clears counter indication and resets error. When the Paper length

lamp is on, press this key, can input non-standard-size paper

length

13 Test key Test fold one sheet (stopper of Table A and B move to the position)

14 Start/Stop key Starts and stops the machine

15 Statues lamp It lights when paper stock runs short, or indicates the location when

paper feed trouble occurs.

EP- 45F Paper Folder Operation Manual

Roller-A

Roller-B

Roller-A

Roller-B

Right

Left Right

Bearing B

Left

Bearing

5. Preparation

5-1. Install the roller

EP- 45F Paper Folder Operation Manual

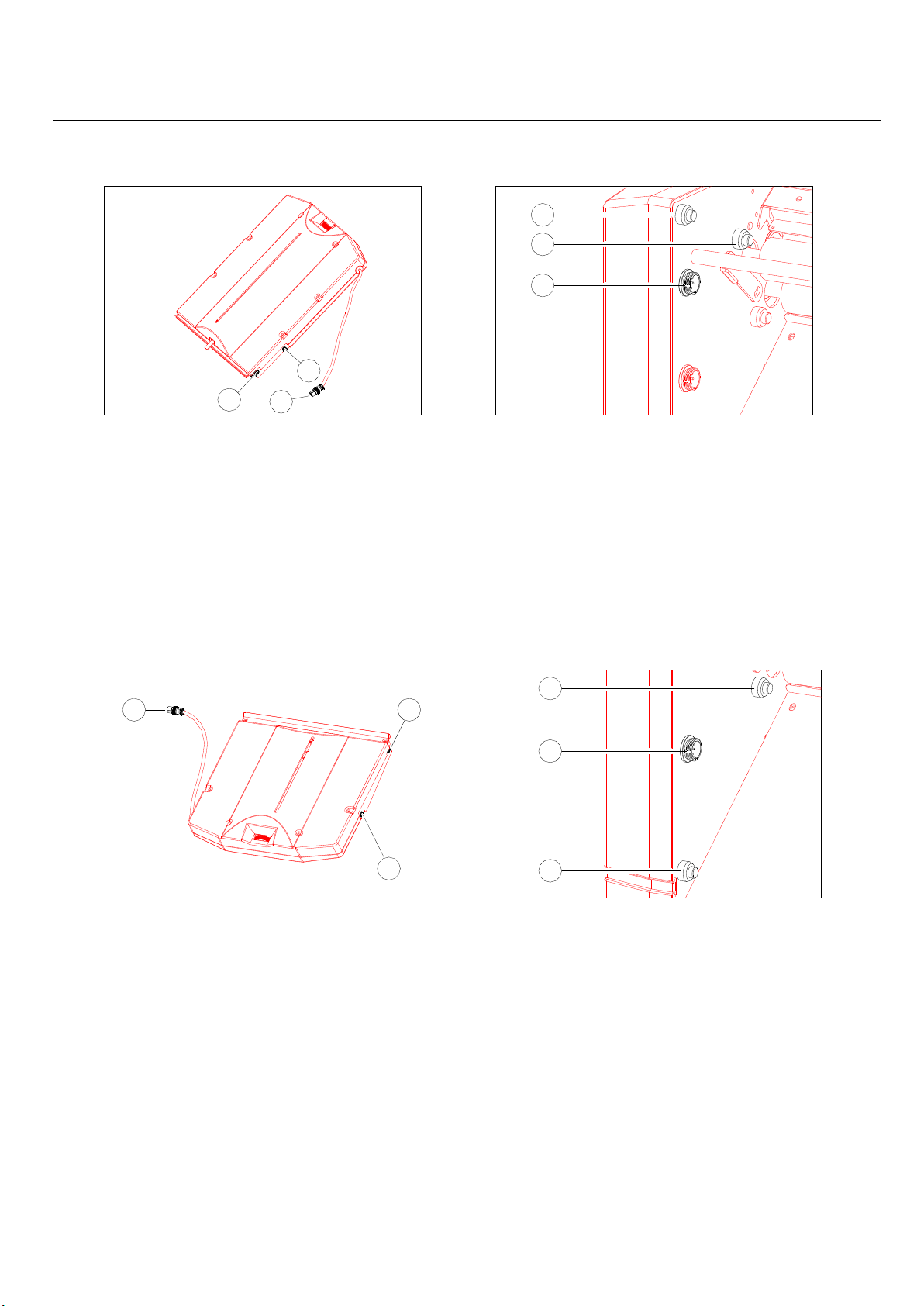

5-2.Install Table A and B, Preparation before start the machine

5-2-3. Position of Table B’s notch and 5-2-4. Insert the front notched part of

connector Table 2 into the stud (4) of the machine

and drop its rear notched part on the

connector (6).

5-2-2. Insert the front notched part of

Table A into the stud (1) of the

machine and drop its rear notched part

on the stud (2). Insert the plug into the

connector (3)

Caution:

The connector has its direction.

Insertion by force may cause trouble.

5-2-1. Position of Table A’s notch and

connector

EP- 45F Paper Folder Operation Manual

5-2-5. Pulling the paper stacking table 5-2-6. Insert the power cord into the inlet

out and set it while lifting the auxiliary table.

5-2-7.Caution:

Be sure to undo before use.

Insert the power cord into the outlet.

When the power switch is on, the stoppers

of Table A and B move to the origin.

EP- 45F Paper Folder Operation Manual

PAPER LENGTH INPUT MODE LAMP

6. Indication of the Counter

6-1. Addition Counter

6-2. Subtraction Counter

6-3.Input non-standard-size paper length

When the three lamps are off, the number

indicates the counter. Press start/stop key

after choosing the fold type, it counts

automatically the folded paper.

Press the Clear/Reset key and reset the

number at zero (0)

When the three lamps are off, the number

indicates the counter. Input the desired

number using the Numerical keys.(40 is

input in this case)

Subtraction Mode Lamp will light. Press

start/stop key after choosing the fold type.

The number on the counter decrease by one

each time a sheet of paper is folded. When

the number is finished, the counter will

return to the desired number again.

Press the Select key, Paper length input

mode lamp is on, press Clear/Reset key.

Input the paper length using the Numerical

keys (300mm is input in this case, micro

meter can be input after decimal point).

Press store key, and store under 1 or 2

memory indication.
