UT361/UT362 OPERATING MANUAL

Overview

Model UT361 and UT362 are an anemoscopes with high accurate sensitive resistance

(NTC) as testing point. For fan axis, it uses a high durable ruby shaft in order to

provide the accurate and stable measurement. It also comes with 8 digits chip to

conduct the digital mode and double display (VEL + Temperature, Flow + Area)

Model UT361 and UT362 come with the real time wind speed measurement, including

m/s, km/h, ft/min, MPH, KNOT, CFM, CMM as measuring units. In addition, it can

provide maximum value, minimum value, average value record, Centigrade temperature

and Fahrenheit temperature.

For data storage record, the maximum is 2,044 records capability. In sync, it can

provide auto switch down and continuity use functions.

Model UT362 can work with the computer to conduct the real time wind speed, data

transmitting storage and analysis as well as printing purpose.

This Operating Manual covers information on safety and cautions. Please read the

relevant information carefully and observe all the Warnings and Notes strictly.

UT361/UT362 OPERATING MANUAL

Item

Description

English Operating Manual

USB Interface Cable (UT362) only

Software (UT362) only

9 V Battery Software

Qty

1 piece

Warning

To avoid electric shock or personal injury, read the "Rules for Safe Operation"

carefully before using the Anemoscope.

Unpacking Inspection

Open the package case and take out the Meter. Check the following items carefully

to see any missing or damaged part:

UT361/UT362 OPERATING MANUAL

In the event you find any missing or damage, please contact your dealer immediately.

In this manual, a Warning identifies conditions and actions that pose hazards to the

user, or may damage the anemoscopes or the equipment under test.

A Note identifies the information that user should pay attention to.

Rules For Safety Operation

Warning

Before using the anemoscopes inspect the case,do not use the anemoscopes if it is

damaged or the case (or part of the case) is removed. Look for cracks or missing

plastic

Pay attentions to the insulation around the connections.

UT361/UT362 OPERATING MANUAL

To avoid possible electric shock or personal injury and to avoid possible damage to

the anemoscopes or to the equipment under test, adhere to the following rules

Do not use your hand to touch the fan and / or the measurement of wind count

and temperature portion

Replace the battery as soon as the battery indicator appears

If anemoscopes is in abnormal function stage, please stop to use it and sent it

your nearby service center for the further investigation.

Before using the anemoscopes inspects the case, do not use the anemoscopes

if it is damaged or the case (or part of the case) is removed. Look for cracks or

missing plastic. Pay attentions to the insulation around the connections.

Do not use the anemoscopes in an environment of explosive, humidity, inflammable.

The performance of the anemoscopes may deteriorate after dampened.

UT361/UT362 OPERATING MANUAL

Use the specific authorized replacement part if you need to repair the anemoscopes

Do not use the anemoscopes if the opening the housing cover

Note the battery " + " and " - "pole when battery insert.

Followings are the condition which cause anemoscopes damages. Please carefully

use it to avoid any unit damage

Select the appropriate wind speed before use, it may avoid to load wind speed

(0 ~ 30 m/s), under the unknown scenarios.

Select the temperature meaning in 0 to 40 in order to avoid any fan damage

caused by the high temperature.

Do not try to recharge the battery.

UT361/UT362 OPERATING MANUAL

The Anemoscope Structure (see figure 1)

Fan

Wind Speed Indicator

Handle

Secondary Display

Primary Display

Power Button

Operational Button

Main Unit

Figure 1 7

UT361/UT362 OPERATING MANUAL

Display Symbols (see figure 2)

Figure 2

UT361/UT362 OPERATING MANUAL

Functional Signs

Below table indicated for information about the functional sign operations.

Number

Sign

MAX

MIN

AVE

READ

REC NO.

USB

VEL

Meaning

Display of Maximum Reading

Display of Minimum Reading

Data Hold is on

Display of Average Reading

Display of Data Storage Measurement Reading

Display of Data Storage

USB is on

Wind Speed Measurement

The battery is Low

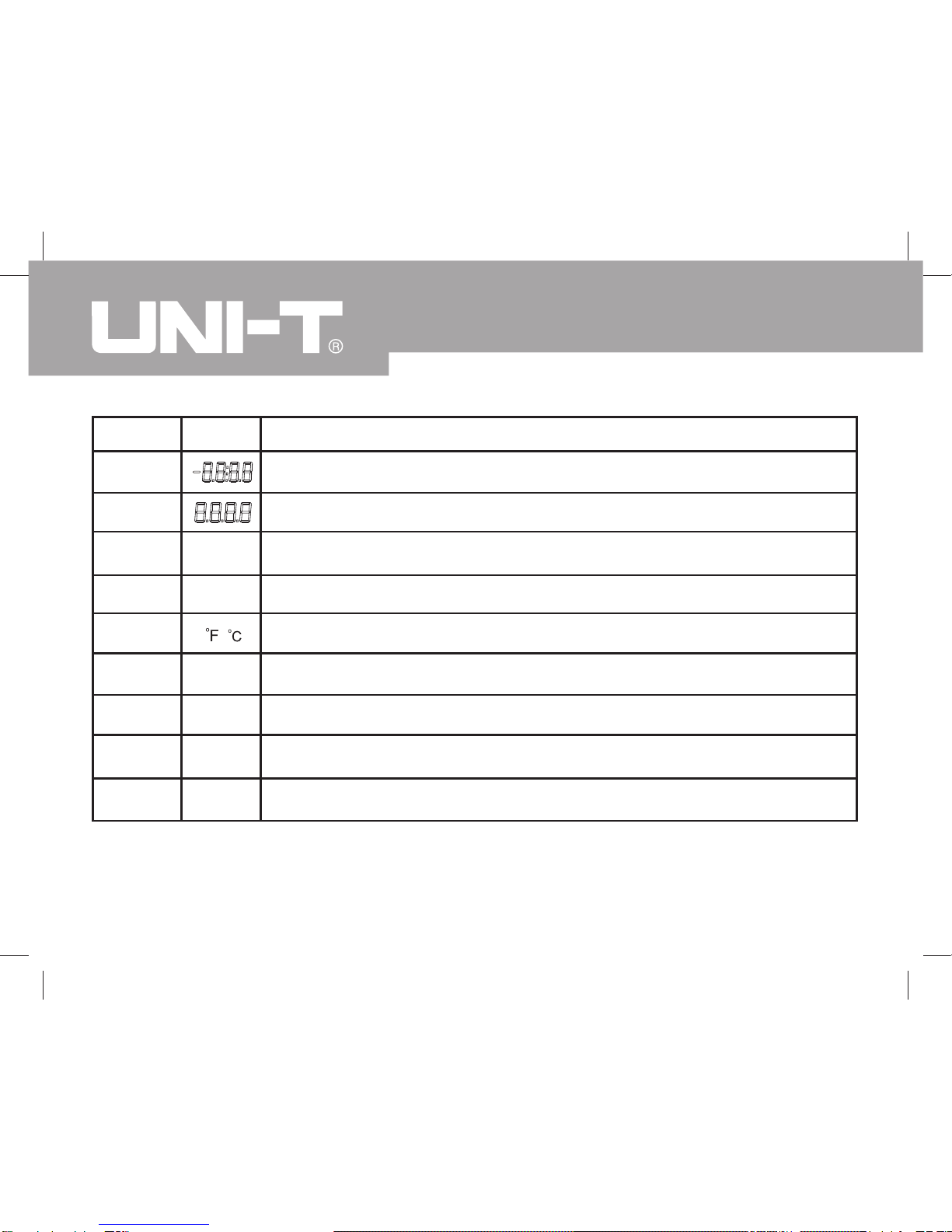

UT361/UT362 OPERATING MANUAL

Number

Meaning

Secondary Data Display

Primary Data Display

Wind Speed Unit - Foot Per Minute

Wind Speed Unit - Meter Per Second

Fahrenheit Temperature Signal / Centigrade Temperature Signal

Cubic Feet Per Second

Cubic Meter Per Minute

Knots Per Hour

Miles Per Hour

Sign

ft/min

m/s

CFM

CMM

KNOTS

MPH
