Unidrive M70 Series Instructions de montage
0478-0103-04
1 Safety information
2 Introduction
This document covers through-panel mounting instructions for Unidrive
M600 / M70X, F300, H300, E200 & E300 Size 5 drives. The standard
drive is rated to IP20 pollution degree 2 (dry, non-conductive
contamination only, NEMA 1), however it is possible to configure the
device to achieve IP65 rating (NEMA 12). This is done by sealing the
heat sink vents at the rear of the heatsink by installing the high IP inserts
as illustrated in Figure 3-1. Some current derating is required, and
reference should be made to the drive User Guide for current derating
information.
The following items are supplied in the kit bag:
Table 2-1 Contents of the bag (CT Part Number: 3470-0067)
The following items are included in the kit boxes 3470-0071 and
3470-0072, both of which are supplied with the drive.
Table 2-2 Additional items required
3 Instructions
3.1 Installing the high IP inserts
Figure 3-1 Installing the high IP inserts
1. To install the high IP inserts, first unclip the baffle plate using a flat
bladed screwdriver inserted under the slot as shown in Figure 3-1
(1).
2. Pull the hinged baffle plate down to expose the ventilation holes.
Install the two high IP inserts into the ventilation holes in the heatsink
(2). Ensure the high IP inserts are fully installed by pressing them
firmly into place.
3. Close the hinged baffle plate by rotating it upwards until the clips on
the baffle plate are secure within the slots in the drive chassis as
shown in (3).
Unidrive M600-M70X, F300, H300, E200 & E300
Size 5 Through-panel Mounting Installation Sheet
Follow the instructions
The mechanical and electrical installation instructions must
be adhered to. Any questions or doubt should be referred to
the supplier of the equipment. It is the responsibility of the
owner or user to ensure that the installation of the drive and
any external option unit, and the way in which they are
operated and maintained, comply with the requirements of
the Health and Safety at Work Act in the United Kingdom or
applicable legislation and regulations and codes of practice in
the country in which the equipment is used.
Competence of the installer
The drive must be installed by qualified personnel who are
familiar with the requirements for safety and EMC. The
installer is responsible for ensuring that the end product or
system complies with all the relevant laws in the country
where it is to be used.
Description Image Qty
Through panel mounting gasket x 1
Through panel securing brackets x 2
High IP inserts x 2
Through panel mounting
installation sheet x 1
Description Image Qty
Frame 5 mounting brackets x 2
WARNING
WARNING
1
2
3
0478-0103-04
3.2 Preparing the backplate

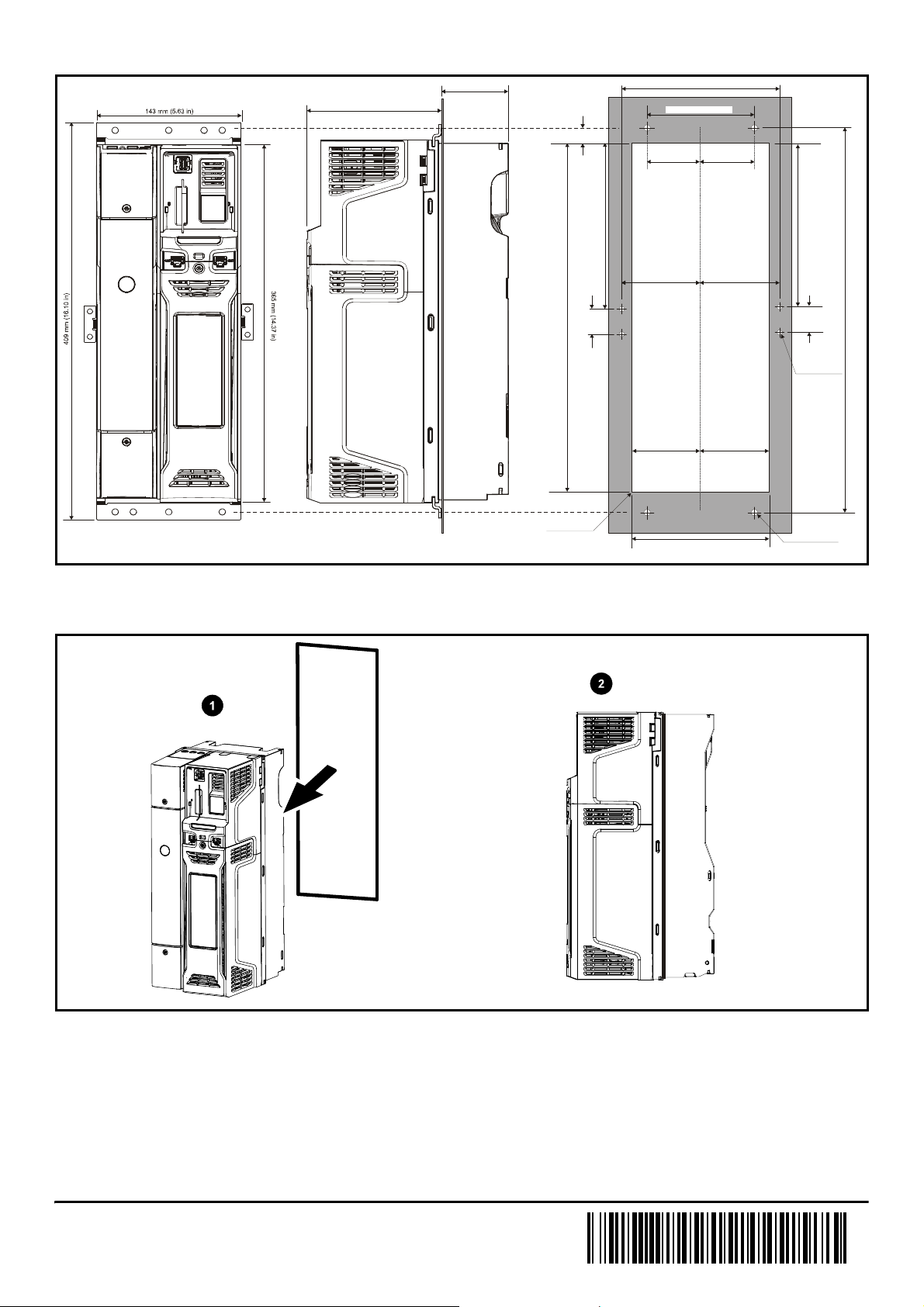

Figure 3-2 Backplate mounting detail
Prepare the backplate in accordance with the mounting dimensions shown in Figure 3-2.
3.3 Preparing for installation
Figure 3-3 Installing the gasket
1. Install the main gasket with the kit provided as shown (1).
2. The image on the right shows the assembled drive and gasket (2).
106 mm (4.17 in)
156.6 mm (6.16 in)
3
5
9
m
m
(
1
4
.
1
3
i
n
)
1
6
9
m
m
(
6
.
6
5
i
n
)
26 mm
(1.02 in)
167 mm (6.58 in)
26 mm
(1.02 in)
393 mm (15.47 in)
136 mm (5.35 in)
6.5 mm (0.3 in)
(x 4 holes)
5.2mm (0.20 in)
(x 4 holes)
135 mm (5.32 in)
67 mm (2.64 in)
17 mm
(0.66 in)
53 mm (2.1 in) 53 mm (2.1 in)
78.3 mm (3.08 in)
78.3 mm (3.08 in)
68 mm (2.67 in) 68 mm (2.67 in)
Radius 1.0 mm
(0.04 in)
0478-0103-04
3.4 Through hole mounting installation
Figure 3-4 Position the drive through the backplate
Insert the drive through the backplate.
Figure 3-5 Inserting the drive through the backplate and securing
to the backplate
Mount the upper and lower brackets using suitable M6 fasteners.
Figure 3-6 Securing the drive mounting brackets
Ensure the M6 fasteners are fully secured at the top and bottom of the
mounting plate before proceeding further.
Figure 3-7 Installing the through panel mounting brackets
Install the through panel securing brackets (x2) into the drive chassis,
and secure them to the backplate using suitable M5 fasteners. Ensure
that the gasket does not become trapped under the mounting brackets
before fully tightening the M5 fasteners.
