Umarex AirflowTest-Master Reader Manuel utilisateur

User manual:

AirflowTest-Master Reader

ManagementsoftwareforAirflowTest-Master wind

speedandairflowmeter

Table of contents

Part I Installation 2

................................................................................................................................... 21 Basic installation procedure

......................................................................................................................................................... 2StartinstallmenufromDVD

......................................................................................................................................................... 2Startthedriverandsoftwareinstallation

......................................................................................................................................................... 3Connect the instrument to the PC

......................................................................................................................................................... 3Startthe application and select thedesired COM port

................................................................................................................................... 32 Installation Driver CP211x USB-Adapter

......................................................................................................................................................... 3InstallationwithDriverInstaller

......................................................................................................................................................... 3Updatefrom olderdriver

......................................................................................................................................................... 4Plug in the USB-adapter

......................................................................................................................................................... 4InstallfromWindowshardwaredialog

......................................................................................................................................................... 5CheckCOMportaftersuccessfulinstallation

................................................................................................................................... 63 Installation of application software (SetupXXX.exe)

Part II First run 8

................................................................................................................................... 81 Registration procedure

......................................................................................................................................................... 8EnternameandvalidE-Mailadress

Part III Basic application concepts 10

................................................................................................................................... 101 Overview

................................................................................................................................... 102 Connecting the instrument

................................................................................................................................... 113 Data views

......................................................................................................................................................... 11Lifeview

......................................................................................................................................................... 12Tableview

.................................................................................................................................................. 12Navigator

......................................................................................................................................................... 13Chartview

................................................................................................................................... 134 Load and save files

......................................................................................................................................................... 13Filemanipulation

......................................................................................................................................................... 14Exportdocument

................................................................................................................................... 155 Filter data

......................................................................................................................................................... 15Open and edit a data filter

................................................................................................................................... 166 Print table and chart reports

......................................................................................................................................................... 16Overview

......................................................................................................................................................... 17Reportoptions

Index 19

ITable of contentsAirflowTest-Master Reader manual

AirflowTest-Master Reader manual Basic installation procedure

1Installation

1.1 Basic installation procedure

The installation DVD contains all necessary files for installation:

Special drivers setup (if necessary)

Applicationsetup

Softwaremanual

1.1.1 Start install menu from DVD

1.) Insert setup DVD and start the "Install.exe" file with Windows explorer

1.1.2 Start the driver and software installation

2.) Install the hardware drivers for USB devices

BEFORE

you plug the connector to the

3.) Install the application software

4.) Open the software user manual and study the instructions carefully and/or printout

AirflowTest-Master Reader manual Basic installation procedure

1.1.3 Connect the instrument to the PC

Version with direct RS232-cable

Version with Laserliner USB-adapter cable (082.071):

1.1.4 Start the application and select the desired COM port

6.) After correct driver installation and connected and powered instrument,

the new COM port should appear in the COM ports list.

1.2 Installation Driver CP211x USB-Adapter

Only the Laserliner USB-adapter 082.071 needs a driver installation.

After starting the driver installation, the driver setup dialog is shown.

1.2.1 Installation with Driver Installer

2a.) Press "

Install

" button to proceed with the driver installation process

1.2.2 Update from older driver

If you received the following message you have to uninstall the old driver version first.

Please follow the instructions of the uninstall procedure in the control panel.

AirflowTest-Master Reader manual Installation Driver CP211x USB-Adapter

1.2.3 Plug in the USB-adapter

2b.) Plug in the USB-Adapter and power on the instrument.

1.2.4 Install from Windows hardware dialog

On some PC you need to proceed the hardware installation dialog after plug in the USB

Adapter.

2d.) Select the path of the driver (on DVD \Driver subfolder), and proceed.

AirflowTest-Master Reader manual Installation Driver CP211x USB-Adapter

2e.) Confirm and proceed the request for security.

1.2.5 Check COM port after successful installation

2f.) After install the new COM port must be available in the System\Hardware dialog.

AirflowTest-Master Reader manual Installation of application software (SetupXXX.exe)

1.3 Installation of application software (SetupXXX.exe)

The SetupXXX.exe file includes all necessary application files, also a copy of the

driver files and the manual.

Read the license agreement.

Short product information

Program installation folder

Programcomponents

Check if a desktop icon is desired

Installation summary report

Installing the selected components ...

AirflowTest-Master Reader manual Installation of application software (SetupXXX.exe)

Launch the driver and application before exit

AirflowTest-Master Reader manual

2First run

After successful installation, the application configures at first run.

You can start the program either from the Start-menu of the OS, or from the desktop-icon is you

selected to create one on the user desktop.

2.1 Registration procedure

After first run the registration dialog appears.

The registration can be edited with user data and a key can be requested to receive

important notifications on the application or updates.

If you don't want to register you can skip this dialog by pressing the "Continue" button.

! The registration dialog needs a valid internet connection, if this is not available you can also

send the registration data with the Install Code (top left) by standard mail.

2.1.1 Enter name and valid E-Mail adress

Enter a valid E-Mail adress to receive the registration key.

Then press "Request key", to send the registration data to our server.

AirflowTest-Master Reader manual Registration procedure

This dialog notes that the registration was successful.

2.1.2 Receive a registration E-Mail from Laserliner server

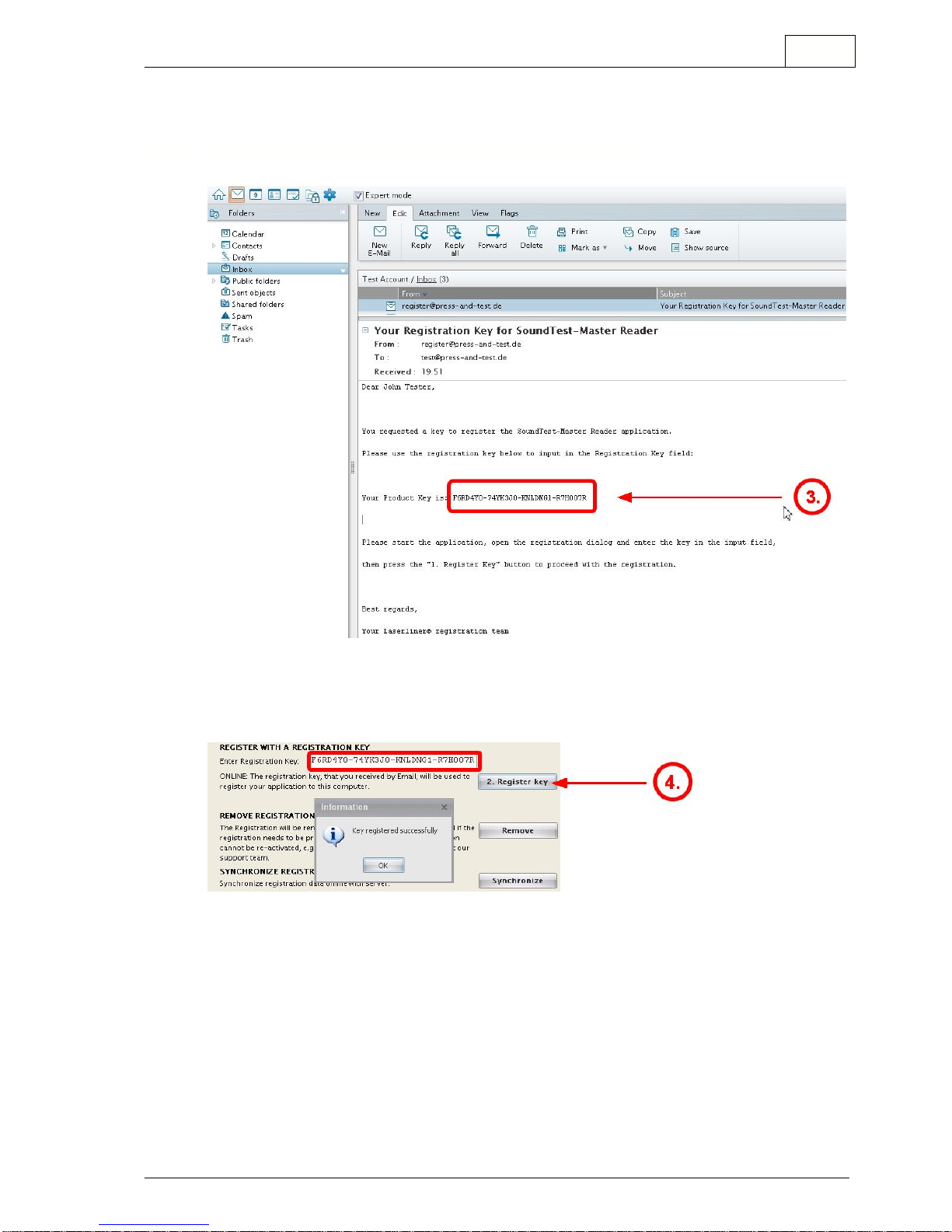

Copy and paste the "Registration key" into the Registration dialog, then press Register.
