Ultra Start 660 Series Manuel utilisateur

www.ultrastarters.com

FCC/ID Notice

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

CAUTION: Changes or modifications not expressly approved by the part responsible for compliance

void the user’s authority to operate this devise.

660 Series Advanced 2-Way Remote

Vehicle Security System

OWNER’S MANUAL REMOTE VEHICLE SECURITY

PAGE 2

Table Of Contents

Table Of Contents Page 2

Alarm Functions Page 3

Arm System

Disarm System

Priority Unlock*

Silent Arm/Disarm

Car Finder

Panic

Starter Disable*

Passive Arming*

Ignition Auto Locks*

Trunk Release (Ch 3)*

Auxiliary #1 (Ch 4)*

Auxiliary #2 (Ch 5)*

Setting The Time

Page 6-7

Icon Descriptions

Programmable Icons

Page 9

Additional LED Flashes

Entering Car Jack

Emergency Override

Product Warranty Page 12

Alarm Functions Page 4

Alarm Functions Page 5

LCD Display

Shock Sensor Page 8

Shock Sensor Programming/Adjustments\

Temporary Shock Sensor Bypass

Diagnostics

Diagnostics Chart

rvice Mode Page 10

Activating & Deactivating Service Mode

Car Jack Page 11

*(optional features)

REMOTE VEHICLE SECURITY OWNER’S MANUAL

PAGE 3

Disarm System

1.Press and release the UNLOCK button on the remote transmitter.

2.The park lights will flash and the siren will chirp two times.*

3.The doors will unlock (optional).

4.The LEDs on the antenna will stop flashing.

* If the system was triggered, the system will respond with two park

light flashes and three siren chirps. See Page 9 for Diagnostics.

NOTE: If the system is triggered, example: opening the door before

disarming the system.

The first press and release of UNLOCK disables the siren

ONLY! A second press and release disarms the system.

Priority Unlock Feature (optional)

1. Press and release the UNLOCK button on the remote transmitter.

The park lights will flash, the siren will chirp two times and the

drivers door will unlock.

2. Press and release the UNLOCK button again and the remaining

doors will unlock.

NOTE: The UNLOCK must be pressed a second time within 3sec.

Arm System

1. Press and release the LOCK button on the remote transmitter.

2. The park lights will flash and the siren will chirp one time.

3. The doors will lock (optional).

4. The LEDs on the antenna will start flashing within five seconds.

Alarm Functions

Silent Arm and Disarm

Press and release the LOCK and UNLOCK buttons simultaneously.

If the system was armed this will disarm the system. The park lights

will flash twice without siren chirps as confirmation.

OWNER’S MANUAL REMOTE VEHICLE SECURITY

PAGE 4

Car Finder Mode

Car Finder is a feature that can be used to find your vehicle in a

crowded parking lot.

1. Press and hold the #button for three seconds.

2. The park lights will flash and the siren will chirp five times to draw

attention to the location of the vehicle.

3. The remote will beep and display the systems current status.

Panic Mode

Activating Panic Mode

Press and hold the LOCK button for three seconds. The park lights

will begin to flash and the siren will activate.

Disabling Panic Mode

Press and release the LOCK or UNLOCK button to disable Panic.

NOTE: Panic mode will stay activated for sixty seconds.

Alarm Functions

Passive Arming (optional)

The system will automatically arm and lock (optional) the doors 30

seconds after the last door is closed. It may also be programmed to

arm and lock (optional) the doors if the UNLOCK is pressed and a

door is not opened.

Ignition

On/Off

Starter Disable (optional)

The system will interrupt the vehicles starter when the system is

armed and allow the vehicle to start when the system is disarmed.

Ignition Auto Locks (optional)

1) The system will lock the doors 2 seconds after the ignition key is

turned to the “on” position.

2) The system will unlock the doors when the ignition key is turned to

the “off” position.

REMOTE VEHICLE SECURITY OWNER’S MANUAL

PAGE 5

1. Press and hold the button.

2. The park lights will flash and the siren will chirp 1 time.

3. The auxiliary output will stay activated until the button is released.

NOTE: Dealer programmable constant, latched or momentary output.

Auxiliary Output Ch 4 (optional)

Auxiliary Output Ch 5 (optional)

1. Press and hold the # button.

2. The park lights will flash and the siren will chirp 1 time.

3. The auxiliary output will stay activated until the button is released.

NOTE: Car Finder Mode no longer available with this option.

Trunk Release Ch 3 (optional)

Press and hold the UNLOCK button. The system will disarm, unlock

the doors and within six seconds the trunk release will activate. This

will be confirmed by one park light flash and one siren chirp.

Note: The trunk release output will not activate when the ignition key

is in the “On” position.

Enter

Set

Setting The Time

1) Press and hold the LOCK and #buttons until the minute

portion of the clock begins to flash.

a) To set the MINUTES or HOURS, press the button to

increase and the UNLOCK button to decrease.

b) To change from MINUTES to HOURS press and release

the LOCK button.

2) Press and release the #button to exit.

Note: To set the AM/ PM icon, continue changing the hour until

the appropriate icon is displayed. The remote will exit setting

the time if there is no activity for 20 seconds.

Alarm Functions

OWNER’S MANUAL REMOTE VEHICLE SECURITY

PAGE 6

SIREN ICON- This icon indicates that the alarm has been triggered.

The remote will start to beep and the siren icon will come on solid at

the same time as the icon for the violated zone.

ANTENNA ICON-This icon will be visible or show a series of

lines next to the icon whenever the remote is within transmitting

range of the vehicle. The icon will disappear when out of

transmitting range.

STATUS ICONS

These icons display the current status of the system. The icons may not all be

present on the screen at all times, certain icons will only turn on when a feature

is activated.

STATUS CHECK MODE

This feature is used to check the status of the system. To check the status

press and release # Button on the remote transmitter. The remote will display

the icons of the active features on the LCD screen.

TRUNK ICON- This icon will be displayed on the LCD screen when

the trunk release is activated. The icon will stay displayed until the

system is armed or if the status button is pressed.

BATTERY ICON- This icon is always present to indicate the

current battery level of the remote transmitter. The black area of the

icon will disappear as the battery level decreases.

RUN TIMER- This icon is active at all times. The bar graph will scan

back and fourth (every 10 seconds), to check the status of the

system. The speed will increase when the alarm is triggered.

LCD DISPLAY

REMOTE VEHICLE SECURITY OWNER’S MANUAL

PAGE 7

SERVICE MODE ICON- This icon indicates the status of the

Service Mode feature. If this icon is present, the system is in Service

Mode.

NOTE: In Service Mode, keyless entry and optional features will

still operate.

SHOCK SENSOR ICON* - This icon indicates the status of the

shock sensor. If the icon is present on the LCD screen the shock

sensor is active.

SIREN ICON(Chirp Delete)* - This icon indicates the status of

the chirp delete feature. If the icon is on, the siren will work normally.

If the icon is not displayed the chirp delete feature is on and the siren

will not chirp.

NOTE: Chirp delete disables the Lock and Unlock chirps Only.

LOCK ICON- This icon indicates the armed status of the alarm.

If the LOCK icons is present the alarm is armed.

UNLOCK ICON - This icon indicates the disarmed status of the

alarm. If the UNLOCK icons is present the alarm is disarmed.

NOTE: This icon will flash and the Siren will be solid along with

an audible indication to notify that the Door, Hood or

“Ignition On” input of the alarm have been triggered.

SHOCK SENSOR ICON - This icon indicates the Shock Sensor

has been triggered. This icon will flash and the siren icon will be solid

along with and audible indication to notify that the shock sensor on

the alarm has been triggered.

*Dealer Programable

Programable Icons-The six squares found at the bottom of the

display are user/dealer programmable.

LCD DISPLAY

OWNER’S MANUAL REMOTE VEHICLE SECURITY

PAGE 8

Method 1

Press and hold the LOCK and UNLOCK buttons for three

seconds. The park lights will flash and the siren will three

times.

While the park lights are on, strike the vehicle with the amount of

force wanted to trigger the alarm. Strike the vehicle with the palm of

the hand the same amount of force three times, the siren will chirp

each time the system detects impact.

NOTE: Be careful not to impact the vehicle in a area that may cause

damage. The most common location for testing and setting the shock

sensor is the vehicles A-pillar. The A-Pillar is the metal support that

runs from the roof of the vehicle to the hood area.

Adjusting the shock sensor:

Shock Sensor Programming/ Adjustment

Method 1

Method 2

Exit

To enter shock sensor programming:

To exit shock sensor programming:

Press and release LOCK or UNLOCK.

Method 2

Press and release the LOCK button five times (once every

second). The park lights will flash and the siren will three

times.

Temporary Shock Sensor Bypass.

Within three seconds press and release the LOCK button and then

press and release the button. The system will chirp once when the

LOCK button is pressed and once when the button is pressed. The

shock sensor will be disabled until the system is disarmed and the

rearmed again.

REMOTE VEHICLE SECURITY OWNER’S MANUAL

PAGE 9

Diagnostics

While the system is disarmed and the ignition is in the off position, the

LEDs will activate from the following triggers:

1) If the door is opened the LEDs will stay on until the door is closed.

2) If the hood is opened the LEDs will stay on until the hood is closed.

3) If the shock sensor detects vibration the LEDs will turn on momentarily.

4) If the auxiliary sensor input is activated the LEDs will activate momentary.

If the alarm system is triggered while armed, the system will retain in memory

the cause of the trigger. The diagnostics can then be used to determine what

the cause of the trigger was. When disarming the alarm, the siren/horn will

chirp 3 times instead of the usual 2 times to indicate the alarm had been

triggered. The system’s LED will also flash in pulses to indicate which input

triggered the alarm.

Diagnostic Chart

Additional LED Flashes

Siren LED Flashes Diagnostic

Three Chirps Two Flashes Shock Sensor Input Triggered

Three Chirps Three Flashes Door/Hood Pin Input Triggered

Three Chirps Four Flashes Ignition Input Triggered

None Off System Disarmed

None On Solid Valet / Service Mode

One Chirp Single Flashes System Armed

NOTE: The LED diagnostics will be reset when the Ignition key is

turned to the “ON” position.

Ignition

“On”

OWNER’S MANUAL REMOTE VEHICLE SECURITY

PAGE 10

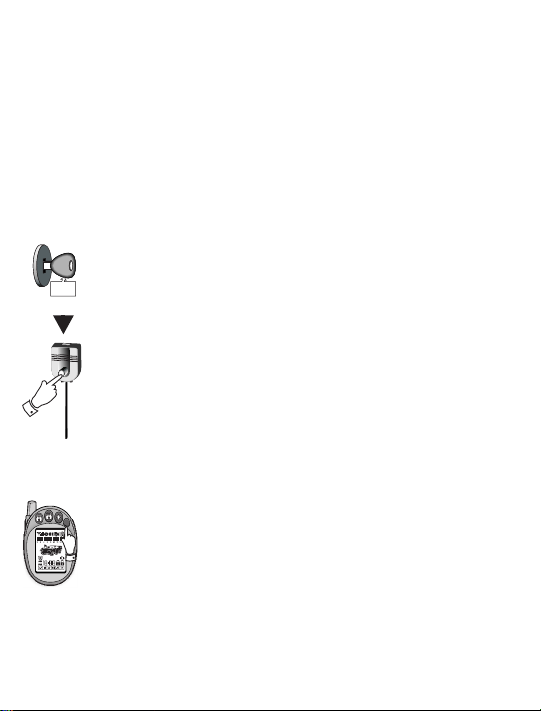

Emergency Service Mode - (Valet Mode)

Method 1

To Activate Service Mode:

Turn the ignition key to the “On” position then press and hold the

Program Button located on the antenna for 5 seconds. The system

will chirp the siren 5 times as confirmation.

To Deactivate Service Mode:

Turn the ignition key to the “On” position then press and hold the

Program Button located on the antenna for 5seconds. The system

will chirp the siren 2 times as confirmation.

Ignition

“On”

Method 2

To Activate Service Mode:

Press and release the # Button and then press and hold it until the

system chirps the siren 5 times as confirmation.

To Deactivate Service Mode:

Press and Release the #button and then press and hold it until the

system chirps the siren 2 times as confirmation.

NOTE: The LEDs will be “ON” solid and the “?” icon on the remote

transmitter will appear when the system is in Service Mode.

This feature will disable the system except for lock, unlock and trunk

functions. This mode is used if a remote is misplaced, damaged or if

the system malfunctions. If the system was installed with a starter

disable this feature will disable the starter disable relay and allow the

vehicle to start.

Activate/ Deactivate Service Mode (Valet Mode)

5 sec.

Autres manuels pour 660 Series

Table des matières

Autres manuels Ultra Start Démarreur à distance

Ultra Start

Ultra Start 4500 Manuel utilisateur

Ultra Start

Ultra Start 1500 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1150 Series Manuel utilisateur

Ultra Start

Ultra Start 32 SERIES Manuel utilisateur

Ultra Start

Ultra Start 25XX Series Manuel utilisateur

Ultra Start

Ultra Start 1250 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1175 Series Manuel utilisateur

Ultra Start

Ultra Start 1172 SERIES Manuel utilisateur

Ultra Start

Ultra Start 80 Series Manuel utilisateur

Ultra Start

Ultra Start 2000 Series Manuel utilisateur

Ultra Start

Ultra Start 72 SERIES 1272 Manuel utilisateur

Ultra Start

Ultra Start RFK4BAM Manuel utilisateur

Ultra Start

Ultra Start 32 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1250 SERIES Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

Ultra Start

Ultra Start 2500 SERIES Manuel utilisateur

Ultra Start

Ultra Start 15xx Manuel utilisateur

Ultra Start

Ultra Start 1155 Series Manuel utilisateur

Ultra Start

Ultra Start 22 SERIES Manuel utilisateur

Ultra Start

Ultra Start 15 SERIES Manuel utilisateur

Ultra Start

Ultra Start 35 SERIES Manuel utilisateur

Ultra Start

Ultra Start 2250 Series Manuel utilisateur

Ultra Start

Ultra Start 15 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1250 SERIES Manuel utilisateur

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel

Rooboost

Rooboost RB-1750WP Manuel utilisateur
