Ultra Start 45xx Series Manuel utilisateur

-The system must be placed into Service Mode before any service work is started on the vehicle. It is

the sole responsibility of the vehicle owner to ensure that this is done. The manufacturer accepts no

liability or responsibility for accidental starting of the vehicle.

- CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)

- The Hood Pin Safety Switch Must Always be Installed!

- Never Install Automatic Transmission Remote Starters into a Manual Transmission Vehicle!

Covers All 45xx Series 2way Remote Starter/ Alarms

Page 2

This device complies with Part 15 of the FCC rules. Operation of this device is

subject to the following conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the part

responsible for compliance voids the users authority to operate this device.

Congratulations on your purchase of an Ultra Start remote vehicle starter with

alarm system. Ultra Start remote vehicle starters and alarms will provide years

of security, comfort and convenience. To utilize and understand this system to the

fullest, please read this manual in detail.

FCC Notice

Welcome

It is our continuing objective to design and manufacture the absolute best

Remote Car Starters, Vehicle Security Systems, Keyless Entry Systems and

Security Bypass units available in today’s competitive market. This objective is

met by utilizing installation professionals with decades of industry experience to

assist in each step of the design process. This has allowed us to build products

that are very installer and user friendly yet offer advanced and innovative

features. Our systems utilize intelligent programming and auto learning systems

and are designed to work properly in every vehicle. Our systems are also

designed wherever possible to be up-gradable, allowing the consumer and the

retailer to enjoy easy and cost effective upgrades and additions to their system

down the road. Our limited lifetime warranty provides one of the best protection

plans in the industry, giving both the consumer and the retailer confidence when

they invest in an Ultra Start product.

About Ultra Start

OWNER’S GUIDE

2way REMOTE STARTER/ ALARM

2WAY REMOTE STARTER/ ALARM

OWNER’S GUIDE

Page 3

Remote Start - Automatic Transmission

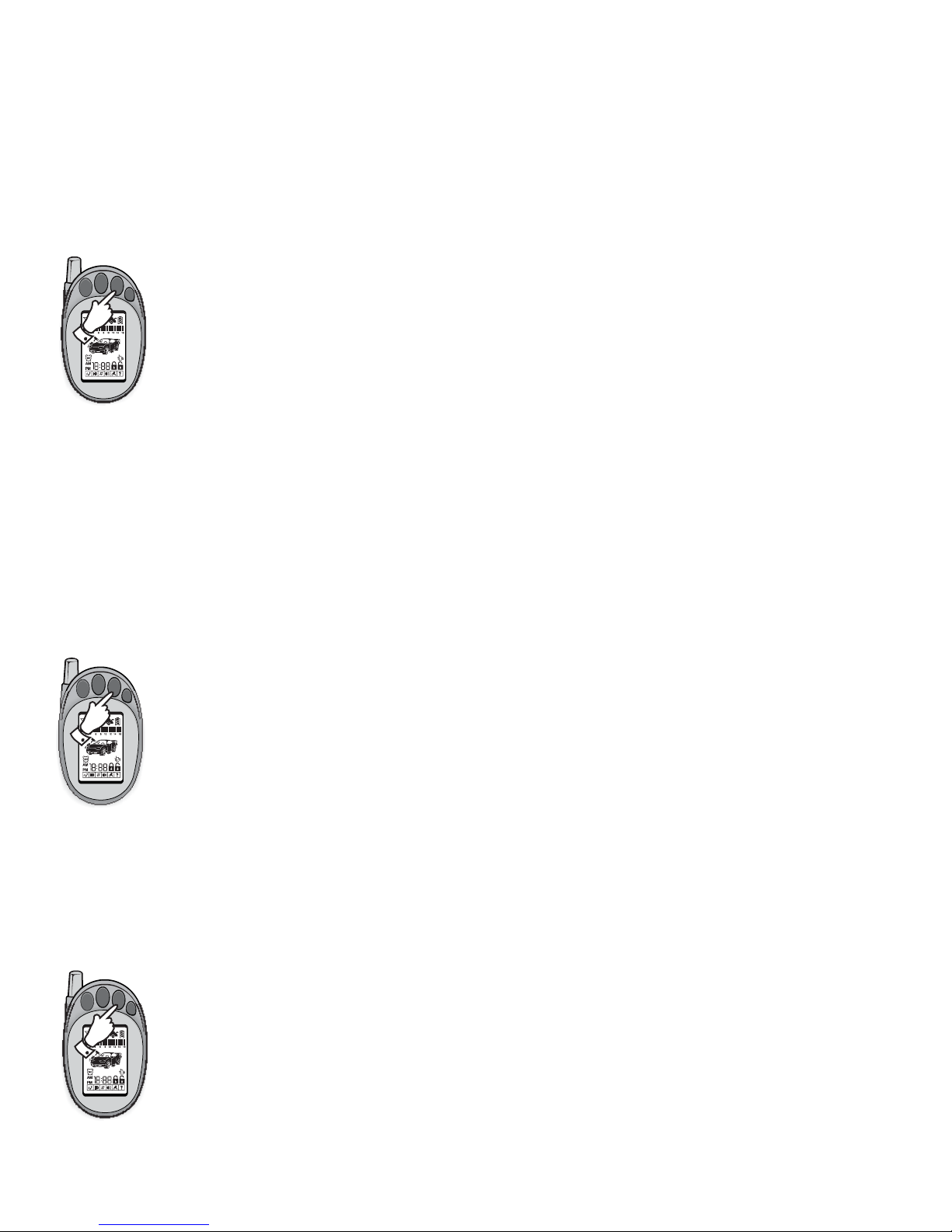

1. Press and release button #3.

2. The park lights will flash and the siren will chirp one time.

3. The vehicle will then remote start. The park lights will flash four

times then remain on while the vehicle is running. The run timer

on the LCD will begin to countdown.

4. The vehicle will continue to run for the programmed runtime*.

Note: If the remote starter fails to start, the park lights will flash a

Trouble Shooting Code. Count the number of flashes and

refer to the Diagnostics Chart on page 15.

Never remote start if the vehicle is parked in a Garage.

Operate in a well ventilated area only.

Remote Stop

1.Press and hold button #3 for three seconds. The remote starter

will shut down. The park lights will flash and the siren will chirp

two times to confirm shutdown.

Note: Pressing the brake pedal or opening the hood will also shut

down the remote starter.

Extended Run Time

1.Press and release button #3 while the vehicle is running.

2.The system will respond with one park light flash and one siren

chirp to confirm Extended Runtime.

The system will reset the run time*.

Note: Extended runtime will not work if the runtime is programmed

for 4 Minutes. *Default 15 minutes

123

Page 4

Idle Mode

1. While the vehicle is running with key, press button #3.

2. The park lights will turn on and the siren will chirp once.

3. Turn the ignition key off and the vehicle will continue to run.

4. Exit the vehicle and leave it running safely without leaving the

keys in the Ignition.

Note: Always lock the doors while the vehicle is left running

unattended. The vehicle will stay running for the

programmed runtime (Default 15 minutes)

Turbo Timer Mode

Status Update

1.While the vehicle is running with key, press button #4.

2.The park lights will turn on and the siren will chirp once.

3.Turn the ignition key off and the vehicle will continue to run for

approximately 2 minutes.

Note: Always lock the doors while the vehicle is left running

unattended.

This feature is used to check the status of the vehicle. If the

system does not update the remote after completing a function

press Button #4 on the transmitter. The remote will then display the

current status of the system on the LCD screen.

If the system is out of operating range the remote transmitter will

beep three times quicky after a button is pressed. The antenna icon

on the top of the LCD will be gone or show no bars next to the icon.

123

OWNER’S GUIDE

2way REMOTE STARTER/ ALARM

Manual transmission remote starters must be set into Reservation Mode before

the remote starter will activate. There are two different ways to place the system

into Reservation Mode. The activation type of Reservation Mode is determined

when the system is installed. The default setting is Auto Reservation Mode.

Auto Reservation Mode

Step 1 - While the vehicle is running with the key, place the transmission into neutral

and apply the park brake.

Step 2 - Press and release the brake pedal twice. The park lights will flash twice,

the siren will chirp twice and the doors will unlock (optional).

Step 3 - Turn the ignition key off and the vehicle will continue running.

Step 4 - Exit the vehicle and close all the doors. The vehicle will then shut off *.

Manual Reservation Mode (Dealer Programmable Feature)

Step 1 - While the vehicle is running with the key, place the transmission into neutral

and apply the park brake.

Step 2 - Press and release button #4. The park lights will flash twice, the siren

will chirp twice and the doors will unlock (optional).

Step 3 - Turn the ignition key off and the vehicle will continue running.

Step 4 - Exit the vehicle and close all the doors.

Step 5 - Press and hold button #3 for 3 seconds, the vehicle will then shut off.

*****THE VEHICLE MAY NOW BE SAFELY REMOTE STARTED.*****

(See pages 3&4 for Remote Starter Functions.)

If Reservation Mode is not set, the remote starter will not activate. When

button #4 is pressed the park lights will flash 4 times. 4 flashes is the diagnostic

code for “Not in Reservation Mode”

Note: Reservation Mode will reset if the doors of the vehicle are opened. To re-enter

the vehicle without canceling the Reservation Mode (forgot something..) The

vehicle must first be remote started. While the vehicle is running the door may

be opened, when done in the vehicle, close the door and hold button #3

until the remote starter shuts off.

* If the vehicle has dome light delay, the vehicle may stay running until the dome

light turns off. This is normally no longer than 30 seconds.

Page 5

Reservation Mode- Manual Transmission Only

2WAY REMOTE STARTER/ ALARM

OWNER’S GUIDE

Page 6

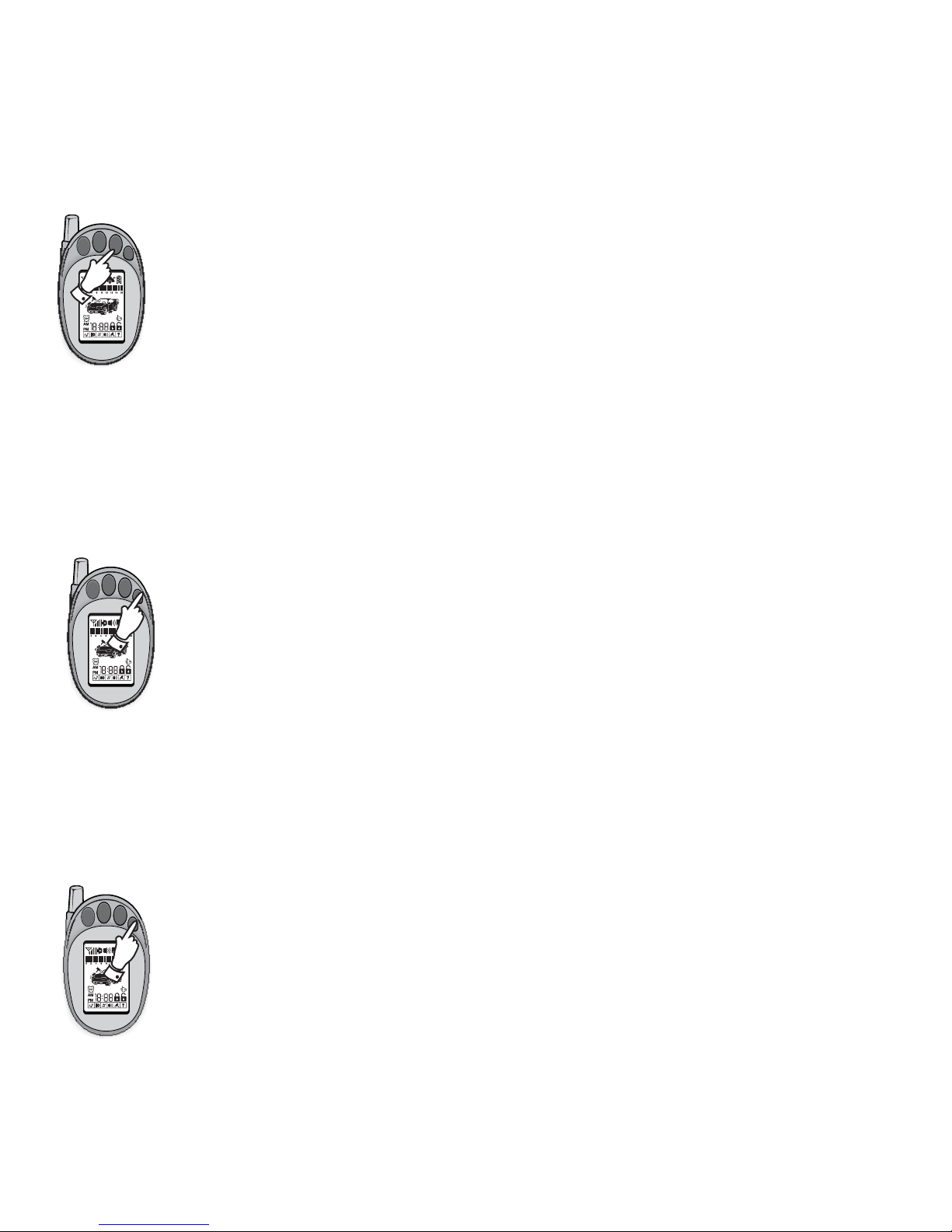

1. Press and hold button #2 and the doors will unlock, continue holding

button #2, the trunk release will activate. The trunk release will be

confirmed by one park light flash and one siren chirp.

Note: The trunk release output will not activate when the ignition key

is in the “On” position.

1.Press and release button #1 on the remote transmitter.

2.The park lights will flash and the siren will chirp one time.

3.The doors will lock.

4.The LEDs on the antenna will start flashing within five seconds.

Note: If installed, the starter disable will activate.

* To Lock/Arm without chirps, press #1 and #2 at the same time.

1.Press and release button #2 on the remote transmitter.

2.The park lights will flash and the siren will chirp two times.

3.The doors will unlock.

4.The LEDs on the antenna will stop flashing.

Note: If installed, the starter disable will deactivate.

* To Unlock/Disarm without chirps, press #1 and #2 at the same time.

1. Press and release button #2 on the remote transmitter. The park

lights will flash, the siren will chirp two times and the drivers door

will unlock.

2. Press and release button #2 again and the remain doors will unlock.

Note: Button #2 must be pressed a second time within 3 seconds.

Lock Doors and Arm Alarm

Unlock Doors and Disarm Alarm

Priority Unlock Feature (Optional Feature)

Trunk Release

123

OWNER’S GUIDE 2way REMOTE STARTER/ ALARM

Page 7

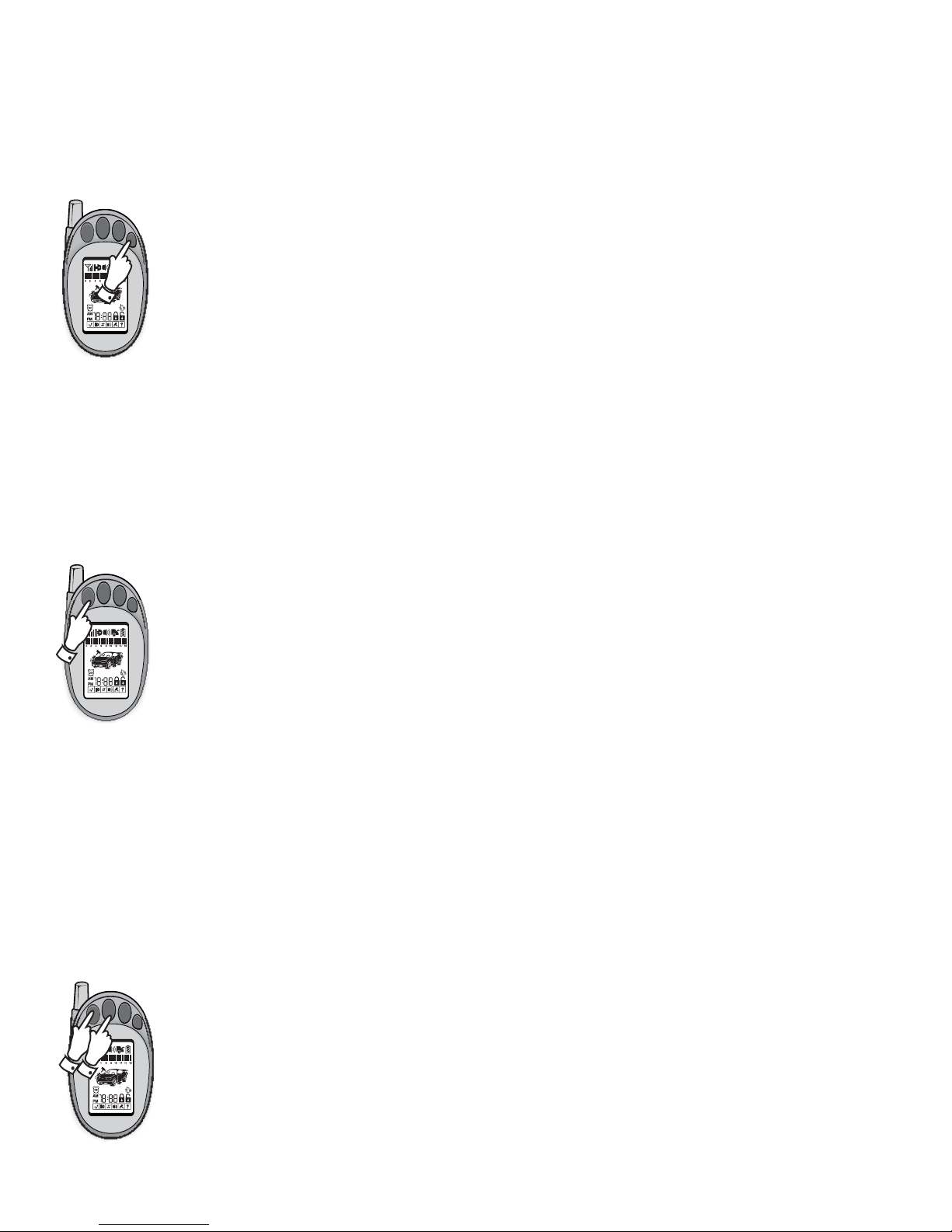

Car Finder is a feature that can be used to find your vehicle in a

crowded parking lot.

1. Press and release button #4 twice within 3 seconds.

2. The park lights will flash and the siren will chirp five times to

draw attention to the location of the vehicle.

3. The remote will beep and display the systems current status.

Car Finder Mode

Activating Panic Mode

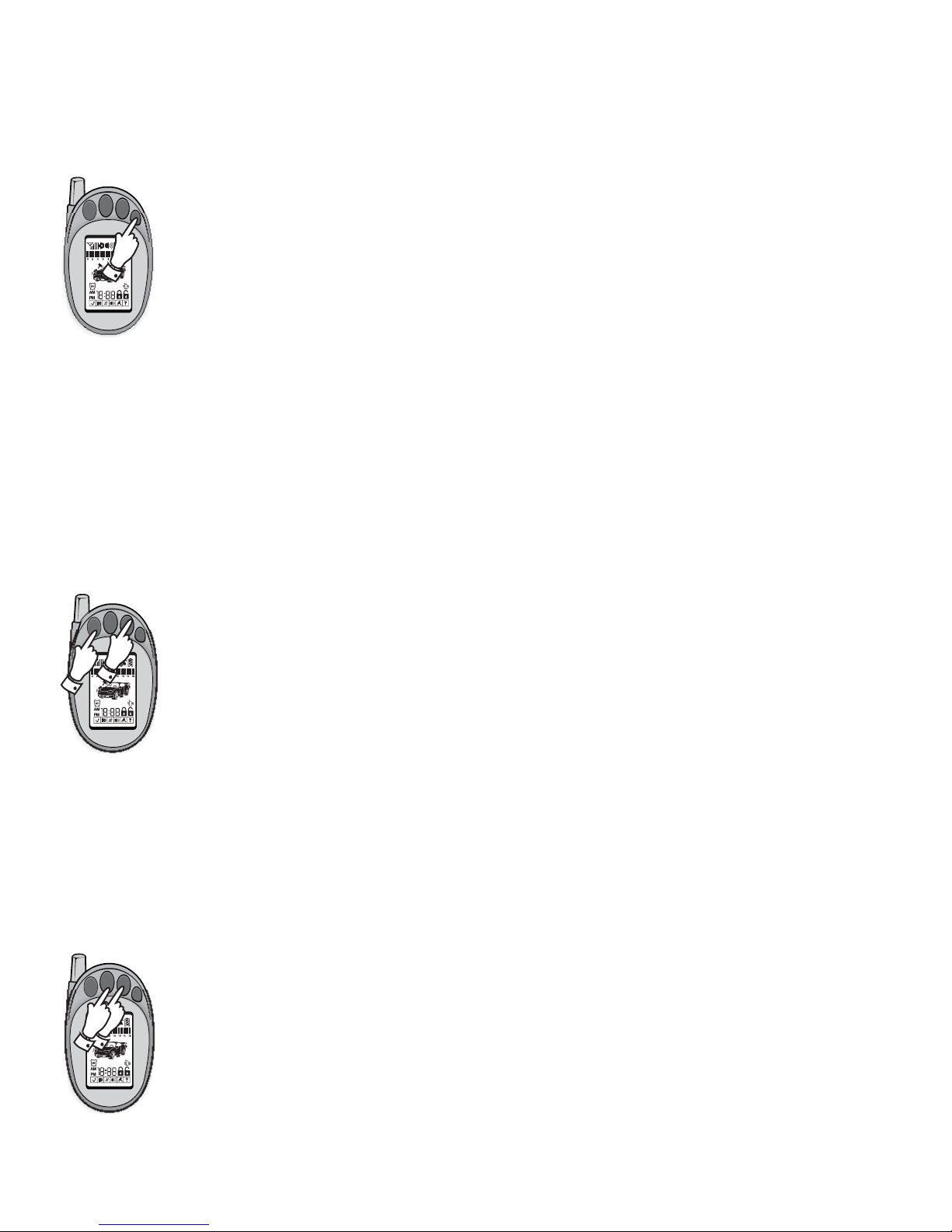

1. Press and hold Button #1 for three seconds.

2. The park light will begin to flash and the siren will activate.

Panic mode will stay activated for one minute.

Note: If installed the starter disable will activate.

Disabling Panic Mode

Press and release Button #1 or Button #2 to disable Panic Mode.

Note: If installed the starter disable will deactivate.

Panic Mode

Press and release buttons #1 and #2 at the same time.

If the doors were locked this will unlock the doors without chirping

the siren. The park lights will flash as confirmation of lock/ unlocking.

Note: The siren can be programmed off by the remote transmitter.

This will only delete Arm and Disarm chips, the alarm is still

fully functional.

Silent Arm and Disarm

1234

2WAY REMOTE STARTER/ ALARM

OWNER’S GUIDE

Page 8

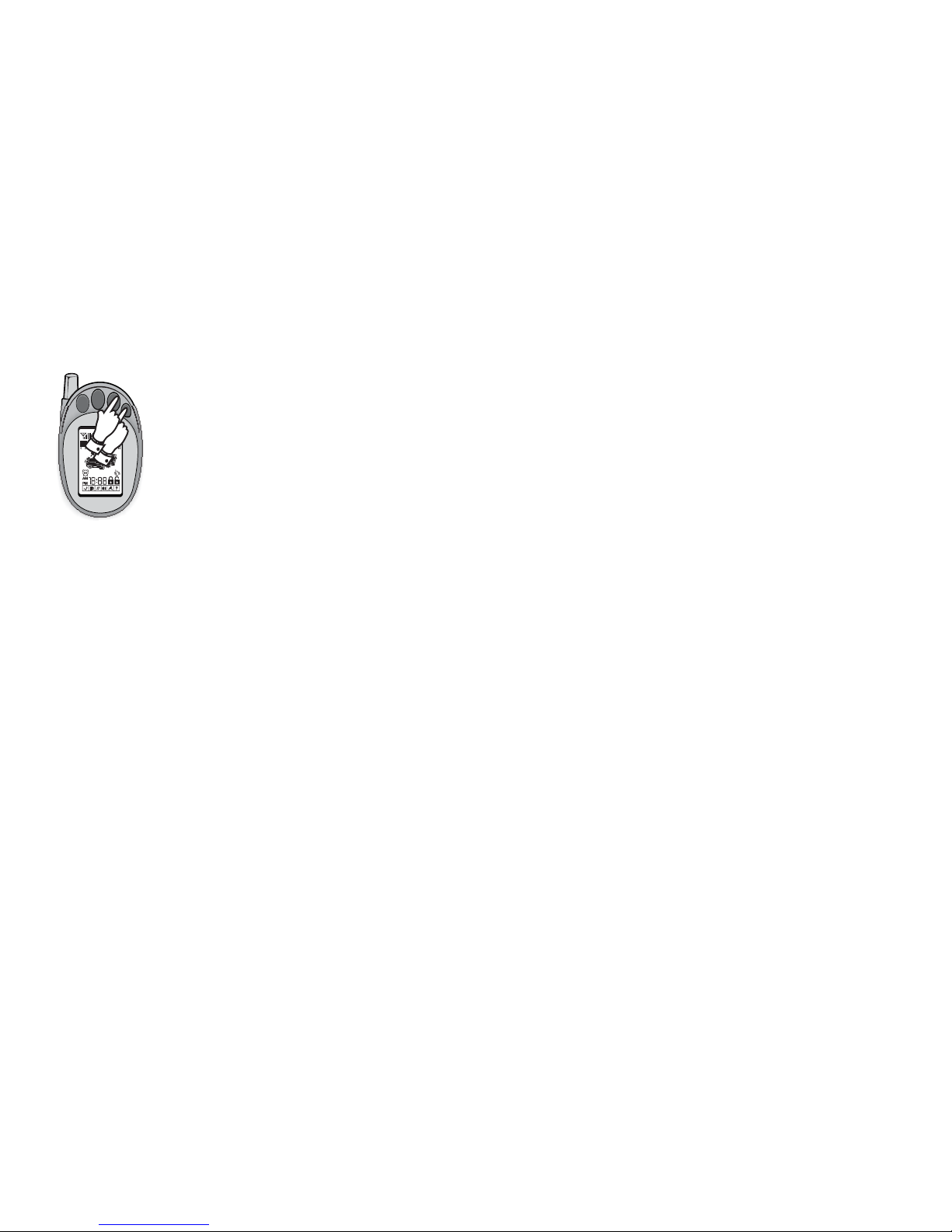

Auxiliary Output 1 (Optional)

Siren On/Off

Auxiliary Output 2 (Optional)

Auxiliary Output are optional outputs from the system. These outputs

Can be used to activate such things as power window roll-up/ down

modules or to open and close a power sun roof.

To Activate Auxiliary #1

1. Press and hold buttons #1 and #3.

2. The park lights will flash and the siren will chirp 1 time.

3. The auxiliary output will stay activated until the button are released.

When this feature is programmed on the siren will only activate

when the alarm is triggered or if the Car Finder is activated.

1. Press and hold button #4 until the Timer Mode icon begins to

flash.

2. Press and release button #1 four times or until the siren icon

begins to flash.

3. To turn the siren Off press button #2. Press button #4 to exit.

To turn the siren back on, press button #3 while the siren icon

is flashing.

Auxiliary Output are optional outputs from the system. These outputs

Can be used to activate such things as power window roll-up/ down

modules or to open and close a power sun roof.

To Activate Auxiliary #2

1. Press and hold buttons #2 and #3.

2. The park lights will flash and the siren will chirp 1 time.

3. The auxiliary output will stay activated until the button are released.

1234

OWNER’S GUIDE 2way REMOTE STARTER/ ALARM

Page 9

Cold Start Mode will start the vehicle at a user selectable start interval or

temperature setting. The vehicle can be set to start once every 1, 2, 3 or 4

hours in Timer Mode or to start at 0,-5,-15 or -25 Celsius in Temperature

Mode (LT Models Only) for a maximum 12 starts. The vehicle will start at

the selected start interval/ temperature and run for the programmed runtime

(Normally 15min). Cold Start Mode must be set each time the user wishes

to use this feature.

Example- Timer Mode. If the 4 hour start cycle was selected, the vehicle

will start once every 4 hours and run for the programmed runtime then turn

off. This setting will keep the vehicle in Cold Start Mode for up to 2 days

before deactivating.

Example- Temp Mode (LT models only). If the -15 Celsius start cycle

was selected, the system will monitor the temperature until it falls below

-15, at this time the remote starter will activate for the programmed runtime.

The system will then wait 2 hours before checking the temperature again.

To Enter Cold Start Mode.

Press and release button #4, then press and hold Button #3 for 6 seconds

or until park lights turn on. While the park lights are on the start cycle can

be selected.

Interval/ Temperature Press To Select Park Light Confirmation

1 hour or 0 Celsius Press button #1 1 Park light flash

2 hour or -5 Celsius Press button #2 2 Park light flashes

3 hour or -15 Celsius Press button #3 3 Park light flashes

4 hour or -25 Celsius Press button #4 4 Park light flashes

Note: The optional Low Temp sensor must be installed for the Temperature

Sensor settings to be available. (LT Models only)

To Cancel Cold Start Mode

Press and release button #4, then press and hold button #3 for six seconds.

Stepping on the brake or turning on the ignition will cancel Cold Start.

Cancellation of Cold Start Mode will be confirmed with two park light

flashes and two siren chirps.

Cold Start/Timer Mode

1234

2WAY REMOTE STARTER/ ALARM

OWNER’S GUIDE

Page 10

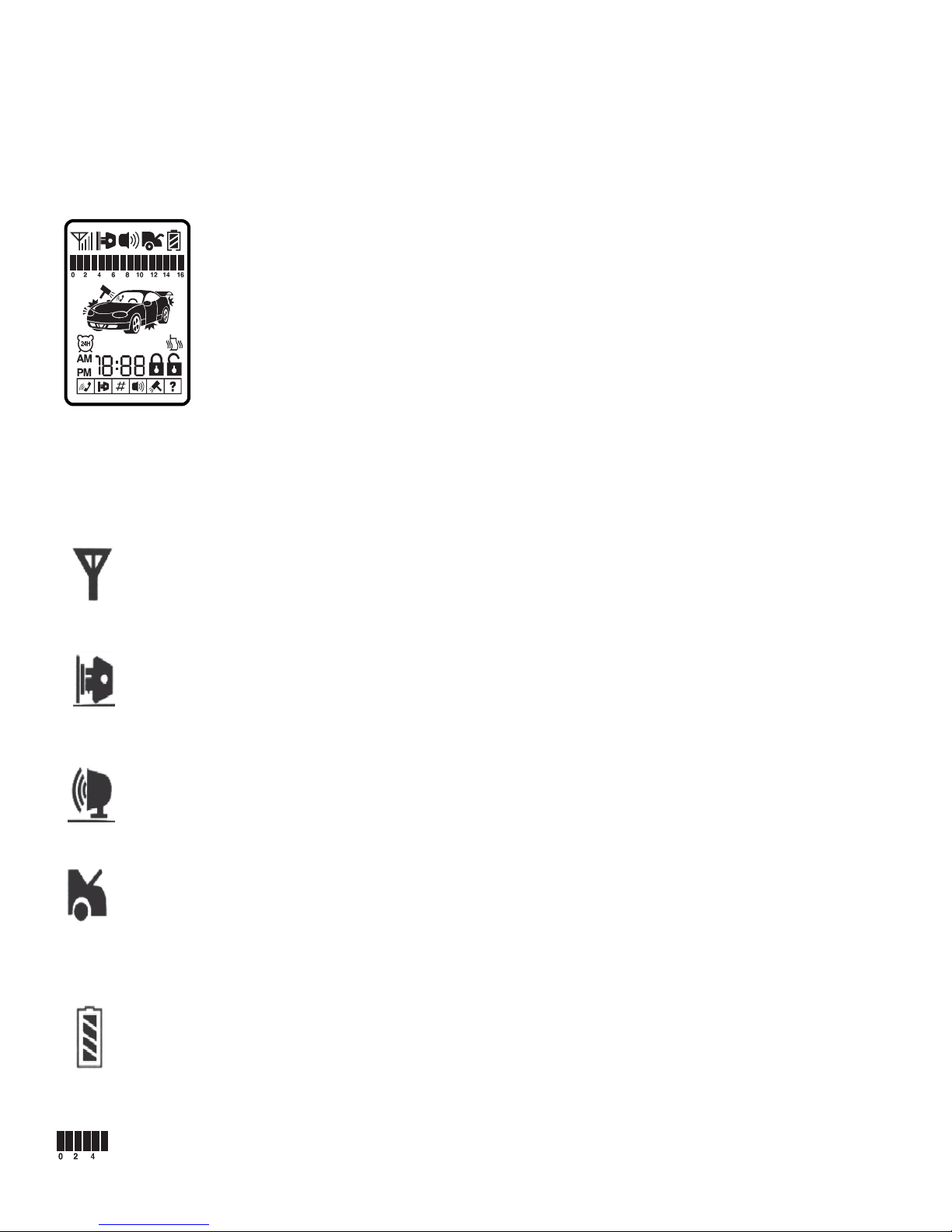

KEY ICON- This icon will begin to flash when the remote starter button is

first pressed. After the vehicle has started this icon will stay on solid.

SIREN ICON- This icon indicates that the alarm has been triggered. The

remote will start to beep and the siren icon will come on solid at the same

time as the icon for the violated zone.

ANTENNA ICON- This icon will be visible or show a series of lines

next to the icon whenever the remote is within transmitting range of the

vehicle. The icon will disappear when out of transmitting range.

STATUS ICONS These icons display the current status of the system. The

icons may not all be present on the screen at all times, certain icons will only

turn on when a feature is activated.

STATUS CHECK MODE This feature is used to

check the status of the system. To check the status

press and release Button #4 on the remote

transmitter. The remote will display the icons of the

active features on the LCD screen.

TRUNK ICON- This icon will be displayed on the LCD screen when the

trunk release is activated by the remote transmitter. This icon will be

displayed until the system is armed or if the status button is pressed.

BATTERY ICON- This icon is always present when the LCD screen. This

icon will indicate the current battery level for the remote transmitter. The

black area of the icon will disappear as the battery level decreases.

RUN TIMER- This icon activates during remote starting. The bar graph will

count down in 2 minute increments, indicating how much time is left on the

remote starter’s runtime.

LCD DISPLAY

OWNER’S GUIDE 2way REMOTE STARTER/ ALARM

Autres manuels pour 45xx Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ultra Start Démarreur à distance

Ultra Start

Ultra Start 4500 Manuel utilisateur

Ultra Start

Ultra Start 1350 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1172 SERIES Manuel utilisateur

Ultra Start

Ultra Start 2250 Series Manuel utilisateur

Ultra Start

Ultra Start 25XX Series Manuel utilisateur

Ultra Start

Ultra Start 1600 Manuel utilisateur

Ultra Start

Ultra Start 3250M Manuel utilisateur

Ultra Start

Ultra Start 22 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1250 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1500 SERIES Manuel utilisateur

Ultra Start

Ultra Start 32 SERIES Manuel utilisateur

Ultra Start

Ultra Start 25 SERIES Manuel utilisateur

Ultra Start

Ultra Start 1655XR Manuel utilisateur

Ultra Start

Ultra Start 22xx Manuel utilisateur

Ultra Start

Ultra Start 3295Series Manuel utilisateur

Ultra Start

Ultra Start 2250M Manuel utilisateur

Ultra Start

Ultra Start 12xx Series Manuel utilisateur

Ultra Start

Ultra Start 22 SERIES Manuel utilisateur

Ultra Start

Ultra Start 90 Series Manuel utilisateur

Ultra Start

Ultra Start 1155 Series Manuel utilisateur

Ultra Start

Ultra Start 72 SERIES 1272 Manuel utilisateur

Ultra Start

Ultra Start 25 SERIES Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

Ultra Start

Ultra Start 660 Series Manuel utilisateur

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel

Rooboost

Rooboost RB-1750WP Manuel utilisateur
