Ultra Electronics Card Systems Quick Start Guide

MAGICARD Color Printer Page 1

MAGICARD 300 Color Printer

MAGICARD 300

MAGICARD 300plus

MAGICARD Sprinter

(inc. Mag Encoding options)

Quick Start Guide

Printer/Software Setup

Iss. 03 Dec 97

3461-22-02

Stock No. M9003-728

Quick Start Guide Ultra Electronics Card Systems

Page 2MAGICARD Color Printer

Setting up your MAGICARD Color Printer

takes just three easy steps:

1. Unpack and install the printer

APreparing a Location for the Printer

BRemoving the Printer from the Box

CChecking the Package Contents

DInstall the Dye Film

ELoad the Plastic Cards

FConnect the Printer to a Power Supply

GTest the Printer Operation

HInstall the Parallel Interface Cable and Ultra Secure Key

2. Load the supplied WINDOWS Driver software.

Ix Install the WINDOWS Driver (WINDOWS 3.x)

Iy Install the WINDOWS Driver (WINDOWS 95)

JPrinter Setup

3. Verify computer-to-printer operation.

KVerifying Computer to Printer Communication in WINDOWS

LIn Case of Difficulty.

MImportant Cleaning procedures.

N LED Error Codes

Note: The Ultra WEB site at http://www.ultra.co.uk contains comprehensive technical support information

including the latest downloadable software, WINDOWS Drivers, Technical Bulletins etc

Conventions

Throughout this guide, the following conventions are used to identify important

information.

WARNING - Warning messages indicate where personal injury could result from not

following the correct procedures.

CAUTION - Caution messages indicate where damage to equipment could result

from not following the correct procedures.

NOTE - Notes convey important information that is identified within the text.

Ultra Electronics Card Systems Quick Start Guide

MAGICARD Color Printer Page 3

Quick Start Guide Ultra Electronics Card Systems

Page 4MAGICARD Color Printer

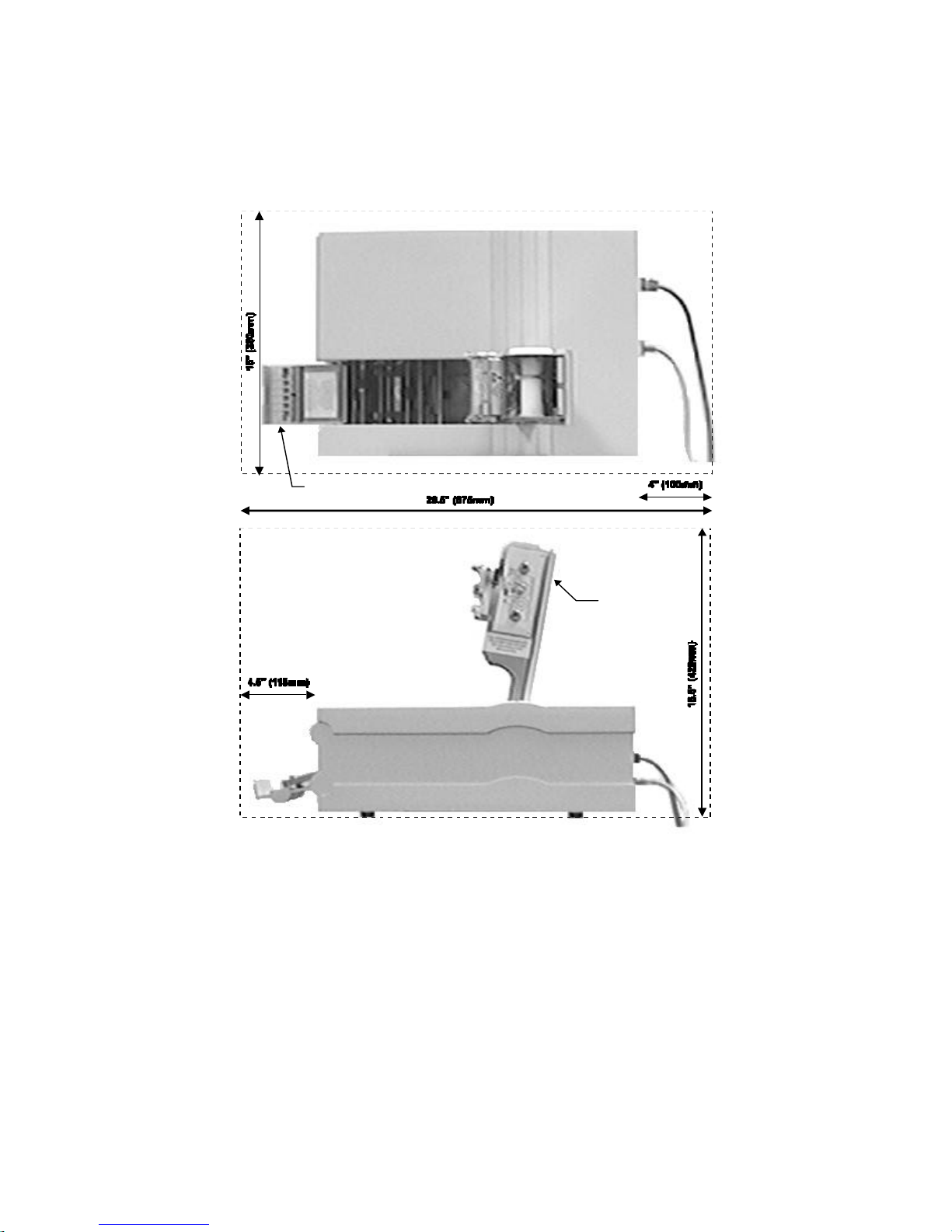

•A clean, level surface.

•Adequate space for:

- opening the Card Collection Door

- opening the Top Cover

- cable access at the rear.

- allowance for air circulation.

•An adequately ventilated room.

Preparing a Location

for the Printer

Location Requirements for your printer:

Ultra Electronics Card Systems Quick Start Guide

MAGICARD Color Printer Page 5

•An adequate power supply.

•Ambient temperature +10 to +30 deg C.

•Relative Humidity 20/70% RH.

•Protection from direct sunlight and

chemicals.

•Protection from abrupt temperature

changes.

Top Cover

Card Collection

Door

Quick Start Guide Ultra Electronics Card Systems

Page 6MAGICARD Color Printer

Carefully open the box and remove any

accessories.

Open the front door and remove the

metal shipping clip from the chassis.

Place on a smooth, level table and

remove the polyethylene container.

Removing the Printer

from the Box

Ultra Electronics Card Systems Quick Start Guide

MAGICARD Color Printer Page 7

The MagiCard Color Printer

A Roll of Dye Film and a Take-up Core

(Only supplied as standard with certain Models)

The Card Cassette

A Power Cord with Molded Plug for your

Country

Checking the

Package Contents

Locate each item as listed below:

Quick Start Guide Ultra Electronics Card Systems

Page 8MAGICARD Color Printer

Envelope containing this Quick Start

Guide and the PrintMAGIC WINDOWS

Driver 3.5" floppy disk.

Envelope containing 5 Cleaning Cards

and 1 Thermal Printhead Cleaning Pen.

Ultra Electronics Card Systems Quick Start Guide

MAGICARD Color Printer Page 9

Open the Printer Cover by lifting the

"Dzus" fastener ring and turning a

quarter turn anti-clockwise. Remove the

Dye Film carrier.

Replace the Film Carrier

Open the Dye Film package. Fit the dye

film on the lower boss, observing the

correct orientation of the dye film.

Fit the empty take-up core on the upper

boss, observing the correct orientation

of the notches on the Take-up Core.

Install the

Dye Film

Quick Start Guide Ultra Electronics Card Systems

Page 10 MAGICARD Color Printer

Manually turn the Spur Gear until the

slots on the core engage with the lugs.

Pull about 6" of dye film off the roll of dye

film, observing that it should be coming

off the top of the roll, as per the label

illustrations.

Turn the 'Dzus' Fastener 1/4 turn

clockwise to lock in place. Lay the ring

flat against the panel
