UE Systems ULTRAPROBE 10000 Instructions d'installation

TQC Work Verify

Ultrasound Ultraprobe 10,000 Instructions

Pumps and Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES

2-5 min UE Systems Training

*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*

Needed: Ultraprobe 10,000 and CF card;

Stethoscope Module; Rubber Focusing Probe;

Headphones

1Possible Accessories: Remote Magnetic

Transducer; Extension Rods for Stethoscope

Module

Move Cursor to Function Bar by Pushing

Sens.Knob 2X and Press Enter for Setup Menu

3If Using a Route, move Route to Flash Card, then

load to Ultraprobe by using Data Transer. Refer to

Instructions "Loading Route."

Page 1 of

TQC Work Verify

Ultrasound Ultraprobe 10,000 Instructions

Pumps and Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES

2-5 min UE Systems Training

*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*

If baselining the route, have Instrument Setup in

Manual. If route is established and baselined, have

Inst.Setup in Auto.

5If you are PERFORMING the BASELINE Readings,

proceed to NEXT INSTRUCTION, if not READ the

Picture Below.

Rotate for Application Select, Push Sens.Knob.

Rotate to Bearings or Generic, push Sens.Knob

(Enable Bearings). Press Enter to Exit.

7A clean memory is a must to keep files organized.

It is Normal to Delete Records when changing

apps.

Page 2 of

TQC Work Verify

Ultrasound Ultraprobe 10,000 Instructions

Pumps and Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES

2-5 min UE Systems Training

*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*

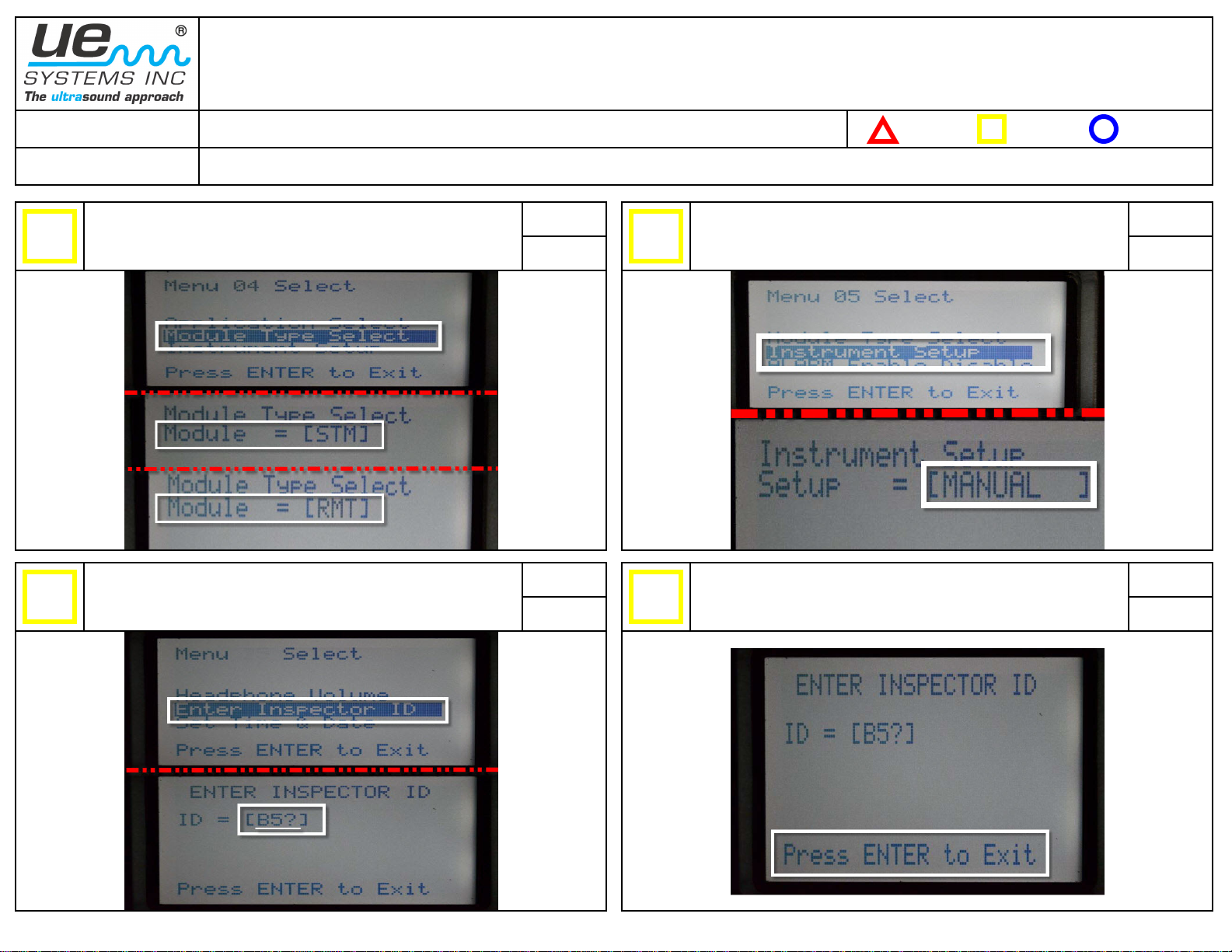

Rotate to Module Type Select, push Sens.Knob.

Rotate to Stethoscope (STM) or Remote Magnet

(RMT); Push Sens to Select/Exit

9Rotate to Instrument Setup, Push Sens.Knob.

Rotate for "Manual", Push Sens.Knob to Select/Exit

Rotate to Enter Inspector ID [under "More" in Setup

Menu], push Sens.Knob. Enter 3 Alpha-Numeric

Characters use Sens.Knob.

11 Press Enter 2X to Save/Exit and return to Main

Display.

Page 3 of

TQC Work Verify

Ultrasound Ultraprobe 10,000 Instructions

Pumps and Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES

2-5 min UE Systems Training

*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*

Push Sens.Knob 1X to move cursor to Frequency.

Rotate to 30 kHz (or Frequency Tune for better

sound clarity)

13 IF Route has been baselined and established refer

to NOTE. Note does not hold true for

troubleshooting WITHOUT having a route loaded.

Push Sens. 1X more [if cursor at S= push 2X]

moving Cursor to Function Bar. Rotate Sens until

Store Record or Record Wav in prep for readings.

15 Push Sens.Knob 1X more to return cursor to S=

(Operational Home Spot for Adjusting Sensitivity).

Page 4 of

TQC Work Verify

Ultrasound Ultraprobe 10,000 Instructions

Pumps and Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES

2-5 min UE Systems Training

*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*

NOTE: Choose your test point.

17 Cavitation can be heard anywhere on the pump,

HOWEVER. the Best Test Point is at the Dishcarge

of The Pump.

[Store Record: Adjust Sens. for dB] OR [Record

WAV: Adjust Sens (dB) AND Intensity Meter (2-4

Bars)]

19 Visual Instructions exist for Storing a Record or

Recording a Sound WAV.

Page 5 of

TQC Work Verify

Ultrasound Ultraprobe 10,000 Instructions

Pumps and Cavitation Inspection

Rev. 1.0 3/2012 SAFETY: Wrist Strap to be Worn at ALL TIMES

2-5 min UE Systems Training

*Compact Flash Card & Module Inserted BEFORE Turning Ultraprobe ON*

Once Finished with Storing Record or Recording

Wav, move to next test point. Unit Returns to Main

Display advanced to next point.

21 ALWAYS WEAR the HEADPHONES.

Page 6 of
