Ubiquiti UFiber UF-WIFI Manuel utilisateur
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 1/14
UFiber UF-WIFI Screws (Qty. 4) Screw Anchors (Qty. 4)
Power Adapter (24V, 0.5A)
Package Contents
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Web Browser: Google Chrome (Other browsers may have limited functionality)
Before You Begin
Designing your first GPON deployment requires specific knowledge and planning.
For information on GPON network design and installation, including important
considerations and best practices, refer to:
ubnt.link/UFiber-GPON-Getting-Started
ubnt.link/Designing-a-GPON-Network
For details on configuring UFiber devices for the first time to allow ONU LAN ports to
provide connectivity, refer to: ubnt.link/UFiber-Initial-Configuration
Hardware Overview
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 2/14
PON Port
LAN (Ports 1 - 4)
Reset Button
Power Port
SC/APC GPON port supports WAN connections of 2.488 Gbps downstream and
1.244 Gbps upstream.
RJ45 Ethernet LAN ports support 10/100/1000 Mbps connections. Port 1 also
supports 24V Passive PoE to power the device.
The Reset button serves two functions for the UF-WIFI:
Restart Press and release the Reset button quickly. The three signal LEDs will
flash amber.
Restore to Factory Default Settings Press and hold the Reset button for more
than five seconds.
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 3/14
Signal LEDs
The Power Adapter connects to this port to provide power.
White Ethernet connection up
Off Bootup
Signal strength: low
≥ -28 dBm
Signal strength: good
≥ -25 dBm
Signal strength: strong
≥ -11 dBm
Signal strength: too low
< -28 dBm
Check the quality of the fiber connection, and
calculate the total optical loss of the optical
splitters.
Signal strength: too strong
≥ -8 dBm
Add an optical splitter, or add a 5 or 10 dB
optical attenuator.
No signal
Check the fiber cables and connectors, and
ensure that the OLT functions properly.
No authority
The UF-WIFI has not been authorized or
cannot communicate with the OLT. Check
passwords and OLT settings.
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 4/14
Ethernet LED
Power LED
Off Ethernet connection down
White
Ethernet connection up
Flashing indicates activity
Off Power off
White Power on

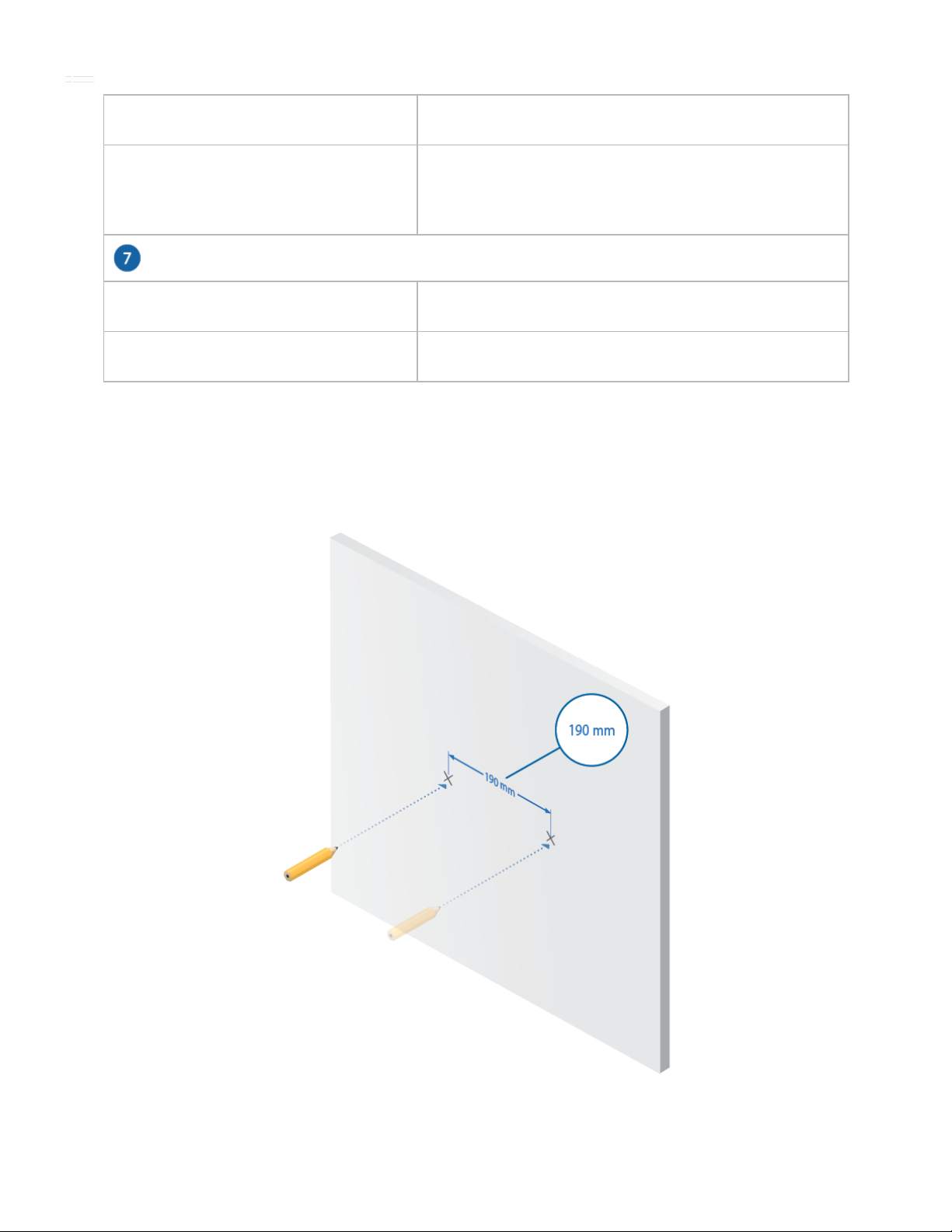

Hardware Installation

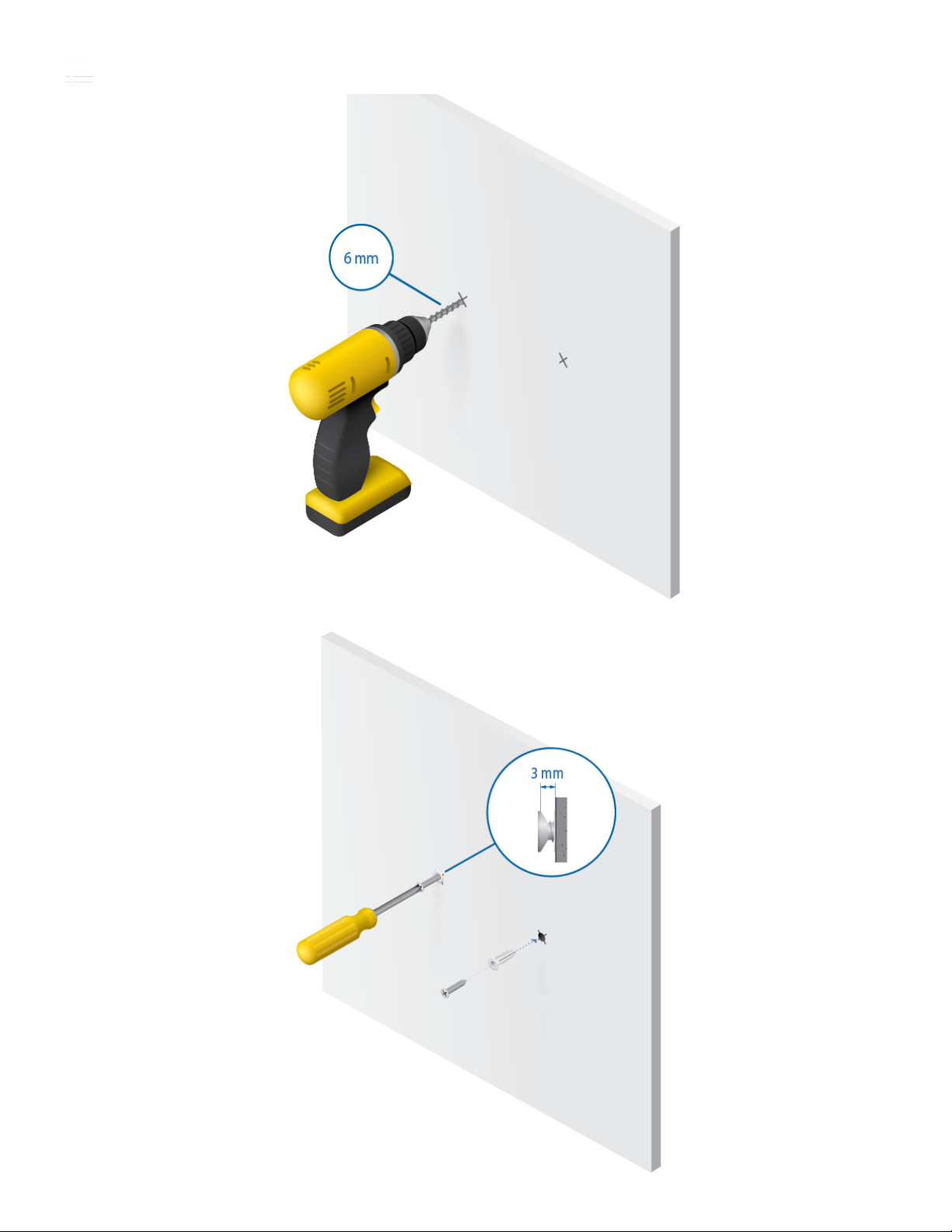

Wall Mounting
1.
2.
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 5/14
3.
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 6/14
4.

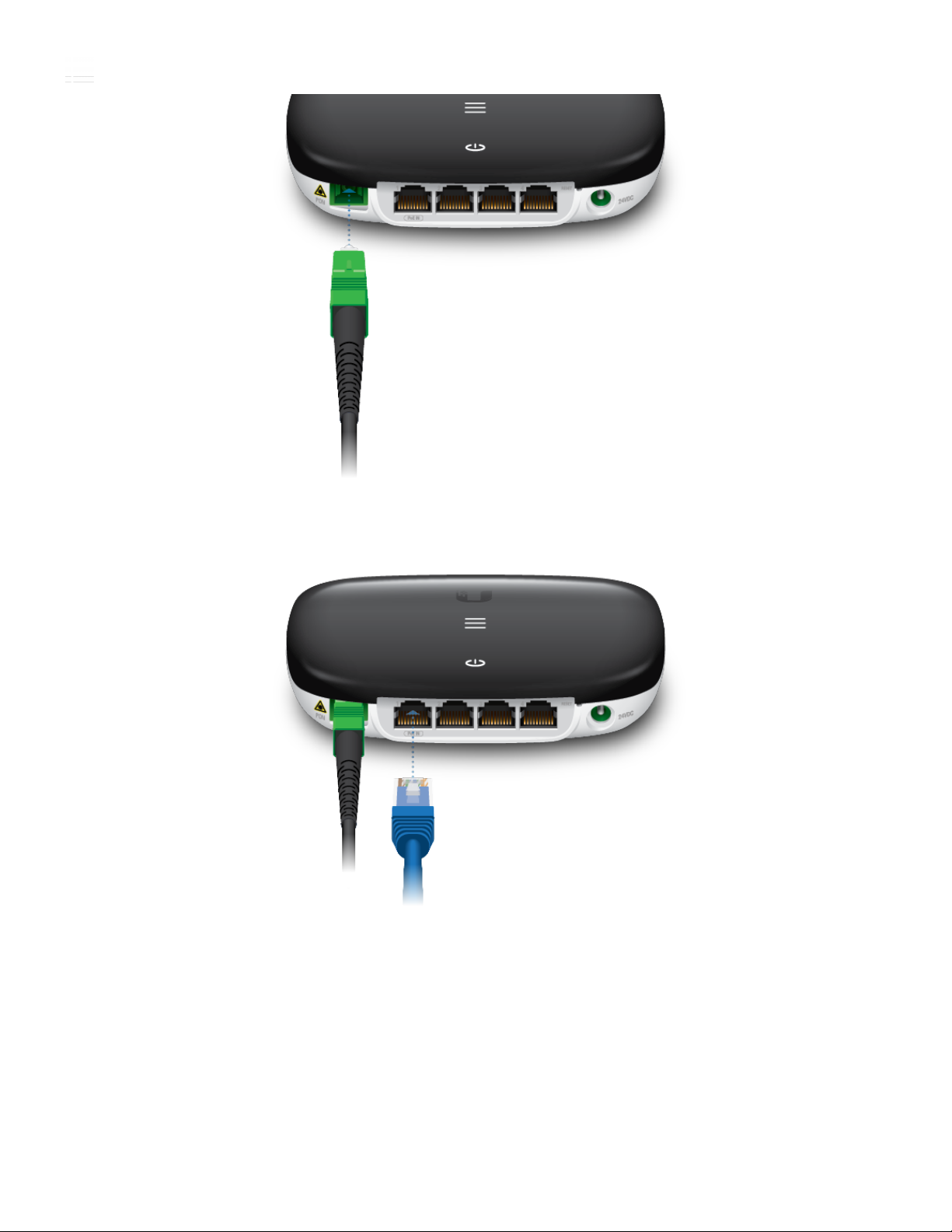

Connecting Fiber
WARNING: Never look directly into the ends of fiber or modules. The emitted
light could cause damage to the eye.
WARNING: Until ready for use, keep modules and fiber patch cables covered
using the included protective caps to ensure the connections stay clean.
WARNING: Do NOT connect the device directly to a UFiber GPON module
(UF-GP-B+ or UF-GP-C+). Doing so will damage the device optics. Ensure
that the device’s received signal level never exceeds -8 dBm. Use a UFiber
PLC Splitter to add attenuation as needed.
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 7/14
Connecting LAN
Connecting Power
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 8/14
OR
Note: 24V Passive PoE is required to power the device.
WARNING: The PoE switch must comply with the power specifications listed
in the Specifications section of this Quick Start Guide.
Accessing the Configuration Interface
1. Ensure that your computer (or other host system) is connected to the device.
2. Configure the Ethernet adapter on your host system with a static IP address on
the 192.168.1.x subnet.
3. Launch your web browser. Type http://192.168.1.1 in the address field. Press
enter (PC) or return (Mac).
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 9/14
4. Enter ubnt in the Username and Password fields. Click Login.
Customize settings as needed. For more information, refer to the UFiber resources,
which are available at: http://ubnt.link/UFiber-Support
Specifications
UF-WIFI
Dimensions 126.34 x 126.09 x 31.65 mm
(4.97 x 4.96 x 1.25")
Weight 190 g (6.70 oz)
Networking Interfaces (1) SC/APC, GPON WAN
(4) Gigabit RJ45, Ethernet LAN
(1) Wi-Fi, 802.11n
Networking Interface Speeds
GPON WAN, ITU G.984 2.4 Gbps Down, 1.2 Gbps Up
LAN 10/100/1000 Mbps
Wi-Fi 300 Mbps
Management Interface In-Band Ethernet
PON
Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm
RX: -28 to -8 dBm
UF-WIFI Quick Start Guide
28/10/2019 UF-WIFI Quick Start Guide
https://dl.ui.com/qsg/UF-WIFI/UF-WIFI_EN.html 10/14
UF-WIFI
Power Method DC Jack, 24VDC
24V Passive PoE (Pins 4, 5+; 7, 8-)
Power Supply 100-240VAC / 50-60 Hz Universal AC/DC
24V / 0.5A
Max. Power Consumption 7W
Supported Voltage Range 20 to 28V
Processor Specs MIPS, 900 MHz
Memory Information 256 MB DDR
Button (1) Reset
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
WARNING: CLASS 1 LASER PRODUCT - Do not look into the ends of the fiber optic
cable or SFP modules while converters are powered.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements
indicated on the manufacturer’s label. Connection to a different power source than those
specified may result in improper operation, damage to the equipment or pose a fire hazard if
the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided
only by a qualified service technician.
