Ubiquiti Rocket 5AC PTP Manuel utilisateur

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 1/12

Rocket5ac PtP Gigabit PoE Adapter (24V, 0.5A) Power Cord

Package Contents

Installation Requirements

Shielded Category 5 (or above) cabling should be used for all wired Ethernet

connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

For more details, visit

ui.com/toughcable

Hardware Overview

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 2/12

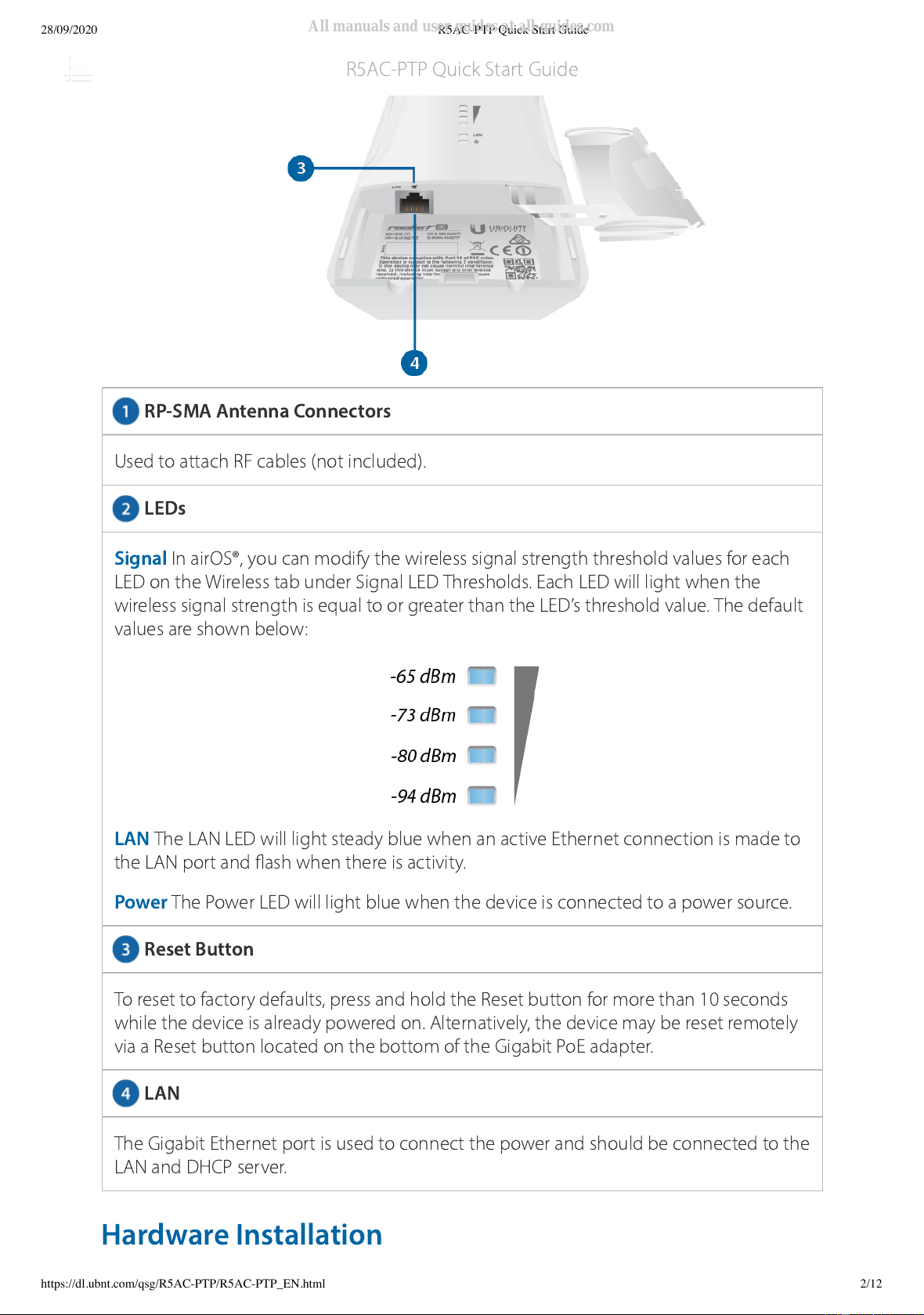

RP-SMA Antenna Connectors

LEDs

Reset Button

LAN

Used to attach RF cables (not included).

Signal

In airOS®, you can modify the wireless signal strength threshold values for each

LED on the Wireless tab under Signal LED Thresholds. Each LED will light when the

wireless signal strength is equal to or greater than the LED’s threshold value. The default

values are shown below:

LAN

The LAN LED will light steady blue when an active Ethernet connection is made to

the LAN port and ash when there is activity.

Power

The Power LED will light blue when the device is connected to a power source.

To reset to factory defaults, press and hold the Reset button for more than 10 seconds

while the device is already powered



on. Alternatively, the device may be reset remotely

via a Reset button located on the bottom of the Gigabit PoE adapter.

The Gigabit Ethernet port is used to connect the power and should be connected to the

LAN and DHCP server.

Hardware Installation

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 3/12

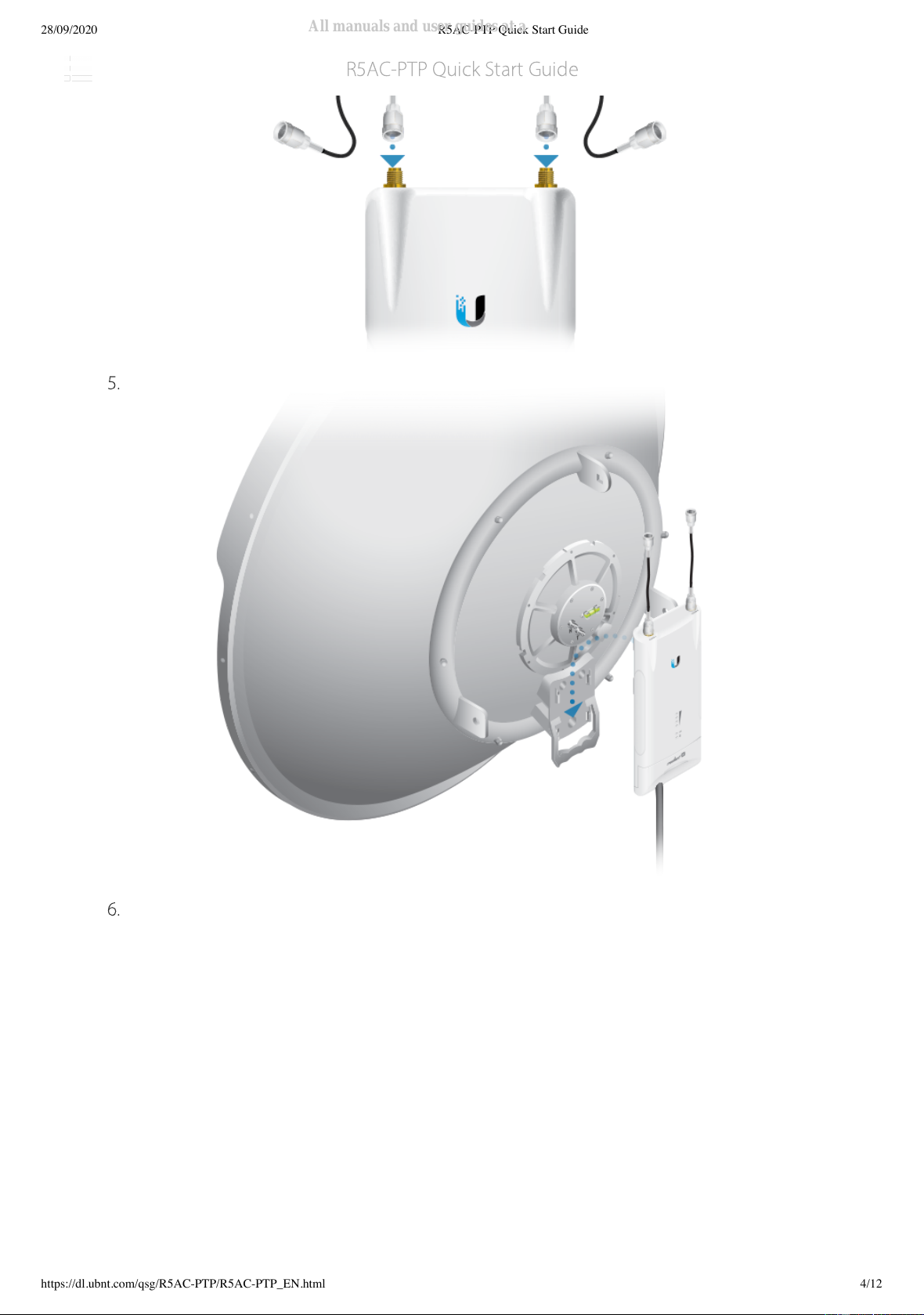

The Rocket5ac PtP is designed to mount directly onto a Ubiquiti airMAX RocketDish™

antenna.

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 4/12

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 5/12

Connecting Power

WARNING:

The switch port must comply with the power specications listed in

this Quick Start Guide.

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 6/12

Accessing airOS

Connect to the airOS® Conguration Interface.

1. Make sure that your host machine is connected via Ethernet to the device.

2. Congure the Ethernet adapter on your host system with a static IP address on the

192.168.1.x subnet.

3. Launch your web browser. Type https://192.168.1.20 in the address eld. Press enter (PC)

or return (Mac).

4. Select your Country and Language. You must agree to the Terms of Use to use the

product. Click Continue.

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 7/12

5. Create a username and password. Conrm your new password and then click Save.

The airOS Conguration Interface will appear, allowing you to customize your settings as

needed. For details, refer to the User Guide available at

ui.com/download/airmax-ac

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer's responsibility to

make sure the device is operated within local country regulatory requirements.

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 8/12

Antenna

Select your antenna from the list. If Calculate EIRP Limit is enabled, transmit output power is

automatically adjusted to comply with the regulations of the applicable country. For a

Custom antenna, Antenna Gain is entered manually. Note the requirements and antenna

types listed below.

Cable Loss (When applicable)

Enter the cable loss in dB. Output power is adjusted to compensate for loss between the

radio and the antenna.

This radio transmitter FCC ID: SWX-R5ACPTP / IC: 6545A-R5ACPTP has been approved by

FCC / ISED Canada to operate with the antenna types listed below with the maximum

permissible gain for each antenna type indicated. Antenna types not included in this list or

having a gain greater than the maximum gain indicated for that type, are strictly prohibited

for use with this device.

Certied Antenna Types

Antenna Frequency Gain

Patch 5 GHz 6 dBi

Sector 5 GHz 22 dBi

Dish 5 GHz 34 dBi

Specications

Rocket5ac PtP

Dimensions 198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74")

Weight 295 g (10.41 oz)

Networking Interface (1) 10/100/1000 Ethernet Port

RF Connectors (2) RP-SMA (Waterproof)

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 9/12

Rocket5ac PtP

LEDs Power, LAN, (4) Signal Strength

Enclosure Outdoor UV Stabilized Plastic

Max. Power Consumption 8.5W

Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Temperature -40 to 80° C (-40 to 176° F)

Operating Humidity 5 to 95% Noncondensing

ESD/EMP Protection ± 24KV Contact / Air for Ethernet

Shock and Vibrations ETSI300-019-1.4

Certications CE, FCC, IC

Operating Frequency (MHz)

Worldwide 5150 - 5875

US/CA U-NII-2C: 5470 - 5725

U-NII-3: 5725 - 5850

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specied by the manufacturer.

WARNING:

Do not use this product in location that can be submerged by water.

WARNING:

Avoid using this product during an electrical storm. There may be a remote risk of

electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on

the manufacturer’s label. Connection to a diﬀerent power source than those specied may result in

improper operation, damage to the equipment or pose a re hazard if the limitations are not

followed.

2. There are no operator serviceable parts inside this equipment. Service should be provided only by a

qualied service technician.

3. This equipment is provided with a detachable power cord which has an integral safety ground wire

intended for connection to a grounded safety outlet.

a. Do not substitute the power cord with one that is not the provided approved type. Never use an

adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding

wire.

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com

28/09/2020 R5AC-PTP Quick Start Guide

https://dl.ubnt.com/qsg/R5AC-PTP/R5AC-PTP_EN.html 10/12

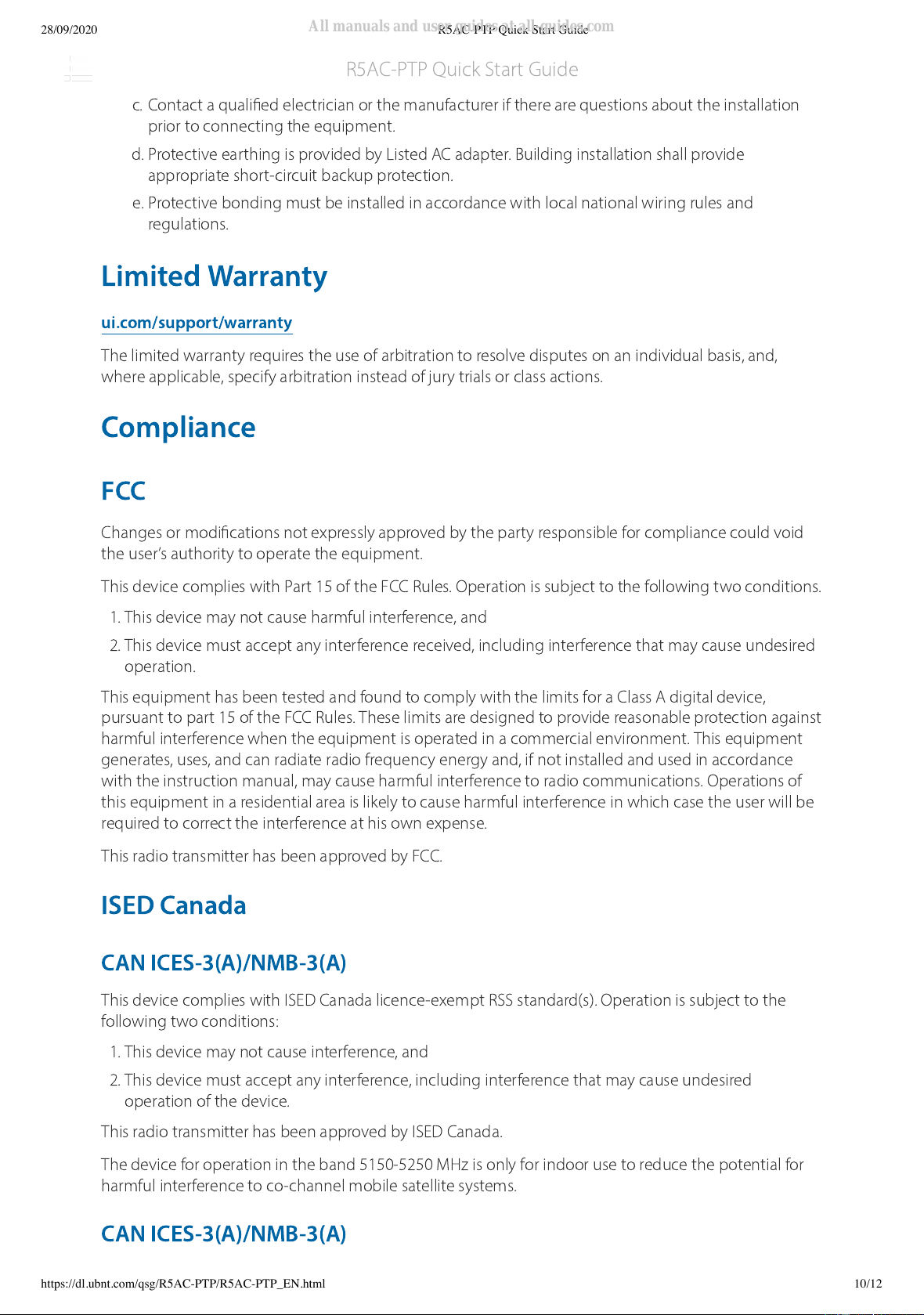

b. The equipment requires the use of the ground wire as a part of the safety certication,

modication or misuse can provide a shock hazard that can result in serious injury or death.

c. Contact a qualied electrician or the manufacturer if there are questions about the installation

prior to connecting the equipment.

d. Protective earthing is provided by Listed AC adapter. Building installation shall provide

appropriate short-circuit backup protection.

e. Protective bonding must be installed in accordance with local national wiring rules and

regulations.

Limited Warranty

ui.com/support/warranty

The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,

where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operations of

this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

This radio transmitter has been approved by FCC.

ISED Canada

CAN ICES-3(A)/NMB-3(A)

This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the

following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired

operation of the device.

This radio transmitter has been approved by ISED Canada.

The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for

harmful interference to co-channel mobile satellite systems.

CAN ICES-3(A)/NMB-3(A)

R5AC-PTP Quick Start Guide

All manuals and user guides at all-guides.com
