Ubiquiti mPower Pro Manuel utilisateur
8-Port mFi Power Strip
with Ethernet and Wi-Fi
Model: mPower PRO
1
2
3
4
5
6
7
8
Introduction
Thank you for purchasing the Ubiquiti Networks® mFi®
mPower™PRO. The mFi mPower PRO is designed for use
with the mFi platform. Once connected, you can use the
mFi Controller software to monitor your devices and define
automation rules using your web browser. This Quick Start
Guide is designed to guide you through the installation and
also includes the warranty terms.
Package Contents
1
2
3
4
5
6
7
8
Wall Mount Slide
8-Port mFi Power Strip
with Ethernet and Wi-Fi
Model: mPower PRO
1
2
3
4
5
6
7
8
mPower PRO Mounting
Plate
Screws
(Qty. 2)
Anchors
(Qty. 2)
Quick Start
Guide
System Requirements
• Microsoft Windows Vista, Windows 7, Windows 8, or
MacOSX
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft
Internet Explorer 8 (or above)
Hardware Overview
Top
Status
LED
Front
Circuit Breaker
Reset Button
Device Reset
Button
Ethernet Port
Status LED The Status LED primary states are listed below:
Solid yellow When first
powered on in factory
default mode.
• Flashing blue
Connecting to mFi
Controller.
• Solid blue Successfully
connected to mFi
Controller.
Device Reset Button The Device Reset button serves two
functions:
• Restart Restarts the device when you press and release it
quickly.
• Restore Factory Defaults Press and hold until the LED
alternates colors and then remains steady yellow to restore
the device to the factory default settings.
Ethernet Port Used to connect to an Ethernet network and
also configuration of Controller and Wi-Fi settings.
Circuit Breaker Reset Button When excessive current
triggers the circuit breaker, the outlets will shut off. Press this
button to reset the circuit breaker.
Hardware Installation
1. Connect the mPower PRO to a power outlet.
8
7
6
5
4
3
2
1
2. Connect an Ethernet cable to the Ethernet port on the
mPower PRO.
8
7
6
5
4
3
2
1
The mPower PRO can be connected to your network using one
of two methods:
• Ethernet The mPower PRO is DHCP-enabled. Connect the
Ethernet cable from the mPower PRO to your LAN.
8
7
6
5
4
3
2
1
• Wi‑Fi The mPower PRO can connect to a wireless network
once Wi-Fi settings have been configured using the Ethernet
connection. For instructions, refer to the Accessing the
Configuration Portal section.
*640-00099-02*
640-00099-02
Wall-Mount
The mPower PRO includes an optional mounting plate.
1. Position the Mounting Plate on the wall with the text in
the proper orientation, and mark the mounting holes on
the wall.
Wall Mount Slide
2. Use a 6 mm drill bit to drill the holes.
3. Insert the anchors into the holes and use a Phillips
screwdriver to secure Screws through the Mounting Plate
into the Anchors.
4. Align the back of the mPower PRO with the Mounting Plate.
Slide the mPower PRO to the right to lock it into place.
1
2
3
4
5
6
7
8
Software Download and Installation
For local mFi Controller installations, the mFi Controller
software is installed just once when you initially create a
mFi network. It is not necessary to go through the software
installation process every time you add another mFi device.
The mFi Controller software can be downloaded from the
Ubiquiti Networks website.
1. Go to downloads.ubnt.com/mfi
2. Mac users should download mFi.dmg and Windows users
should download mFi‑installer.exe.
3. Follow the instructions for your computer type.
Mac Users
1. Open the mFi.dmg file.
2. Click the Install icon.
3. Click Continue and follow the on-screen instructions to
install the software.
4. Go to Go > Applications and double-click the mFi icon.
Proceed to the Configuring the mFi Controller Software section.
PC Users

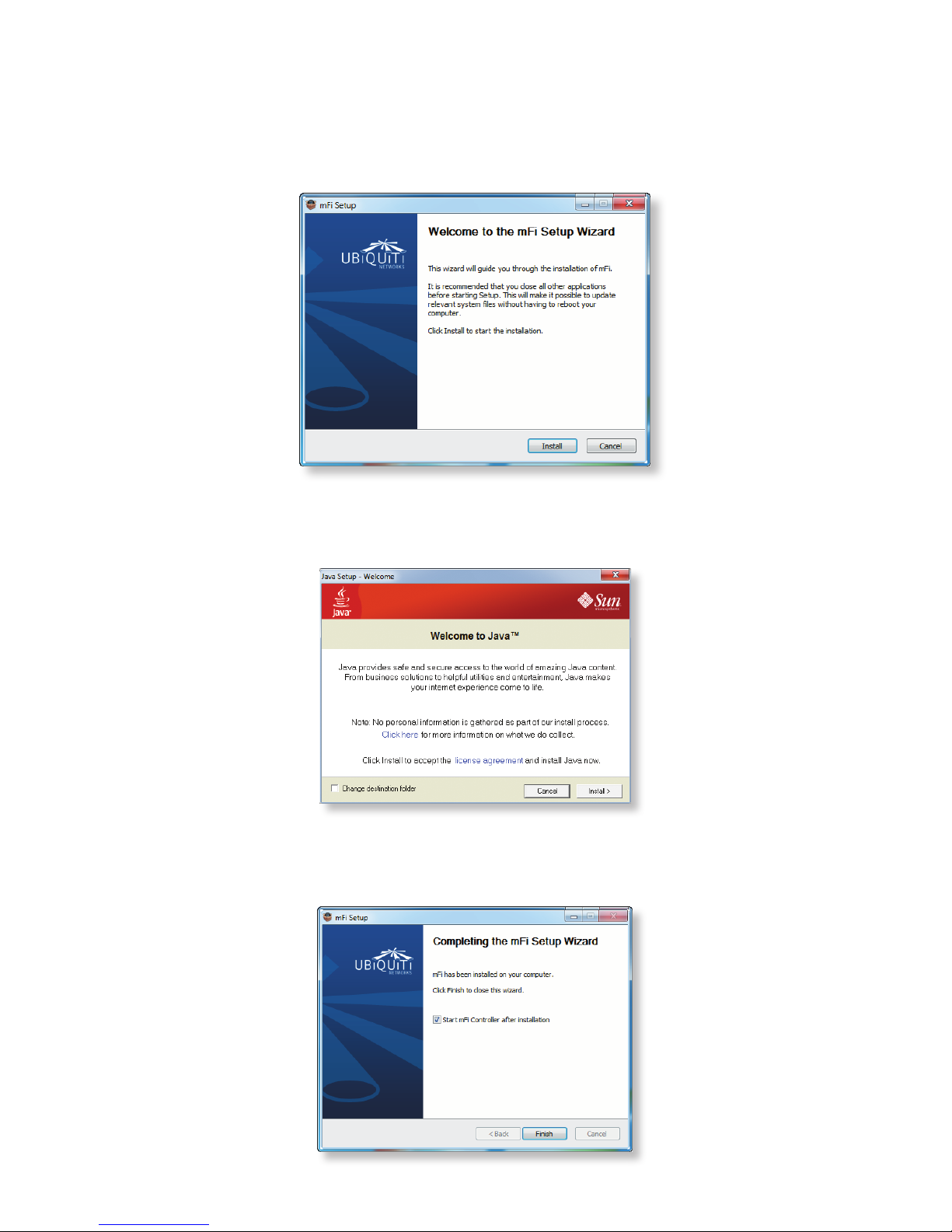

1. Launch mFi‑installer.exe.
2. Click Install.
3. If your computer doesn’t have Java 1.6 or above installed,
you will be prompted to install it. Click Install to continue.
4. Ensure the Start mFi Controller after installation option is
checked and click Finish.
