Installation sequence
Before installation remove old mortise lock and escutcheons, mark and drill holes and mortises in the door according to the lock
installation manual and template, supplied with Smart Handle
Mount strike according to the mortise lock installation instruction
DO THIS ONLY IF DOOR CONTACT WILL BE USED, OTHERWISE SKIP THIS STAGE
make opening for door contact and its wiring as shown below and install supplied Request-To-Exit micro switch according to
instructions below
Door contact installation

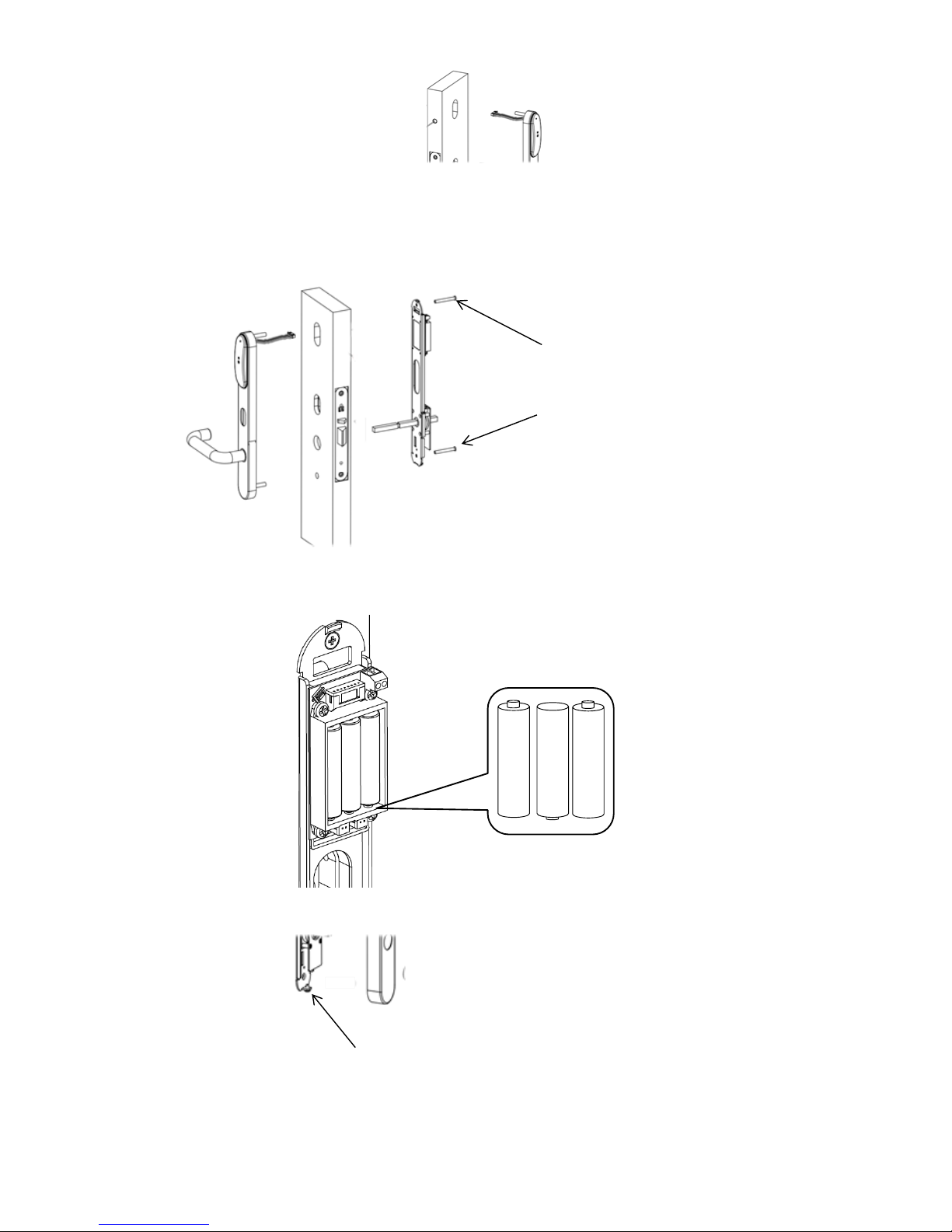

Fig. 3. Cable running model for Lockwood 3582 Mortise Lock (left) and for Lockwood 3572 Mortise Lock (right)
Door contact connection
Panel has one terminal for door contact connection. Loop is normal when
shorted that means that door is closed and signals the door opening on
breakage.
Normally panel supplied with Request-To-Exit and Door contact switched
OFF. To use Door contact install Request-To-Exit micro switch and enable
Door contact supervision during its adjustment in U-Prox IP software.
Panel defines the access point state with the door contact. It is impossible
to detect the door forced open or door opened too long access point states
without the door contact proper operation.
Panel generates the “Entry occurred” message on inner handle press when
the door contact is absent. To enable door contact set the Z1 zone as ‘Door
A’ pass direction detector.
Request-To-Exit contact connection
Normally panel supplied without installed Request-To-Exit sensor. In this
case, you must adjust Request-To-Exit micro switch on inner escutcheon
according to the figures below:
1. Unscrew 4 screws fixing handle release mechanics (Fig. 4)
2. Install micro switch into the correct position (Fig. 5)
3. Install handle release mechanics back on its place.
