U-Line 3018R Manuel d'installation

USER GUIDE & SERVICE MANUAL

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Modular 3000 Series •3018R •18" Solid Door Refrigerator

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Contents

Intro

Safety

Safety and Warning

RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

Disposal and Recycling

Installation

Environmental Requirements

Electrical

Cutout Dimensions

Product Dimensions

Side by Side Installation

Anti-Tip Bracket

General Installation

Integrated Grille / Plinth

Dimensions

Grille / Plinth Installation

Door Stop

Door Adjust

Service

Troubleshooting

Warranty

Service Extended

Wire Diagram

Product Liability

Warranty Claims

Parts

Ordering Replacement

Parts

System Diagnosis Guide

Compressor Specifications

Troubleshooting Extended

Control Quick Guide

Thermistor

Defrost

Remove Fan and Cover

Operating Instructions

First Use

Control Operation

Sabbath Mode

Airflow and Product Loading

Refrigerator Bins / Crisper

Maintenance

Cleaning

Cleaning Condenser

Extended Non-Use

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium

modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader,

delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine

use. U-Line’s complete product collection includes Wine Captain®Models, Beverage Centers, Clear Ice Machines,

Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo®Models, and more.

USER

GUIDE

u-line.com

USER GUIDE

u-line.com

U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired

innovations and attention to even the smallest details. We are known and respected for our unwavering dedication

to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product

to five continents for over two decades and is proud to have the opportunity to ship to you.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance

Documentation, and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the

following steps:

1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit

has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm

CST

T: +1.414.354.0300

F: +1.414.354.7905

Email: [email protected]

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm

CST

T: +1.800.779.2547

F: +1.414.354.5696

Service Email: onlineservice@u-

line.com

Parts Email: [email protected]

Designed, engineered and assembled in WI, USA

Introduction 1

u-line.com

USER GUIDE

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and

follow these general precautions with those listed

throughout this guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

CAUTION

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property or equipment damage.

DANGER

This unit contains R600a (Isobutane) which is a

flammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specifications” section included in the

User Guide. Do not damage the refrigerant

circuit.

WARNING

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

Safety and Warning 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Disposal and Recycling

DANGER

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take off

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

Disposal and Recycling 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications

only and is not to be used in installations that are

open/ exposed to natural elements.

This unit is designed to operate between 50°F (10°C)

and 100°F (38°C). Higher ambient temperatures may

reduce the unit’s ability to reach low temperatures

and/or reduce ice production on applicable models.

For best performance, keep the unit out of direct

sunlight and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside

surfaces. This is considered normal. The condensation

will evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

Environmental Requirements 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Electrical

WARNING

SHOCK HAZARD —Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current).

An individual, properly grounded branch circuit or

circuit breaker is recommended. A GFCI (ground fault

circuit interrupter) is usually not required for fixed

location appliances and is not recommended for your

unit because it could be prone to nuisance tripping.

However, be sure to consult your local codes.

See CUTOUT DIMENSIONS for recommended

receptacle location.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Electrical 1

Cutout Dimensions

PREPARE SITE

Your U-Line product has been designed exclusively for

a built-in installation. When built-in, your unit does

not require additional air space for top, sides, or rear.

However, the front grille must NOT be obstructed.

The product is designed and manufactured for

seamless integration in the specified cutout opening

shown, which requires precise measurements. The

opening must be square and plumb front to back.

Although not required, you may choose to increase

the overall cutout width for ease of installation.

The Modular 3000 Series units are engineered with a

variety of adjustment features to help ensure a

seamless installation. Adjustable doors, leveling legs

and grille will assist in fine tuning the installation.

All 3000 Series models fully integrate into

overlay/face frame, inset or European/frameless

cabinet styles and install seamlessly into standard 24"

(610 mm) depth cabinet base.

CAUTION

Unit can NOT be installed behind a closed

cabinet door.

CUTOUT DIMENSIONS

Metric measurements rounded and optimized.

Cutout Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Product Dimensions

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE

u-line.com

Product Dimensions 1

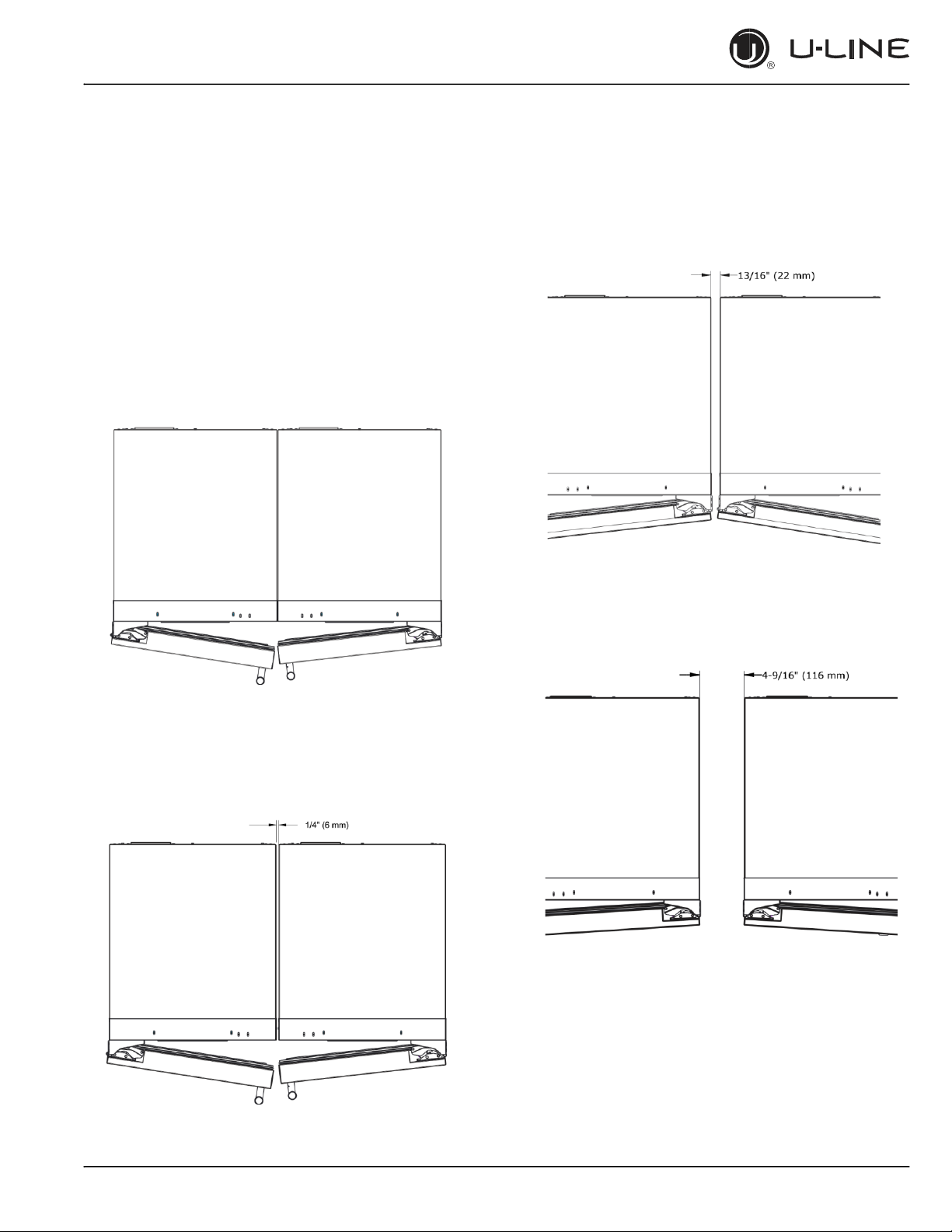

Side-by-Side Installation

OTHER SITE REQUIREMENTS

Side-by-Side Installation

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Cutout width for a side-by-side installation is the total

of the widths listed under Cutout Dimensions in each

unit’s Installation Guide. Each door can be opened

individually (one at a time) without interference.

However, to ensure unobstructed door swing

(opening both doors at the same time), 1/4" (6.4

mm) of space needs to be maintained between the

units.

Hinge-by-Hinge Installation (Mullion)

When installing two units hinge-by-hinge, 13/16" (22

mm) is required for integrated models. Additional

space may be needed for any knobs, pulls or handles

installed.

Stainless steel models which include the standard

stainless handle will require 4-9/16" (116 mm) to

allow both doors to open to 90° at the same time.

Ce manuel convient aux modèles suivants

Autres manuels U-Line Réfrigérateur

U-Line

U-Line 1224R Manuel utilisateur

U-Line

U-Line CRE427 Manuel d'installation

U-Line

U-Line U-2218RS-00A Manuel d'installation

U-Line

U-Line Echelon CLRCO2175B40 Manuel utilisateur

U-Line

U-Line 1000 SERIES Manuel utilisateur

U-Line

U-Line U-3018WCOL-00 Manuel utilisateur

U-Line

U-Line U-2224RGLS-00A Manuel d'installation

U-Line

U-Line UHBV124-SG01A Manuel d'installation

U-Line

U-Line U-2224R-00B Manuel d'installation

U-Line

U-Line Echelon CO2075DWR Manuel utilisateur

U-Line

U-Line WINE CAPTAIN U-1075WCS-00 Manuel utilisateur

U-Line

U-Line ADA24RINT00A Manuel d'installation

U-Line

U-Line U-1224FZRS-00A Manuel d'installation

U-Line

U-Line UHRI124BS01A Manuel d'installation

U-Line

U-Line U-1224RFINT-00B Manuel d'installation

U-Line

U-Line Echelon 2015WC Wine Captain Manuel utilisateur

U-Line

U-Line HWD524 Manuel utilisateur

U-Line

U-Line 1175R Manuel utilisateur

U-Line

U-Line Echelon 2275DWRR Manuel utilisateur

U-Line

U-Line U-ADA24RB-13B Manuel d'installation

U-Line

U-Line U2224RINT00B Manuel d'installation

U-Line

U-Line UARI121WS01A Manuel d'installation

U-Line

U-Line 2115WC Manuel utilisateur

U-Line

U-Line Origins 15R Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
