U-Line U-2224RGLINT-00A Manuel d'installation

USER GUIDE & SERVICE MANUAL

Model: U-2224RGLINT-00A

USER GUIDE & SERVICE MANUAL

Table of Contents

Click on any section below to jump directly there

Installation

Integrated Panel Dimensions

Integrated Panel Installation

Integrated Grille Dimensions

Grille / Plinth Installation

USER GUIDE

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide. U-Line - RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE®.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.800.779.2547

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE

Integrated Panel Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Panel Dimensions

Metric measurements rounded and optimized.

INTEGRATED FRAME

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished integrated panel that seamlessly

integrates with surrounding cabinetry.

Panel Preparation

A full integrated door panel completely covers the door

frame and provides a built-in appearance.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

1. Cut the panels to the dimensions listed in the diagram

below.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

When applying an integrated frame to a unit,

ensure that both sides are finished in order to

prevent warping. In some frame installations,

the panel may be visible through the glass while

the door is open.

Integrated Frame Dimensions

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY FRAME FLAT AND WITHOUT

INTERFERENCE

2-3/4" MIN

(70 mm MIN)

Integrated Frame

3/4"

(20 mm)

23-1/2"

(595 mm)

30"

(762 mm)

USER GUIDE

Integrated Panel Dimensions 2

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

HANDLELESS INTEGRATED FRAME

The following procedure is designed to provide a finished,

handleless frame for a 24" (600 mm) door that seamlessly

integrates with its surrounding cabinetry.

NOTE: Many cabinet manufacturers provide a ready

solution for a handleless, integrated design that can be

easily applied to your U-Line 3000 Series model. Consult

your cabinet manufacturer for applicable design and

installation details. The cabinet manufacturer’s solution to

this design and integration detail will often result in an

integrated frame solution wherein the size of the frame

may result in a height dimension taller than what we

specify. This can be achieved provided the additional

height is positioned above the appliance door.

NOTICE

The integrated frame aligns with the

surrounding cabinetry and, due to differences in

cabinetry, may not align perfectly with the door.

The appliance will need up to 34-1/2" (876 mm)

to the underside of the counter to leave room for

leveling adjustments.

A single prepared frame with insert must not

weigh more than 20 lbs (10 kg).

Integrated Frame Preparation

1. Cut the main panel to the appropriate dimensions

below. For details, see the drawings on the next page.

2. Create the top design for the handleless feature and

the 1/8" (3 mm) notch for the insert(s) indicated on the

Top Detail drawing, on the next page.

3. Prepare the insert(s) that will back up the handleless

design. Wooden Insert – Cut 1/8" (3 mm) thick

wooden insert(s) to the dimensions below.

4. Optional: Stain or finish frame and wooden insert to

desired stain or color. Be sure to closely follow the

instructions provided by the manufacturer.

NOTICE

If finishing panel or wooden insert, all sides

must be finished to prevent warping.

5. Attach the insert to the frame. Wood glue or equivalent

adhesive should be used to attach insert to frame.

Main panel width Main panel depth

23-1/2" (595 mm) 28-13/16" (732 mm)

Wooden insert width Wooden insert depth

23-1/2" (595 mm) 3-1/2" (89 mm)

Cutout

Integrated Frame

Main Panel

Wooden Insert

Top Design

and Insert Notch

Attach Wooden Insert

USER GUIDE

Integrated Panel Dimensions 3

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Handleless Integrated Frame Dimensions

3/4" (20 mm)

28-13/16"

(732 mm)

2-3/4"

(70 mm)

2-3/4"

(70 mm)

R 5/8"

(R 16 mm)

1/8"

(3 mm)

1/4" (6 mm)

Wooden Insert

Notch Depth: 1/8" (3 mm

2-3/8"

(60 mm)

7/8" (22 mm)

Ref.

Cutout

for Frame

Units

Top Detail

Insert Notch

Top Design

1/8" (3 mm)

3-1/2" (89 mm)

23-1/2"

(595 mm)

Wooden Insert Dimensions

23-1/2"

(595 mm)

USER GUIDE

Integrated Panel Dimensions 4

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

EXTENDED INTEGRATED FRAME

NOTICE

Due to differences in surrounding cabinetry the

panel may not perfectly align with door. The

procedure below is designed to provide a

finished panel that seamlessly integrates with

surrounding cabinetry.

Panel Preparation

An extended integrated panel can be used to maintain

alignment with an adjacent extended cabinet height or a

reduced toe-kick/grille application.

1. Cut the panels to the dimensions listed in the

appropriate diagram on the next page.

2. Optional: Stain or finish panel to desired stain or color.

Be sure to closely follow the instructions provided by

the manufacturer.

3. Optional: Install handles and hardware.

NOTICE

The door panel must not weigh more than 20 lbs

(10 kg).

It is important to ensure that all drilled holes are

drilled to the correct depth in order to avoid

splits in the wood when hardware is installed.

Appliance will need up to 34-1/2" (876 mm) to

the under side of the counter to leave room for

leveling adjustments.

When applying an integrated frame to a unit,

ensure that both sides are finished in order to

prevent warping. In some installations, the

panel may be visible through the glass while the

door is open.

USER GUIDE

Integrated Panel Dimensions 5

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

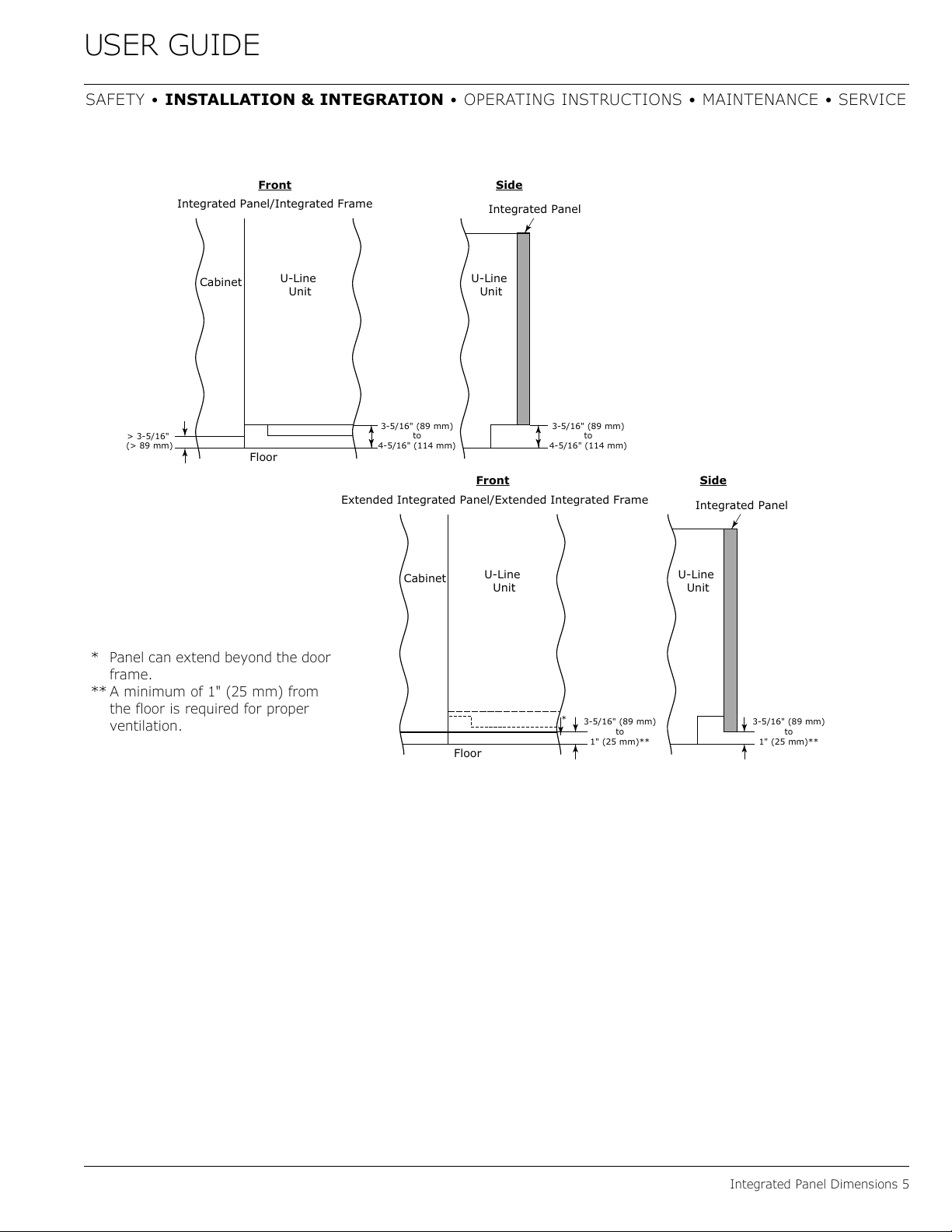

3-5/16" (89 mm)

4-5/16" (114 mm)

U-Line

Unit

U-Line

Unit

Integrated Panel

Integrated Panel/Integrated Frame

Front Side

3-5/16" (89 mm)

4-5/16" (114 mm)

Floor

Cabinet

> 3-5/16"

(> 89 mm)

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Extended Integrated Panel/Extended Integrated Frame

Floor

Cabinet

3-5/16" (89 mm)

1" (25 mm)**

U-Line

Unit

Integrated Panel

* Panel can extend beyond the door

frame.

** A minimum of 1" (25 mm) from

the floor is required for proper

ventilation.

USER GUIDE

Integrated Panel Dimensions 6

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

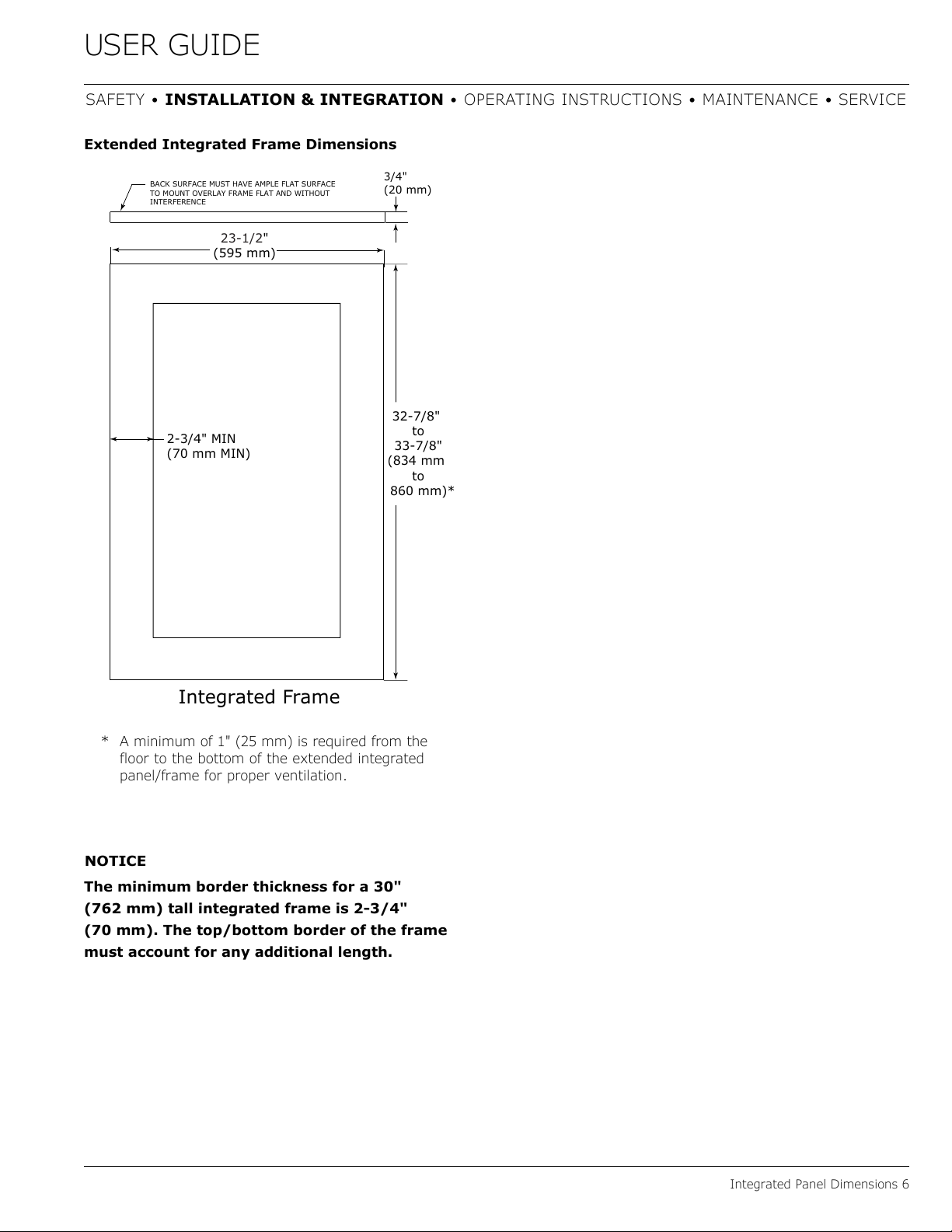

Extended Integrated Frame Dimensions

NOTICE

The minimum border thickness for a 30"

(762 mm) tall integrated frame is 2-3/4"

(70 mm). The top/bottom border of the frame

must account for any additional length.

BACK SURFACE MUST HAVE AMPLE FLAT SURFACE

TO MOUNT OVERLAY FRAME FLAT AND WITHOUT

INTERFERENCE

2-3/4" MIN

(70 mm MIN)

Integrated Frame

3/4"

(20 mm)

23-1/2"

(595 mm)

32-7/8"

33-7/8"

(834 mm

860 mm)*

* A minimum of 1" (25 mm) is required from the

floor to the bottom of the extended integrated

panel/frame for proper ventilation.

USER GUIDE

Integrated Grille - Plinth Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

Integrated Grille - Plinth

Dimensions

PREPARE AND INSTALL INTEGRATED GRILLE

(PLINTH STRIP/BASE FASCIA)

1. Use the dimensions provided in the diagram to cut and

shape your integrated grille (plinth strip/base fascia)

panel. Recommended panel thickness is between 1/4"

(6 mm) and 3/8" (9 mm).

2. Finish or stain your grille (plinth strip/base fascia)

panel to match your surrounding furniture. Finish

front, back and edges to prevent warping. Carefully

follow the manufacturer’s recommendations for finish

application and cure times.

3. Apply double sided tape to the backside of the

integrated grill (plinth strip/base fascia). Use the

diagram below for reference. U-Line recommends

3M™VHB™tape, a high strength bonding tape.

4. Remove backing paper from double sided tape.

5. Carefully align grille (plinth strip/base fascia) over

integrated panel and press into position.

INTEGRATED GRILLE (PLINTH STRIP/BASE

FASCIA) DIMENSIONS

Apply Tape To Shaded Area

23-3/4"

(605 mm)

20-5/8"

(525 mm)

1-9/16"

40 mm)

1-9/16"

(40 mm)

1" (25 mm)

3-5/16"

(84 mm)

Autres manuels U-Line Réfrigérateur

U-Line

U-Line 3000 SERIES Manuel d'installation

U-Line

U-Line 1000 Series CO1224F 24" Combo Manuel utilisateur

U-Line

U-Line BI2115SOD Guide de configuration

U-Line

U-Line U-29RW-00A Manuel d'installation

U-Line

U-Line Combo U-CO29FB-00A Manuel utilisateur

U-Line

U-Line UHRE124-WS01A Manuel d'installation

U-Line

U-Line 2260DWR Manuel d'installation

U-Line

U-Line Wine Captain UHWD524SG01A Manuel d'installation

U-Line

U-Line UMRI121-BS01A Manuel d'installation

U-Line

U-Line UHRF124WS01A Manuel d'installation

U-Line

U-Line Echelon CO2075DWR Manuel utilisateur

U-Line

U-Line U-1224RGLINT-00A Manuel d'installation

U-Line

U-Line Echelon 2175BEV Manuel du propriétaire

U-Line

U-Line 3036RR Manuel utilisateur

U-Line

U-Line CLRCO2175 Manuel utilisateur

U-Line

U-Line UACP115-IS01A Manuel d'installation

U-Line

U-Line UHRE124-SS01A Manuel d'installation

U-Line

U-Line UHRI124BS01A Manuel d'installation

U-Line

U-Line 3000 SERIES Manuel utilisateur

U-Line

U-Line U-3018WCOL-01 Manuel utilisateur

U-Line

U-Line 1175R Manuel utilisateur

U-Line

U-Line UCBR532-SS01A Manuel d'installation

U-Line

U-Line 3000 SERIES Manuel utilisateur

U-Line

U-Line U-2218RINT-00A Manuel d'installation

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
