29R Refrigerator

Installation Guide

www.U-LineService.com 202/2005

29R Refrigerator

Contents

Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Cut-Out Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Door Swing/Clearances Information . . . . . . . . . . . . . . 4

Reversing the Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Other Site Requirements . . . . . . . . . . . . . . . . . . . . . . . . 6

Custom 1/4" Thick Door Panel Insert . . . . . . . . . . . . . . 6

Checking Door Alignment . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting Door Alignment . . . . . . . . . . . . . . . . . . . . . . 7

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 8

Leveling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation of the 29R . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Grille Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Glass Shelf Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Start-Up Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 10

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

IMPORTANT

PLEASE READ all instructions completely before

attempting to install or operate the unit.

• This unit requires connection to a grounded (three-

prong), polarized receptacle that has been placed by a

qualified electrician in accordance with applicable

electrical codes.

Safety Alert Definitions

Safety items throughout this guide are labeled with a

Danger, Warning or Caution based on the risk type:

DANGER

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

WARNING

Warning means that failure to follow this safety

statement could result in serious personal injury,

or death.

CAUTION

Caution means that failure to follow this safety statement

may result in minor or moderate personal injury, property

or equipment damage.

1 Follow Safety Precautions

02/2005 3www.U-LineService.com

29R Refrigerator

General Precautions

Use this appliance for its intended purpose only and

follow these general precautions along with those listed

throughout this guide:

WARNING

SHOCK HAZARD — Electrical Grounding Required.

• Keep the unit unplugged throughout installation

except during testing.

• Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

• Never use an extension cord to connect power to

the unit.

• Always keep your working area dry.

CAUTION

• Use care when moving and handling the unit. Use

gloves to prevent personal injury from sharp edges.

• Do not lift the unit by the door or door handle.

• Do not install the unit behind closed doors or in any

way that would obstruct airflow to the front grille,

which may cause the unit to malfunction.

You have received a carton containing your 29R

Refrigerator with a package inside containing a User

Manual and a Product Registration Card. Complete and

mail the Product Registration Card or register online at

www.U-LineService.com. Once your unit is installed, keep

the User Manual and this Installation Guide in a safe place

for future reference.

29R units are available in vinyl clad cabinets with

matching doors which have a slightly contoured handle

across the top and are reversible. The doors have recessed

front panels that will accept a custom 1/4 inch thick door

panel. Units have three tempered glass shelves.

Please carefully follow the directions that apply to your

unit and your intended design.

Tools/Materials Required

• Screwdrivers — slotted and Phillips head

• 1/4-inch thick door panel material and cutting tools

Inspection

Unwrap and inspect the unit on a flat, level surface

capable of supporting its entire weight.

Exterior Cleaning

(As Required)

Black and White Models:

Black and white surfaces may be cleaned with a mild

detergent and warm water solution. Do not use solvent-

based or abrasive cleaners. Use a soft sponge and rinse

with clean water. Wipe with a soft, clean towel to prevent

water spotting.

2 Inspect and Plan

www.U-LineService.com 402/2005

29R Refrigerator

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides or rear.

However, the front grille must NOT be obstructed and

clearance is required for electrical connections in the rear.

Note: Unit can NOT be installed behind a closed cabinet

door.

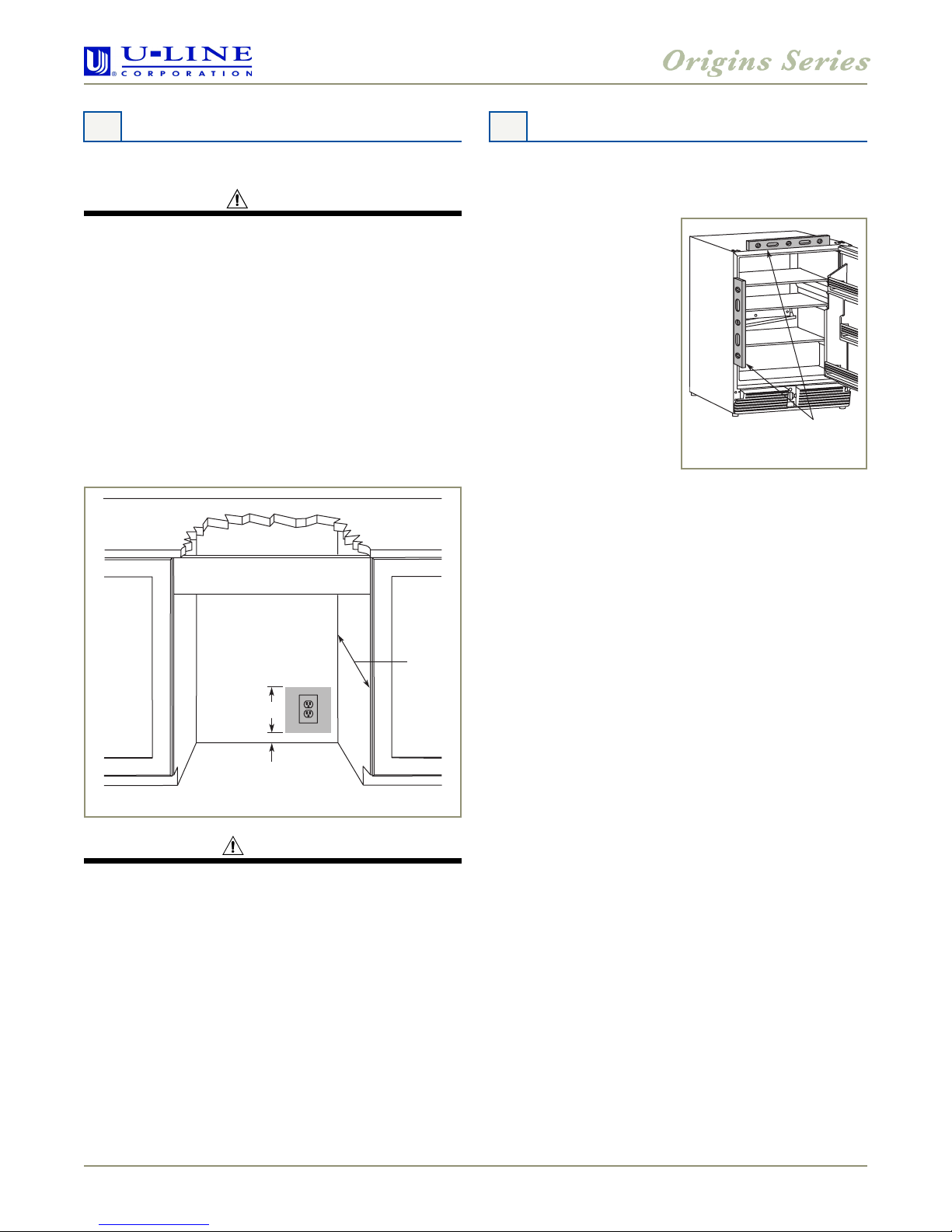

Cut-Out Dimensions

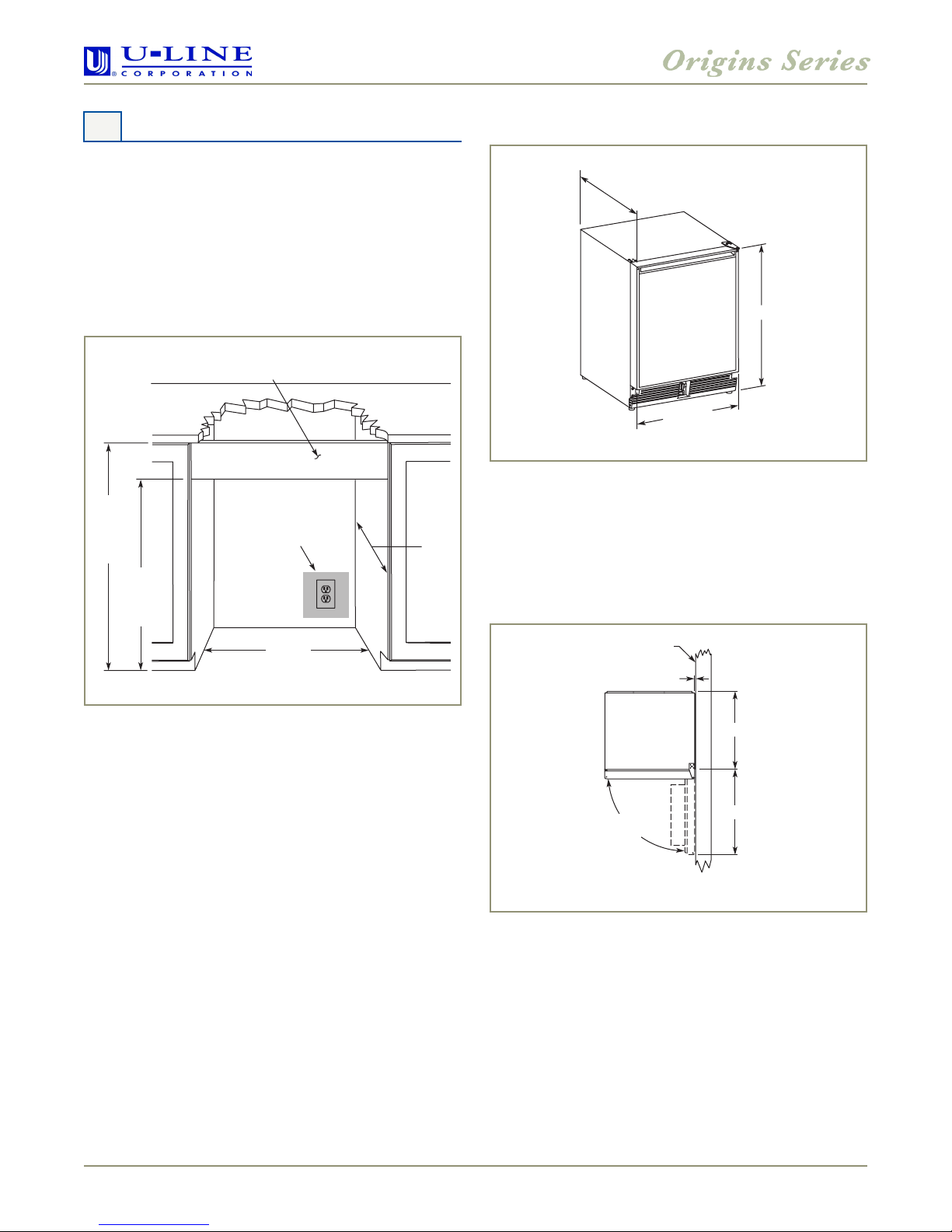

Follow the cut-out drawing in Figure 1. The 21-1/16"

width allows 1/4" for ease in installation and removal of

the unit. 24" is the counter depth in most installations.

The unit is 23" deep including the door and handle (see

Figure 2).

Note: It is recommended that the unit is level.

Product Dimensions

Door Swing/Clearances Information

Units have a zero clearance for the door to open

90° (see Figure 3). U-Line recommends a minimum door

clearance of 1/4" to accommodate the handle if the unit is

right-hand hinged and installed next to a wall or similar

type of structure.

3 Prepare Site

23"

Minimum

21-1/16"

See Electrical

Specifications

for Power Supply

Typical

Counter

Height

34-1/4"

35-1/8"

Cut-Out

Height

28-5/8"

28-7/8"

Filler Panel (Not Provided by U-Line) –

May Be Added Above or Below Unit

to Enclose for a Built-In Look

Figure 1

23"

Including

Handle

28-1/2"

20-13/16"

Figure 2

1/4" Min.

Wall

90°

Door Swing

20-7/16"

22-3/8"

Figure 3

02/2005 5www.U-LineService.com

29R Refrigerator

Reversing the Door

All units may be left- or right-hand opening.

Note: The grille should not yet be installed. If it has been

installed, remove it for door reversing. See Page 9.

To reverse the door:

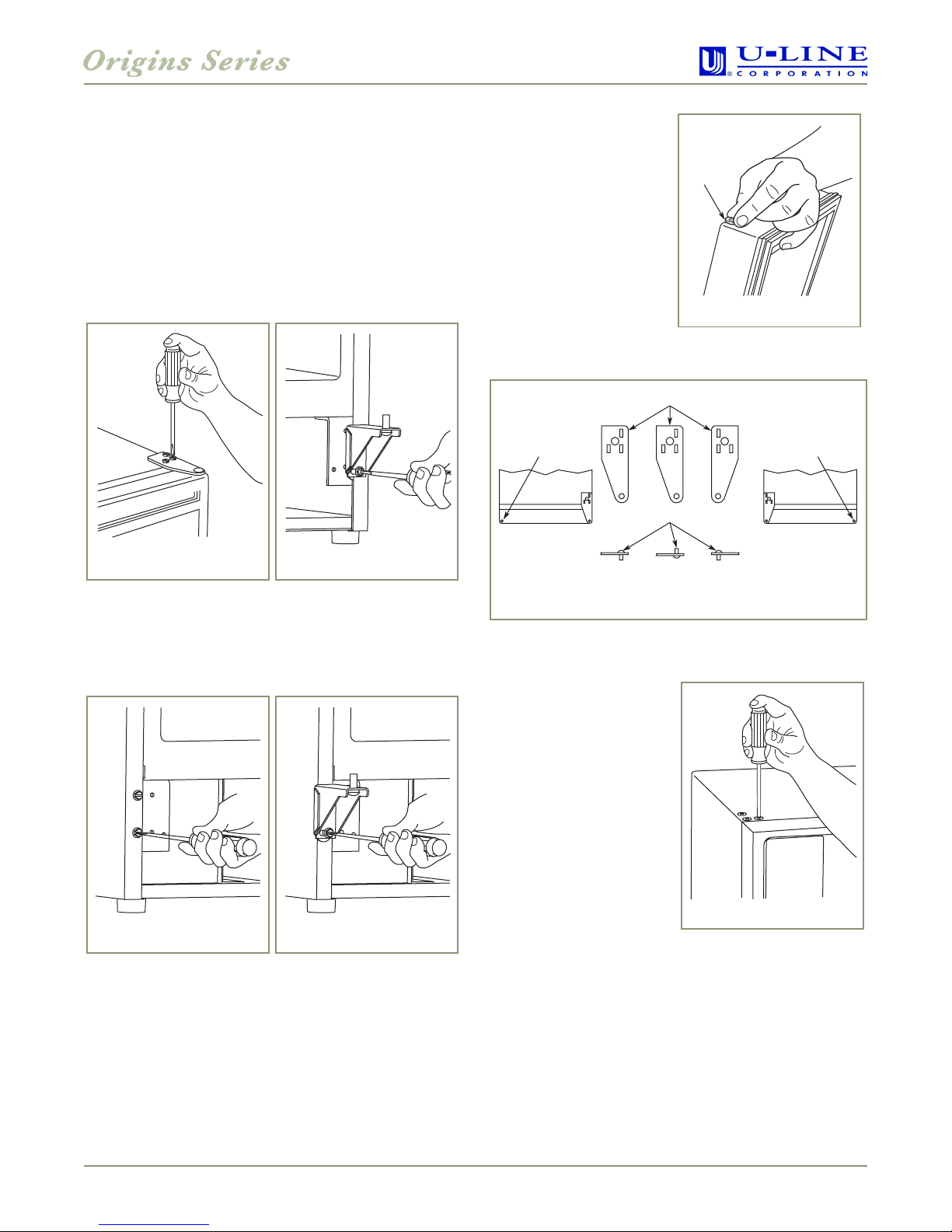

1. Remove top hinge from cabinet (three screws). See

Figure 4. Hold door to keep it from falling.

2. Lift the door off the bottom hinge.

3. Remove bottom hinge from cabinet (two screws). See

Figure 5

. Remove screws on opposite side of cabinet

(

Figure 6

). Note that there may be a nut behind one or

both screws on either side.

4. Install hinge on opposite side, bottom of cabinet. See

Figure 7

. Replace nut on back side where installed.

Align hinge outer edge with cabinet before tightening

screws.

5. Relocate plastic spacer/

bushing on bottom of

door to opposite side,

and place door on

bottom hinge pin. See

Figure 8

. Clean out

bushing hole in door

bottom with a

screwdriver if necessary.

6. Remove plastic hole

plug from door handle

and relocate on

opposite side. See

Figure 9

7. Remove pivot screw from top hinge, invert screw and

reinstall pivot screw in top hinge. See

Figure 9

8. Remove three plastic

screw plugs from hinge

holes, top of cabinet,

opposite side. Be careful

not to scratch cabinet.

See

Figure 10

9. Place door on lower

hinge pin. Invert and

install upper hinge on

door.

Figure 4 Figure 5

Figure 6 Figure 7

Bushing

Figure 8

Plastic

Plug Hole

Plastic

Plug Hole

Hinge

Screw

Right Side

Door Swing

Right Side

Hinge

Invert

Screw

Invert

Hinge

Left Side

Door Swing

Figure 9

Figure 10

www.U-LineService.com 602/2005

29R Refrigerator

10. Fasten upper hinge to

unit (three screws).

Partially tighten screws.

See

Figure 11

11. Adjust door to assure

proper seal. Tighten

upper and lower hinge

screws securely.

12. Replace three plastic

plugs removed in Step 8

into holes on top of

unit. Replace screws in

holes in bottom of unit

on opposite side.

Other Site Requirements

Power Supply

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A circuit (normal household current). See

Electrical Specifications on Page 8.

Environmental Requirements

The surrounding air temperature must be at least 50°F

(10°C) but must not exceed 110°F (40°C). Units may be

installed outdoors in a covered area. The unit must not be

located near heat-generating equipment or in direct

sunlight.

Units will accept a Custom 1/4" Thick Insert to harmonize

with or accent the surrounding decor.

If this treatment is not included in this installation, go on

to 5 Adjust Door.

Custom 1/4" Thick Door Panel Insert

Door Panel Preparation

A custom door panel can be inserted into the doorframe.

Custom door panels can be flat or raised, as long as the

maximum panel thickness where inserted into the door

reveal (channel) is 1/4"-thick. For raised panels, the depth

of the reveal is 1/4" on all four sides.

IMPORTANT

Raised panels will reduce the door’s 90° swing/zero

clearance if the unit is installed next to a wall or similar

type of structure (see Page 4).

Cut the panel insert to the following dimensions.

Custom 1/4" Dimensions:

Width: 19-13/16"

Height: 21-13/32"

The door panel must not weigh more than 20 lbs.

Door Panel Installation

Install the insert as follows:

CAUTION

Use care when handling the insert. Insert edges may be

sharp.

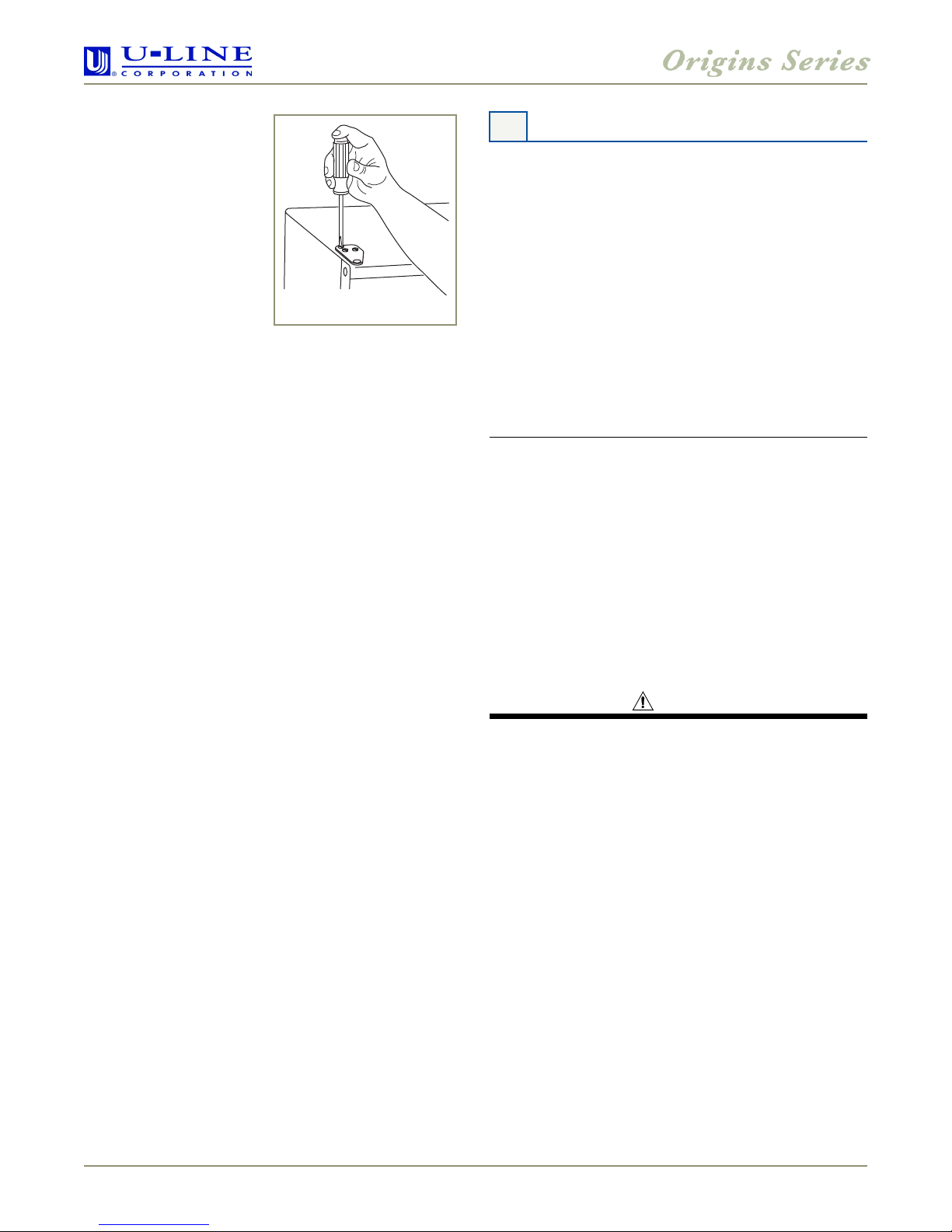

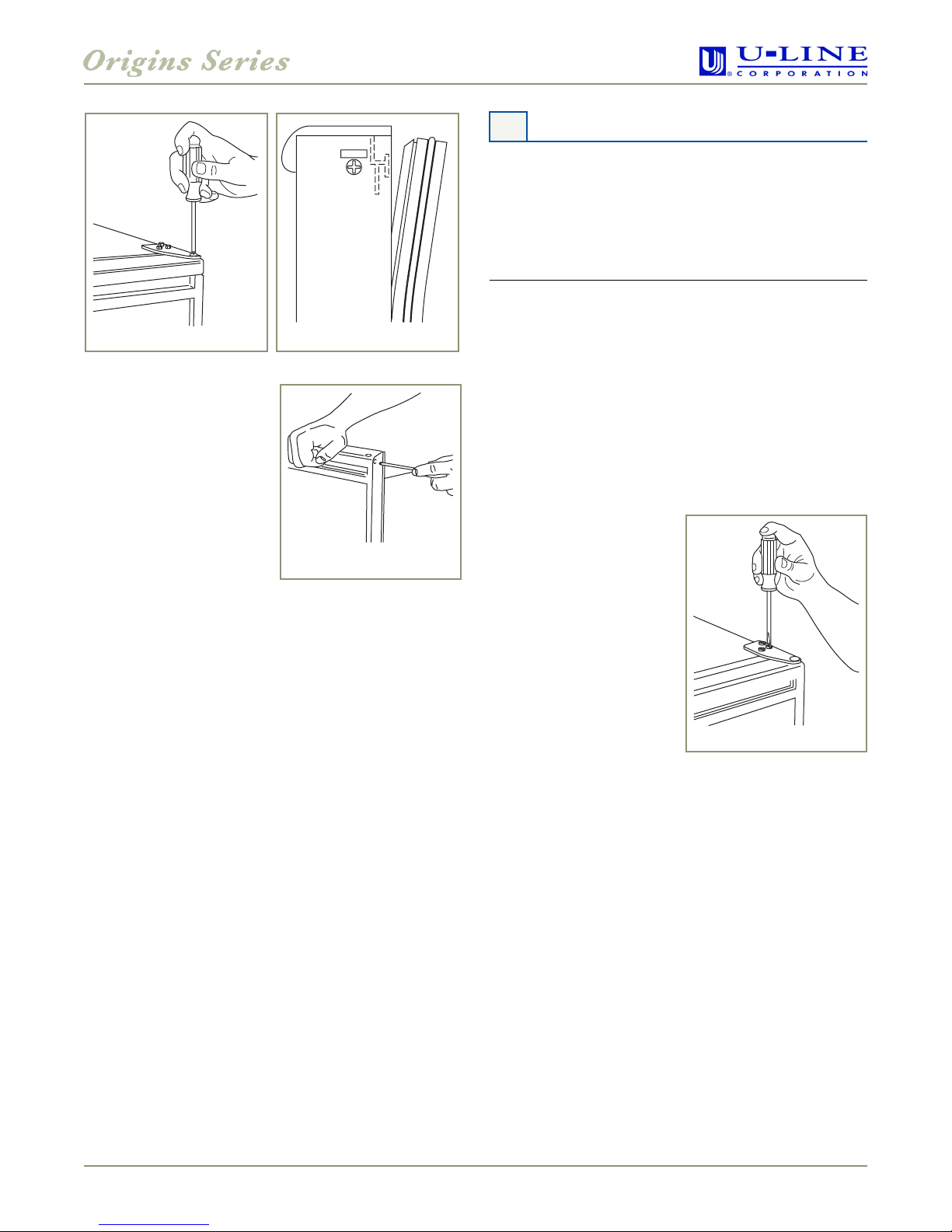

Remove top hinge screw pin with a Phillips head

screwdriver. Remove door by tilting forward and lifting

off bottom hinge pin.

Figure 11

4 Prepare and Install Door Panel

02/2005 7www.U-LineService.com

29R Refrigerator

2. Pull door gasket out of

groove (top edge of door

only). Start in the middle

and pull outward, moving

toward the edge (see

Figure 13

). This may take

some force.

3. Remove two outside

screws holding door

handle. Slightly separate

door handle from door

(see

Figure 14

4. Pull handle up and off.

5. Slide custom door panel insert into 1/4-inch channel in

door front.

6. Holding door gasket out of the way, replace handle on

door, making sure it is seated properly on insert and

that screw holes line up.

7. Install two small screws removed in

Step 3

8. Starting at the corners and working inward, push door

gasket into place on door.

9. Place door on bottom hinge pin and install upper hinge

screw.

10. Go on to

5 Adjust Door

Checking Door Alignment

The unit’s door is aligned at the factory before shipment.

However, its alignment could have been disturbed during

shipment or during door panel installation.

IMPORTANT

Properly aligned, the door's gasket should be firmly in

contact with the cabinet all the way around the door (no

gaps).

1. Carefully examine the door's gasket to assure that it is

firmly in contact with the cabinet.

Note: When inspecting door alignment, make sure the

door gasket is not pinched on the hinge side of the door.

2. If the door is properly aligned, go on to

6 Prepare

Power Supply

. If it is not, use the following procedure.

Adjusting Door Alignment

1. Loosen (do not remove)

top and bottom hinge

screws. See Figure 15.

2. Align door squarely with

cabinet. Make sure gasket

is firmly in contact with

cabinet all the way around

the door (no gaps).

3. Tighten bottom hinge

screws.

4. Tighten top hinge screws.

Go on to

6 Prepare

Power Supply

Figure 12 Figure 13

Figure 14

5 Adjust Door

Figure 15

www.U-LineService.com 802/2005

29R Refrigerator

Electrical Specifications

CAUTION

Electrical installation must observe all state and local

codes. This unit requires connection to a grounded (three-

prong), polarized receptacle that has been placed by a

qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current).

An individual, properly grounded branch circuit or circuit

breaker is recommended. GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

a GFCI could be prone to nuisance tripping. However, be

sure to consult your local codes.

See Figure 16 for recommended receptacle location.

WARNING

SHOCK HAZARD — Electrical Grounding Required.

• Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

• Never use an extension cord to connect power to

the unit.

Go on to 7 Level the Unit.

Leveling Information

Note: It is recommended that the unit is level.

Use a level to check the

levelness of the unit from

front to back and from side

to side. Level should be

placed along top edge and

side edge as shown (see

Figure 17). Go on to

8 Install the Unit.

6 Prepare Power Supply

23"

Minimum

1-1/2"

Figure 16

7 Level the Unit

Check

Level

Figure 17

02/2005 9www.U-LineService.com

29R Refrigerator

Installation of the 29R

Plug in the power cord.

2. Gently push the unit into position. Be careful not to

entangle the electrical cord.

3. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" below the

countertop or filler panel.

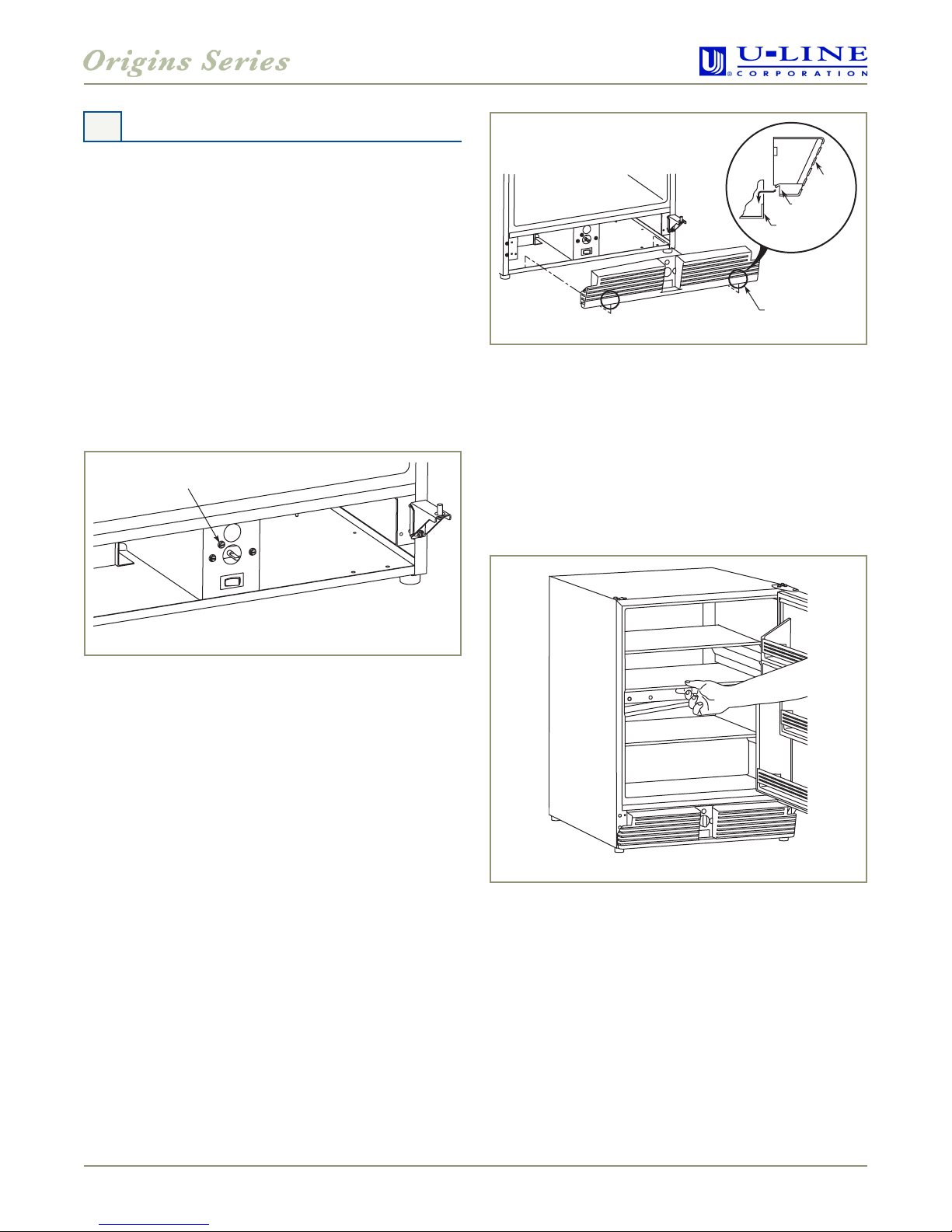

Grille Installation

1. Locate and remove the grille screw from the cabinet,

using a standard blade screwdriver (or a 1/4"

nutdriver). See Figure 18

2. Remove the control knob by pulling it away from the

cabinet.

3. Identify the grille screw hole on the grille itself. It is

located toward the top of the middle recessed section

of the grille.

4. Place the two hook-hinges (located on the rear bottom

side of the grille) onto the front lip of the unit base.

Swing the grille up into position, aligning the grille

screw hole on the grille to the grille screw hole on the

cabinet. See

Figure 19

5. Insert the screw. Do not overtighten.

6. Reinstall control knob.

Glass Shelf Installation

1. Carefully remove the glass shelves from the packaging.

2. Slide the shelves onto lower sets of ribs, making sure

the decorative graphics are on the underside of the

shelves. While edge strips go toward the rear and silver

edge strips go toward the front. See

Figure 20

8 Install the Unit

Grille Screw

Figure 18

Hook-Hinge

Unit Base

Front Lip

Grille

Figure 19

Figure 20

Publication No. 30065E

02/2005

U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in

undercounter icemakers, Combo®icemaker/refrigerators, Wine Captain®wine storage units,

refrigerators, refrigerated drawers and refrigerator/freezers.

For more than four decades, U-Line has distinguished itself as the leader in built-in

undercounter ice making, refrigeration and wine storage appliances.

Initial Start-Up

The unit is shipped with the control preset to a mid-point

setting between 4 and 5. Assure that setting was not

altered in shipment. No other adjustments should be

necessary at this time. For information about Adjusting

the Temperature Control, see the User Manual.

Start-Up Troubleshooting

Problem

Unit does not appear to turn on when plugged in.

Solution

Make sure outlet has power (circuit breaker has not

tripped). Be sure that control is not turned to the off

position. Make sure the on/off switch is turned on.

IMPORTANT

See the User Manual’s Troubleshooting Guide for more

solutions.

Who to Call

Service Information

If the need for service arises, contact the dealer from

whom the unit was purchased. State the Model Number

and Serial Number and explain the problem. The Model

and Serial Number plate is located inside unit at upper

right hand corner.

If you need to locate a service company, you can go online

at www.U-LineService.com and search for a service

company by zip code.

9 Start-Up for the First Time

Autres manuels pour 29R

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels U-Line Réfrigérateur

U-Line

U-Line WINE CAPTAIN 2175BEVC Manuel utilisateur

U-Line

U-Line Combo U-CO29FB-00A Manuel utilisateur

U-Line

U-Line WINE CAPTAIN 2275DWRCOL Manuel utilisateur

U-Line

U-Line U-2245RINT-00B Manuel utilisateur

U-Line

U-Line 3024DWR Manuel utilisateur

U-Line

U-Line U2224RGLINT00B Manuel d'installation

U-Line

U-Line UHRE524S Manuel d'installation

U-Line

U-Line U-29RW-15A Manuel utilisateur

U-Line

U-Line Origins Series Instructions de construction

U-Line

U-Line 2218RGL Manuel utilisateur

U-Line

U-Line CLRCO2075 Mode d’emploi

U-Line

U-Line 1175R Manuel utilisateur

U-Line

U-Line UORE124-S01A Manuel d'installation

U-Line

U-Line Commercial UCBR572-SG01A Manuel d'installation

U-Line

U-Line UMRI121-BS01A Manuel d'installation

U-Line

U-Line BI2115SOD Guide de configuration

U-Line

U-Line Origins 1175BEVS00 Manuel utilisateur

U-Line

U-Line Overlay Drawer Panel Mode d'emploi

U-Line

U-Line U-2175BEVCOL-00 Manuel utilisateur

U-Line

U-Line UMRI121-WS02A Manuel utilisateur

U-Line

U-Line U-1224DWRS-00B Manuel d'installation

U-Line

U-Line U-1024WCS-00B Manuel d'installation

U-Line

U-Line SP 18 Manuel utilisateur

U-Line

U-Line 29R Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
