U-Line UHBV124 Manuel d'installation

USER GUIDE & SERVICE MANUAL

1 Class ●UHBV124 ●24” Beverage Center

USER GUIDE & SERVICE MANUAL

u-line.com

Table of Contents

Intro

Safety

Safety and Warning

Disposal And Recycling

Installation

Environmental Requirements

Electrical

Cutout & Product Dimensions

Side by Side Installation

Anti-Tip Bracket

General Installation

Grille Installation

Door Swing

Door Adjust

Maintenance

Free Standing Kit

Cleaning

Cleaning Condenser

Extended Non-Use

Operating Instructions

First Use

Control Operation

Airflow and Product Loading

Recommended Wine Storage

Service

Wine Rack Installation

Warranty

USER GUIDE u-line.com

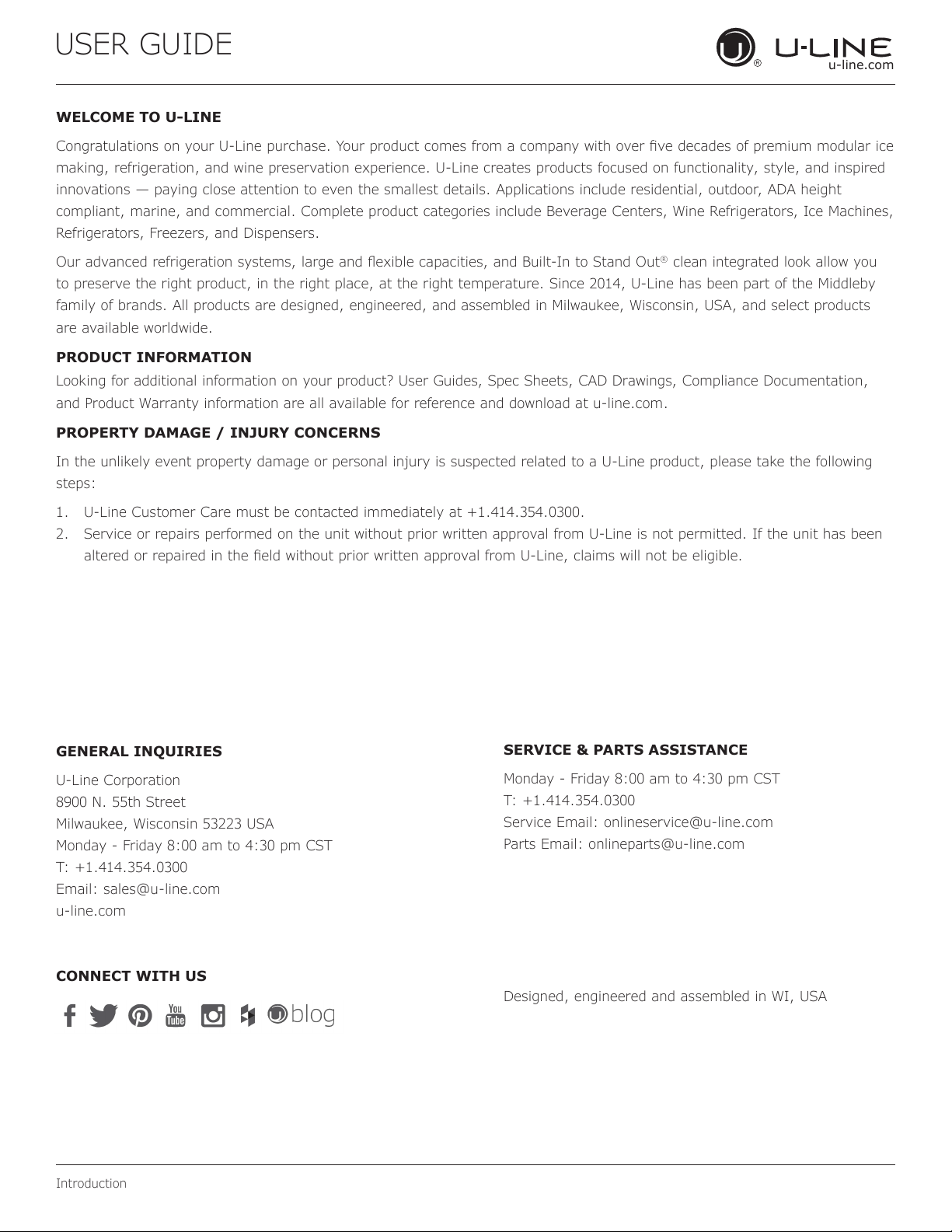

Introduction

WELCOME TO U-LINE

Congratulations on your U-Line purchase. Your product comes from a company with over ve decades of premium modular ice

making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and inspired

innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA height

compliant, marine, and commercial. Complete product categories include Beverage Centers, Wine Refrigerators, Ice Machines,

Refrigerators, Freezers, and Dispensers.

Our advanced refrigeration systems, large and exible capacities, and Built-In to Stand Out®clean integrated look allow you

to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby

family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products

are available worldwide.

PRODUCT INFORMATION

Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance Documentation,

and Product Warranty information are all available for reference and download at u-line.com.

PROPERTY DAMAGE / INJURY CONCERNS

In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following

steps:

1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.

2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been

altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.

GENERAL INQUIRIES

U-Line Corporation

8900 N. 55th Street

Milwaukee, Wisconsin 53223 USA

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Email: sales@u-line.com

u-line.com

CONNECT WITH US

SERVICE & PARTS ASSISTANCE

Monday - Friday 8:00 am to 4:30 pm CST

T: +1.414.354.0300

Service Email: onlineservice@u-line.com

Parts Email: onlineparts@u-line.com

Designed, engineered and assembled in WI, USA

USER GUIDE u-line.com

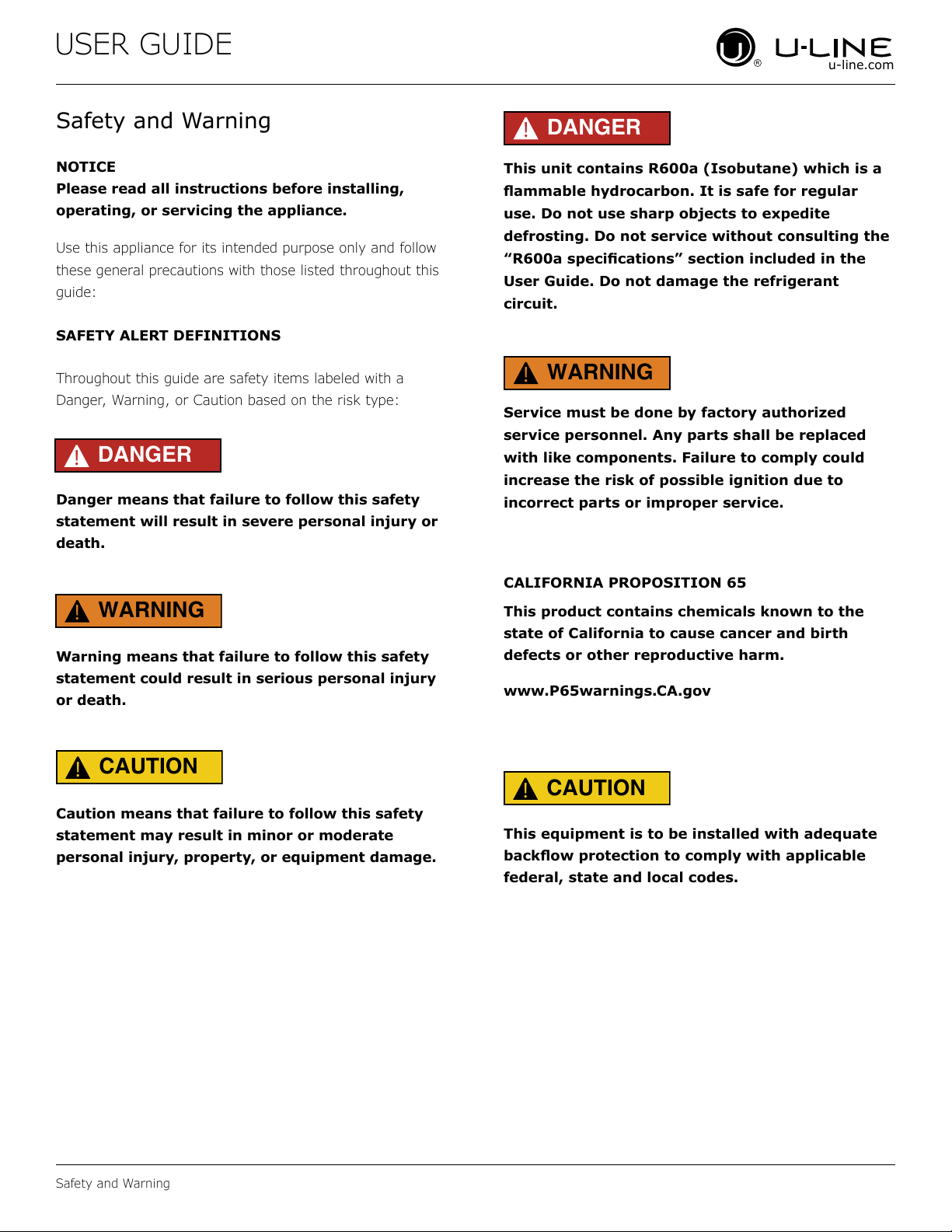

Safety and Warning

NOTICE

Please read all instructions before installing,

operating, or servicing the appliance.

Use this appliance for its intended purpose only and follow

these general precautions with those listed throughout this

guide:

SAFETY ALERT DEFINITIONS

Throughout this guide are safety items labeled with a

Danger, Warning, or Caution based on the risk type:

Danger means that failure to follow this safety

statement will result in severe personal injury or

death.

Warning means that failure to follow this safety

statement could result in serious personal injury

or death.

Caution means that failure to follow this safety

statement may result in minor or moderate

personal injury, property, or equipment damage.

This unit contains R600a (Isobutane) which is a

ammable hydrocarbon. It is safe for regular

use. Do not use sharp objects to expedite

defrosting. Do not service without consulting the

“R600a specications” section included in the

User Guide. Do not damage the refrigerant

circuit.

Service must be done by factory authorized

service personnel. Any parts shall be replaced

with like components. Failure to comply could

increase the risk of possible ignition due to

incorrect parts or improper service.

CALIFORNIA PROPOSITION 65

This product contains chemicals known to the

state of California to cause cancer and birth

defects or other reproductive harm.

www.P65warnings.CA.gov

This equipment is to be installed with adequate

backow protection to comply with applicable

federal, state and local codes.

DANGER

WARNING

CAUTION

WARNING

USER GUIDE u-line.com

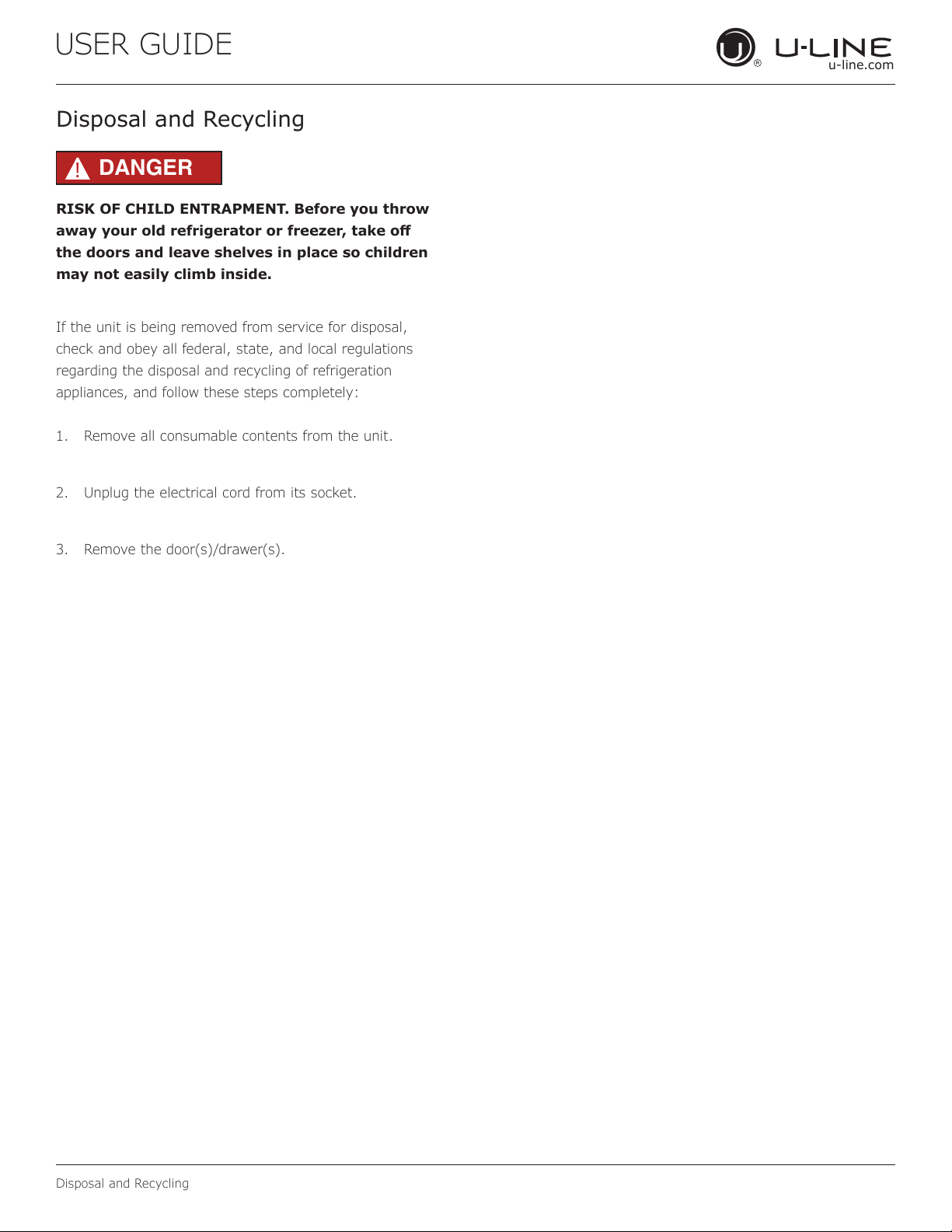

Disposal and Recycling

RISK OF CHILD ENTRAPMENT. Before you throw

away your old refrigerator or freezer, take o

the doors and leave shelves in place so children

may not easily climb inside.

If the unit is being removed from service for disposal,

check and obey all federal, state, and local regulations

regarding the disposal and recycling of refrigeration

appliances, and follow these steps completely:

1. Remove all consumable contents from the unit.

2. Unplug the electrical cord from its socket.

3. Remove the door(s)/drawer(s).

DANGER

USER GUIDE

Environmental Requirements

u-line.com

Environmental Requirements

This model is intended for indoor/interior applications only

and is not to be used in installations that are open/

exposed to natural elements.

This unit is designed to operate between 50°F (10°C) and

100°F (38°C). Higher ambient temperatures may reduce

the unit’s ability to reach low temperatures and/or reduce

ice production on applicable models.

For best performance, keep the unit out of direct sunlight

and away from heat generating equipment.

In climates where high humidity and dew points are

present, condensation may appear on outside surfaces.

This is considered normal. The condensation will

evaporate when the humidity drops.

CAUTION

Damages caused by ambient temperatures of

40°F (4°C) or below are not covered by the

warranty.

USER GUIDE

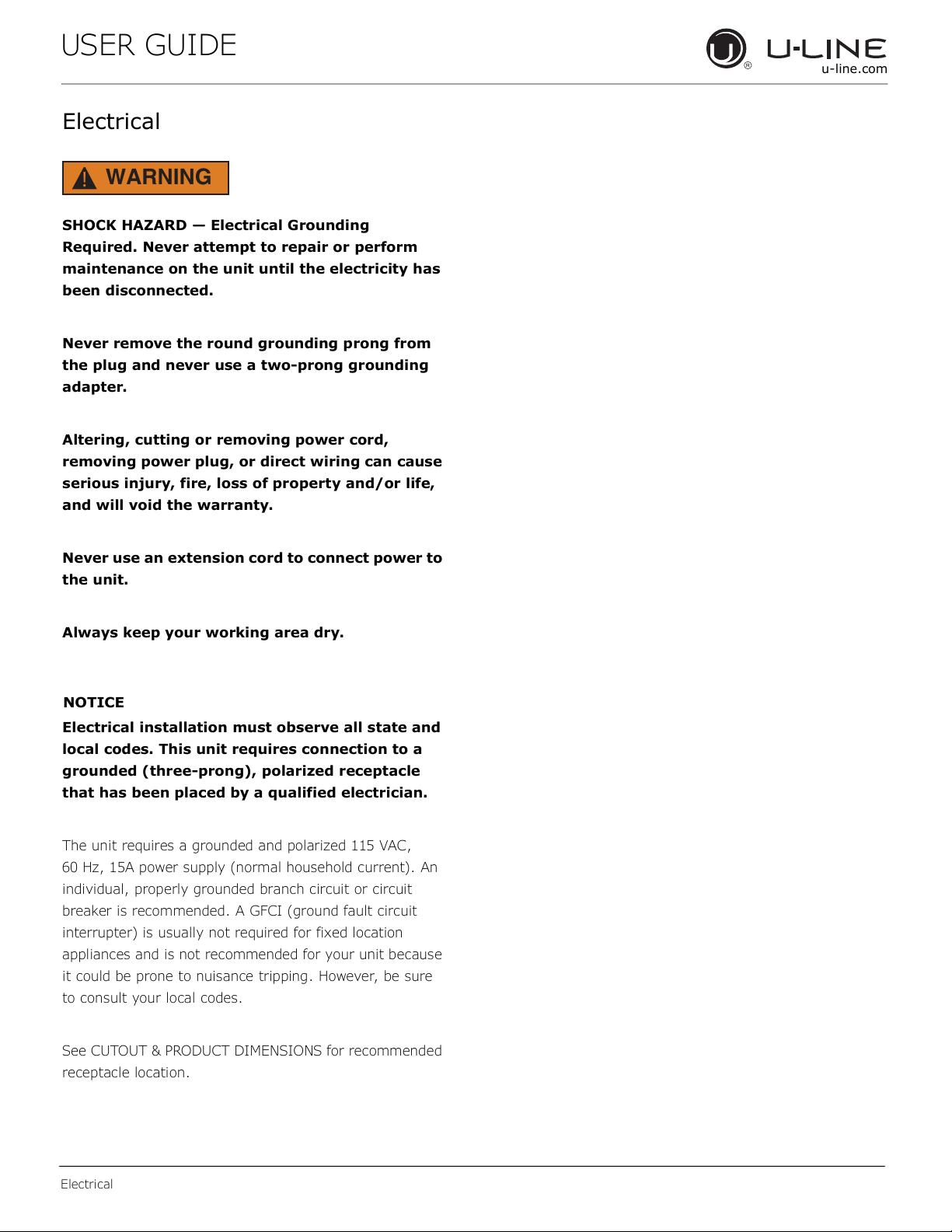

Electrical

u-line.com

Electrical

WARNING

SHOCK HAZARD — Electrical Grounding

Required. Never attempt to repair or perform

maintenance on the unit until the electricity has

been disconnected.

Never remove the round grounding prong from

the plug and never use a two-prong grounding

adapter.

Altering, cutting or removing power cord,

removing power plug, or direct wiring can cause

serious injury, fire, loss of property and/or life,

and will void the warranty.

Never use an extension cord to connect power to

the unit.

Always keep your working area dry.

NOTICE

Electrical installation must observe all state and

local codes. This unit requires connection to a

grounded (three-prong), polarized receptacle

that has been placed by a qualified electrician.

The unit requires a grounded and polarized 115 VAC,

60 Hz, 15A power supply (normal household current). An

individual, properly grounded branch circuit or circuit

breaker is recommended. A GFCI (ground fault circuit

interrupter) is usually not required for fixed location

appliances and is not recommended for your unit because

it could be prone to nuisance tripping. However, be sure

to consult your local codes.

See CUTOUT & PRODUCT DIMENSIONS for recommended

receptacle location.

USER GUIDE u-line.com

Cutout & Product Dimensions

12 ⁄”

(321 mm)

17 ¾”

(451 mm)

22 ½”

(572 mm)

27”

(686 mm)

22 ½”

(572 mm)

24 ⁄”

(613 mm)

”

(25 mm)

Cutout & Product Dimensions

PREPARE SITE

Your U-Line product has been designed for either free-

standing or built-in installation. When built-in, your unit

does not require additional air space for top, sides, or

rear. However, the front grille must NOT be obstructed,

and clearance is required for an electrical connection in

the rear.

CAUTION

Unit can NOT be installed behind a closed cabinet

door.

CUTOUT DIMENSIONS

PRODUCT DIMENSIONS

REAR

FRONT

TOP

SIDE

(102 mm)

(178 mm)

24"

(610 mm)

24 1⁄4"

(616 mm)

34 1⁄8"

(867 mm)

35 1⁄8"

(892 mm)

Preferred location

for electrical outlet

is in adjacent

cabinet.

5/8"

(16 mm)

Power Cord

6 ft (183 cm)

6 ⁄”

(162 mm)

3 ⁄”

(98 mm)

23 ⁄”

(608 mm)

3 ⁄”

(91 mm)

34 ⁄” to 35 ⁄”

(867 mm to

892 mm)

28”

(711 mm)

1 ⁄”

(48mm)

20 ½”

(521 mm)

24 ½”

(622mm)

20 ⁄”

(530 mm)

USER GUIDE

Side-by-Side Installation

u-line.com

Side-by-Side Installation

Two units may be installed side-by-side.

Cutout width for a side-by-side installation is the cutout

dimension of a single unit times two.

No trim kit is required. However, 1/4" (6 mm) of space

needs to be maintained between the units to ensure

unobstructed door swing.

Units must operate from separate, properly grounded

electrical receptacles placed according to each unit’s

electrical specifications requirements.

Side-by-Side Installation with Bracket

1. Slide both units out so screws on top of units are easily

accessible.

2. Remove screws as shown below.

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push units into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Re-check the leveling, from front to back and side to

side. Make any necessary adjustments. The unit’s top

surface should be approximately 1/8" (3 mm) below

the countertop.

USER GUIDE u-line.com

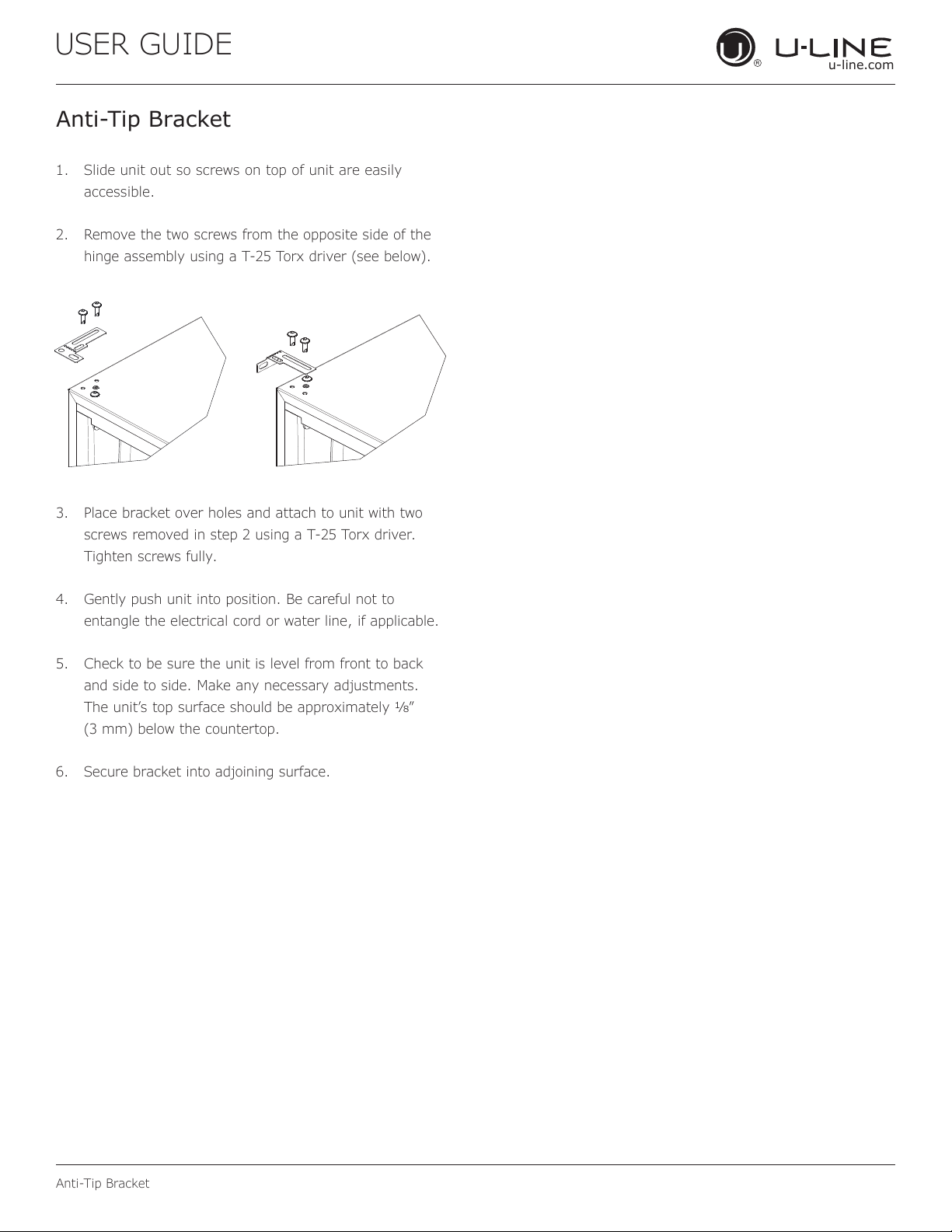

Anti-Tip Bracket

1. Slide unit out so screws on top of unit are easily

accessible.

2. Remove the two screws from the opposite side of the

hinge assembly using a T-25 Torx driver (see below).

3. Place bracket over holes and attach to unit with two

screws removed in step 2 using a T-25 Torx driver.

Tighten screws fully.

4. Gently push unit into position. Be careful not to

entangle the electrical cord or water line, if applicable.

5. Check to be sure the unit is level from front to back

and side to side. Make any necessary adjustments.

The unit’s top surface should be approximately 1⁄8”

(3 mm) below the countertop.

6. Secure bracket into adjoining surface.

Table des matières

Autres manuels U-Line Appareils de cuisine

U-Line

U-Line Wine Captain 1115WC Manuel utilisateur

U-Line

U-Line MINI PAK'R H-1604 Manuel utilisateur

U-Line

U-Line UHWC024 Manuel d'installation

U-Line

U-Line 1224WC Manuel utilisateur

U-Line

U-Line Wine Captain 3000 Series Manuel d'installation

U-Line

U-Line UCDE224 Manuel d'installation

U-Line

U-Line UACP115-IS01A Manuel utilisateur

U-Line

U-Line Wine Captain UHWC515SG01A Manuel d'installation

U-Line

U-Line Wine Captain U2218WCS00B Manuel d'installation

U-Line

U-Line U-2224ZWC Manuel d'installation

U-Line

U-Line 2000 SERIES Manuel utilisateur

U-Line

U-Line UHBV518 Manuel d'installation

U-Line

U-Line Wine Captain 1000 Series Manuel d'installation

U-Line

U-Line U-1215WCB-00B Manuel d'installation

U-Line

U-Line UHBV518IG01A Manuel utilisateur

U-Line

U-Line Wine Captain UHWC524IG01A Manuel d'installation

U-Line

U-Line Wine Captain UHWC524 Manuel d'installation

U-Line

U-Line UCBR552-SS01A Manuel d'installation

U-Line

U-Line WINE CAPTAIN 1175BEV Manuel utilisateur

U-Line

U-Line 5 Class UHBV515 Manuel d'installation

U-Line

U-Line UHWC115SG01A Manuel d'installation

U-Line

U-Line Wine Captain Modular 3000 Series Manuel utilisateur

U-Line

U-Line UHBV115-SG01A Manuel d'installation

U-Line

U-Line U-2218WCS-00A Manuel d'installation

Manuels Appareils de cuisine populaires d'autres marques

Tayama

Tayama TYG-35AF Manuel utilisateur

AEG

AEG 43172V-MN Manuel utilisateur

REBER

REBER Professional 40 Guide de l'utilisateur

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuel utilisateur

Presto

Presto fountain popper Manuel utilisateur

Westmark

Westmark 1035 2260 Manuel utilisateur

Zanussi

Zanussi ZCG64396XA Manuel utilisateur

HOFFEN

HOFFEN SM-9302M Manuel utilisateur

Philips

Philips HD3133 Manuel utilisateur

Ronco

Ronco Beef Jerky Manuel utilisateur

Hendi

Hendi 470411 Manuel utilisateur

Livoo

Livoo MEN386 Manuel utilisateur

Vogue

Vogue D446 Manuel utilisateur

croydon

croydon WR-10313-700 Manuel utilisateur

ADE

ADE AUTOMATIC-L Manuel utilisateur

Chefman

Chefman RJ43-SQ Series Manuel utilisateur

Vacmaster

Vacmaster VP680 Manuel utilisateur

Jetmaster

Jetmaster 900HG Manuel utilisateur
