Typical YSC-8331 Manuel utilisateur

YSC-8331

USER MANUAL

XI’AN TYPICAL INDUSTRIES CO.,LTD.

Contents Page

1 Notice

1.1 Work environment

1.2 Notice of installation

1.3 Notice of safety

2 Power Connection

2.1 Single phase 220V power connection

2.2 Three phase 380V power connection

3 Connector Diagram

4 Function of Operation Box

5 Operation of the Normal Function

5.1 Free sewing mode

5.2 Bar tacking mode

5.3 Program mode

5.4 Parameter setup

5.5 Parameter recover

5.6 Adjust LED lightness

6 General Parameter Table (part)

6.1 Speed parameter

6.2 Time parameter

6.3 Enable parameter

6.4 Degree parameter

6.5 Special parameter

6.6 Important parameter

6.7 Network parameter

6.8 USB parameter

6.9 Admin parameter

7 Measurement of Error

8 Signal Checking

1. Notice

YSC-8331 is used in system of industry sewing machine. For perfect

operation and safety, installation and operation must be supervised by

professional.

1.1 Work environment

▲Please use 220V AC in ±10% ranges.

▲To avoid the false operate, please keep the product away from the

high electromagnetic interference.

▲Please operate in the area which temperature is 5℃~45℃.

▲Please operate in the area which humidity is 80% or less.

▲Please keep the product away from the flammability and exploder.

1.2 Notice of installation

▲The control box should be installed correctly follow the instruction in

this manual.

▲Turn off the power and unplug the cord before installation.

▲The wire must not set to be near the wheel and other movable parts.

▲To avoid the static interference and current leakage, all grounding

must be done.

1.3 Notice of safety

▲Turn off the power before maintenance and repairs or raising the

machine arms, or changing needle, or threading needle.

▲Please don’t open the box except the professional.

▲When turn on the machine in the first time, use low speed to operate

and check the correct rotation direction.

▲During machine operation, don’t touch any moving parts.

▲All moving parts must use the protective device to avoid the body

contact and objects insertion.

▲When there is water or other liquid, or caustic material on box or

motor, you must stop operation and turn off the power.

▲All connector shouldn’t be plug and unplug when power on.

▲The connector should be plug and unplug in the correct method.

2. Power Connection

2.1 Single phase 220V power connection

Ground wire (green & yellow) must be grounding.

2.2 Three phase 380V power connection

3. Connector Diagram

Attention: for direct-driven is safety SW., and for belt-driven is

Synchronizer.

4. Function of Operation Box

P107 operation box diagram

Function Key Operation

Start Tacking

Selection

Double start tacking, A is the stitches of forth

sewing; B is the stitches of back sewing. They

are both in range 1~15.

Single start tacking, A is the stitches of forth

sewing; B is the stitches of back sewing. They

are both in range 1~15.

End Tacking

Selection

Double end tacking, C is the stitches of back

sewing; D is the stitches of forth sewing. They

are both in range 1~15.

Single end tacking, C is the stitches of back

sewing; D is the stitches of forth sewing. They

are both in range 1~15.

Bar Tacking

Sewing

▲Once the pedal is stepped forward, all the

seams of bar tacking, A, B, C, D sections will

be completed with E times, and the trimming

will be done automatically.

▲The pedal must be returned to balance for

next sewing.

Program

Sewing

▲Once the pedal is stepped forward, F, G

stitches will be completed with E times.

▲Constant-Stitch Sewing will perform the

number of segments and times as setting,

when the stitches are zero, machine will stop

immediately.

Free Sewing either or

enable

▲As the pedal is stepped forward, the start

tacking(if selected) will be done automatically,

then machine will start normal sewing. Once

the pedal returned to balance, machine will

stop immediately.

▲As the pedal stepped backward, the end

tacking, trimming and wiping(if selected) will

be done automatically.

Needle Up /

Needle

Down Select the stop position of needle.

Trimming

Enable Enable or disable the trimming.

Parameter

Function Enter or exit parameter function interface.

Escape

Function Cancel the last operation.

Setup

Function

[1]

Push wheel

button Confirm and save current value of parameter.

Increase

[1]

Turning wheel

button

clockwise

Value increase.

Decrease

[1]

Turning wheel

button

anticlockwise

Value decrease.

5. Operation of the Normal Function

5.1 Free sewing mode

¾If either or is enable, then the mode is free sewing.

¾Use or to enable or disable the start tacking.

¾Use or to enable or disable the end tacking.

¾Turning wheel button clockwise or anticlockwise to move the cursor,

push wheel button to twinkle the parameter want to modify, then

turning wheel button clockwise or anticlockwise to change parameter,

push wheel button to save the change, or push to cancel

change.

¾can be used in this mode to set the needle position after stop.

¾can be used in this mode to enable or disable the trimming

function.

5.2 Bar tacking mode

¾If is enable, then the mode is bar tacking.

¾Turning wheel button clockwise or anticlockwise to move the cursor,

push wheel button to twinkle the parameter want to modify, then

turning wheel button clockwise or anticlockwise to change parameter,

push wheel button to save the change, or push to cancel

change.

¾can be used in this mode to enable or disable the trimming

function.

5.3 Program mode

¾If is enable, then the mode is program mode.

¾Change “Seg” parameter to select the segment which wants to setup.

¾Each segment can use or to enable or disable the start

tacking.

¾Each segment can use or to enable or disable the end

tacking.

¾Each segment can change “Sti” parameter to set the stitch.

¾Each segment can use to set the needle position after stop.

¾Each segment can use to enable or disable the trimming

function.

¾Turning wheel button clockwise or anticlockwise to move the cursor,

push wheel button to twinkle the parameter want to modify, then

turning wheel button clockwise or anticlockwise to change parameter,

push wheel button to save the change, or push to cancel

change.

Table des matières

Autres manuels typical Machine à coudre

typical

typical GC0303D Manuel utilisateur

typical

typical GC20616 Manuel de la liste des pièces

typical

typical GT1790A Manuel utilisateur

typical

typical GC0303 Manuel utilisateur

typical

typical GT856D Manuel utilisateur

typical

typical GC6880 Manuel d'utilisation et d'entretien

typical

typical TW1-1245 Manuel de la liste des pièces

typical

typical GC9 SERIES Manuel utilisateur

typical

typical TW1-571 Manuel utilisateur

typical

typical GC2605 Instructions d'utilisation

typical

typical GC0323 Manuel utilisateur

typical

typical GC6880 Manuel utilisateur

typical

typical GC6180 Manuel utilisateur

typical

typical TC3020GB Manuel utilisateur

typical

typical GC6-7D Manuel utilisateur

typical

typical GC24660 Manuel utilisateur

typical

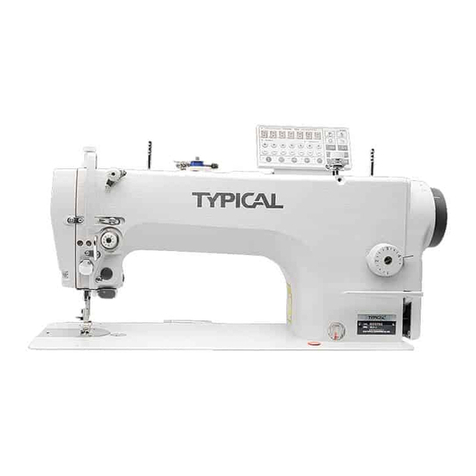

typical GC6760 SERIES Guide de dépannage
