1. General Information

The PoE (Power Over Ethernet) Switch family provide four 10M/100M/1000M TX ports with PoE PSE

function plus one 10M/100M/1000M TX up-link port with PoE PD function. It allows power souring

equipment (PSE) to be powered from PoE and deliver power to PoE powered device (PD), which are

compliant with IEEE802.3af and IEEE802.3at standard to receiver and deliver both Ethernet data and DC

power through the traditional UTP or STP cable. The PoE Switch can extend Ethernet data and DC power

up to 200 meters.

This manual will help you install and maintain the PoE switch. Installation of the PoE

switch is very easy and you can start to use the product as soon as you are powered up.

2. Hardware Description

*LED Indicator

There are 12 LEDs on the PoE switch to indicate the status of power and signal. The following section

describes the functions of each LED indicator.

Front panel detail

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

*POWER LED

LED

STATUS

Description

Power

Green

LED ON when power input (DC IN on

rear panel or Port 5 (UPLINK) on front

panel) has valid power supplied.

Red

The indicator is only used on

TP-SW5G-NC, LED ON when the

following warning condition happens.

*Power input under voltage (Vin<10V)

*Power input over voltage (Vin>59V)

*PoE over current (2A/per port)

the indicator is unused on

TP-SW5G/TP-SW5G24

Off No power supplied.

*SWITCH LED (the right indicator on RJ45)

LED STATUS Description

P1~P5

Link/Act

Green

A network device is detected (1000Mbps),

but no communication activity is detected.

Green

Blinking

This port is transmitting to, or receiving

package from another device at 1000Mbps.

Yellow A network device is detected (10Mbps or

100Mbps), but no communication activity

is detected.

Yellow

Blinking

This port is transmitting to, or receiving

package from another device at 10Mbps or

100Mbps.

Off No device is detected.

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

*PoE LED (the left indicator on RJ45)

P1~P4

PoE

Yellow

A valid Powered Device (PD) is detected

and delivering power on this port.

Off

No PD is detected on this port.

P5 (UPLINK)

PoE

Yellow

TP-SW5G&TP-SW5G24:

Powered via all 4 data pairs.

TP-SW5G-NC: power via another PoE(2

data pairs or 4 data pairs)

Yellow

Blanking

TP-SW5G&TP-SW5G24:

Powered via 2 data pairs. (1,2,3,6 or 4,5,7,8

are all acceptable).

TP-SW5G-NC::unused.

Off No power is detected on this port.

*Power wiring

The PoE switch family includes 3 models, be used for 3 different ranges of input voltage:

full range voltage (12 to 57VDC) (P/N: TP-SW5G-NC)

24VDC typical (12 to 36VDC) (P/N: TP-SW5G24)

48VDC typical (40 to 57VDC) (P/N: TP-SW5G)

The PoE switch family allow powered by another PoE source on port 5 (UPLINK) as a PoE repeater or

extender. For TP-SW5G/TP-SW5G24 is 42.5~57VDC, for TP-SW5G-NC is 12~57VDC.

For PoE operation, make sure your power supply may offer at least 75W for 4x 802.3af PoE port, or 150W

for 4x 802.3at PoE port.

If powered via the rear terminal, please make sure the input current is not over 10A. If powered on port 5,

make sure the input current is not over 1Amp.

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

Ports 1~4 will deliver DC power over the Ethernet cable as detailed below:

* Data pair A on line 1 and 2

* Data pair B on line 3 and 6

* Data pair C plus V+ on line 4 and 5

* Data pair D plus V- on line 7 and 8

Port 5 may get DC power over the Ethernet cable, as detailed below:

* Data pair A plus V+ /V- on line 1 and 2

* Data pair B plus V-/V+ on line 3 and 6

* Data pair C plus V+/V- on line 4 and 5

* Data pair D plus V-/V+ on line 7 and 8

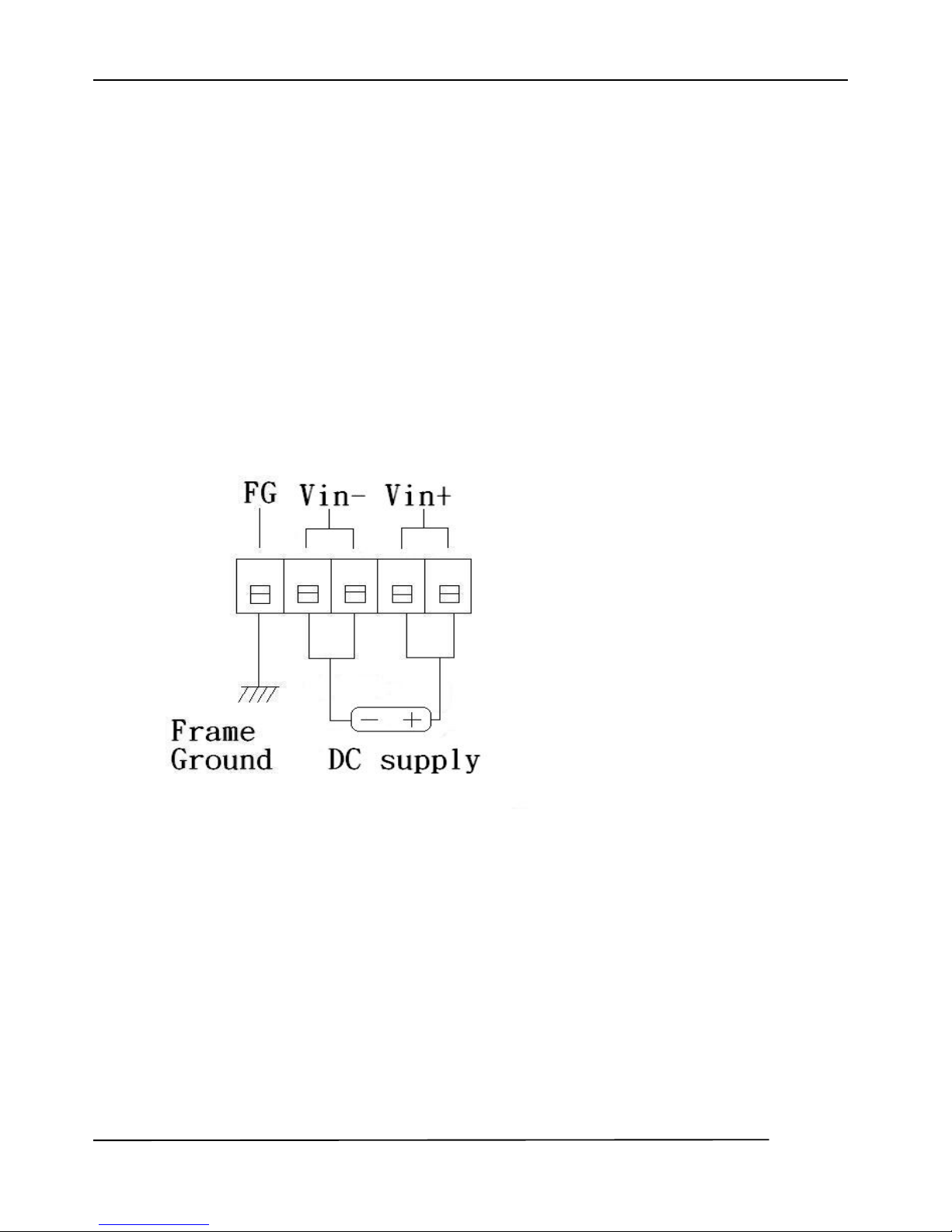

The terminal block on the rear panel should be wired as detailed below:

*For TP-SW5G24

Please note that the maximum power per port of 35W can only be achieved using 24VDC input operation. If

your input is 12VDC, then the total power per port should be de-rated to 17W per port.

Total output of TP-SW5G24 is 35W(802.3at) x2 or 17W (802.3af) x 4.

*For TP-SW5G

The input voltage must be in the range of 44 to 57VDC if running for 802.3af operation.

The input voltage must be in the range of 50 to 57VDC if running for 802.3at operation.

If the TP-SW5G is not powered with the above designated input voltage, it will only function as an Ethernet

switch without PoE output.

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

Model Input Voltage

(REAR) Input Voltage

(Port 5) Output voltage 802.3af/at

Isolated

TP-SW5G-NC

12-57VDC No input

12-57VDC

(As input voltage)

(non-regulated) No No

No input 12-57VDC 12-57VDC

(non-regulated) No No

12-57VDC 12-57VDC

Higher voltage

output

(REAR or Port 5)

No No

TP-SW5G24

12-36VDC No input 56VDC

(regulated) Yes No

No input 42.5-57VDC 42.5-57VDC

(non-regulated) Yes No

12-36VDC 42.5-57VDC 56VDC

(regulated) Yes No

TP-SW5G

40-57VDC No input 40-57VDC

(non-regulated) Yes No

No input 42.5-57VDC 42.5-57VDC

(non-regulated) Yes No

40-57VDC 42.5-57VDC

Higher voltage

output

(REAR or Port5)

Yes No

You can use the TP-SW5G(NC) series with our adaptor products as detailed below: (OPTION)

PSHP-18 PSHP-24 PSHP-48

Maximum output 18VDC/7.5A 24VDC/6.25A 48VDC/3.125A

Related model TP-SW5G-NC

TP-SW5G24

TP-SW5G-NC

TP-SW5G24

TP-SW5G-NC

TP-SW5G

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

*Ethernet Port Wiring

The PoE switch family supports one RJ-45 uplink (port 5 with PoE PD) and four RJ-45 ports (port 1~4 with

PoE PSE) with automatic MDI/MDI-X crossover, auto-sense for speed and duplex for 10Base-T,

100Base-TX or 1000Base-T connection. Automatic MDI/MDI-X crossover allows you to connect to other

devices (switches, hubs, or workstations etc.), without regard to using straight-through or crossover cabling.

Port 1 to 4 provides Power over Ethernet function that delivers DC power through the data pairs C & D (pair

4,5 and pair7,8) to the PD. Port 5 provides Power Device function that receive power from 4 pairs or 2 pairs

Ethernet cable.

The following tables describe the wiring diagram of straight-through and crossover cabling. The crossover

cables simply cross-connect the transmit lines at each end to the receive lines at the opposite end.

Straight-through Cabling

Pin 1

Pin 2

Pin 3

Pin 6

Pin 4

Pin 5

Pin 7

Pin 8

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

Cross-over Cabling

Pin 1

Pin 3

Pin 2

Pin 6

Pin 3

Pin 1

Pin 6

Pin 2

Pin 4

Pin 7

Pin 5

Pin 8

Pin 7

Pin 4

Pin 8

Pin 5

Connect an Ethernet cable into any switch port and connect the other side to your

attached device. The Link/Act LED (green or yellow) will light up when the cable is correctly connected.

Refer to the LED Indicator section for descriptions of each LED indicator.

If a port LED is off, go back and check for connectivity problems between that port and the network device

connected.

The maximum cable length for 10/100/1000BaseT with Cat 5 twisted pair cables is typically 100m (328 ft.).

User’s Manual

TYCON TP-SW5G(-NC) series

TYCON POWER SYSTEMS

*PD Port Wiring

Port 1 to 4 provides PoE injection function with maximum 35W ability to power up the powered device

using the straight-through or cross-over Ethernet cable.

The PoE switch follows the IEEE802.3af Alternative B mode connector assignment. The following table

shows pin assignment of alternative A and B for the Power Source Equipment.

Conductor Alternative A

(MDI-X) Alternative A

(MDI) Alternative B

(All)

1Negative Vport Positive Vport

2 Negative Vport Positive Vport

3 Positive Vport Negative port

4 Positive Vport

5 Positive Vport

6 Positive Vport NegativeVport

7 Negative Vport

8 Negative Vport

Be sure the twisted pair cable is bound with the standard RJ-45 pin, especially the pins 4, 5, 7 and 8. If the

RJ-45 is bound with the wrong pin number, the PoE switch will not recognize the PD and won’t deliver DC

power to the PD. The yellow PoE LED will light up when the cable is correctly connected. Refer to the LED

Indicator section for descriptions of each LED indicator. If a port LED is off, go back and check for

connectivity problems between that port and the network device connected.
