Std. Response - Std. Coverage

Institutional Sidewall Sprinklers

Model PH-5, K=5.6

GENERAL DESCRIPTION

The Model PH-5, 5.6 K-Factor, Institutional Horizontal

Sidewall Sprinklers are standard response - standard cov-

erage, fusible solder type spray sprinklers designed for

use in light or ordinary hazard occupancy, correctional,

detention, and mental health care facilities.

The unique features of the Model PH-5 provide a tamper

resistant sprinkler design that helps eliminate the opportu-

nity for individuals to injure themselves or others with a

fire sprinkler. At the same time, the Model PH-5 optimizes

on an aesthetically appealing flush design that conceals

most of the operating parts.

The Model PH-5 Horizontal Sidewall Sprinklers are de-

signed for installation along a wall or the side of a beam

and just beneath a smooth ceiling. They are commonly

used instead of pendent sprinklers because of building

construction considerations where piping above the ceil-

ing is not desirable.

WARNINGS

The Model PH-5 Sprinklers described herein must be in-

stalled and maintained in compliance with this document,

as well as with the applicable standards of the National

Fire Protection Association, in addition to the standards

of any other authorities having jurisdiction. Failure to do

so may impair the integrity of these devices.

The owner is responsible for maintaining their fire protec-

tion system and devices in proper operating condition.

The installing contractor or sprinkler manufacturer should

be contacted relative to any questions.

OPERATION

In the standby condition, the design of the Model PH-5 is

such that a suspended load of 80 lbs. (36 kg) or more ap-

plied to the linkage mechanism will release the sprinkler.

Also, when properly installed, the escutcheon is held fast

to the wall to deter removal of the escutcheon. The shape

of the escutcheon cannot easily be grasped, which fur-

ther deters tampering.

A fusible solder operating element secures the linkage

mechanism of the Model PH-5. When the rated tempera-

ture is reached, the solder melts to release the linkage

mechanism holding the sprinkler closed, which then al-

lows the sprinkler to activate by allowing the deflector to

extend outward, and water to flow.

TECHNICAL DATA

Approvals

UL and ULC Listed. NYCMEA #395 -91-M. (The PH-5 list-

ings apply only to the light and ordinary hazard service

conditions indicated in the Design Criteria section.)

Maximum Working Pressure

175 psi (12,1 bar)

Pipe Thread Connection

1/2 inch NPT

Discharge Coefficient

K=5.6GPM/psi

1/2 (80,6 LPM/bar1/2)

Temperature Rating

135°F/57°C

Finish

Sprinkler: Chrome

Escutcheon: Chrome

Physical Characteristics

The Model PH-5 utilizes a brass body and bronze me-

chanical linkage with fusible solder; a silicone orifice seal;

and, a deflector assembly of bronze and copper. The es-

cutcheon is decorative plated 1/32 inch (0,8 mm) thick

sheet metal.

DESIGN CRITERIA

The 5.6 K-Factor, Model PH-5 (SIN S2046) Institutional

Horizontal Sidewall Sprinklers are intended for use in fire

protection systems designed in accordance with the

standard installation rules recognized by the applicable

Listing or Approval agency (e.g., UL Listing is based on

NFPA 13 requirements). The Model PH-5 must be in-

stalled with a deflector to ceiling distance of 4 to 12

inches (100 to 300 mm). To meet this requirement the

centerline of the sprinkler waterway must be located 4-

SIN S2046

Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010

Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500 3-01

1-5.3.10

TYCO FIRE PRODUCTS

OBSOLETE

1/2 to 12-1/2 inches (114,3 to 317,5 mm) below the ceil-

ing (Ref. Figure 2).

Only the Institutional Escutcheons shown in Figure 3 can

be utilized with the Model PH-5.

NOTES

The Sprinkler Body must not extend beyond the Institu-

tional Escutcheon (Ref. Figure 5). Otherwise the tamper

resistant design of the Model PH-5 will be compromised.

Consequently, #1752 Spacers, which are associated

with other Star institutional sprinklers, cannot to be

utilized.

Integrity of the tamper resistant design of the Institutional

Escutcheon is dependent on the piping installation de-

sign. When installed properly, the Institutional Escutch-

eon is held fast to the mounting surface by the tightening

of the sprinkler assembly into the sprinkler fitting. In order

to accomplish a proper installation, the sprinkler fitting

must be properly located with respect to distance from

the face of the sprinkler fitting to the face of the mounting

surface (Ref. Figure 3); the sprinkler fitting being rigidly

secured and held immobile; and, the centerline of the

sprinkler fitting being perpendicular to the mounting sur-

face to assure that the escutcheon sits squarely against

the mounting surface around the entire perimeter of the

Institutional Escutcheon. Figure 2 illustrates a typical in-

stallation that can be utilized to help adjust the location

of the sprinkler fitting; to help assure immobility of the

sprinkler fitting; and, to help maintain perpendicularity of

the sprinkler fitting to the mounting surface.

STAR SPRINKLER

Page 2 1-5.3.10

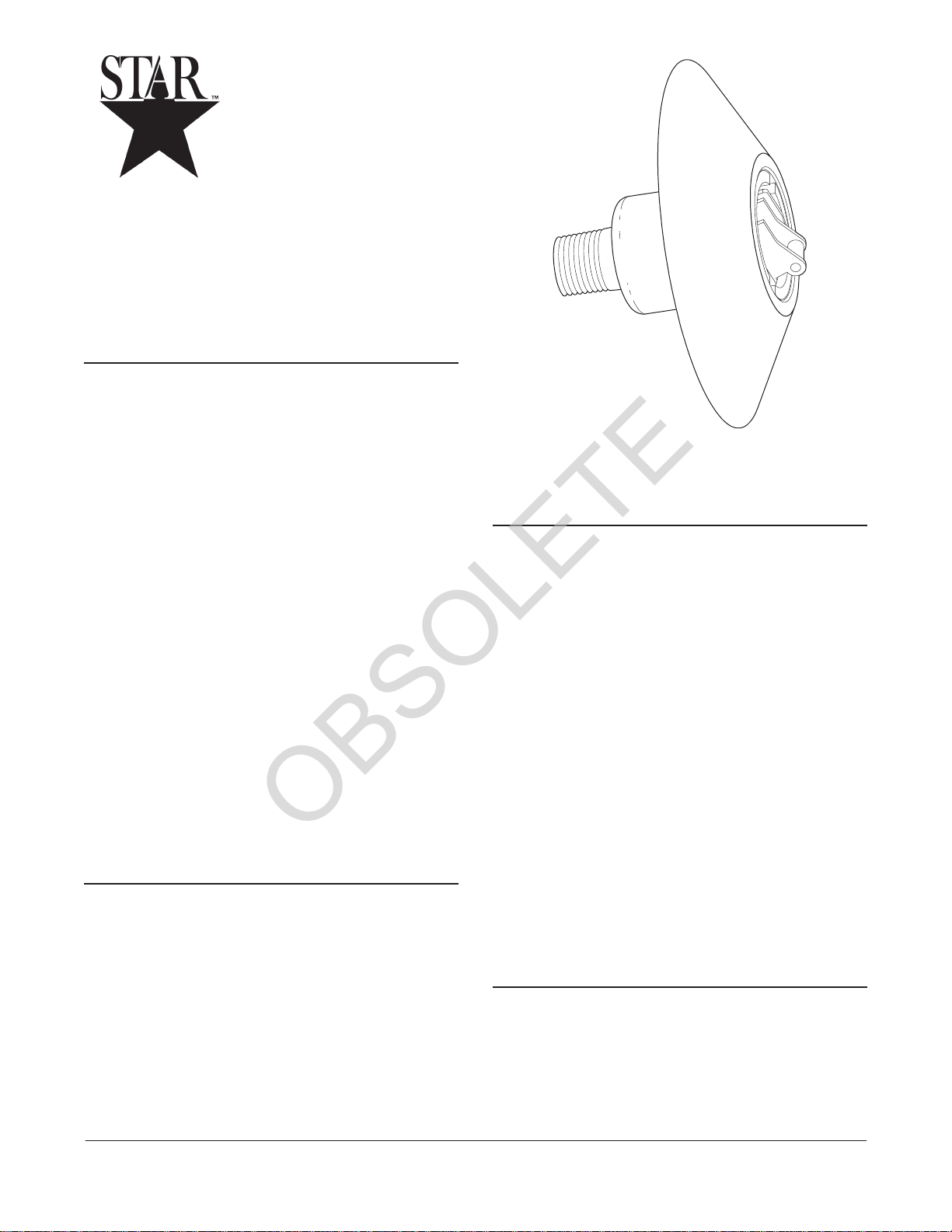

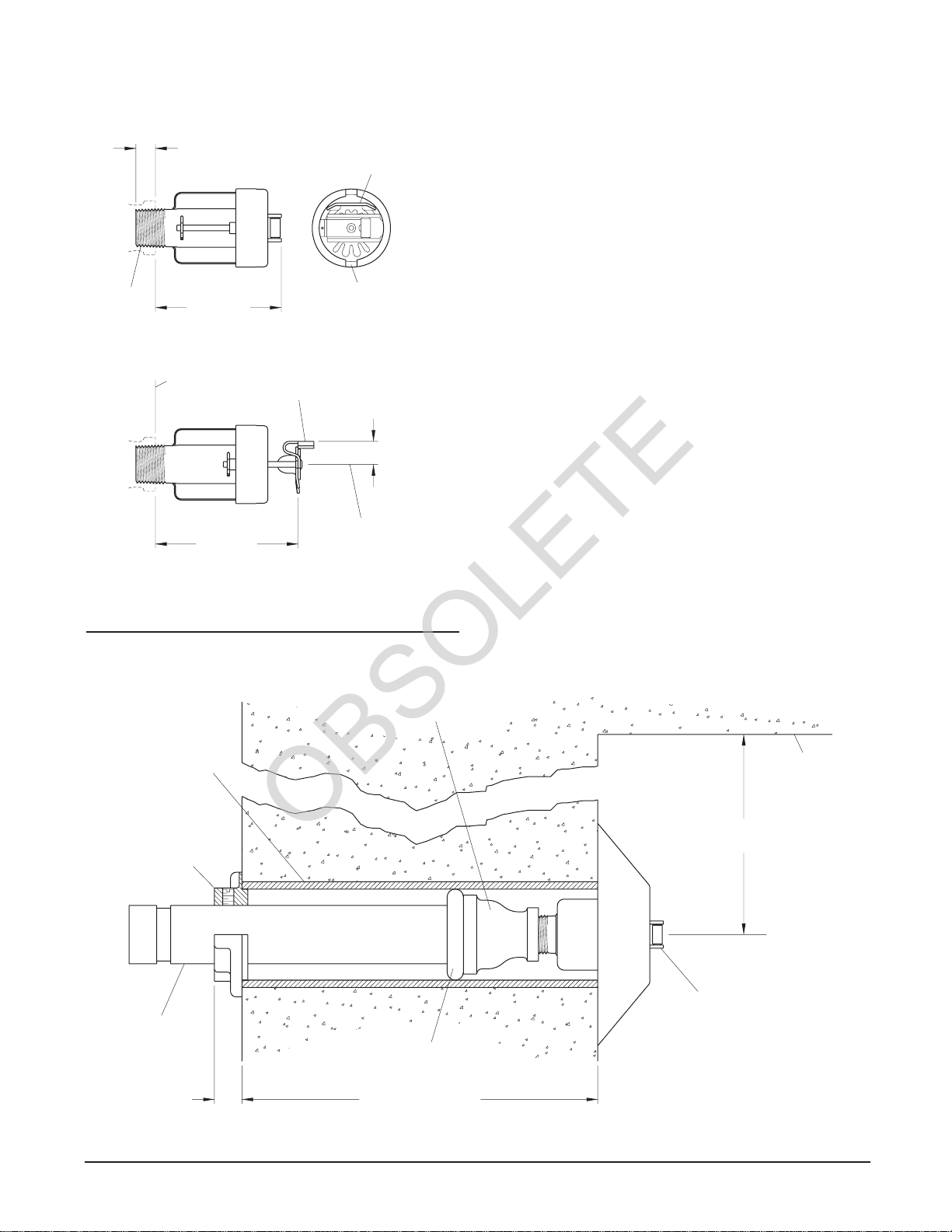

FIGURE 1

5.6 K-FACTOR, MODEL PH-5 STANDARD RESPONSE

INSTITUTIONAL HORIZONTAL SIDEWALL SPRINKLER

(71.4 mm)

2.81"

7/16" (11.1 mm)

NOMINAL MAKE-IN

(80.8 mm)

3.18"

SPRINKLER

FACE OF

NPT

FITTING

1/2"

NOTCH (2)

OF SPRINKLER

WATERWAY

CENTERLINE

IN OPERATED

DEFLECTOR

POSITION

(12.7 mm)

1/2"

INSTALL SPRINKLER

SPRINKLER

WRENCHING

TOP AS SHOWN

HAT ORIENTED AT

WITH DEFLECTOR

FIGURE 2

TYPICAL INSTALLATION WITH #1780 RETAINING FLANGE AND #1781 CENTERING GROMMET

REDUCING COUPLING

1" x 1

2" M.I.

LASS 150

5/8" (15.9 mm)

w/ GROOVED

1" STEEL PIPE

WALL THICKNESS

RESULTS IN DEFLECTOR-

4" (101.6 mm) TO 12" (304.8 mm)

TO-CEILING DISTANCE OF

4-1/2" (114.3 mm) TO

12-1/2" (317.5 mm)

w/ ESCUTCHEON

MODEL PH-5

WATERWAY

OF SPRINKLER

CENTERLINE

FINISHED

CEILING

w/ SET SCREWS

RETAINING

FLANGE

GROMMET

#1781 CENTERING

#1780

2" S

H. 40

(LENGTH TO SUIT

STEEL PIPE SLEEVE

WALL THICKNESS)

OR 2" (50 mm) I.D.

CORED HOLE

END

OBSOLETE

INSTALLATION

The 5.6 K-Factor, Model PH-5 Sprinklers must be in-

stalled in accordance with the following instructions:

NOTES

Refer to the Design Criteria section for important informa-

tion regarding the piping installation design and its affect

on maintaining the integrity of the tamper resistant design

of the Institutional Escutcheons.

A leak tight 1/2 inch NPT sprinkler joint should be ob-

tained with a torque of 7 to 14 ft.lbs. (9,5 to 19,0 Nm). A

maximum of 21 ft.lbs. (28,5 Nm) of torque is to be used to

install these sprinklers. Higher levels of torque may dis-

tort the sprinkler inlet with consequent leakage or impair-

ment of the sprinkler.

Do not attempt to compensate for improper location of

the sprinkler fitting by under- or over-tightening the Sprin-

kler. Readjust the position of the sprinkler fitting to suit.

After the installation is complete, make certain that the In-

stitutional Escutcheon is held fast to the mounting sur-

face and that it sits squarely against the wall around its

entire perimeter.

1. The Model PH-5 Sprinklers must be installed with the

centerline of their waterway horizontal and perpendicu-

lar to the back wall surface, and the Deflector must be lo-

cated with the top towards the ceiling (Ref. Figure 1).

2. With the Institutional Escutcheon in place and with pipe

thread sealant applied to the pipe threads, hand tighten

the sprinkler into the sprinkler fitting.

3. Wrench tighten the Sprinkler using only the #1509-1 or

#1509-3 Sprinkler Wrench (Ref. Figure 4). The wrench-

ing teeth of the Sprinkler Wrench are to be applied to

the sprinkler wrenching notch areas (Ref. Figure 1).

4 After the installation is complete, make certain that the

Institutional Escutcheon is held fast to the mounting sur-

face and that it sits squarely against the wall around its

entire perimeter.

NOTE

The Sprinkler Body must not extend beyond the Institutional

Escutcheon (Ref. Figure 5). Otherwise the tamper resistant

design of the Model PH-5 will be compromised.

CARE AND MAINTENANCE

The 5.6 K-Factor, Model PH-5 Sprinklers must be main-

tained and serviced in accordance with the following in-

structions:

NOTES

Service inspections should be made on a regular basis to

detect possible damage or alterations to the sprinkler and

escutcheon. Inspections should include making certain

that the Institutional Escutcheon is held fast to the mount-

ing surface. Damaged or altered sprinklers are to be re-

placed immediately to avoid personal injury and to pre-

vent use for causing personal injury, as well as to

maintain the sprinkler system in an operative condition.

Before closing a fire protection system main control valve

for maintenance work on the fire protection system which

it controls, permission to shut down the affected fire pro-

tection systems must be obtained from the proper authori-

ties and all personnel who may be affected by this action

must be notified.

Sprinklers which are found to be leaking or exhibiting vis-

ible signs of corrosion must be replaced.

Automatic sprinklers must never be shipped or stored

where their temperatures will exceed 100°F/38°C and

they must never be painted, plated, coated, or otherwise

altered after leaving the factory. Modified or over-heated

sprinklers must be replaced.

STAR SPRINKLER

1-5.3.10 Page 3

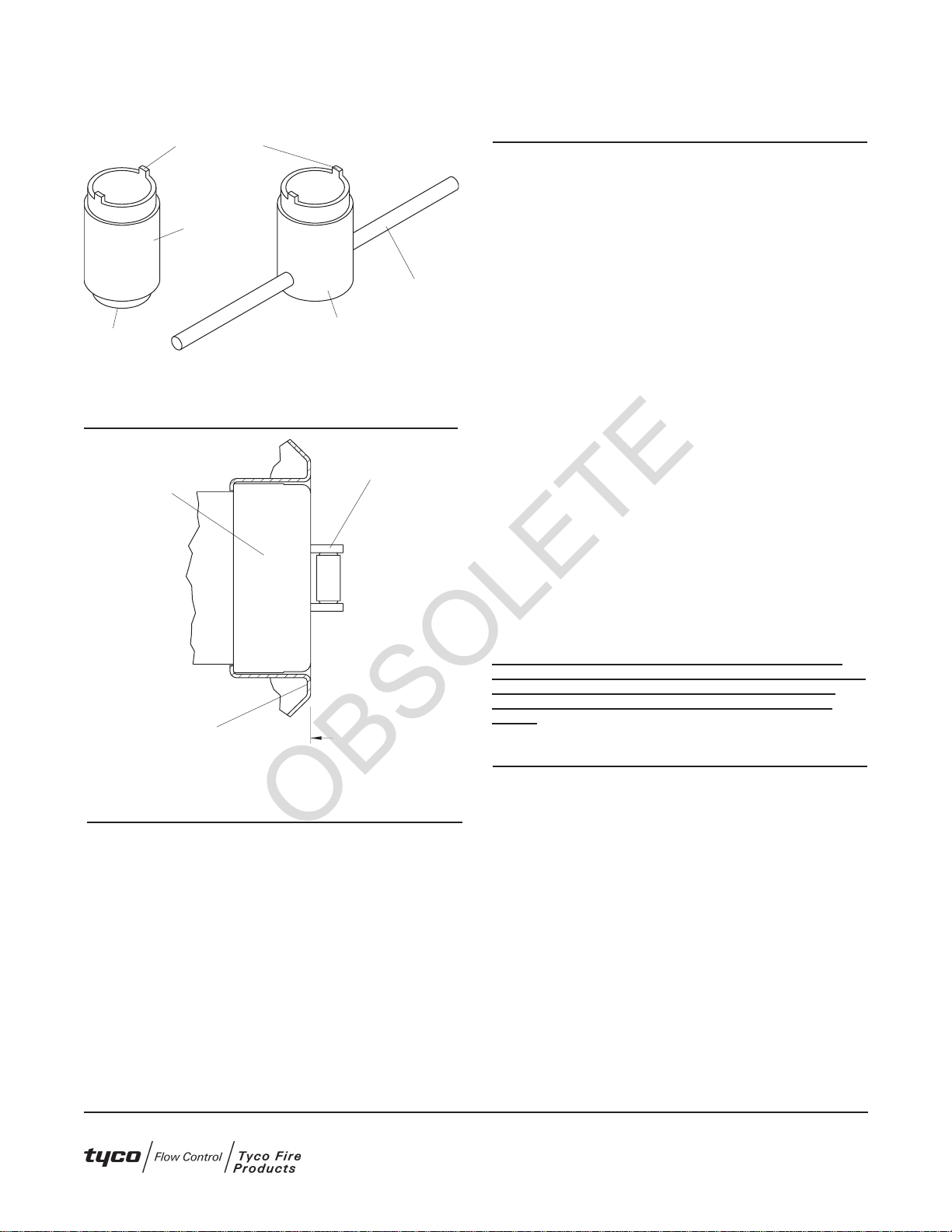

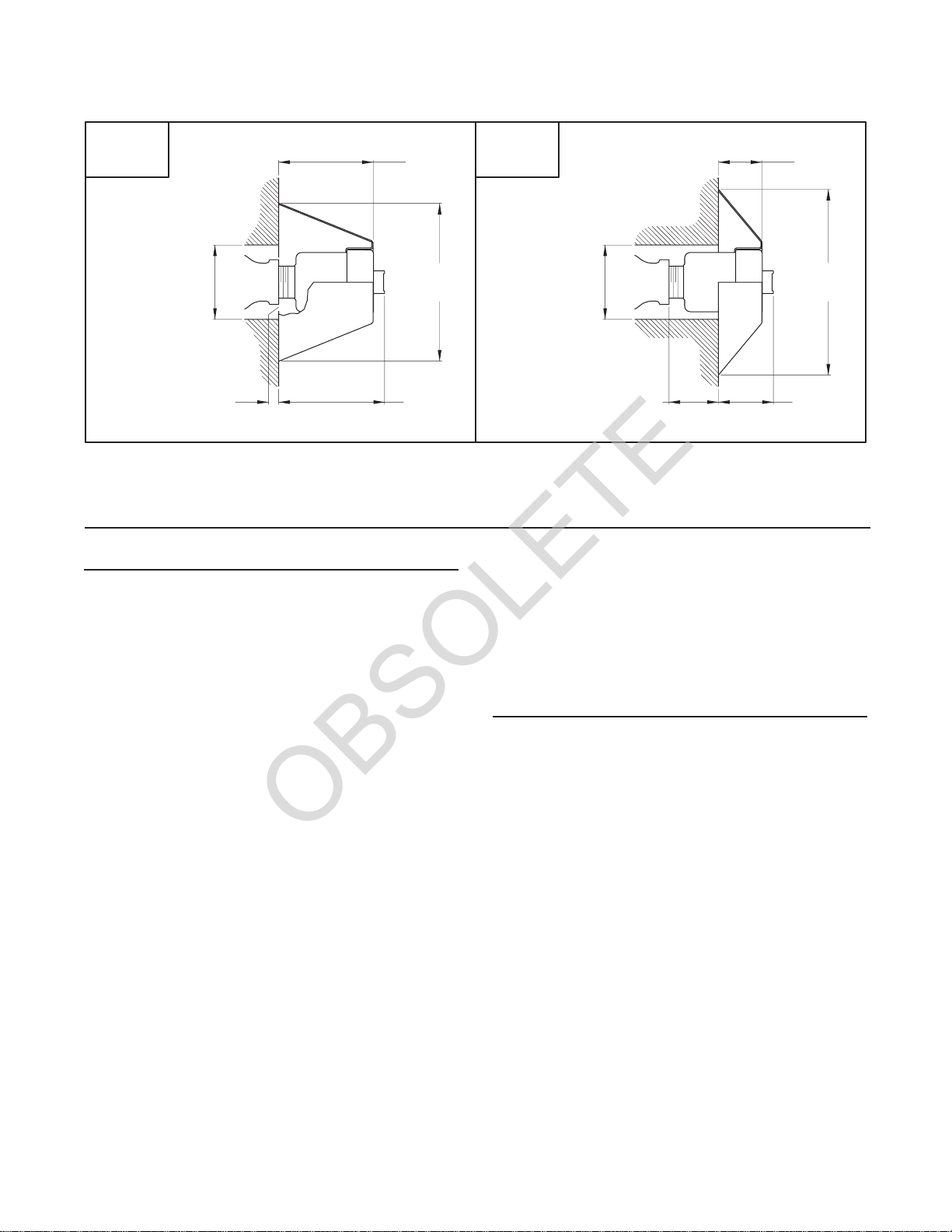

FIGURE 3

INSTITUTIONAL ESCUTCHEON OPTIONS FOR USE WITH THE MODEL PH-5

NOTE: #1752 Spacers are not to be used to obtain horizontal adjustment for the Model PH-5 with Style B2 or C Escutcheons.

CLEARANCE FOR

DETERMINED BY

DIAMETER

REDUCING

COUPLING

STYLE C

#1751-3

CLEARANCE FOR

DETERMINED BY

MOUNTING SURFACE

FITTING FLUSH WITH

FACE OF SPRINKLER

DIAMETER

REDUCING

COUPLING

#1751-2

STYLE B2

(71.4 mm)

4-1/4" DIA.

(108.0 mm)

2.81"

(65.1 mm)

2-9/16" 1-3/16"

(30.2 mm)

5" DIA.

(127.0 mm)

(37.6 mm)(33.8 mm)

1.33" 1.48"

OBSOLETE

Care must be exercised to avoid damage to the sprinklers

- before, during, and after installation. Sprinklers dam-

aged by dropping, striking, wrench twist/slippage, or the

like, must be replaced.

The owner is responsible for the inspection, testing, and

maintenance of their fire protection system and devices in

compliance with this document, as well as with the appli-

cable standards of the National Fire Protection Associa-

tion (e.g., NFPA 25), in addition to the standards of any

other authorities having jurisdiction. The installing contrac-

tor or sprinkler manufacturer should be contacted relative

to any questions.

It is recommended that automatic sprinkler systems be in-

spected, tested, and maintained by a qualified Inspection

Service.

LIMITED WARRANTY

Products manufactured by Tyco Fire Products are war-

ranted solely to the original Buyer for ten (10) years

against defects in material and workmanship when paid

for and properly installed and maintained under normal

use and service. This warranty will expire ten (10) years

from date of shipment by Tyco Fire Products. No warranty

is given for products or components manufactured by

companies not affiliated by ownership with Tyco Fire Prod-

ucts or for products and components which have been

subject to misuse, improper installation, corrosion, or

which have not been installed, maintained, modified or re-

paired in accordance with applicable Standards of the Na-

tional Fire Protection Association, and/or the standards of

any other Authorities Having Jurisdiction. Materials found

by Tyco Fire Products to be defective shall be either re-

paired or replaced, at Tyco Fire Products’ sole option.

Tyco Fire Products neither assumes, nor authorizes any

person to assume for it, any other obligation in connec-

tion with the sale of products or parts of products. Tyco

Fire Products shall not be responsible for sprinkler sys-

tem design errors or inaccurate or incomplete information

supplied by Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE PRODUCTS BE LI-

ABLE, IN CONTRACT, TORT, STRICT LIABILITY OR UN-

DER ANY OTHER LEGAL THEORY, FOR INCIDENTAL,

INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES,

INCLUDING BUT NOT LIMITED TO LABOR CHARGES,

REGARDLESS OF WHETHER TYCO FIRE PRODUCTS

WAS INFORMED ABOUT THE POSSIBILITY OF SUCH

DAMAGES, AND IN NO EVENT SHALL TYCO FIRE

PRODUCTS’ LIABILITY EXCEED AN AMOUNT EQUAL

TO THE SALES PRICE.

THE FOREGOING WARRANTY IS MADE IN LIEU OF

ANY AND ALL OTHER WARRANTIES EXPRESS OR IM-

PLIED, INCLUDING WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE.

ORDERING PROCEDURE

Please Specify:

5.6 K-Factor, Model PH-5 Standard

Response Institutional Horizontal Sidewall Sprinkler

(#2046)

Institutional Escutcheon

Style B2 (#1751-2)

Style C (#1751-3)

Retaining Flange (#1780)

Centering Grommet (#1781)

Sprinkler Wrench, Ref. Figure 4

(#1509-1 or #1509-3)

Refer to Price List for for complete listing of Part Num-

bers with respect to temperature ratings, sprinkler fin-

ishes, etc.

STAR SPRINKLER

Page 4 1-5.3.10

FIGURE 4

SPRINKLER WRENCH

ACCEPTS

1/2" DRIVE

WRENCHING

TEETH

T-HANDLE

WRENCH

#1509-1

#1509-3

WRENCH

FIGURE 5

PROPER POSITIONING OF ESCUTCHEON

BODY

MECHANISM

LINKAGE

EXTEND BEYOND

MUST NOT

SPRINKLER

SPRINKLER BODY

ESCUTCHEON

7071 S. 13th Street • Suite 103

Oak Creek, WI 53154

www.starsprinkler.com

PRINTED IN U.S.A. 3-01

OBSOLETE

Autres manuels Tyco Fire Product Système d'irrigation

Tyco Fire Product

Tyco Fire Product CENTRAL ESLO Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star SuperNova S120 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL GB Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-1 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F960 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star SuperNova S126 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Celeste S140 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL BVR-2 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO SW-20 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product the 1 inch NPT outlet of a malleable iron threaded tee Star Luminous... Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO SW-24 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product SIN S1800 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 GB Manuel utilisateur

Tyco Fire Product

Tyco Fire Product TY-B Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12EC Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F895 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product RAPID RESPONSE LFII Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL K11 ECOH Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12EC PRO Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892X Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL K17-231 Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Reliable

Reliable F1-300 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

Reliable

Reliable F4FR Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Reliable

Reliable F1FR42 Series Manuel utilisateur

Reliable

Reliable F1FR-300 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
