Tyco Fire Product Star E Manuel utilisateur

Std. Response - Std. Coverage

Vertical Sidewall Sprinklers

Model E, K=5.6 or 8.0

GENERAL DESCRIPTION

The Star Model E, 5.6 or 8.0 K-Factor, Vertical Sidewall

Sprinklers are standard response - standard coverage,

solder type spray sprinklers designed for use in light haz-

ard, commercial occupancies such as banks, hotels,

shopping malls, offices, etc. They are designed for instal-

lation along a wall or the side of a beam and just beneath

a smooth ceiling. Horizontal sidewall sprinklers are com-

monly used instead of pendent or upright sprinklers be-

cause of aesthetics or building construction considera-

tions, where piping across the ceiling is not desirable.

WARNINGS

The Model E Sprinklers described herein must be in-

stalled and maintained in compliance with this document,

as well as with the applicable standards of the National

Fire Protection Association, in addition to the standards

of any other authorities having jurisdiction. Failure to do

so may impair the integrity of these devices.

The owner is responsible for maintaining his fire protec-

tion system and devices in proper operating condition.

The installing contractor or sprinkler manufacturer should

be contacted relative to any questions.

OPERATION

A bronze tube sealed by a steel ball holds a fusible alloy.

The tube is compression loaded and via the tension

mechanism, the cap seals the sprinkler orifice. When the

rated temperature is reached, the alloy melts, the ball is

forced inward, and the tension mechanism releases the

cap, which then allows the sprinkler to activate and flow

water.

TECHNICAL DATA

Approvals

UL and ULC Listed. FM, LPC, NYC Approved.

(Refer to Table A. The approvals apply only to the service

conditions indicated in the Design Criteria section.)

Maximum Working Pressure

175 psi (12,1 bar)

Pipe Thread Connection

1/2 or 3/4 inch NPT

Discharge Coefficient

K=8.0GPM/psi

1/2 (115,2 LPM/bar1/2)

Temperature Ratings

135°F/57°C, 165°F/74°C, 212°F/100°C, 280°F/138°C,

360°F/182°C, 400°F/204°C or 520°F/271°C

(Refer to Table A)

Finishes

Chrome Plated, Natural Brass

(Refer to Table A)

Physical Characteristics (Ref. Figure 1)

The Model E utilizes a dezincification resistant (DZR)

bronze frame with a brass deflector. The waterway is

sealed with copper gasket. The fusible assembly is con-

structed of bronze and stainless steel components.

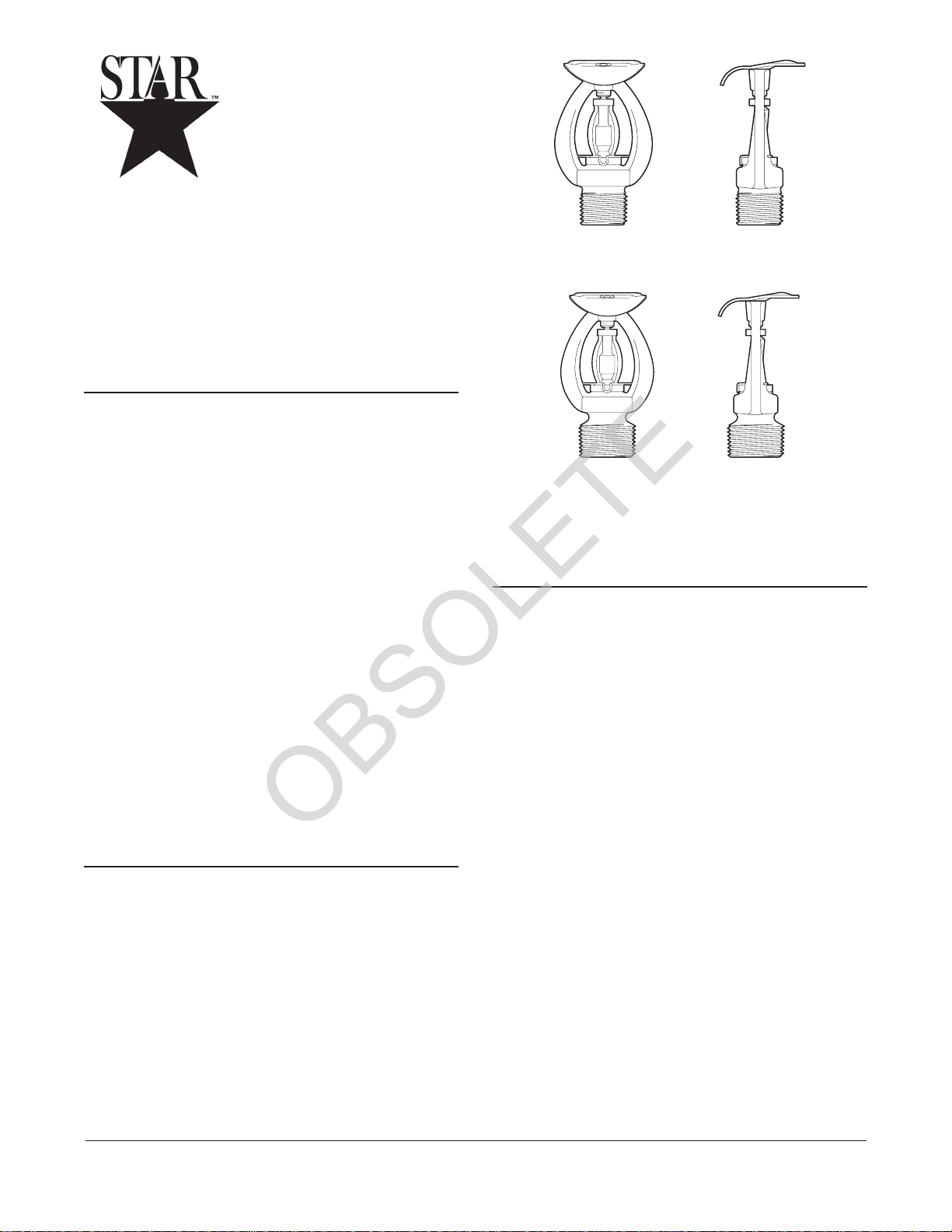

SIN S5002

Vertical Sidewall (Shown Upright)

K=5.6, 1/2" NPT

SIN S5009

Vertical Sidewall (Shown Upright)

K=8.0, 3/4" NPT

Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010

Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500 3-01

1-1.3.30

TYCO FIRE PRODUCTS

OBSOLETE

DESIGN CRITERIA

The 5.6 and 8.0 K-Factor, Model E Vertical Sidewall Sprin-

klers are intended for fire protection systems designed in

accordance with the standard installation rules recog-

nized by the applicable Listing or Approval agency (e.g.,

UL Listing is based on NFPA 13 requirements). Installa-

tion of Model E Sprinklers in recessed escutcheons will

void all sprinkler warranties, as well as possibly void the

sprinkler’s Approvals and/or Listings.

INSTALLATION

The 5.6 and 8.0 K-Factor, Model E Vertical Sidewall Sprin-

klers must be installed in accordance with the following in-

structions:

NOTES

A leak tight 1/2 inch NPT sprinkler joint should be ob-

tained with a torque of 7 to 14 ft.lbs. (9,5 to 19,0 Nm). A

maximum of 21 ft. lbs. (28,5 Nm) of torque may be used

to install sprinklers with 1/2 NPT connections. Higher lev-

els of torque may distort the sprinkler inlet with conse-

quent leakage or impairment of the sprinkler.

A leak tight 3/4 inch NPT sprinkler joint should be ob-

tainedwithatorqueof10to20ft.lbs.(13,6to27,1Nm).

A maximum of 30 ft. lbs. (40,7 Nm) of torque may be

used to install sprinklers with 3/4 NPT connections.

Higher levels of torque may distort the sprinkler inlet with

consequent leakage or impairment of the sprinkler.

1. The Model E Vertical Sidewall Sprinklers may be installed

in either the pendent or upright position, and the flow (Ref.

Figure 1 or 2) is to be out towards the intended coverage

area.

2. With pipe thread sealant applied to the pipe threads, hand

tighten the sprinkler into the sprinkler fitting.

3. Tighten the sprinkler into the sprinkler fitting using only the

Model E Sprinkler Wrench (Ref. Figure 3). With reference

to Figure 1 or 2, the Model E Sprinkler Wrench is to be

applied to the sprinkler wrench flat area.

STAR SPRINKLER

Page 2 1-1.3.30

FIGURE 1

5.6 K-FACTOR, 1/2 INCH NPT, MODEL E

STANDARD RESPONSE

VERTICAL SIDEWALL SPRINKLERS

1/2" NPT

(73.0 mm)

2-7/8"

7/16" (11.1 mm)

NOMINAL

MAKE-IN

WRENCH

FLATS

FLOW

FIGURE 3

MODEL E (#5207) SPRINKLER WRENCH

RECESS

WRENCH

FIGURE 2

8.0 K-FACTOR, 3/4 INCH NPT, MODEL E

STANDARD RESPONSE

VERTICAL SIDEWALL SPRINKLERS

(76.2 mm)

3/4" NPT

1/2" (12.7 mm)

NOMINAL

MAKE-IN

WRENCH

FLATS

FLOW

OBSOLETE

STAR SPRINKLER

1-1.3.30 Page 3

SPRINKLER FINISH

Temperature

Rating

Frame

Color Code

Natural

Brass

Chrome

Plated

135°F/57°C

165°F/74°C

212°F/100°C

Unpainted

White

Unpainted

1, 2, 4

Notes:

1. Listed by Underwriters Laboratories, Inc. for Light and Ordinary Hazard Occupancies.

2. Listed by Underwriters’ Laboratories of Canada for Light Hazard Occupancies.

3. Approved by Factory Mutual Research Corporation for Light Hazard Occupancies.

4. Approved by the City of New York under MEA 395-91-M.

TABLE A

LABORATORY LISTINGS AND APPROVALS

280°F/138°C Blue

360°F/182°C Red

Natural

Brass

Chrome

Plated

K=5.6 in Upright Position

(S5002)

1, 2, 3, 4

2, 4

400°F/204°C

520°F/271°C

Green

Orange

K=8.0 in Pendent Position

(S5009)

SPRINKLER FINISH

K=8.0 in Upright Position

(S5009)

Temperature

Rating

Frame

Color Code

Natural

Brass

Chrome

Plated

Natural

Brass

Chrome

Plated

135°F/57°C Unpainted

165°F/74°C Unpainted

212°F/100°C White

280°F/138°C Blue

360°F/182°C Red

400°F/204°C Green

520°F/271°C Orange

1, 2, 4

1, 4

K=5.6 in Pendent Position

(S5002)

OBSOLETE

CARE AND MAINTENANCE

Model E Sprinklers must be maintained and serviced in

accordance with the following instructions:

NOTE

Before closing a fire protection system main control valve

for maintenance work on the fire protection system which

it controls, permission to shut down the affected fire pro-

tection systems must be obtained from the proper authori-

ties and all personnel who may be affected by this action

must be notified.

Sprinklers which are found to be leaking or exhibiting vis-

ible signs of corrosion must be replaced.

Automatic sprinklers must never be shipped or stored

where their temperature will exceed 100°F/38°C and they

must never be painted, plated, coated, or otherwise al-

tered after leaving the factory.

Care must be exercised to avoid damage to the sprinklers

— before, during, and after installation. Sprinklers dam-

aged by dropping, striking, wrench twist/slippage or the

like, must be replaced.

The owner is responsible for the inspection, testing, and

maintenance of their fire protection system and devices in

compliance with this document, as well as with the appli-

cable standards of the National Fire Protection Associa-

tion (e.g., NFPA 25), in addition to the standards of any

other authorities having jurisdiction. The installing contrac-

tor or sprinkler manufacturer should be contacted relative

to any questions.

It is recommended that automatic sprinkler systems be in-

spected, tested, and maintained by a qualified Inspection

Service.

LIMITED WARRANTY

Products manufactured by Tyco Fire Products are war-

ranted solely to the original Buyer for ten (10) years

against defects in material and workmanship when paid

for and properly installed and maintained under normal

use and service. This warranty will expire ten (10) years

from date of shipment by Tyco Fire Products. No warranty

is given for products or components manufactured by

companies not affiliated by ownership with Tyco Fire Prod-

ucts or for products and components which have been

subject to misuse, improper installation, corrosion, or

which have not been installed, maintained, modified or re-

paired in accordance with applicable Standards of the Na-

tional Fire Protection Association, and/or the standards of

any other Authorities Having Jurisdiction. Materials found

by Tyco Fire Products to be defective shall be either re-

paired or replaced, at Tyco Fire Products’ sole option.

Tyco Fire Products neither assumes, nor authorizes any

person to assume for it, any other obligation in connec-

tion with the sale of products or parts of products. Tyco

Fire Products shall not be responsible for sprinkler sys-

tem design errors or inaccurate or incomplete information

supplied by Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE PRODUCTS BE LI-

ABLE, IN CONTRACT, TORT, STRICT LIABILITY OR UN-

DER ANY OTHER LEGAL THEORY, FOR INCIDENTAL,

INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES,

INCLUDING BUT NOT LIMITED TO LABOR CHARGES,

REGARDLESS OF WHETHER TYCO FIRE PRODUCTS

WAS INFORMED ABOUT THE POSSIBILITY OF SUCH

DAMAGES, AND IN NO EVENT SHALL TYCO FIRE

PRODUCTS’ LIABILITY EXCEED AN AMOUNT EQUAL

TO THE SALES PRICE.

THE FOREGOING WARRANTY IS MADE IN LIEU OF

ANY AND ALL OTHER WARRANTIES EXPRESS OR IM-

PLIED, INCLUDING WARRANTIES OF MERCHANT-

ABILITY AND FITNESS FOR A PARTICULAR PUR-

POSE.

ORDERING PROCEDURE

Please Specify:

5.6 K-Factor, 1/2 Inch NPT, Model E

Standard Response Vertical Sidewall Sprinkler (#5002)

8.0 K-Factor, 3/4 Inch NPT, Model E

Standard Response Vertical Sidewall Sprinkler (#5009)

Model E Sprinkler Wrench (#5207)

Refer to Price List for for complete listing of Part Num-

bers with respect to temperature ratings, sprinkler fin-

ishes, recessed escutcheon finishes, etc.

STAR SPRINKLER

Page 4 1-1.3.30

7071 S. 13th Street • Suite 103

Oak Creek, WI 53154

www.starsprinkler.com

PRINTED IN U.S.A. 3-01

OBSOLETE

Autres manuels Tyco Fire Product Système d'irrigation

Tyco Fire Product

Tyco Fire Product CENTRAL CC1 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL DS-1 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star StarMax S102 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL BVR-2 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO SW-20 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star PH-5 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem G102 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star SG S180 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem DS-1 Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SG-R Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL B Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SG-RES Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12 PRO Prohibitor Manuel utilisateur

Tyco Fire Product

Tyco Fire Product RAPID RESPONSE LFII Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem TY-B Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL K11 ECOH Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL K11 ECLH Manuel utilisateur

Tyco Fire Product

Tyco Fire Product TFR MAX Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F960/Q-48 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star SuperNova S120 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL H-1 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL GB-LO 17/32 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL H Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12EC PRO Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Reliable

Reliable F1-300 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

Reliable

Reliable F4FR Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Reliable

Reliable F1FR42 Series Manuel utilisateur

Reliable

Reliable F1FR-300 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
