INTERMEDIATE LEVEL SPRINKLERS

MODEL FR-1 FAST RESPONSE

QUICK RESPONSE, SOLDER TYPE, 8.0 K-FACTOR, 3/4" NPT**

GENERAL DESCRIPTION

The 8.0 K-Factor Model FR-1 Interme-

diate Level Sprinklers (Ref. Figure A)

are automatic sprinklers of the “quick

response” fusible solder type. They

are intended for use in fire sprinkler

systems designed in accordance with

the standard installation rules recog-

nized by the applicable Listing or Ap-

proval agency (e.g., UL Listing is

based on NFPA requirements). Both

the Pendent and Upright Sprinklers

produce a hemispherical water distri-

bution pattern below the deflector.

Intermediate Level Sprinklers are pri-

marily designed for use in rack storage

sprinkler systems, where their ther-

mally sensitive elements must be

shielded from the water spray of higher

elevation sprinklers which could oper-

ate earlier during a fire. Intermediate

Level Sprinklers are also used in appli-

cations such as beneath open gridded

catwalks.

APPROVALS AND STANDARDS

Laboratory listings and approvals for

the 8.0 K-Factor Model FR-1 Interme-

diate Level Sprinklers are given in Ta-

ble A.

WARNING

The 8.0 K-Factor Model FR-1 Inter-

mediate Level Sprinklers described

herein must be installed and main-

tained in compliance with this docu-

ment,aswellasapplicablestandards

of the National Fire Protection Asso-

ciation, in addition to the standards

of any other authorities having juris-

diction. Failure to do so may impair

the integrity of these devices.

The owner is responsible for main-

taining their fire protection system

and devices in proper operating con-

dition. The installing contractor or

manufacturer should be contacted

relative to any questions.

TECHNICAL DATA

The 8.0 K-Factor Model FR-1 Interme-

diate Level Sprinklers are rated for use

at a maximum service pressure of 175

psi (12,1 bar) and they are available in

the temperature ratings and finishes

indicated in Table A.

The flow “Q” in GPM (LPM) is deter-

mined by the following formula:

where the nominal discharge coeffi-

cient “K” equals 8.0 (115,2) and “p”

equals the residual flowing pressure in

psi (bar).

The Model FR-1 Intermediate Level

Sprinklers are obtained by assembling

a 4-1/8 inch ( 104,8 mm) O.D. brass

Shield to the 8.0 K-Factor Model FR-1

Pendent or Upright Sprinklers de-

scribed in Technical Data Sheet

TD526. In the case of the pendent

sprinkler, field assembly of the shield

is required, and in the case of the up-

right sprinkler, the shield is factory as-

sembled to the sprinkler.

QKp

Printed in U.S.A. 3-01 TD502M

FIGURE A

8.0 K-FACTOR MODEL FR-1 (SIN G8172) PENDENT AND (SIN G8153) UPRIGHT

INTERMEDIATE LEVEL SPRINKLERS

*Temperature rating is indicated on the Deflector.

** Pipe thread connections per ISO 7/1 can be provided on special request.

TYCO FIRE PRODUCTS, 7071 S. 13th Street, Suite 103 Oak Creek, WI 53154 — www.gemsprinkler.com

Customer Service/Sales: Tel: (877) 436-8926 / Fax: (877) 866-9250

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

OBSOLETE

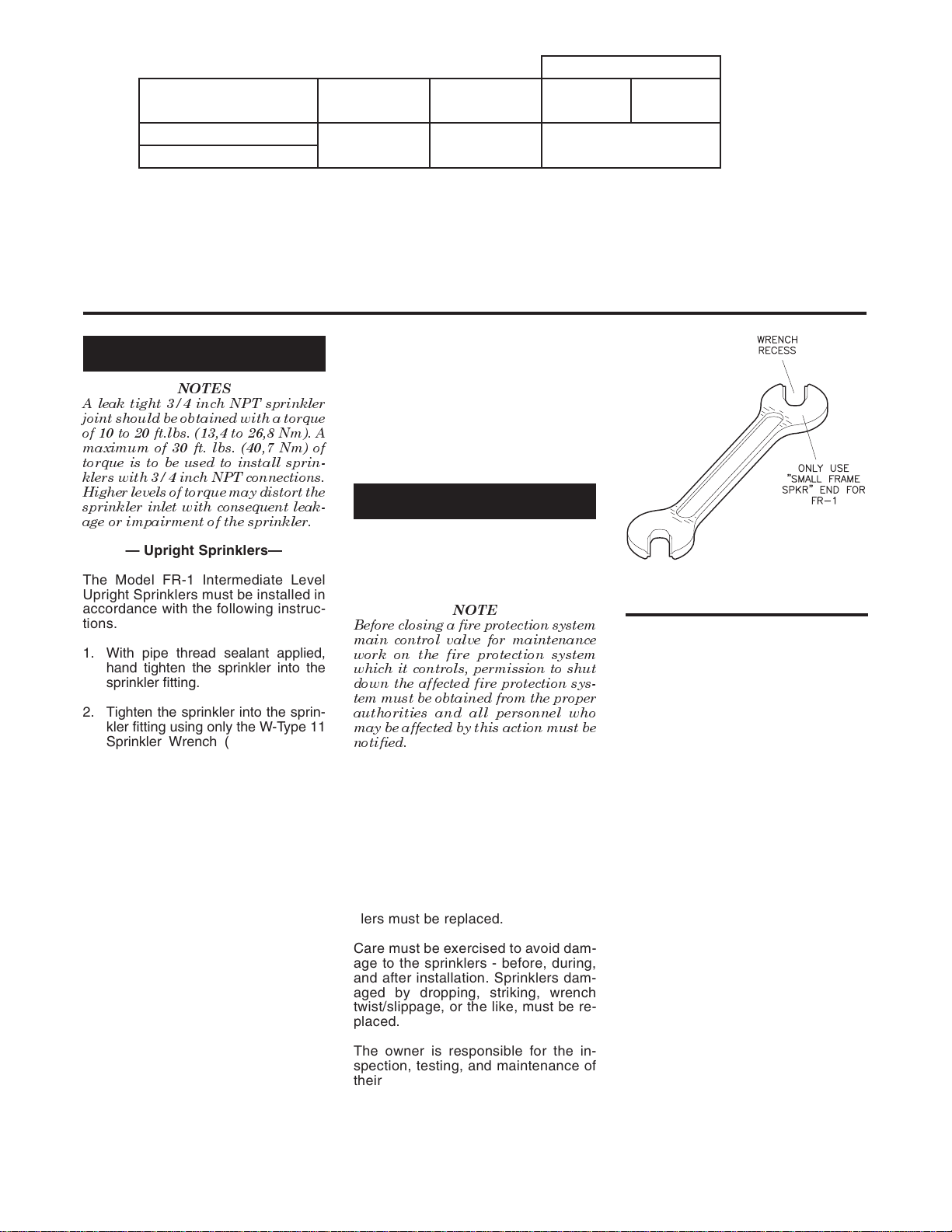

INSTALLATION

NOTES

A leak tight 3/4 inch NPT sprinkler

joint should be obtained with a torque

of 10 to 20 ft.lbs. (13,4 to 26,8 Nm). A

maximum of 30 ft. lbs. (40,7 Nm) of

torque is to be used to install sprin-

klers with 3/4 inch NPT connections.

Higher levels of torque may distort the

sprinkler inlet with consequent leak-

age or impairment of the sprinkler.

— Upright Sprinklers—

The Model FR-1 Intermediate Level

Upright Sprinklers must be installed in

accordance with the following instruc-

tions.

1. With pipe thread sealant applied,

hand tighten the sprinkler into the

sprinkler fitting.

2. Tighten the sprinkler into the sprin-

kler fitting using only the W-Type 11

Sprinkler Wrench (Ref. Figure B).

The wrench is to be applied to the

sprinkler wrenching area shown in

Figure A.

— Pendent Sprinklers—

The Model FR-1 Intermediate Level

Pendent Sprinklers must be installed

in accordance with the following in-

structions.

1. Install the Speednut by rotating it

clockwise and screwing it over the

threads until it seats against the

sprinkler wrenching area flange as

shown in Figure A.

2. Install the Shield over the sprinkler

threads, and then roll the O-Ring

over the sprinkler threads until it is

seated firmly against the Shield.

3. With pipe thread sealant applied,

hand tighten the sprinkler into the

sprinkler fitting.

4. Tighten the sprinkler into the sprin-

kler fitting using only the W-Type 11

Sprinkler Wrench (Ref. Figure B).

The wrench is to be applied to the

sprinkler wrenching area shown in

Figure A.

When installed correctly, the O-Ring

will be slightly compressed and the

Shield will be held firmly in place.

CARE AND MAINTENANCE

The Model FR-1 Intermediate Sprin-

klers must be maintained and serv-

iced in accordance with the following

instructions:

NOTE

Before closing a fire protection system

main control valve for maintenance

work on the fire protection system

which it controls, permission to shut

down the affected fire protection sys-

tem must be obtained from the proper

authorities and all personnel who

may be affected by this action must be

notified.

Sprinklers which are found to be leak-

ing or exhibiting visible signs of corro-

sion must be replaced.

Automatic sprinklers must never be

shipped or stored where their tempera-

tures will exceed 100°F/38°C and they

must never be painted, plated, coated,

or otherwise altered after leaving the

factory. Modified or over-heated sprin-

klers must be replaced.

Care must be exercised to avoid dam-

age to the sprinklers - before, during,

and after installation. Sprinklers dam-

aged by dropping, striking, wrench

twist/slippage, or the like, must be re-

placed.

The owner is responsible for the in-

spection, testing, and maintenance of

their fire protection system and de-

vices in compliance with this docu-

ment, as well as with the applicable

standards of the National Fire Protec-

tion Association (e.g., NFPA 25), in

addition to the standards of any other

authorities having jurisdiction. The in-

stalling contractor or sprinkler manu-

facturer should be contacted relative

to any questions.

It is recommended that automatic

sprinkler systems be inspected,

tested, and maintained by a qualified

Inspection Service.

TYPE TEMPERATURE

RATING

FRAME

COLOR

CODE

NATURAL

BRASS

PENDENT (SIN G8172)

SPRINKLER FINISH

Unpainted165°F/74°C

NOTES:

1. Listed by Underwriters Laboratories, Inc. as Quick Response Sprinklers.

2. Listed by Underwriters’ Laboratories of Canada as Quick Response Sprinklers.

3. Approved by Factory Mutual Research Corporation as Quick Response Rack Storage Sprinklers.

TABLE A

LABORATORY LISTINGS AND APPROVALS

UPRIGHT (SIN G8153) 1, 2, 3

CHROME

PLATED

FIGURE B

W-TYPE 11 SPRINKLER WRENCH

OBSOLETE

LIMITED WARRANTY

Products manufactured by Tyco Fire

Products are warranted solely to the

original Buyer for ten (10) years

against defects in material and work-

manship when paid for and properly

installed and maintained under normal

use and service. This warranty will ex-

pire ten (10) years from date of ship-

ment by Tyco Fire Products. No war-

ranty is given for products or

components manufactured by compa-

nies not affiliated by ownership with

Tyco Fire Products or for products and

components which have been subject

to misuse, improper installation, corro-

sion, or which have not been installed,

maintained, modified or repaired in ac-

cordance with applicable Standards of

the National Fire Protection Associa-

tion, and/or the standards of any other

Authorities Having Jurisdiction. Mate-

rials found by Tyco Fire Products to be

defective shall be either repaired or

replaced, at Tyco Fire Products’ sole

option. Tyco Fire Products neither as-

sumes, nor authorizes any person to

assume for it, any other obligation in

connection with the sale of products or

parts of products. Tyco Fire Products

shall not be responsible for sprinkler

system design errors or inaccurate or

incomplete information supplied by

Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE

PRODUCTS BE LIABLE, IN CON-

TRACT, TORT, STRICT LIABILITY

OR UNDER ANY OTHER LEGAL

THEORY, FOR INCIDENTAL, INDI-

RECT, SPECIAL OR CONSEQUEN-

TIAL DAMAGES, INCLUDING BUT

NOT LIMITED TO LABOR CHARGES,

REGARDLESS OF WHETHER TYCO

FIRE PRODUCTS WAS INFORMED

ABOUT THE POSSIBILITY OF SUCH

DAMAGES, AND IN NO EVENT

SHALL TYCO FIRE PRODUCTS’ LI-

ABILITY EXCEED AN AMOUNT

EQUAL TO THE SALES PRICE.

THE FOREGOING WARRANTY IS

MADE IN LIEU OF ANY AND ALL

OTHER WARRANTIES EXPRESS

OR IMPLIED, INCLUDING WARRAN-

TIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PUR-

POSE.

ORDERING PROCEDURE

A Product Symbol Number (PSN) is

not specified when ordering sprinklers

with thread connections per ISO 7/1.

Contact your local distributor for avail-

ability.

Upright Sprinkler Assemblies:

Specify: 8.0 K-Factor, 165F, Model

FR-1 Intermediate Level Upright

Sprinkler with (specify finish), PSN

(specify from Table B), as applicable).

Pendent Sprinkler Assemblies:

When pendent sprinkler assemblies

are required, the Pendent Sprinkler

and the FR-1 Pendent Shield Package

(shield, o-ring, and speednut) are or-

dered separately.

•Specify: 8.0 K-Factor, 165F, Model

FR-1 Pendent Sprinkler with (spec-

ify finish), PSN (specify from Table

C).

•Specify: Model FR-1 Pendent Shield

Package for 3/4 inch NPT, Model

FR-1 Intermediate Level Pendent

Sprinkler (one shield / one o-ring /

one speednut) with (specify finish),

PSN (specify).

Plain Brass: PSN 56-152-1-001

Chrome Plated: PSN 56-152-9-001

“Special Order”

Upright Sprinkler Assemblies with

ISO 7/1 Thread Connections:

Specify: 8.0 K-Factor, 165F, Model

FR-1 Intermediate Level Upright

Sprinkler with (specify finish) and with

thread connection per ISO 7/1.

Sprinkler Wrench:

Specify: W-Type 11 Sprinkler Wrench,

PSN 56-452-1-001.

WEIGHT

The nominal weights are as follows.

8.0 K-Factor Model FR-1

Upright Intermediate

Level Sprinkler . . . . . . . . . . . 6.6 ozs. (188 g)

8.0 K-Factor Model FR-1

Pendent Sprinkler. . . . . . . . . 3.4 ozs. (97 g)

Model FR-1 Pendent

Shield Package (3/4" NPT) . 3.0 ozs. (85 g)

W-Type 11

Sprinkler Wrench . . . . . . . . . 17.7 ozs. (500 g)

PSN 58 — XXX — X — XXX

165°F/74°C165

TEMPERATURE

RATING

TYPE

TABLE B

PRODUCT SYMBOL NUMBER SELECTION FOR

8.0 K-FACTOR MODEL FR-1 INTERMEDIATE LEVEL

UPRIGHT SPRINKLERS

153 UPRIGHT

SPRINKLER FINISH

1 NATURAL BRASS

9 CHROME PLATED

PSN 58 — XXX — X — XXX

165°F/74°C165

TEMPERATURE

RATING

172

TYPE

TABLE C

PRODUCT SYMBOL NUMBER SELECTION FOR

8.0 K-FACTOR MODEL FR-1 PENDENT SPRINKLERS

(PENDENT SHIELD PACKAGE ORDERED SEPARATELY)

PENDENT

SPRINKLER FINISH

NATURAL BRASS

CHROME PLATED9

OBSOLETE

Autres manuels Tyco Fire Product Système d'irrigation

Tyco Fire Product

Tyco Fire Product Star Pulsar S160 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO SW-24 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12EC PRO Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F890 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star S190 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL BV Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL DS-2 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Pulsar S160 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Stealth S110 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F938 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product EC-17 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Pulsar S195 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-25 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star SuperNova S120 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ESLO-20 GB Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL H Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL Omega HEC-12 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 BV Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem G102 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Mizar S215 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F898 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product TY300-FRB Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem DS-1 Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ESFR-17 Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Reliable

Reliable F1-300 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

Reliable

Reliable F4FR Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Reliable

Reliable F1FR42 Series Manuel utilisateur

Reliable

Reliable F1FR-300 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
