Twilight LG-DM1306D Manuel utilisateur

Medidor de Decibeles, Langder

LG-DM1306D

Quick Start Guide

V-22-07-1306D

1Power Button

2Left Button

3Right Button

4Menu Button

5Charging Input

6Microphone Sensor

Humidity Reading

Decibel Reading

Sound Level Indicators

Positioning Sticker

Screws

7Temperature Reading

AK5000 DECIBEL METER

Decibel

DECIBEL METER

Step 1:

Step 2:

Step 3:

Plug in the decibel meter using a standard cell phone

adapter plug.

Press the Power Button to turn on the decibel meter.

Press the “M” (Menu) Button to choose your desired

sound sampling speed. There are 3 options:

Step 4:

Step 5:

Adjust the screen brightness to your desired setting

by pressing the Left Button and Right Button.

For wall mounting, follow the instructions below.

Fast

Medium

Slow

Identify the proper location and place the

Positioning Sticker onto the wall.

Make a small (about 6mm) hole at each of the 2

marked positions on the Positioning Sticker.

Hammer the white plastic drywall anchors into

the holes.

Using a screw driver, screw the screws into the

drywall anchors, leaving the screws slightly

exposed.

Hang the decibel meter onto the screws.

GET STARTED

HOW TO INTERPRET READINGS

<60 60 - 75 75 - 85 >85

18°C - 26°C <18°C or >26°C

30 - 60% <30% or >60%

Decibel

Reading

Indicator

Temperature

Humidity

Quiet /

Comfortable Noisy Loud Extremely

Loud

CONSIDERATIONS & PRECAUTIONS

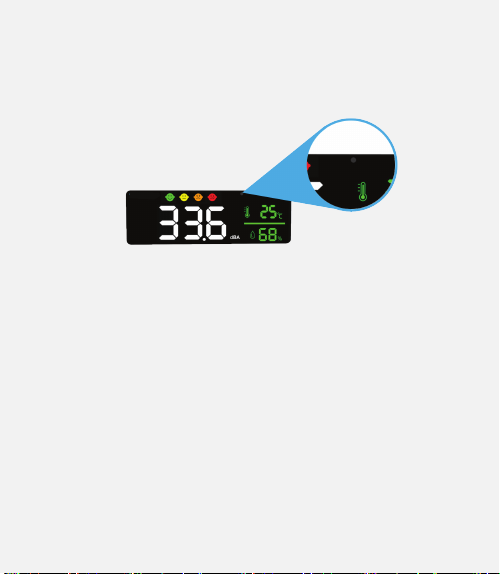

DO NOT touch or poke the Microphone Sensor! It is NOT a

reset button. Doing so will damage the product and

invalidate the warranty.

DO NOT use chemicals or solvents to clean the product as

residual fumes will skew air quality readings.

DO NOT put water or other liquids on or near the product

to avoid electrical damage.

DO NOT allow unauthorized modiﬁcation or repair of this

product.

DO NOT take apart or disassemble this monitor. Doing so

may damage the product and will invalidate the warranty.

This decibel meter is meant to be used indoors and kept

dry at all times. It is strongly recommended to store in a

cool, dry place.

●

Decibel

PRODUCT SPECIFICATIONS

Display Method LED Screen

Atmospheric Pressure 12.5 PSI - 15.4 PSI

1.5 Seconds

-10°C - 50°C

20% - 85%

-10°C - 60°C

Sampling Time

Temperature Range

Relative Humidity

Storage Temperature

Charging 1000 mAh 5V

Product Weight 11.3 oz

Measuring Range 30 - 130 dBA

Accuracy ±1.5 dBA

Frequency Range 50Hz - 8.5kHz

0.1 dBA

Frequency Weighting

Resolution

Humidity Range 20% - 85%

10.6 x 3.5 x 1.4 Inches

Product Size

Concentration Unit Decibel dBA

Battery 2000 mAh Lithium Ion

O/ twilightsadecv

twi

INSTRUMENTOS DE MEDICIÓN INDUSTRIAL

� LLÁMANOS

 













www.twilight.mx

 / twilightsadecv � / twilightsadecv
