TVS electronics RP 3200 STAR Manuel utilisateur

Receipt Printer User’s Manual

RP 3200 STAR

All specifications are subject to change without notice

RP 3200 STAR User’s Manual

Part Number: 1025040087, Rev A, Description: User Manual, RP3200 STAR

RP 3200 STAR User’s Manual

TABLE OF CONTENTS

1. Parts Identifications

2. Setting up the printer

2.1 Unpacking

2.2 Connecting the cables

2.3 Loading the roll paper

2.4 Adjustment of paper width

3. Control panel and other functions

4. Self Test

5. ASCII Print

6. Select Baud Rate Mode

7. Hexadecimal Dump

8. Printer Cleaning

9. Specifications

9.1. General Specifications

9.2. Auto Cutter Specifications

9.3. Interface

9.4. Electrical Characteristics

9.5. Environmental Requirements

9.6. Reliability

9.7. Certification

10. Command List

RP 3200 STAR User’s Manual

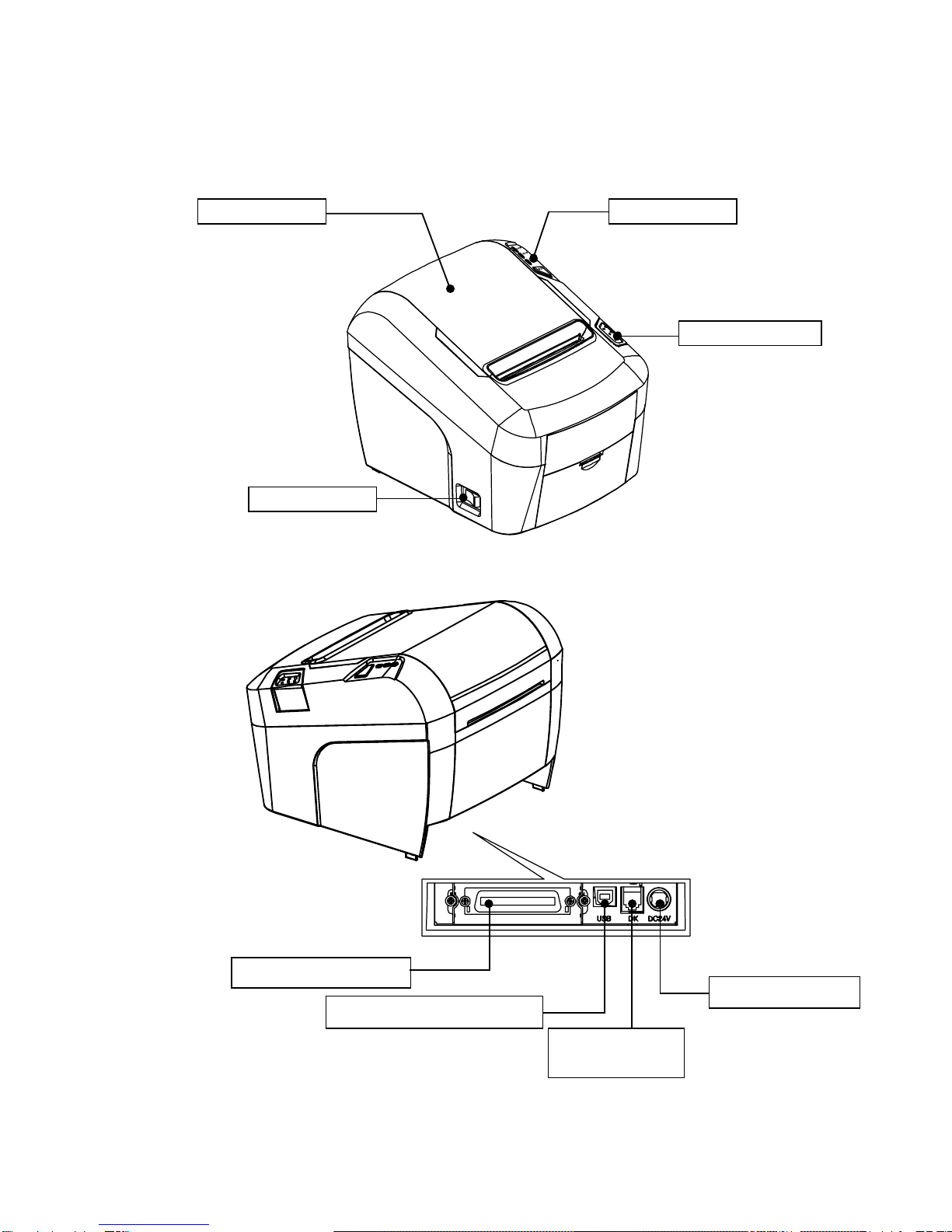

1. Parts Identifications

INTERFACE CONNECTOR(USB)

INTERFACE CONNECTOR

PERIPHERAL

DRIVE CONNECTOR

POWER CONNECTOR

PRINTER COVER

CONTROL PANEL

COVER OPEN LEVER

POWER SWITCH

Open this cover to

load or replace paper.

Features LED indicators

to indicate printer status

and switches to operate

the printer.

Used to turn on/off

power to the printer.

Pull down this lever to

open the printer cover.

RP 3200 STAR User’s Manual

2. Setting up the Printer

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your

dealer for assistance.

The Printer User’s Manual Roll Paper

Adaptor Interface Cable (Option)

RP 3200 STAR User’s Manual

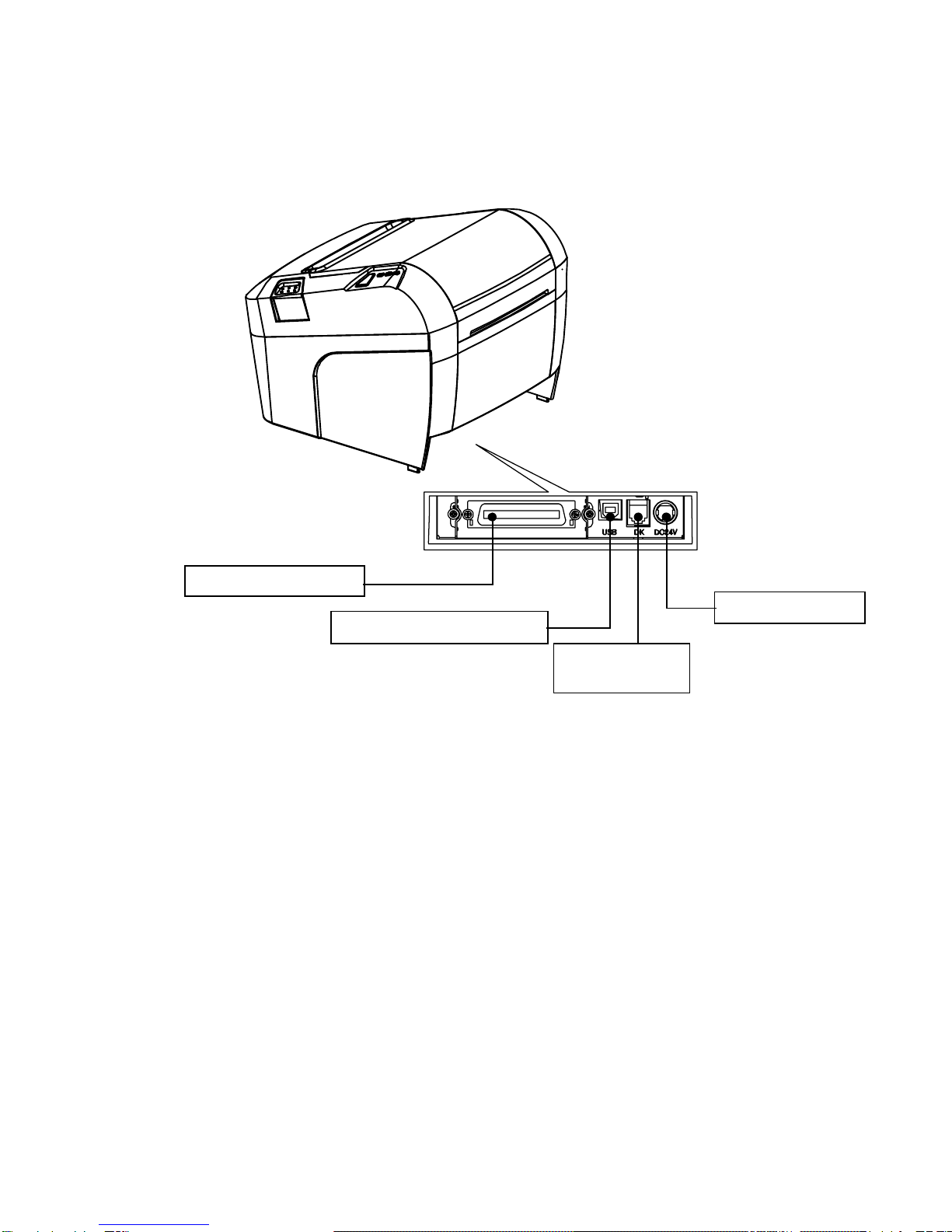

2-2. Connecting the Cables

You can connect up the cables required for printing to the printer. They all connect to the connector panel

on the back of the printer, which is shown below:

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

For connection to a

host computer.

For connection to a

host computer.

Connects to peripheral units

such as cash drawers, etc.

Do not connect this to a

telephone.

For connection of the AC

adapter. Never unplug the

AC adapter while the printer

is on.

INTERFACE CONNECTOR(USB)

INTERFACE CONNECTOR

PERIPHERAL

DRIVE CONNECTOR

POWER CONNECTOR

RP 3200 STAR User’s Manual

2-2-1. Interface Connector

<D-SUB 25 Female Serial> <Centronics Parallel>

Serial interface

SIGNAL

I/O

DESCRIPTION

TxD

Output

Printer transmit data line RS-232C level

RxD

Input

Printer receive data line RS-232C level

4, 20

DTR

Output

Printer handshake to host line RS-232C level

DSR

Input

Data Send Ready

1, 7

GND

System Ground

USB interface

SIGNAL

I/O

DESCRIPTION

+5V

DATA-

Printer transmit data line

DATA+

Printer transmit data line

GND

System Ground

RP 3200 STAR User’s Manual

Centronics Parallel interface

SIGNAL

I/O

DESCRIPTION

STROBE-

Input

Synchronize signal Data received

2~9

DATA0~7

Input/Output

Data bit Transmitted 0~7

ACK-

Output

Data receiving completed.

BUSY

Output

Impossible to print of data receiving.

Output

Paper empty

SELECT

Output

Printer status for ON/OFF line

AUTO FEED-

Input

Paper auto feed signal

GROUND

System ground

GROUND

System ground

LOGIC-H

+3.3V

19~30

GROUND

System ground

INIT-

Input

Initialize

ERROR-

Output

Printer error

GROUND

System ground

SELLECT IN-

Input

Printer select signal

Ethernet Interface

SIGNAL

I/O

Data Out +

Output Data +

Data Out -

Output Data -

GND

Ground

Data IN +

Input Data +

Data IN -

Input Data -

N.C

RP 3200 STAR User’s Manual

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.

The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing.

SIGNAL

DESCRIPTION

Signal GND

Drawer kick-out drive signal 1

Output

Drawer open/close signal

Input

+24V

Drawer kick-out drive signal 2

Output

Signal GND

CAUTION:

To avoid an over current, the resistance of the drawer kick-out solenoid must be 24 Ω or more.

RP 3200 STAR User’s Manual

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the

paper glued to the core because the printer cannot detect the paper end correctly.

(Turn off power switch)

☞Turn off power switch.

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pulling down the cover-open lever.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.
