Tutti Bambini ARLO Guide d'installation
Assembly Instructions
®
Hello,
Congratulations on your new arrival!
We’re so pleased that you have chosen our ARLO® pushchair
for your baby.
Please take a few moments to read this guide on how to use the ARLO® correctly so you
can rest assured that your little one is safe and secure in their pushchair.
Wishing you the best of luck on your new journey,
Introducing ARLO® from Tutti Bambini - an adaptable, multi combination pushchair designed
to grow with your family. It offers a choice of two chassis colours and five accessory pack
colours, allowing full customisation of your pushchair to suit your style.
ARLO® can be used as a single pushchair or can be adapted to fit twin and tandem
combinations with a number of options including tandem seat units, carrycots or car seats.
The functionality of ARLO® makes it the perfect selection for everyone; whether you have one
or two on the way, or if your family is growing!
ARLO® features a lie flat seat which is suitable from birth, that can be used in street or parent
facing modes. An optional carrycot is also available which is suitable for overnight sleeping.
This stroller has a one hand mechanism which allows you to fold it with ease. It also collaps-
es with the seat unit still on, providing a space saving and hassle-free solution when storing.
With smooth steering and cantilever suspension on all four wheels, this pushchair is easy to
manoeuvre ensuring your little one experiences a smooth ride.
The pushchair accessory pack (sold separately) is made from a water and oil repellent
melange fabric and includes a hood, seat liner, shoulder and crotch pads. The hood features
an extendable panel which provides full cover from the sun, wind and rain. It also has a fur-
ther extendable UV protective sun visor, and a concealed mesh window with a magnetic flap
so that you can check on your little one at all times. The padded seat liner and shoulder and
crotch pads will keep your child comfortable, and easily fit over the 5-point safety harness on
your pushchair seat.
Features:
• Forward and rear facing removable seat
• Lie flat seat suitable from birth
• Cantilever suspension all round
• Height adjustable handle
• Single hand fold
• Can be folded with seat attached
• 5-point safety harness
• Leatherette handles
• Colour coded touch points
• Puncture proof PU tyres
Tutti Frutti Direct Ltd. Unit 3, 1000 North Circular Road, London, UK, NW2 7JP
t: +44 (0) 208 368 5800
e: [email protected].uk
www.tuttibambini.com
IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY
To ensure that your pushchair is used in accordance with these instructions, please read them
fully. This pushchair conforms to EN 1888:2012 and is
guaranteed for 12 months from the date of purchase against manufacturing
defects. Your child’s safety may be affected if you do not follow these
instructions. This stroller is intended to carry child from birth up to a maximum weight of 15kgs.
WARNING: A child’s safety is your responsibility.
WARNING: Ensure that all locking devices are engaged before use.
WARNING: Children should be harnessed in at all times.
Always use the crotch strap in combination with the waist belt.
WARNING: DO NOT hang shopping bags from the handle as this may affect the pushchairs
stability. Use the basket provided - maximum weight 5kgs.
WARNING: This product is not suitable for running or skating. Never run or skate with
your pushchair.
WARNING: It may be dangerous to leave your child unattended.
WARNING: Do not use this product as a bed, your child may become tangled in straps
and suffocate.
WARNING: The child should be clear of moving parts while making adjustments or opening or
folding the pushchair. Risk of serious injury (entrapment, laceration or amputation) exists.
WARNING! Do not let your child play with this product.
WARNING! This tandem seat unit is not suitable for children under 6 months.
WARNING! Check that the pram body, seat unit or car seat attachment devices are correctly
engaged before use.
The pushchair should be used in the furthest reclined ‘lie flat’ position for new born babies.
The parking brake shall always be engaged when placing and removing the children
from the pushchair.
Any load attached to the handle, backrest or sides of the pushchiar will affect
the stability of the vehicle.
This pushchair should only be used with a maximum of 2 children.
The pushchair should only be used in tandem mode in the combinations indicated in
this instruction manual.
Accessories not approved by the manufacturer should not be used with this product.
Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
CARRYCOT
No additional mattress shall be added unless recommended by the manufacturer.
This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on
its hands and knees. Maximum weight of the child: 9 kg.
Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
Accessories not approved by the manufacturer should not be used with this product.
• Large shopping basket with a magnetic
flap providing easy access from rear
• Twin and tandem combinations for
double transport
• Carry cot compatible
• ByGo ISOfix Infant Car seat compatible
• Compatible with major Car Seat
manufacturers via a set of universal
adapters (sold separately)
• Includes rain cover
Team Tutti
Conforms to BS EN1888:2012 and EN1466
Contents
Chassis
Fitting/removing the front wheels 6
Opening the chassis 6
Operating the parking brake 8
Operating the front swivel wheel 8
Adjusting the handle height 9
Folding the chassis 9
Seat Unit
Fitting the seat unit to the chassis 12
Adjusting the seat unit 12
Adjusting the calf support 12
Using the 5 point safety harness 13
Removing the seat unit from the chassis 13
Fitting the seat unit hood (sold separately) 14
Fitting the seat liner (sold separately) 15
Fitting the rain cover 15
Carrycot (sold separately)
Assembling the carrycot 16
Fitting the carrycot hood (sold separately) 16
Fitting the carrycot apron (sold separately) 17
Fitting the carrycot to the chassis 17
Removing the carrycot from the chassis 18
Car Seat (sold separately)
Fitting the car seat to the chassis 19
Removing the car seat from the chassis 19
Tandem Mode
Tandem modes 21
Fitting/removing tandem seat unit (sold separately) 22
Fitting/removing carrycot in lower position 22
Fitting/removing car seat to lower position 23
Care and maintenance 24
Parts List
Chassis
• 2 x Front swivel wheels
• 2 x Rear wheels
• Seat Unit
• Hood (sold separately)
• Seat pad (sold separately)
• Shoulder and crotch straps (sold separately)
• Basket
• Rain cover
Carrycot
• Mattress
• Liner
• Hood (sold separately)
• Apron (sold separately)
4 5
www.tuttibambini.com www.tuttibambini.com
Chassis
6 7
www.tuttibambini.com www.tuttibambini.com
Chassis

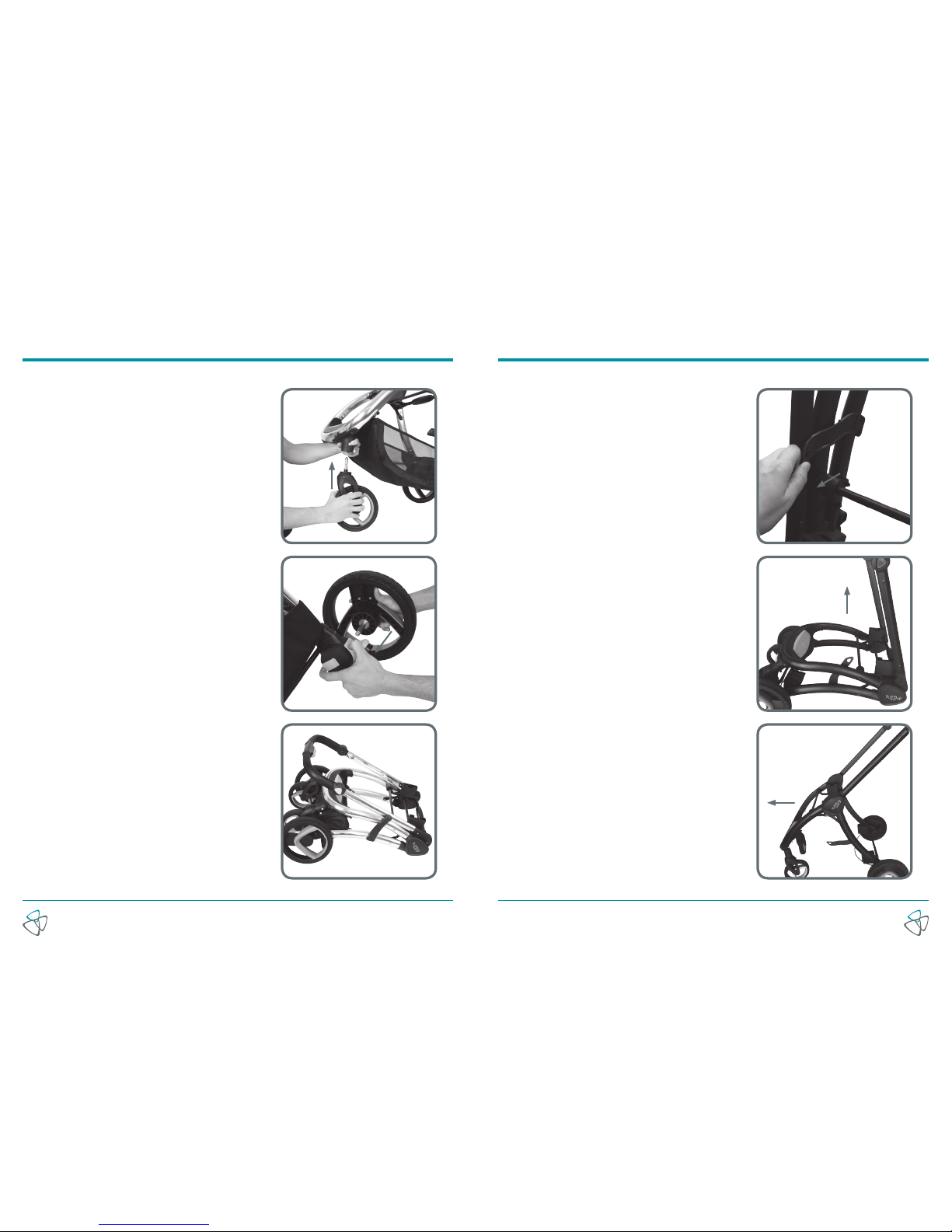

1. Fitting/removing the front wheels
Press the metal pins of the front wheels into the
designated holes at the front of the chassis until
they click into place. There is no left and right.
Check the wheels are secure by pulling down on
them. To remove, press the quick release button
on the side of the wheel housing.
Pull the release catch outwards to
release the handle.
2. Fitting/removing the rear wheels
Press the metal pins of the rear wheels into the
designated holes at the back of the chassis until
they click into place. There is no left and right.
Check the wheels are secure by pulling them
outwards. To remove, pull down on the quick
release button on the inside of the wheel housing.
From the handle, pull upwards.
3. Opening the Chassis
Lay the chassis flat on the floor with the handle
facing upwards.
Once the pushchair is vertical, the front of the chassis
will spring forwards.
5. Operating the front swivel wheel
Flick the small grey lever on the back of the front
wheel housing inwards or outwards to switch
between fixed and swivel wheels.
8 9
www.tuttibambini.com www.tuttibambini.com
ChassisChassis
Pull the handle downards until it clicks into place. 6. Adjusting the handle height
Press the two triangular handle adjustment buttons
inwards and adjust the handle height with your
hands until it is at the desired height, then release
the buttons and the handle will click into place.
4. Operating the parking brake
Press downwards on the parking brake pedal with
your foot to activate the parking brake. Flick the pedal
upwards with your foot to deactivate the parking
brake. WARNING: Never leave the pushchair without
first fully engaging the parking brake.
7. Folding the chassis
Note: The Arlo chassis can fold with the seat in
a forward and rear facing position, but it is
recommended to fold it in a forward facing
position to keep it as compact as possible.
First, fold the seat in half by pulling the seat adjust-
ment handle upwards and leaning the back rest all
the way forwards.
Then, squeeze the folding button.
Pull the handle forwards until it sits on the front half
of the chassis.
10 11
www.tuttibambini.com www.tuttibambini.com
Chassis
Hold the twisting handle in your right hand and pull
the secondary lock inwards with your thumb. Then
twist the handle forwards.
Pull the chassis upwards so that the wheels
collapse inwards.
The release catch will lock into place.
Chassis
12 13
www.tuttibambini.com www.tuttibambini.com
Seat Unit
Seat Unit
4. Using the 5 point safety harness
To release the 5 point safety harness, press the
central button on the buckle housing. To lock the
safety harness, press the buckles together as
shown in the image, and clip all 4 buckles into the
central buckle housing.
The shoulder straps can be altered by adjusting the
sliders on the harness. The position of the buckles
can be altered as your child grows by threading the
buckle through the seat back at the higher position.
5. Removing the seat unit from
the chassis
Squeeze the two handles on either side of the
seat unit and lift the seat upwards out of the
main housing on the chassis.
1. Fitting the seat unit to the chassis
Insert the seat unit connectors into the main
housing on the chassis, until it clicks into place.
Note: the seat can be used in forward or parent
facing mode.
2. Adjusting the seat unit
Lift the seat adjustment handle at the back of the
seat unit and pull the seat backwards or forwards,
letting go of the handle at the desired position.
The seat will lock into place. There are 3 seat positions.
3. Adjusting the calf support
Pull the handle on the underside of the calf support,
and raise or lower letting go at the desired position.
The calf support will lock into place. The calf support
has 3 positions.
6. Fitting the seat unit hood
(sold separately)
Align the back of the pushchair hood to the back of
the seat unit, and push the seat adjustment handle
through the hole in the hood.
Finally, click the hood bar back into the two slots on
the seat unit until they click into place.
7. Fitting the seat liner
(sold separately)
Feed the shoulder and crotch straps through the
holes in the seat liner so that they align with their
positions on the seat unit, and pull them all the way
through.
Attach the shoulder pads around the shoulder straps
and secure using the Velcro provided. Feed the
crotch strap through the hole in the crotch pad.
Secure the seat liner to the seat unit by fastening the
press studs at the top of the seat liner, and to the
back rest and seat (via the gap between the two).
8. Fitting the rain cover
Drape the raincover over the seat unit and fasten
the velcro straps together at the front, back and
sides of the pushchair to secure into place.
Note: In tandem mode, a separate rain cover is
supplied to cover both units.
14 15
www.tuttibambini.com www.tuttibambini.com
Seat Unit
Seat Unit
16 17
www.tuttibambini.com www.tuttibambini.com
Carrycot (Sold Separately)Carrycot (Sold Separately)
1. Assembling the carrycot
Remove the mattress and lining to gain access to
the assembly bars at the bottom of the carrycot.
Using the tabs provided, pull the bars until they
click into place on the carrycot base. Put the
lining and mattress back into the carrycot.
WARNING: Ensure that the assembly bars are
fully engaged before using the carrycot.
2. Fitting the carrycot hood
(sold separately)
Zip the lower end of the carrycot hood onto the zip on
the carrycot and pull all the way around.
Zip the two padded ends of the carrycot hood around
the carrycot hood bar towards the handle, ensuring
the leatherette handle can be accessed through the
handle hole.
3. Fitting the carrycot apron
(sold separately)
Zip the carrycot apron onto the zip on the
carrycot and pull all the way around.
4. Fitting the carrycot to the chassis
First place the carrycot adapters (supplied with
the carrycot) onto the chassis, with the arrows
facing the direction that you want to place the
carrycot. The yellow markers on the adapters
should face inwards.
Then lower the carrycot onto the adapters
until they click into place.
5. Removing the carrycot from
the chassis
Press the two buttons on the carrycot
adapters inwards.
Lift the carrycot upwards from the handle.
The carrycot adapters can be removed from the
chassis by squeezing the handles and lifting off.
18 19
www.tuttibambini.com www.tuttibambini.com
Car Seat (Sold Separately)Carrycot (Sold Separately)
1. Fitting the car seat to the chassis
First place the car seat adapters (supplied with the
car seat) onto the chassis, with the arrows facing
the direction that you want to place the car seat.
The yellow markers on the adapters should
face inwards.
Then lower the car seat onto the adapters until
they click into place.
2. Removing the car seat from
the chassis
Squeeze the handles on the car seat adapters
and lift the car seat upwards.
Table des matières
Autres manuels Tutti Bambini Poussette
