TurboAnt M10 Lite Manuel utilisateur
Folding Electric Scooter
User Manual
M10 Lite
Thank you for purchasing this product. To avoid injury to the user and others, be sure to observe
the following safety instructions and guidelines. Keep this information for future reference.
Introduction
Featuring 8.5'' tubed pneumatic tires, this scooter gives you a smooth riding experience. Its
powerful 350 watt motor and 36 V battery enable a speed of up to 16 mph with a range of up to
15.5 miles. The reinforced frame reliably supports a body weight of up to 220 lb.
Important Safety Instructions and Guidelines
Safety Checks
• Ensure the wiring and cables around the handlebar are not twisted, and that the throttle is on
the right side while riding the electric scooter.
• Make sure that no parts are damaged or have been modified.
• Make sure that the stem has been secured properly.
• Make sure that Hall cable (black) and brake cable (red) under the brake lever are connected
correctly and the brakes operate properly.
• Make sure that the tires are fully inflated.
• Make sure the battery is fully charged (the indicator light turns green).
• Test whether the scooter can be turned on/off.
• Make sure that the front and rear lights function properly in the dark.
• Children under 14 years old should be supervised by an adult.
Safety Guidelines
01
WARNING! RISK OF BATTERY EXPLOSION!
Do not use the battery if it is damaged or has been modified.
Do not expose to heat exceeding 95 °F (35 °C).
Only use the original charging adapter.
Wear protective gear such as a helmet.
Do not ride the scooter in wet conditions.
Package Contents
2 x M2.5 Allen Wrenches
1 x M4.0 Allen Wrench
5 x M6*10 Screws (including 1 spare screw)
4 x M4*10 Screws
4 x Mudguard Plugs
1 x Charging Adapter
1 x Valve Adapter
1 x User Manual
02

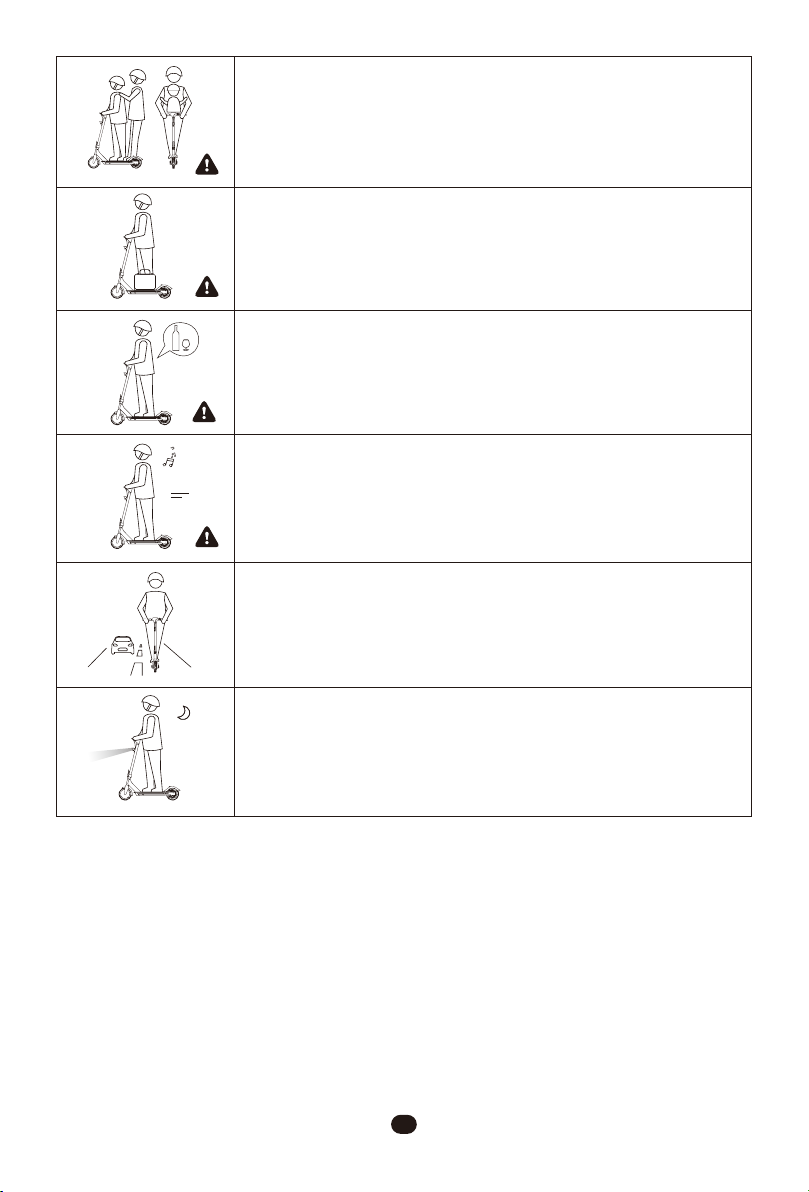

The maximum load is 220 lb (100 kg).
Do not ride under the influence of drugs or alcohol.
Do not use a cell phone or listen to music when riding
the e-scooter.
Check your local traffic regulations whether riding an e-scooter
in traffic is legal or not in your area.
Turn on the lights in the dark.
The scooter is only suitable for riding by a single person.
Technical Specifications
Notes
1. Max speed values stated in the user manual depend on the road conditions and the load.
Values stated on the rating label are related to average conditions.
2. Mileage is tested under the following conditions: the scooter is driven with the second
speed level, 41.8 V full power battery, a load of 165 lb (75 kg), temperature of 77 °F (25 °C),
03
Product
Information
Unfolded Size
Folded Size
44.49 x 19.69 x 45.87 in
(1130 x 500 x 1165 mm)
44.49 x 19.69 x 20.48 in
(1130 x 500 x 520 mm)
Ground Clearance
Product Weight
Adapter Input Voltage
Motor
Tire (Front & Rear)
Max Speed
Range
Max Climbing Capability
Load
Foldable Stem
Battery Pack
Brake System
Speed
Illumination
Warning Function
IP Rating
Operating Temperature
Storage Temperature
32 to 113 °F (0 to 45 °C)
-4 to 113 °F (-20 to 45 °C)
Yes
Non-detachable
Electric brake and rear disc brake
2 settings (linear adjustment)
LED headlight and taillight
Bell
IP54
3.15 in (80 mm)
30.86 lb (14 kg)
100-240 V AC, 50/60 Hz
36 V, 350 W
8.5-inch, tubed pneumatic tires
16 mph (25 km/h)
15.5 miles (25 km)
15°
44-220 lb (20-100 kg)
Drive System
Functions
Operating
Conditions
Input
Output
100-240 V AC, 50/60 Hz
42 V DC, 1.5 A
Charger
humidity of 70%, gentle breeze, tire pressure of 45 psi (310 kPa), and flat, dry road conditions. Actual
results may vary. If the load exceeds 220 lb (100 kg), the mileage and speed may be decreased, which
can affect the riding experience.
3. Please ride safely within the maximum speed limit set by local traffic officials. Everyone
should strictly abide by all traffic rules and regulations.
Battery Specifications
04
Type
Charging Time
Voltage
Capacity
Operating Temperature
Charging Temperature
Max Charging Voltage/Current
Storage Temperature
Storage Time
Li-ion
4-5 hours
36 V
6.6 Ah, 238 Wh
32 to 113 °F (0 to 45 °C)
32 to 113 °F (0 to 45 °C)
42 V, 1.5 A
-4 to 113 °F (-20 to 45 °C)
3 months (after a full charge)

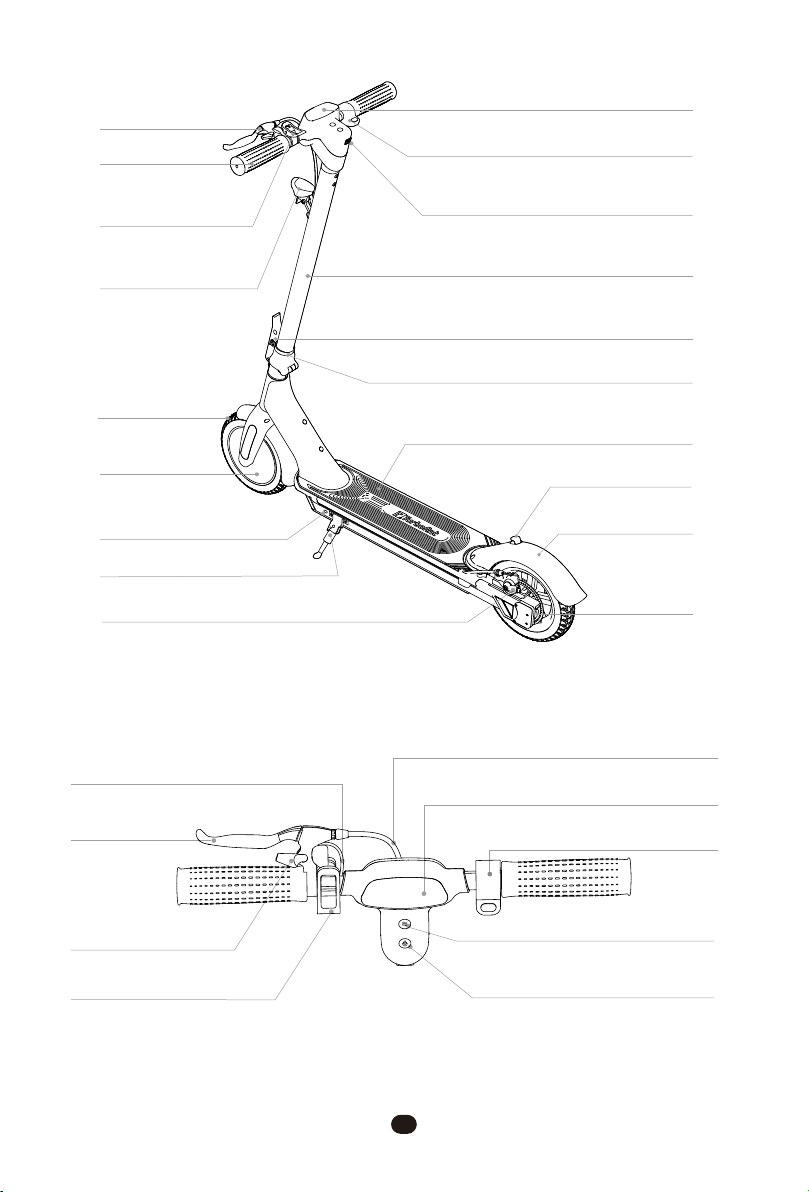

Product Overview
Controls Overview
Handlebar
Brake Lever
Headlight Stem
Motor
Kickstand
Disc Brake
Throttle
LED Display
Hook
Hook
USB Charging Port (for Phone)
Stem Folding Spanner
Anti-skid Deck
Mudguard
Taillight
Stem Safety Latch
8.5-Inch
Pneumatic Tire
Mudguard Hook
Charging Port (for Scooter)
Brake Lever
Bell
LED Display
Speed Button
Brake Cable (Red)
Hall Cable (Black)
Power Button
Throttle
05
Note: If there is no operation within 10 minutes, the scooter will automatically turn off with a "beep"
sound.
Controls Description
Control
Throttle
Power On/Off
Speed Level
Headlight
Cruise Mode
Operation
Level 1: The display shows “1”
Level 2: The display shows “2”
Press down the throttle to accelerate.
Brake
Squeeze the brake lever to stop the scooter. When the brake
lever is fully depressed, the scooter will come to a complete stop.
After that, it will have to be manually started (see the General
Troubleshooting and Solution Guide section).
Press and hold on the power button for 1 second or longer to turn
on/off the scooter.
Short press the power button while the scooter is on to turn
on/off the headlight.
Maintain a constant speed that you desire (must be at least 3.7 mph or
6 km/h to activate cruise mode). Then, hold the throttle in the same
position for six seconds to enable cruise control. Exit cruise mode by
using either the throttle, the brake lever, or the speed button.
Press the speed
button to adjust
the speed level.
06
LED Display
Motor Icon
Current Speed
Speed Level
Battery Status
Light Icon
00
12
07
Operating Instructions
Assembly
• Open the kickstand and keep the e-scooter steady on the ground.
• Connect the head wire and stem wire.
• Install the scooter head onto the stem and then fold the stem.
• Take off the folding spanner screw with the M2.5 Allen wrenches.
• Align the screw holes. Insert the folding spanner screw back and tighten with the M2.5
Allen wrenches.
*Use one wrench to stabilize one side and tighten/unscrew with another wrench on another
side.
• Lift the stem and push in the folding spanner until a "click".
• Turn the stem safety latch inward to secure the folding spanner.
Tools needed
1 x M4 Allen Wrench 2 x M2.5 Allen Wrenches 4 x M4*10 Screws 4 x Mudguard Plugs
4 x M6*10 Screws
Stem Folding
08
• Adjust the scooter head and align the screw holes.
• Secure the head by installing and tightening the M6x10 screws.
• Secure the mudguard by installing and tightening the M4x10 screws.
• Cover the screws with the mudguard plugs. Make sure to align the mudguard plugs’
opening with the raised part next to each screw and push in to secure the plugs (use the
shorter plugs for the front screws and longer plugs for the side screws).
• Turn the stem safety latch outward.
• Pull the folding spanner outward.
• Fold the stem and secure it onto the hook.
