Tunstall Lifeline 400 Manuel utilisateur
Lifeline 400
installation and user guide
Part Number D3707103B
Lifeline 400 user guide q6 18/2/04 10:56 am Page 2
2
Contents
Your Lifeline 400 P3-4
What’s in the box P5
Setting Up The Lifeline 400 P6-7
Installation Advice P8
Peripherals and Sensors P9
Making an Alarm Call P10-11
Cancelling an Alarm Call P12
Personal Radio Triggers P13
Telephone Line Monitoring P14
Power Failure Monitoring
Answering Calls Remotely
Away Button P15
Intruder Monitoring
Help and Advice P17
Notices P18
Wall Mounting P19
Lifeline 400 user guide q6 18/2/04 10:56 am Page 3

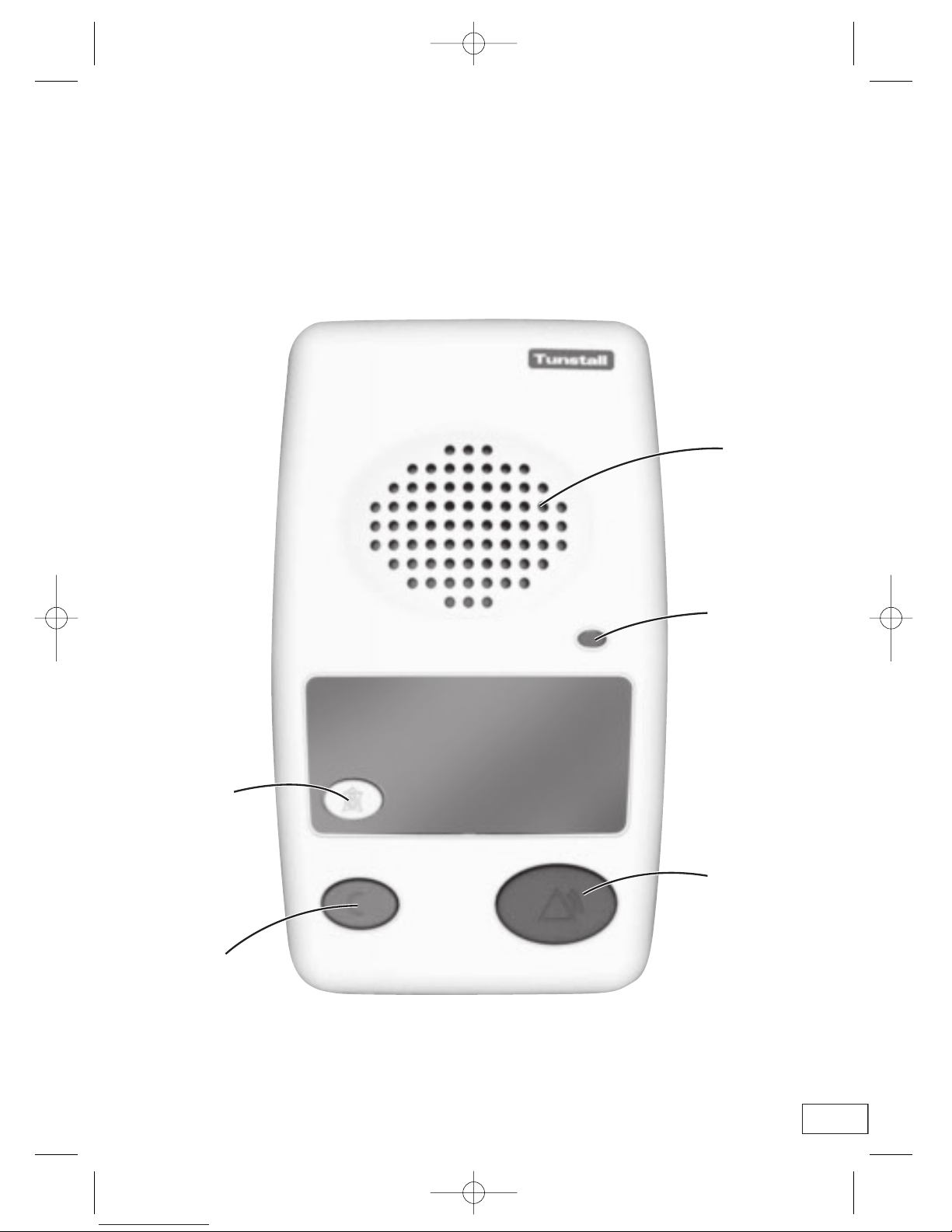

Away
Button
(optional)
Cancel
Button
Speaker
Handsfree
Illumination LED
Red Alarm
Button
3
Your Lifeline 400
Lifeline 400 user guide q6 18/2/04 10:56 am Page 4
Your Lifeline 400
Tunstall Accessory
Port (G)
Telephone
Adaptor Socket (B)
Aerial
Ringer on/off Switch
(D)
Mains Adaptor
Socket (C)
Wall
Mounting
Points (H)
Cable
Channel (I)
Telephone Lead
Socket (A)
Speaker Volume
Control (E)
Hard Wired
Input (F)
Battery
Compartment (J)
Microphone (K)
4
Lifeline 400 user guide q6 18/2/04 10:56 am Page 5
What’s in the box
Lifeline 400 Personal Triggers
Mains Adaptor (C)
Neck Cord
Telephone Adaptor (B)
Belt Clip
(Amie+ only)
Amie+ Gem+
Telephone
Lead (A)
5
OR
Lifeline 400 user guide q6 18/2/04 10:56 am Page 6
Setting Up The L
STEP 1
• Plug the telephone lead (A)
into the Lifeline 400 (Socket A) and
the main telephone wall socket.
STEP 2
• Plug the telephone adaptor (B)
into the Lifeline 400 (Socket B)
and then connect the
telephone to the adaptor.
STEP 3
• Plug the mains adaptor (C) into the
Lifeline 400 (Socket C) and then
connect to mains power.
6
Lifeline 400 user guide q6 18/2/04 10:56 am Page 7
e Lifeline 400
STEP 5
• Adjust speaker volume control (E)
by depressing with a pen/pencil.
STEP 6
• Connect hard wired peripheral
to input (F) (if required).
STEP 7
• Make test calls using the alarm button on the Lifeline 400
and each radio/hardwired peripheral.
STEP 4
• Adjust the ringer switch (D)
to the on or off position.
7
ON OFF
Lifeline 400 user guide q6 18/2/04 10:56 am Page 8
Installation Advice
USING EXTENSION PHONES
• Plug all extension phones into
Lifeline 400 to ensure
disconnection of normal
telephone calls
when an alarm
call is made.
USING CORDLESS PHONES
USING SMART BOXES/MODEMS
• Always plug the Lifeline 400
directly to the main telephone
socket. Equipment such as
modems/smart boxes
should be connected via the
Lifeline 400.
MAXIMISING AERIAL RANGE
• To maximise aerial
range, ensure that it is
positioned behind the
back of the Lifeline 400.
25 - 50 metres typical range
• Ensure that the base/charger,
which is registered to all handsets
in use, is connected
to the Lifeline 400,
via the telephone
adaptor (B).
8
Smart box/modem
2 way socket (not supplied)
Lifeline 400 user guide q6 18/2/04 10:56 am Page 9
9
PERIPHERALS AND SENSORS
PROGRAMMING A PLUG AND PLAY RADIO PERIPHERAL
• The Lifeline 400 can be used with an extensive range of peripherals and sensors to provide a
comprehensive monitoring solution, tailored to the needs of each individual user.
Intruder/Inactivity Sensor
CO Detector
Pressure Mat
Flood Detector
Pull Cord
GEM-Special needs
Personal Radio Trigger
Fall Detector
STEP 1 • Press the green cancel key for 5 seconds, the
Lifeline 400 will bleep once. Release the cancel
key, the Lifeline 400 bleeps twice.
STEP 2 • Press the green cancel key again for a further 3 seconds,
the Lifeline 400 bleeps once. Release the cancel key,
the Lifeline 400 bleeps twice.
STEP 3 • Activate the peripheral - Lifeline 400
will bleep to confirm acceptance.
STEP 4 • Press and release the green cancel key. The Lifeline 400
will bleep.
STEP 5 • Make a test call using the programmed peripheral.
Smoke Detector
Lifeline 400 user guide q6 18/2/04 10:56 am Page 10
Making an Alarm Call
STEP 1
• To raise an alarm call press
the radio trigger or the alarm
button on the Lifeline 400.
10
Lifeline 400 user guide q6 18/2/04 10:57 am Page 11
