TTS Easi-Scope 2 Manuel utilisateur
User Guide
Easi-Scope 2 User Guide
1
Warnings
Please retain these instructions for future reference
Easi-Scope 2 contains a non-replaceable, rechargeable
battery
Do not attempt to remove the battery
In the event of an electro-static discharge, your
Easi-Scope 2 may malfunction. In this case, please
switch it off and then back on again
Warranty is void if the case is opened for any reason
The warranty does not cover any data loss nor any
consequential loss of information
Features
Easi-Scope 2 is a USB Wireless Microscope which uses the
2.4GHz frequency band to transmit digital images of up to 640 x
480 resolution with a range of over 10m. The USB receiver of
your Easi-Scope 2 can pair with up to four (4) Easi-Scope 2s
simultaneously and allow you to switch between the multiple
paired devices.
Easi-Scope 2 User Guide
2
Package Contents
Easi-Scope 2
×1
USB Receiver
×1
Installation CD
×1
User Manual
×1
USB Charging Cable
×1
Easi-Scope 2 User Guide
3
Minimum Requirements
1.8 GHz Intel / AMD Processor;
256 Mbytes of RAM;
USB Version 2.0;
A Compact Disc Drive;
Supported Operating Systems
Windows XP SP3, Windows Vista and Windows 7.
Part and Control Locations
1.
Snap Button
2.
Focusing Dial
3.
Power / Pairing Button
4.
USB Socket
5.
Objective Lens Tube
6.
LED Illumination
7.
Status Indicator
8.
Channel Indicator
9.
Channel Select/Pairing Button
Easi-Scope 2 User Guide
4
Installing Hardware Driver and Application
Plug your USB Receiver into your computer and wait for
the automatic Windows hardware installation to finish.
Insert the Installation CD into your optical drive and the
Easi-Scope 2 Installer should launch automatically. If
this doesn’t start, go to ―My Computer‖, select the CD
drive and double click on setup.exe
When the Easi-Scope 2 InstallShield Wizard appears,
Click Next.
Wait for installation to be completed and then click
―Finish‖ to close the Easi-Scope 2 InstallShield Wizard.
Using your Easi-Scope 2
Charging your Easi-Scope 2
Your Easi-Scope 2 is equipped with a built-in rechargeable
battery which is charged using the mini-USB connector on the
side of your Easi-Scope 2. Fully charge the battery before your
first use.
To Charge the battery, plug-in the supplied USB cable to your
Easi-Scope 2 and to your computer. When charging your Easi-
Scope 2, the Status Indicator on your Easi-Scope 2 lights up until
the battery is fully charged.
Easi-Scope 2 User Guide
5
If the battery of your Easi-Scope 2 is running low, the Status
Indicator flashes slowly.
Note: It is recommended that you do not partially charge the
battery and that you fully charge the battery every time you
charge it.
Start Up
Start up your computer.
Plug in your Easi-Scope 2 USB Receiver to your
computer.
Switch ON your Easi-Scope 2 by pressing the
Power/Pairing button briefly.
Easi-Scope 2 User Guide
6
Pairing
Once your Easi-Scope 2 has started up, you may need to pair
your Easi-Scope 2 with your USB Receiver if:
You are using your Easi-Scope 2 for the first time or,
Your Easi-Scope 2 has previously been paired with another
USB Receiver.
The pairing procedure is as followed:
Start up your computer, Plug in your USB Receiver,
launch your Easi-Scope 2 application and switch ON
your Easi-Scope 2.
Press and Hold the Power/Pairing Button on your Easi-
Scope 2 for seven (7) seconds until the Status Indicator
flashes#rapidly, which indicated that your Easi-Scope 2
has entered Pairing Mode*.
Press and Hold the Pairing Button on the USB Receiver
for three (3) seconds until the Channel Indicator LED
flashes rapidly, which indicated that your USB Receiver
has entered Pairing Mode*.
Once both devices enter pairing mode, they will initiate
the pairing process. You will shortly be able to see the
image in your Easi-Scope 2 application.
Easi-Scope 2 User Guide
7
* Pairing mode timeout is set to be 15 seconds on your Easi
Scope 2 and your USB Receiver. If pairing is not successful
within this period, your devices will return to their normal state
without being paired. Repeat steps 2 to 4 to pair your devices
again.
# The Status Indicator will not flash if you are charging the battery
of your Easi-Scope 2.
Pairing multiple Easi-Scope 2s
Your Easi-Scope 2 USB Receivers are capable of pairing up to
four (4) Easi-Scope 2s and allow you to switch between the
image sources. To pair multiple Easi-Scope 2s, follow the
procedure below.
Pair the first Easi-Scope 2 using the pairing procedure
described in the previous section.
Once completed, click the Channel Select/Pairing Button
once to switch to the next pairing channel.
The Channel Indicator LED on the USB Receiver will
move to the next channel.
Repeat the pairing procedure to pair a 2nd Easi-Scope 2.
Repeat step 2-3 to pair up to four (4) Easi-Scope 2s.
Easi-Scope 2 User Guide
8
Using the Easi-Scope 2 with Easi-Scope 2 Application
Launching the Application

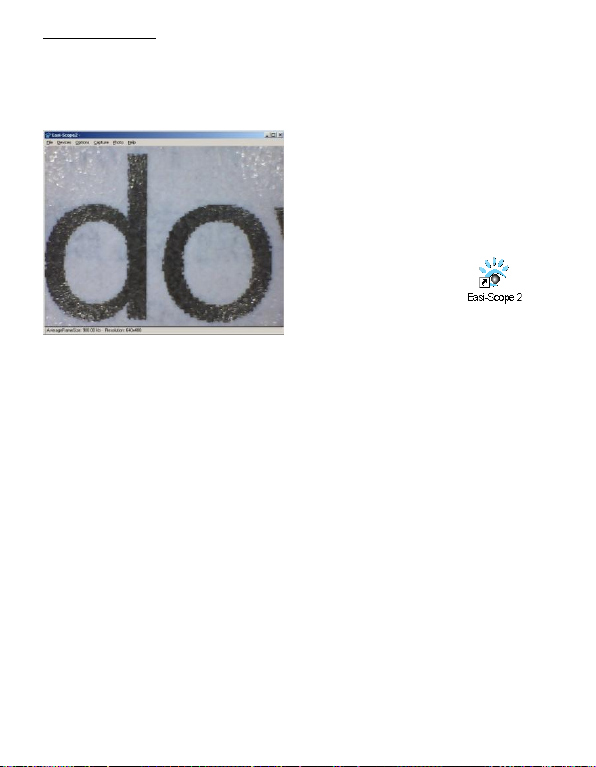

Launch your Easi-Scope 2
application by double clicking on
the Easi-Scope 2 icon. The
Easi-Scope 2 Application
Window appears as shown.
Easi-Scope 2 User Guide
9
Taking a Photo
To take a photo of the image
you are viewing, press the Snap Button
on your Easi-Scope 2.

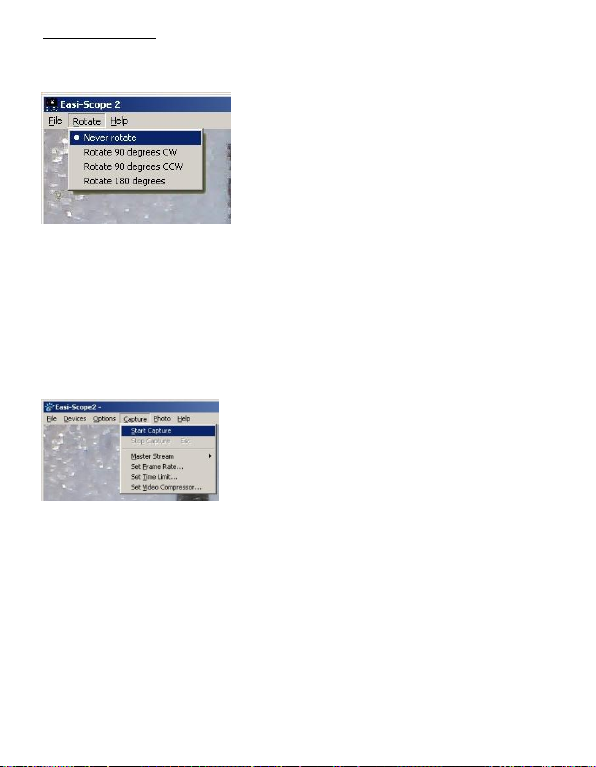

A new window will pop up. Before saving your photo,
you may rotate your photo as you wish using the
―Rotate‖menu.
Click ―File‖then select ―Save As‖
Recording a Video
To record a video, click Capture
then select Start Capture.
