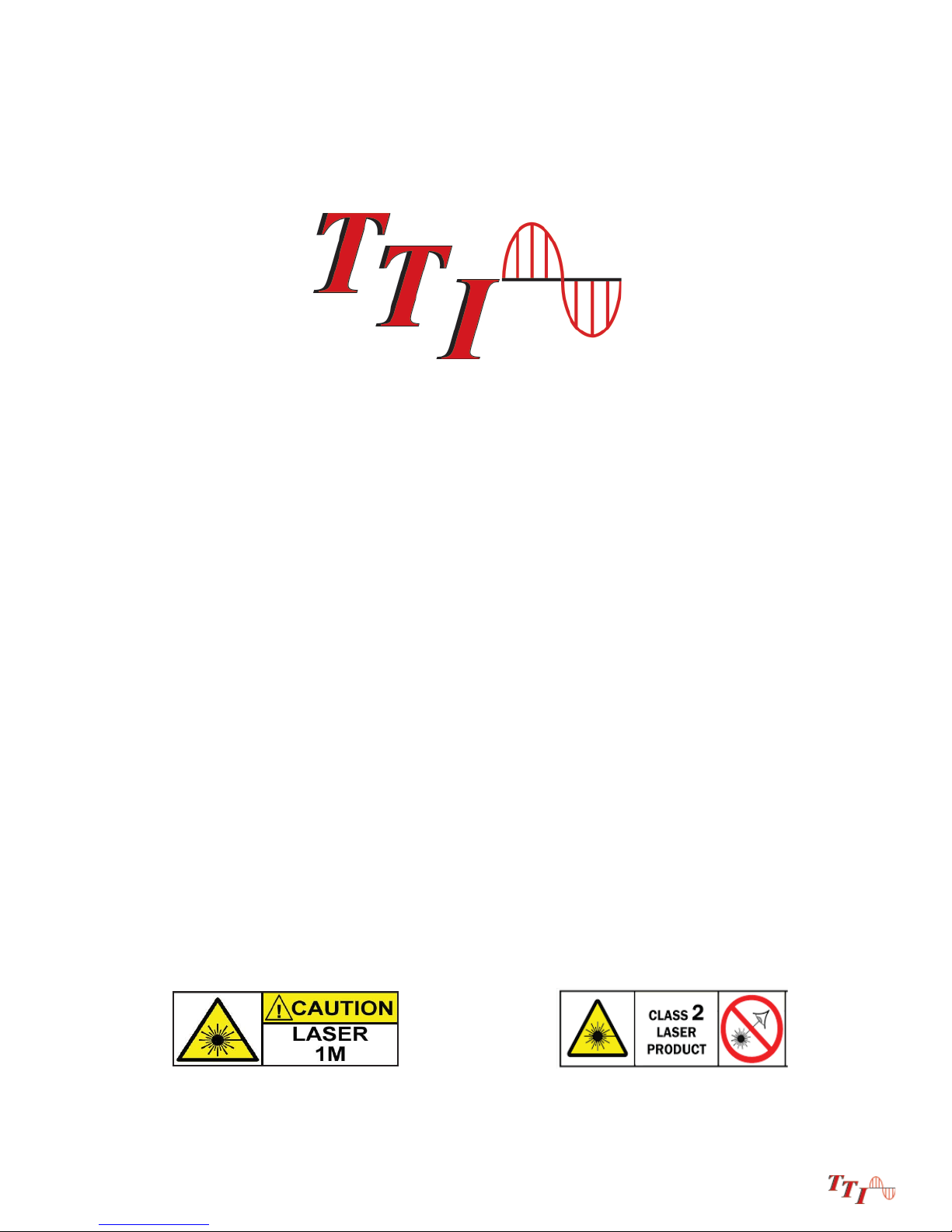

TTI FTE6100 Manuel utilisateur

Revision A

05/2017

FTE6100

Tunable Laser Source

User's Guide

Information contained in this manual is believed to be accurate and reliable. However, no responsibility is

assumed by Terahertz Technologies Inc. for its use nor for any infringements of patents or other rights of third

parties that may result from its use. No license is granted by implication or otherwise under any patent rights of

Teraher tz Technologies Inc..

The information contained in the publications is subject to change without notice.

This equipment contains Class 1M and Class 2 Lasers

1. Using This Manual.….....…………................................……....................................................….…………………1

2. Safety...................…...................................................…….………..............................…………………...…………2

3. TLS Quick Start Guide...........................................................................................…….……..…...................……4

4. Introduction ...........….........……................................................................................................…….……...……..5

5. Inspection and Identiﬁcation..................................................................................................………………..……6

5.1Inspection

5.2Identiﬁcation and Conﬁguration

6. FTE-6100 Description…….….................…….................................................................……...........……….7

6.1 TLS Physical Description

InstrumentEnclosure

FrontPanel

TopPlate

6.2 Home Screen Display

6.3 Power Requirements

6.4 Battery Replacement

7. Tunable Laser Source (TLS) Operation.................................................….................................…...................10

7.1 Enter TLS Mode

7.2 TLS Screen Description

7.3 Touch Screen Operation

7.4 Set Parameters

SetOutputUnits

SetStepSize

PowerLevel

DwellTime

Set Low and High End Laser Output

Manual/CWOperation

SweepOperation

7.5 Exit Tunable Laser Feature

8. Video Scope....................................................................….................................….............................................14

8.1 Entering Video Scope Function

8.2 Video Scope Display

8.3 Video Scope File/Help Icon Menu

Home

QuickSave

ProjectManagement

FileManagement

Help

Chapter PAGE

PAGE

(Continued)

Chapter Table of Contents

8.4 Video Scope Operations Icon Menu

Grading Rings

Pass/FailLabel

Brightness

8.5 Video Scope Operation

VideoProbeTips

Viewing/FocusingaConnector

Centering a Connector Image

PausingImageScan

GradingRings

ManualPass/Fail

Marking Points of Contamination

AutoPass/Fail

Exiting Video Scope Operation

8.6 Pass/Fail Criteria Tables

Fiber End Face Criteria Table for Angled PC Polished Connectors

Fiber End Face Criteria Table for Ultra PC Polished Connectors

Fiber End Face Criteria Table for PC Polished Connectors

9. Visual Fault Locator..............................................................................................................................................19

13.1VFLSafety

13.2 VFL Description

13.3 VFL Operation

10. Speciﬁcations.........................…...................................................…..............................................…..................20

Tunable Laser Source Speciﬁcations

Visual Fault Locator Speciﬁcations

GeneralSpeciﬁcations

11. Repair/Warranty.......................................................................................…..................................…...................22

11.1RepairInformation

11.2WarrantyInformation

12. Version Control........................….........................................................................................................................23

1FTE-6100 User's Guide Rev A 5/2017

This manual contains operation information for the Terahertz Technologies Inc. FTE-6100-DWDM Tunable

Laser Source. This tunable source uses a resistive style touch screen and only proper stylus devices should

be used when operating this unit.

Warning

A warning alerts to situations that could cause personal injury.

Caution

A caution alerts to situations that may cause damage to the equipment or produce poor testing condi-

tions resulting in inaccurate test results.

Note

A special annotation that will assist the user with operational features.

Chapter 1 Using This Manual

There are warnings, cautions and notes posted throughout this manual.

Please read and follow all warning and caution information noted in this manual.

Precautions

FTE-6100 User's Guide Rev A 5/20172

This product has been designed and tested in accordance with the manufacturer’s safety standards, and has

been supplied in a safe condition.

This document contains information that must be followed by the user to ensure safe operation and to maintain

the product in a safe condition. Failure to follow these safety warnings and cautions can result in harm to the

user or damage to the instrument.

Warning

Personnel should always be aware when working with fiber optic test equipment that active fibers may

be present, therefore infrared optical energy may be present.

Warning

Never look directly into the end of a connected fiber optic cable or fiber optic interface of optical test

equipment, to do so could expose the user to laser radiation and could result in personal injury.

Warning

To Prevent Fire or Shock Hazard:

Chapter 3 of this manual is a quick start guide. Prior to using the quick start guide or operat-

ing the equipment in any way, it is highly suggested the user reads all safety information.

Chapter 2 Safety

Do not install battery types other than those speciﬁed by the manufacturer

Do not use the charger without the batteries installed

Do not expose the battery charger to rain or excessive moisture

Do not use the AC adapter when there are signs of damage to the enclosure or cord

Ensure the correct charger is being used for the local line voltage

Do not use any other charger than the one provided with this instrument.

The information in this chapter pertains to safety consideration of OTDRs in general.

3FTE-6100 User's Guide Rev A 5/2017

Chapter 2 Safety

Laser Safety

The Tunable Laser Source has been conﬁgured to provide

laser radiation in the C Band of operation. (1530-1565nm) L

Band may be available upon request with a range of (1565-

1625nm). Please see the warning label in ﬁgure 1.1. This is

displayed on the left hand side of the body of the TLS. The unit

has been designed to comply with 21 CFR (Code of Federal

Regulations) 1040.10 and 1040.11, for Class 1M emission

limits. Although Class 1 levels are not considered to be hazardous, we suggest limiting exposure by

never looking directly into the optical aperture. Also, do not under any circumstance view or inspect the

laser output ﬁbers, connectors or the ﬁber under test through collimating or focusing optics unless the

unit is turned off, batteries are removed and the power adapter is disconnected.

Fig 2.1

The FTE6000 also contains a visual fault locator. The VFL

is a Class 2 laser. Class 2 lasers are considered safe for

normal operation, the output power is below 1 milliwatt. All

Class 2 lasers emit visible light only.

SAFE USE GUIDANCE - GENERAL

A Class 2 laser is relatively weak. It normally would not

harm an eye unless a person deliberately stared into the beam. Laser protective eyewear is normally not

necessary. A Class 2 laser is not a skin or materials burn hazard.

However, even a Class 2 laser can be a distraction, glare or flash blindness hazard for pilots and drivers.

NEVER aim any laser towards an aircraft or vehicle that is in motion. This is unsafe and is illegal.

Fig 2.2

FTE-6100 User's Guide Rev A 5/20174

Chapter 3 TLS Quick Start Guide

Prior to any operation please read the laser safety section of this chapter.

To operate the TLS at a speciﬁc wavelength/frequency/channel in CW mode follow this quick start

guide.

Touch the TLS icon on the Home screen.

The Laser Output is displayed in the center of the screen. Touch this value to cycle through units of,

Wavelength (nm), Frequency (THz) and Channel (Ch). 0.4nm (0.05THz), 0.8nm (0.10THz) or 1.6nm

(0.20THz).

Touch and hold the blue wavelength/frequency/channel selector on the scale. Drag the selector to

the desired output value.

Touch the step size indicator to cycle through step sizes until set at 0.40nm for wavelength, 50 GHz

for frequency or 0.5 Ch for channel is displayed.

Touch the power value and a numeric keypad will be displayed. Enter the desired power value within

the ranges set at the top of the display and touch OK.

Touch the Laser icon to energize the laser in a CW mode. Touch the Laser icon a second time to turn

off the laser.

5FTE-6100 User's Guide Rev A 5/2017

Dear Valued Customer,

Thank you for choosing Terahertz Technologies Inc. for your ﬁber optic testing

requirements. Our professional staff is available to answer any questions or provide

assistance that you require. We, at Terahertz Technologies Inc., strive to provide

premier customer care and technical support by providing timely responsiveness and

training. We are proud of our quality and high standards and assure you, our customer,

the most user friendly and affordable ﬁber optic solutions to meet individual needs.

Chapter 4 Introduction

FTE-6100 User's Guide Rev A 5/20176

Before shipment, this instrument was inspected and found to be in perfect working order and free of

defects.

The shipping carton contains the following:

1. TLS with Protective boot

2. Universal AC/DC charger with interchangeable mains

3. USB cable

4. Manual on CD.

5. Set of interchangeable adapters, SC, and FC.

Fig 5.1

Chapter 5 Inspection and Identiﬁcation

5.1 Inspection

The instrument’s Model/Part Number, Serial Number and Date of Manufacture are indicated on a la-

bel located on the back of the unit. The instrument’s history is ﬁled at the factory by model/part num-

ber and serial number. The unit's serial number is also located on the top plate just above the USB

Port.

5.2 Identiﬁcation and Conﬁguration

7FTE-6100 User's Guide Rev A 5/2017

Front Panel

Power Button

Color Touch Screen

Chapter 6 Description

6.1 TLS Physical Description

Fig 6.1

Instrument Enclosure

The FTE6100 is packaged in a rugged housing which is further protected with a rubberized boot.

Although the front panel is weather resistant, care must be taken to avoid liquids and contaminants

around the fragile optical and electrical connectors, and the glass display. Use a mild cleaning agent

and soft damp cloth to clean up the panels and the outside case. See the maintenance section to

clean the optical connector. NEVER open the instrument for cleaning. Return to the factory for servic-

ing if necessary.

Protective Rubber Boot

Top panel

Visual Fault Locator

Power Jack

OTDR Port

Video Probe Port

USB Port

Unit Serial Number

Fig 6.2

Battery Charge

Indicator
